Bently Nevada 330104-00-24-50-02-00 Retrofit Proximitor for 3300

Bently Nevada 330104-00-24-50-02-00 Retrofit Proximitor for 3300 Series: Legacy-Compatible Vibration Monitoring Upgrade

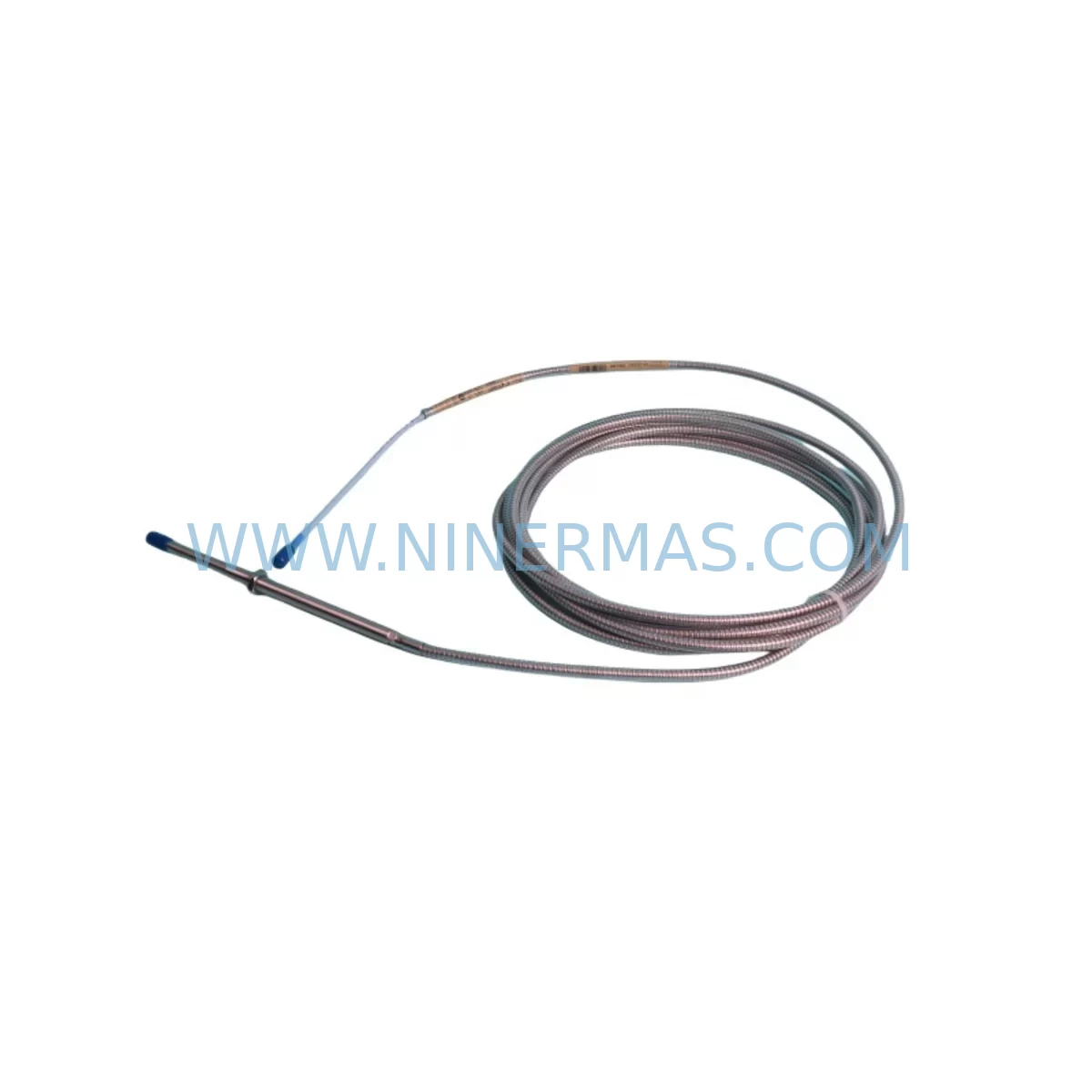

The Bently Nevada 330104-00-24-50-02-00 is a Proximitor sensor module designed for eddy-current proximity measurement within the 3300 Series vibration monitoring platform. As legacy 3300 Series installations approach end-of-support milestones, plant engineers and reliability teams are increasingly sourcing retrofit-compatible units to extend operational life without committing to a full system overhaul. This module provides a direct-fit replacement path for aging or failed Proximitor assemblies, maintaining signal chain integrity across radial vibration, axial position, and differential expansion measurement loops.

Each unit supplied by NINERMAS undergoes pre-shipment functional verification, including output voltage linearity checks, gap voltage calibration confirmation, and cable shield continuity testing. A 12-month warranty is included with every shipment, covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330104-00-24-50-02-00 within an operating plant requires a structured approach that accounts for the full signal chain — from the probe tip to the monitor card output and ultimately to the DCS or safety system. In a typical 3300 Series installation, the Proximitor sits between the eddy-current probe (commonly a 330130-080-00-00 or 330180-X0-00 extension cable assembly) and the monitor card, such as the 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor. Before removing the failed unit, technicians should document the existing gap voltage reading, the OK relay status, and the alarm/danger setpoints stored in the monitor card — these values must be re-entered or verified after the replacement module is seated.

Power supply capacity is a frequent oversight during retrofit work. The 3300 Series rack relies on dedicated -24 VDC rails supplied by modules such as the 3300/15 Power Supply. If the rack has been expanded with additional I/O cards or communication modules since original commissioning, available headroom on the power rail should be confirmed before adding or swapping Proximitor units. Similarly, if the control cabinet houses a 3300/55 Keyphasor module for phase reference, its wiring and signal routing should remain undisturbed during the swap to avoid disrupting synchronous vibration analysis across the entire train.

For plants migrating from older 3300 Series racks toward the System 1 Evolution platform or integrating with a Bently Nevada 3500 Series rack, the 330104-00-24-50-02-00 can serve as an interim solution — maintaining measurement continuity on legacy trains while the broader migration is planned. In these hybrid environments, the Proximitor output is often fed into a signal conditioner or marshalling panel before reaching the new DCS I/O cards, preserving the 4–20 mA loop without requiring immediate reprogramming of the historian or alarm management system.

Wiring adaptation is another critical checkpoint. The coaxial cable from the probe assembly connects to the Proximitor via a standard BNC or threaded connector; the output side uses the rack backplane edge connector. If the existing cable harness shows signs of insulation degradation or connector corrosion — common in high-temperature or high-humidity environments — replacement with a new 330130 series cable assembly should be planned concurrently. Attempting to reuse a marginal cable with a new Proximitor module can produce intermittent OK relay trips that are difficult to diagnose under time pressure.

Where the 3300 Series rack also houses a 3300/46 or 3300/50 Temperature Monitor alongside the vibration channels, the retrofit window should be used to inspect terminal block torque values and verify that thermocouple or RTD wiring has not migrated into adjacent vibration signal terminals — a wiring error that can cause spurious high-vibration alarms immediately after restart. If the plant uses a Modbus or FOUNDATION Fieldbus gateway card within the same cabinet to relay vibration data to a SCADA system, confirm that the gateway’s polling configuration references the correct monitor card slot addresses before the replacement unit is powered up.

Downtime Control During System Migration

Minimizing unplanned downtime during a Proximitor replacement on a running train requires preparation that begins well before the maintenance window opens. The first priority is obtaining a pre-tested, verified replacement unit — such as the 330104-00-24-50-02-00 supplied by NINERMAS — so that the swap itself takes minutes rather than hours spent troubleshooting an untested spare.

Before the outage, capture a full screenshot or printout of the monitor card configuration, including gap voltage, scale factor, full-scale range, and all alarm setpoints. If the plant uses System 1 software for online monitoring, export the current channel configuration file so it can be reloaded or compared after the swap. For sites where the 3300 Series rack feeds a safety instrumented system (SIS) via hardwired relay outputs, coordinate with the SIS engineer to place the relevant voting logic in bypass or maintenance override before breaking the Proximitor circuit — this prevents a spurious trip from propagating to the emergency shutdown system.

During the swap, keep the probe and extension cable assembly connected and stationary; only the Proximitor module itself should be exchanged. After seating the new unit, allow a 5-minute warm-up period before reading the gap voltage — eddy-current Proximitors require thermal stabilization to produce a stable output. Once the gap voltage is confirmed within the acceptable window (typically -10 VDC ± 1 VDC for a standard 5 mm gap), re-enable any bypassed SIS logic and restore normal monitoring. Document the as-found and as-left gap voltages in the maintenance management system to support future trend analysis and predictive maintenance planning.

For multi-train facilities where several 3300 Series racks are installed, consider batching Proximitor replacements across a planned turnaround rather than responding reactively to individual failures. Holding a small buffer stock of the 330104-00-24-50-02-00 and related probe assemblies reduces mean time to repair (MTTR) and eliminates the lead-time risk associated with sourcing obsolete or long-delivery components during an unplanned outage.

Retrofit Support FAQ

Q1: Is the 330104-00-24-50-02-00 a direct drop-in replacement for other 330104 suffix variants?
In most cases, yes — the 330104 family shares the same physical form factor and backplane connector. However, the suffix digits encode cable length, sensitivity range, and temperature rating. Confirm that the replacement suffix matches the probe and extension cable assembly in use. NINERMAS can assist with cross-reference verification before shipment.

Q2: What commissioning steps are required after installation?
After seating the module, verify the gap voltage at the Proximitor output connector using a calibrated voltmeter. Confirm the OK relay energizes within the expected gap range. Re-enter or verify alarm and danger setpoints in the associated 3300 Series monitor card. If the system feeds a DCS historian, confirm that the channel tag is returning a valid engineering-unit value before closing the maintenance work order.

Q3: Can this unit be used with non-Bently Nevada probes or extension cables?
The 330104-00-24-50-02-00 is calibrated for use with matched Bently Nevada probe and extension cable assemblies. Using third-party probes may shift the gap voltage curve and produce inaccurate displacement readings. If third-party probes are already installed, a field calibration procedure using a calibration target and micrometer is required to establish a corrected scale factor.

Q4: What does the 12-month warranty cover, and how is inventory availability managed?
The 12-month warranty covers functional failure of the module under normal operating conditions, including output signal loss, OK relay malfunction, and connector failure. Physical damage caused by incorrect installation, overvoltage, or environmental exposure beyond the module’s rated limits is excluded. NINERMAS maintains buffer stock of the 330104-00-24-50-02-00 to support urgent retrofit and breakdown requirements; lead times and current availability can be confirmed by contacting the sales team directly.
