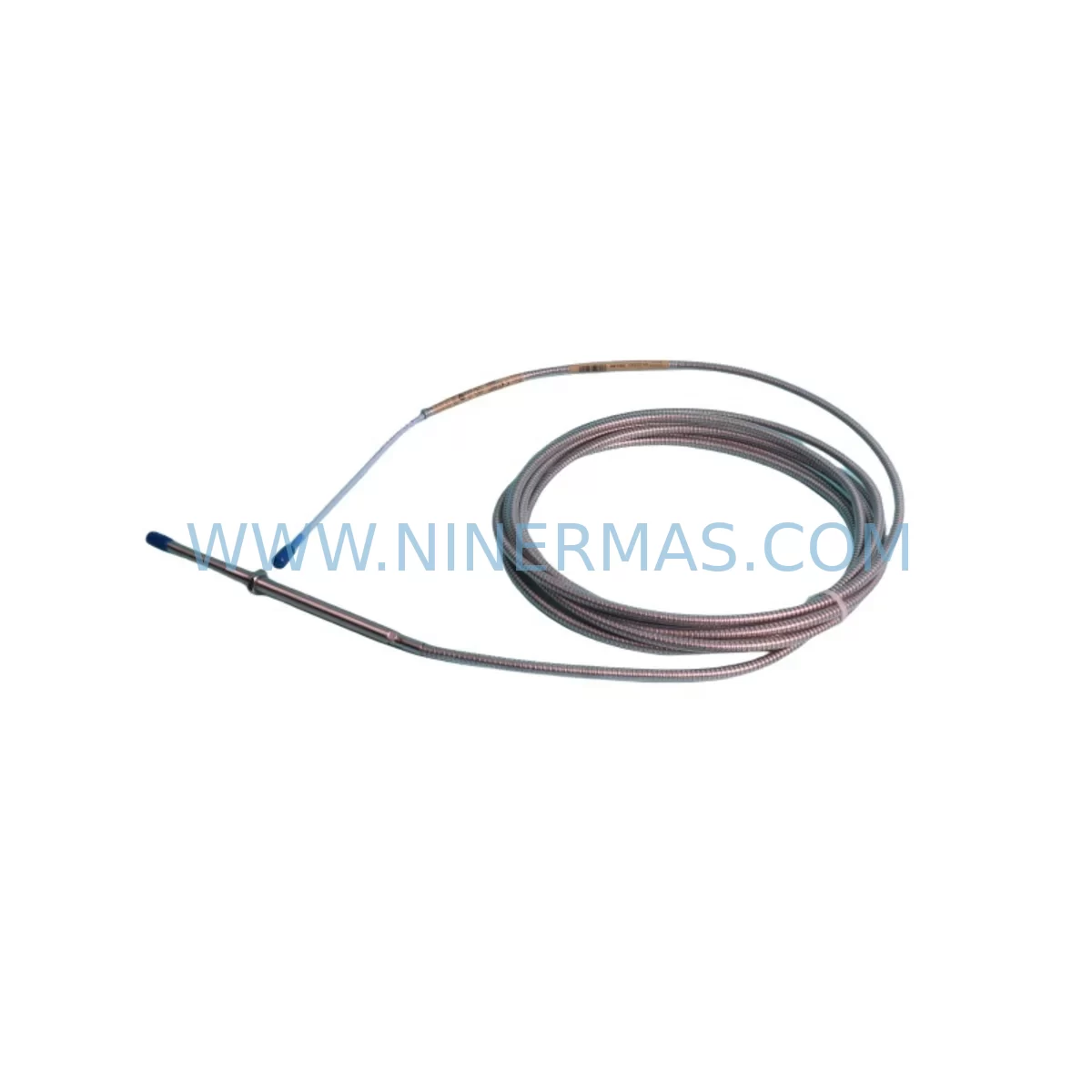

The Bently Nevada 330104-00-22-50-02-00 is a ruggedized proximity transducer module engineered for continuous vibration and position monitoring in demanding industrial environments. As legacy Bently Nevada 3300 Series systems approach end-of-life and original spare parts become increasingly scarce, the 330104-00-22-50-02-00 serves as a critical retrofit solution — enabling maintenance teams to restore full monitoring capability without replacing the entire machinery protection system.

This transducer is fully compatible with the Bently Nevada 3300 XL 8mm Proximity Transducer System and integrates directly with existing 3300/16 Monitor modules, 3500 Series rack-based monitoring systems, and associated Proximitor® sensor assemblies. Whether you are managing a turbine, compressor, pump, or motor train, this module delivers the signal integrity and environmental resilience required for uninterrupted plant operations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-00-22-50-02-00 into a legacy machinery protection system requires a structured approach. Before removing the existing transducer, maintenance engineers should document the current gap voltage reading at the Proximitor® sensor output — typically between –10 VDC and –18 VDC for a properly gapped probe — and record this as the baseline for post-installation verification.

The 330104-00-22-50-02-00 is designed to work within the complete Bently Nevada 3300 XL transducer system, which includes the Proximitor® sensor (such as the 330180 series), the extension cable (such as the 330130 series armored extension), and the monitor module housed in the 3500 rack. When replacing only the transducer probe, the existing extension cable and Proximitor® sensor can typically be retained, provided they are within calibration tolerance and show no signs of insulation degradation or connector corrosion.

For installations where the 3500/42M Proximitor®/Seismic Monitor or the 3500/40M Proximitor®/Seismic Monitor is in service, the replacement transducer must be re-gapped to the manufacturer’s recommended air gap — typically 1.0 mm to 1.5 mm for 8mm probes — and the output voltage re-verified at the monitor’s front-panel OK relay before returning the machine to service. If the associated 3500 rack also houses a 3500/22M Transient Data Interface or a 3500/32 4-Channel Relay Module, confirm that the relay setpoints and alarm thresholds remain unchanged after the transducer swap.

In older installations still running the Bently Nevada 3300/16 monitor, the signal conditioning circuitry may require recalibration after transducer replacement, particularly if the original probe had accumulated significant wear or if the machine’s shaft surface finish has changed due to rework. In these cases, a full static calibration using a calibration fixture is recommended before dynamic commissioning.

Where the plant’s condition monitoring data is fed into a DCS or SCADA platform via a 3500/92 Communication Gateway Module using Modbus RTU or Ethernet/IP, no protocol reconfiguration is typically required for a like-for-like transducer replacement. However, if the retrofit is part of a broader migration from the 3300 platform to the 3500 platform, the communication gateway configuration, tag mapping, and historian integration should be reviewed and updated accordingly.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing proximity transducers on running machinery protection systems. For critical rotating equipment, a hot-swap approach is not feasible — the machine must be safely shut down and isolated before the transducer is removed. However, careful pre-planning can compress the actual outage window to under two hours for a single-channel replacement.

Before the maintenance window opens, pre-stage the 330104-00-22-50-02-00 replacement transducer, verify its factory calibration certificate, and confirm the gap voltage specification matches the existing system configuration. Prepare the gapping tool, torque wrench, and coaxial connector cleaning kit in advance. If the installation involves a confined bearing housing, confirm that the probe tip clearance and the mounting boss depth are compatible with the replacement unit’s active sensing length.

During the swap, protect the original program logic in the 3500 rack by placing the affected channel in bypass mode via the rack’s configuration software before disconnecting the transducer. This prevents nuisance trips and preserves the integrity of the overall machinery protection logic while the channel is open. Once the new transducer is installed and gapped, restore the channel from bypass, verify the OK relay status, and confirm the vibration reading is within the expected baseline range before releasing the machine for restart.

For plants managing multiple simultaneous transducer replacements across a turbine train — for example, replacing probes on both the HP and LP turbine bearing positions — a phased approach is recommended: complete and verify one channel before proceeding to the next, to maintain partial monitoring coverage throughout the maintenance window.

Retrofit Support FAQ

Q1: Is the 330104-00-22-50-02-00 a direct drop-in replacement for other 330104 series variants?
A: The 330104-00-22-50-02-00 is part of the Bently Nevada 330104 proximity transducer family. Different suffix configurations indicate variations in cable length, connector type, and temperature rating. Before ordering, confirm that the cable length (2.2m for this variant), connector type, and temperature specification match your existing installation. In most cases, the probe body, thread size, and active sensing length are identical across the 330104 series, making cross-variant substitution straightforward with minor wiring adaptation.

Q2: What pre-shipment testing is performed on this unit?
A: Each 330104-00-22-50-02-00 unit is functionally tested prior to shipment. Testing includes output voltage verification at a calibrated gap distance, insulation resistance check on the coaxial cable, and connector integrity inspection. A calibration record is available upon request. Units are shipped in anti-static packaging with physical protection for the probe tip and connector.

Q3: Can this transducer be used with a Bently Nevada 3500/42 monitor without reconfiguring the rack?
A: Yes, provided the existing rack configuration is set for 8mm proximity transducer input and the system cable length (transducer + extension cable) falls within the Proximitor® sensor’s specified range. No rack reconfiguration is required for a like-for-like replacement. If the total cable length changes due to routing modifications, the Proximitor® sensor’s scale factor may need to be verified against the new total cable length.

Q4: What is the warranty coverage and what does it include?
A: This unit carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, premature component failure under normal operating conditions, and calibration drift beyond published specifications. It does not cover damage resulting from improper installation, mechanical impact, chemical exposure, or operation outside the rated temperature and voltage range. Warranty claims are processed with return authorization; replacement units are dispatched from available inventory upon claim approval.
