Bently Nevada 330104-00-20-50-02-00 Spare Part

Bently Nevada 330104-00-20-50-02-00 Service-Ready Spare Part for Industrial Maintenance

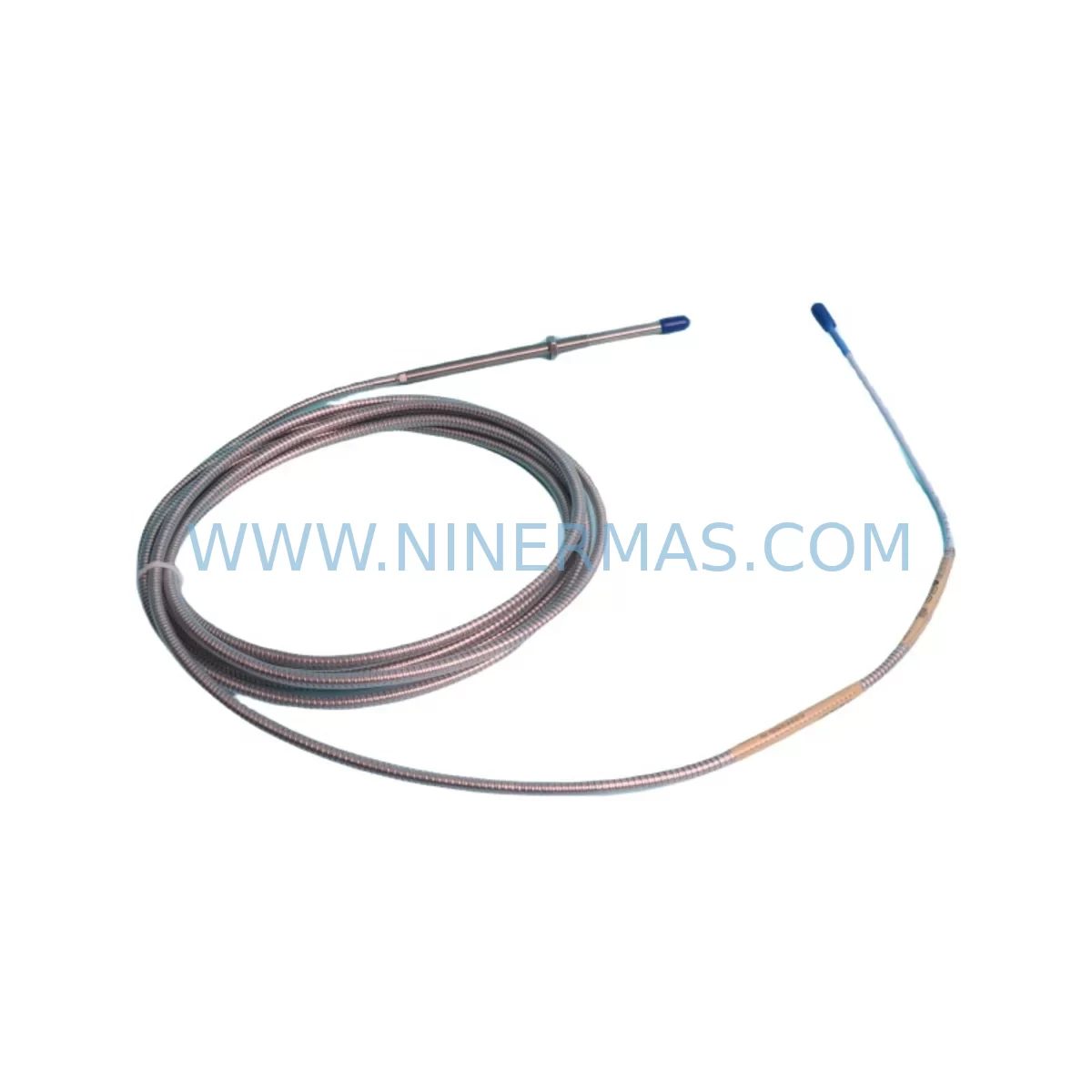

The Bently Nevada 330104-00-20-50-02-00 is a precision-engineered component within the renowned 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Designed for continuous operation in demanding industrial environments, this spare part is a critical asset for maintenance engineers managing turbines, compressors, pumps, and other rotating equipment where unplanned downtime carries significant operational and financial risk.

At NINERMAS, every unit of the 330104-00-20-50-02-00 is sourced as an original spare, pre-shipment tested, and backed by a 12-month warranty. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a strategic spare parts inventory, this component is available for immediate dispatch with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies the Bently Nevada 330104-00-20-50-02-00 as a replacement requirement, the scope of inspection should never be limited to the transducer alone. The 3300 XL system operates as an integrated measurement chain, and a fault or degradation in any adjacent component can mask true machinery condition or generate false alarms that disrupt production.

During a scheduled replacement of the 330104-00-20-50-02-00, engineers should simultaneously inspect the 3300 XL Extension Cable (330130 series) for insulation damage, connector corrosion, or impedance drift — particularly in high-vibration or high-temperature zones. The 3300 XL Proximitor Sensor (330180 series) should be checked for output voltage stability and gap voltage consistency, as a degraded Proximitor will compromise the accuracy of the new transducer.

At the monitor level, verify the Bently Nevada 3300/16 or 3300/20 Monitor Module for alarm setpoint integrity and channel calibration. If the plant runs a 3500 Series Rack System, inspect the 3500/42M Proximitor I/O Module and confirm that the rack backplane connectors are free of oxidation. For DCS-integrated installations, the 4–20 mA output signal conditioner and any associated signal isolators in the marshalling cabinet should be tested for linearity and loop integrity.

Power supply reliability is equally critical. The Bently Nevada 3300 XL system requires a stable -24 VDC supply; inspect the dedicated DC power supply module and its redundant backup for output ripple and voltage regulation. Loose terminal blocks on the DIN rail terminal strip within the junction box are a common source of intermittent faults that are often misattributed to the transducer itself.

For plants operating legacy TDXnet or System 1 condition monitoring software, confirm that the replacement transducer’s sensitivity factor (mV/mil or mV/µm) is correctly entered in the software configuration to avoid erroneous vibration trend data. If the machinery is also monitored for axial position, check the companion thrust position transducer (330105 series) and its gap setting simultaneously.

Procurement engineers building a strategic spare parts inventory for rotating machinery should consider stocking the 330104-00-20-50-02-00 alongside the 330130-080-00-00 Extension Cable, a spare 330180-X1-05 Proximitor Sensor, and at minimum one spare 3300/16 Monitor Module per critical train. This four-component kit covers the full measurement chain and enables rapid restoration of monitoring capability following any single-point failure.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel associated with the faulty transducer. Do not remove the probe while the machine is running unless the plant’s hot-swap procedure explicitly permits it.

Step 2 — Gap Measurement and Documentation: Before removing the old 330104-00-20-50-02-00, record the existing probe gap voltage (typically -10 VDC ± 1 VDC for a correctly gapped 8 mm probe on a steel target). This baseline will be used to verify the replacement installation.

Step 3 — Probe Removal and Thread Inspection: Remove the probe carefully. Inspect the mounting boss threads and clean with a thread chaser if necessary. Check the target area on the shaft for scoring or runout that may have contributed to the original failure.

Step 4 — Installation of Replacement Unit: Install the new 330104-00-20-50-02-00 and set the gap per the Bently Nevada installation drawing (typically 1.0–1.5 mm for 8 mm probes). Torque the locknut to specification. Reconnect the extension cable and verify connector seating.

Step 5 — Energize and Verify: Re-energize the monitor channel. Confirm gap voltage is within the acceptable range. Check that the monitor displays a valid vibration reading and that no alarms are active. Log the replacement in the CMMS with the new part serial number and installation date.

Step 6 — Return to Service: Clear the channel inhibit, restore normal monitoring, and confirm with the control room that the machinery health data is being received correctly by the DCS or condition monitoring system. The entire replacement process, when parts are pre-staged, typically takes under 45 minutes per measurement point — minimizing production impact significantly compared to waiting for emergency procurement.

Spare Parts Support FAQ

Q1: Is the 330104-00-20-50-02-00 compatible with both the 3300 XL and 3500 Series monitor racks?
The 330104-00-20-50-02-00 is natively designed for the Bently Nevada 3300 XL system. It is also compatible with 3500 Series racks when used with the appropriate I/O module (3500/42M or equivalent) configured for 8 mm probe sensitivity. Always verify the monitor channel’s input configuration before installation. NINERMAS technical support can assist with compatibility confirmation prior to order.

Q2: What pre-shipment testing does NINERMAS perform on this spare part?
Every 330104-00-20-50-02-00 unit shipped by NINERMAS undergoes functional verification including output signal check, insulation resistance test, and connector integrity inspection. A test report is available upon request. All units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order number, installation date, and a description of the failure. Replacement units are dispatched upon claim approval, typically within 5 business days.

Q4: Can NINERMAS support long-term supply agreements for the 330104-00-20-50-02-00?
Yes. NINERMAS offers long-term supply agreements for critical spare parts including the 330104-00-20-50-02-00, with options for consignment stock, annual blanket orders, and priority allocation during periods of market shortage. This is particularly valuable for plants operating multiple trains with 3300 XL monitoring systems, where a single procurement contract can cover the full spare parts requirement across all units. Contact our team to discuss a tailored supply arrangement.
