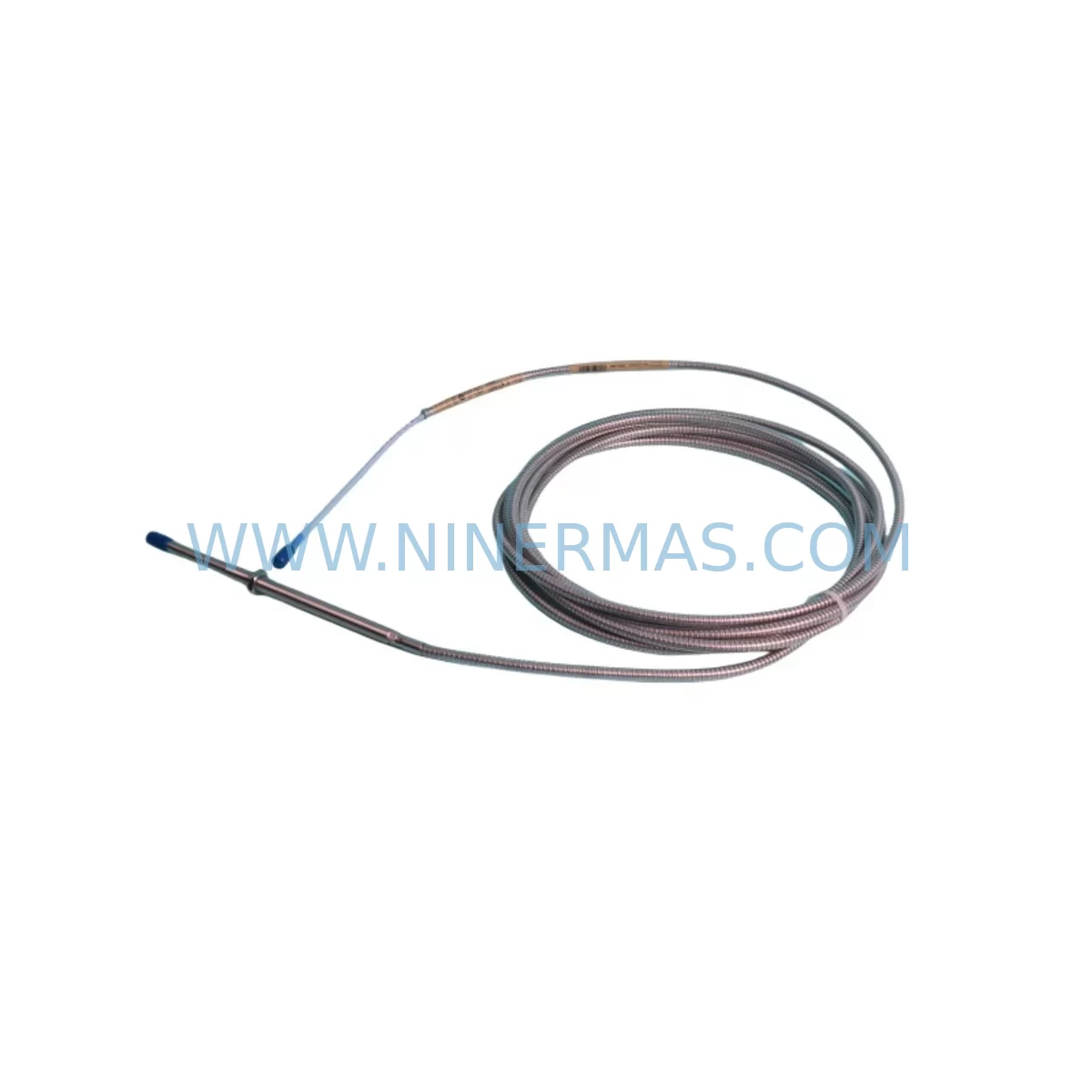

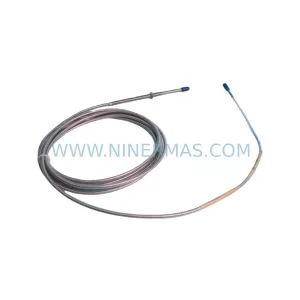

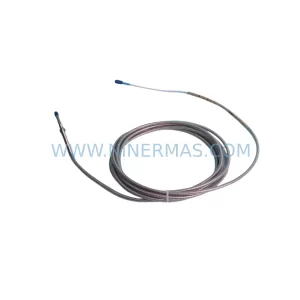

Bently Nevada 330104-00-19-90-02-00 Retrofit-Compatible Ruggedized 8mm Proximity Probe

Bently Nevada 330104-00-19-90-02-00 Retrofit-Compatible Ruggedized 8mm Proximity Probe: Legacy System Compatibility & Smooth Upgrade

The Bently Nevada 330104-00-19-90-02-00 is a ruggedized 8mm proximity probe module engineered for continuous shaft vibration and position monitoring in demanding industrial environments. As legacy machinery monitoring systems reach end-of-life, this probe serves as a direct retrofit-compatible replacement, enabling facilities to extend the operational life of their existing 3300 Series and 3500 Series monitoring platforms without requiring full system overhauls. Whether you are replacing a discontinued probe on a critical turbine train, upgrading a compressor monitoring cabinet, or restoring a mothballed production line, the 330104-00-19-90-02-00 delivers the signal integrity and mechanical durability required for uninterrupted plant operations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 330104-00-19-90-02-00 into an existing machinery protection system requires careful pre-installation planning to ensure signal continuity and avoid unplanned shutdowns. The probe is designed to work within the Bently Nevada 3300 XL ecosystem, pairing directly with the 330130 extension cable and the 330180 Proximitor sensor to form a complete eddy-current measurement chain. When retrofitting, engineers must first confirm that the existing Proximitor housing and junction box wiring remain intact, as reusing the original signal conditioner can significantly reduce installation time and cost.

In control cabinets housing the Bently Nevada 3500 rack system, the probe signal feeds into monitor modules such as the 3500/40M Proximitor Monitor or the 3500/42M Proximitor/Seismic Monitor. Before disconnecting the legacy probe, technicians should document the existing gap voltage reading and channel configuration stored in the 3500 rack’s System 1 software or Rack Configuration Software (RCS). This ensures that the replacement probe is calibrated to the same setpoints, preserving alarm and danger thresholds without requiring a full re-engineering of the protection logic.

For plants running older 3300 Series racks, the retrofit may also involve inspecting the 3300/16 Power Supply module to confirm it can sustain the additional load if multiple probes are being replaced simultaneously. In multi-channel installations — such as those monitoring both radial vibration and axial position on a single shaft — it is common to replace the 330104-00-19-90-02-00 alongside a companion probe on the Y-axis, both feeding into the same monitor card. Technicians should also verify that the 3500/20 Rack Interface Module firmware is current, as older firmware versions may not correctly interpret probe health diagnostics from newer replacement units.

Where the original installation used armored extension cables routed through conduit, the retrofit team should measure the total cable run from probe tip to Proximitor to ensure it falls within the specified range for the 330104 driver circuit — typically 5 meters for standard configurations. If the existing conduit run exceeds this, a signal isolator or barrier may be required to maintain measurement accuracy. In hazardous area installations, confirm that the replacement probe assembly carries the appropriate ATEX or IECEx certification to match the zone classification of the original equipment.

For facilities also upgrading their HMI layer, the probe retrofit is an ideal time to migrate from legacy System 1 Classic software to the current System 1 Evolution platform, which offers enhanced trend analysis and predictive maintenance dashboards. The 330104-00-19-90-02-00 is fully compatible with both platforms, ensuring a smooth data continuity path during the software transition.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement is a primary concern for maintenance teams operating continuous process equipment such as steam turbines, gas compressors, and centrifugal pumps. The 330104-00-19-90-02-00 is supplied pre-tested and gap-verified where possible, allowing field technicians to perform a hot-swap replacement during a scheduled maintenance window rather than an extended outage.

The recommended approach is to prepare the replacement probe assembly — including the 330130 extension cable and 330180 Proximitor — on the bench before the equipment is taken offline. Pre-setting the probe gap to the nominal -10 VDC output at 1.0 mm gap on a calibration fixture allows the field team to install and verify the probe within a single shift. Once installed, the 3500 rack’s bypass function can be used to temporarily inhibit the channel alarm while the final gap adjustment is made at the machine, preventing spurious trips during commissioning.

Where the original program logic in the DCS or safety system references specific probe channel tags, the replacement should not require any PLC or controller reprogramming, as the 330104-00-19-90-02-00 maintains the same analog output range as its predecessors. However, if the plant is simultaneously migrating from a legacy Bently Nevada 3300 rack to a 3500 rack, the I/O mapping and tag assignments in the control system will need to be updated to reflect the new rack addressing. In such cases, coordinating the probe replacement with the control system team to perform a parallel verification — running both the old and new systems simultaneously before cutover — is strongly recommended to protect the original control logic and reduce migration risk.

All units supplied by NINERMAS are subject to outgoing inspection and functional testing prior to shipment, with stock available for immediate dispatch to support urgent maintenance requirements. A 12-month warranty covers all supplied units against manufacturing defects, providing additional assurance for critical machinery protection applications.

Retrofit Support FAQ

Q1: Is the 330104-00-19-90-02-00 a direct replacement for my existing Bently Nevada 330104 series probe?
Yes. The 330104-00-19-90-02-00 is a direct retrofit replacement for other variants within the 330104 family. Confirm the extension cable length and Proximitor model (typically 330180) match your existing installation before ordering. Minor gap re-calibration at commissioning is standard practice.

Q2: What wiring changes are required when replacing the probe in an existing 3500 rack installation?
In most cases, no wiring changes are required if the existing junction box and extension cable are in good condition. The probe connector is compatible with standard 330130 extension cables. Technicians should inspect the cable shield continuity and verify the Proximitor output voltage after installation using a calibrated multimeter before re-enabling the monitor channel.

Q3: Has this unit been tested before shipment, and what warranty is provided?
All units supplied by NINERMAS undergo outgoing functional inspection prior to dispatch. A 12-month warranty from the date of shipment is provided, covering manufacturing defects. Units are available from stock for immediate shipment to support urgent maintenance and breakdown recovery situations.

Q4: Can this probe be used in a system that is being upgraded from a 3300 Series rack to a 3500 Series rack?
Yes. The 330104-00-19-90-02-00 is compatible with both the 3300 XL and 3500 Series monitoring platforms. During a rack migration, the probe and extension cable assembly can be retained while the rack, monitor modules, and power supply are upgraded. This approach reduces the scope of the mechanical retrofit and limits the risk of disturbing the probe installation on the machine.
