Bently Nevada 330104-00-16-10-02-CN Retrofit Proximity Probe

Bently Nevada 330104-00-16-10-02-CN Retrofit Proximity Probe: Legacy-Compatible Upgrade for Continuous Vibration Monitoring

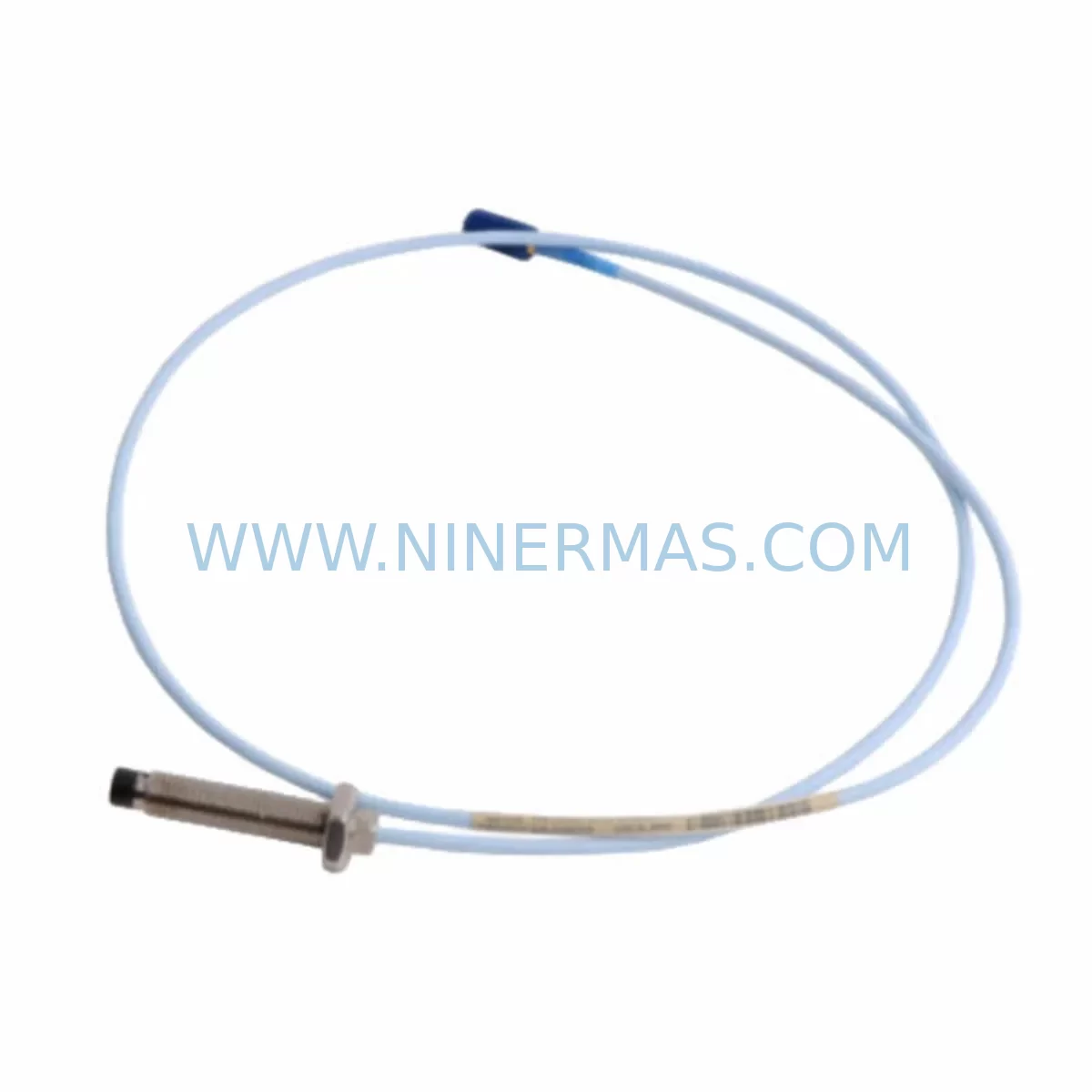

The Bently Nevada 330104-00-16-10-02-CN is a ruggedized proximity probe module engineered for demanding industrial environments where vibration monitoring is critical to machine health and process continuity. As part of the Bently Nevada 3300 Series proximity system platform, this probe is widely deployed in rotating machinery protection applications including steam turbines, gas compressors, centrifugal pumps, and large induction motors across petrochemical, power generation, and heavy manufacturing facilities.

With the 3300 Series approaching end-of-active-production status at many sites, procurement and maintenance teams are increasingly sourcing the 330104-00-16-10-02-CN as a direct retrofit replacement to extend the operational life of existing monitoring racks without requiring a full system migration. NINERMAS maintains verified stock of this module, pre-shipment tested and supplied with a 12-month warranty, supporting both emergency breakdown scenarios and planned maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in a live rotating machinery protection system requires careful coordination across multiple subsystem components. The 330104-00-16-10-02-CN probe interfaces directly with the Bently Nevada 330180-51-05 extension cable and the 330130-045-00-00 armored extension cable, both of which must be inspected for continuity and insulation integrity before the new probe is commissioned. In installations where the extension cable has been routed through conduit for extended periods, it is common to replace the cable assembly simultaneously to avoid a repeat outage.

The probe signal feeds into a Bently Nevada 3500/40M proximitor monitor or a 3500/42M velocity and acceleration monitor card seated in the 3500 Series rack. Before probe replacement, engineers should document the current gap voltage reading (typically –10 VDC at the nominal air gap) and confirm that the replacement probe produces an equivalent output under bench test conditions using a Bently Nevada 330910 proximitor or equivalent signal conditioner. This step is critical when the CN-suffix variant is being substituted for an earlier non-CN probe, as sensitivity curves may differ slightly.

For facilities running a Bently Nevada 3300 XL monitoring system, the rack configuration should be reviewed in System 1 software prior to the swap. Any channel-specific alarm setpoints, gap alarm thresholds, and direct vibration (DV) trip levels stored in the 3500/20 rack interface module must be backed up before the probe is disconnected. This protects against accidental parameter loss during the brief power interruption required to safely remove the probe from the bearing housing.

In control cabinet environments where the 3500 rack is co-located with a Bently Nevada 3500/15 power supply module, verify that the supply rail voltage remains stable during the probe swap. Voltage fluctuations during hot-swap procedures can trigger spurious alarms on adjacent channels monitoring thrust position or differential expansion. Coordinating with the DCS operator to suppress non-critical alarms during the maintenance window is standard practice.

Where the existing installation uses a Bently Nevada 330100-90-16-10-02-CN or similar earlier-generation probe, the physical replacement is typically straightforward — same thread pitch, same cable connector, same driver compatibility. However, the gap setting procedure must be repeated on-site using a calibrated gap tool, and the final gap voltage should be verified against the machine-specific baseline recorded in the predictive maintenance database before the protection system is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing proximity probes on critical rotating machinery. For the 330104-00-16-10-02-CN, the recommended approach is to pre-stage the replacement probe, extension cable, and any required mounting hardware at least 24 hours before the planned maintenance window. This allows the maintenance team to perform a bench-level functional check — confirming probe sensitivity, cable continuity, and connector integrity — before the machine is taken offline.

During the outage window, the sequence should follow: isolate the monitoring channel at the 3500/20 rack interface, remove the existing probe from the bearing housing, install and gap the replacement probe, reconnect the extension cable, restore rack power to the channel, and verify the gap voltage reading before re-enabling the protection trip function. This structured sequence typically allows a single-probe replacement to be completed within 60–90 minutes, keeping the overall maintenance window well within a planned 4-hour outage budget.

For facilities where the 3500 rack is integrated with a Honeywell Experion PKS or Emerson DeltaV distributed control system via Modbus or OPC-DA, the DCS historian should be configured to flag the maintenance period so that vibration data gaps are not misinterpreted as sensor failures during post-outage review. Retaining the original program logic and alarm configuration in the DCS throughout the probe swap ensures that the protection system returns to full operational status without requiring a re-commissioning cycle.

Where multiple probes are being replaced in a single outage — for example, replacing both X and Y radial vibration probes on a single bearing — the use of a pre-configured Bently Nevada 330104 probe kit with matched extension cables reduces the risk of mismatched sensitivity between channels. Post-replacement, a coast-down vibration signature should be recorded and compared against the pre-outage baseline to confirm that the new probes are tracking correctly before the machine is returned to full load.

Retrofit Support FAQ

Q1: Is the 330104-00-16-10-02-CN a direct drop-in replacement for earlier 330104 variants without the CN suffix?
In most cases, yes. The CN suffix denotes a ruggedized cable jacket specification suited for high-temperature or chemically aggressive environments. The probe tip geometry, thread pitch, connector type, and driver compatibility are identical to standard 330104 variants. However, the sensitivity specification should be verified against the driver datasheet before installation, as minor calibration differences may require a gap voltage re-check on the target shaft.

Q2: What pre-shipment testing is performed on the 330104-00-16-10-02-CN before dispatch?
Each unit supplied by NINERMAS undergoes a full functional test including probe sensitivity verification, cable insulation resistance check, and connector continuity test. A test record is available on request. Units are shipped in anti-static packaging with physical protection for the probe tip and cable connector. The 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Q3: Can this probe be used with a Bently Nevada 3500/40M monitor without reconfiguring the rack?
Yes, provided the existing rack channel is already configured for an 8mm eddy-current probe with the standard 3300 XL driver. No rack reconfiguration is required for a like-for-like probe replacement. If the channel was previously configured for a different probe diameter or a non-standard sensitivity range, the System 1 configuration file should be updated to reflect the new probe parameters before the protection trip is re-enabled.

Q4: What is the typical lead time and inventory availability for the 330104-00-16-10-02-CN?
NINERMAS maintains stock of the 330104-00-16-10-02-CN for immediate dispatch. Standard lead time for in-stock units is 3–5 business days for international shipments. For urgent breakdown requirements, expedited shipping options are available. Long-term supply agreements and consignment stock programs are available for facilities with recurring demand for 3300 Series proximity probe components.
