Bently Nevada 330104-00-15-10-01-CN Service-Ready Spare Part

Bently Nevada 330104-00-15-10-01-CN Service-Ready Spare Part for Industrial Maintenance

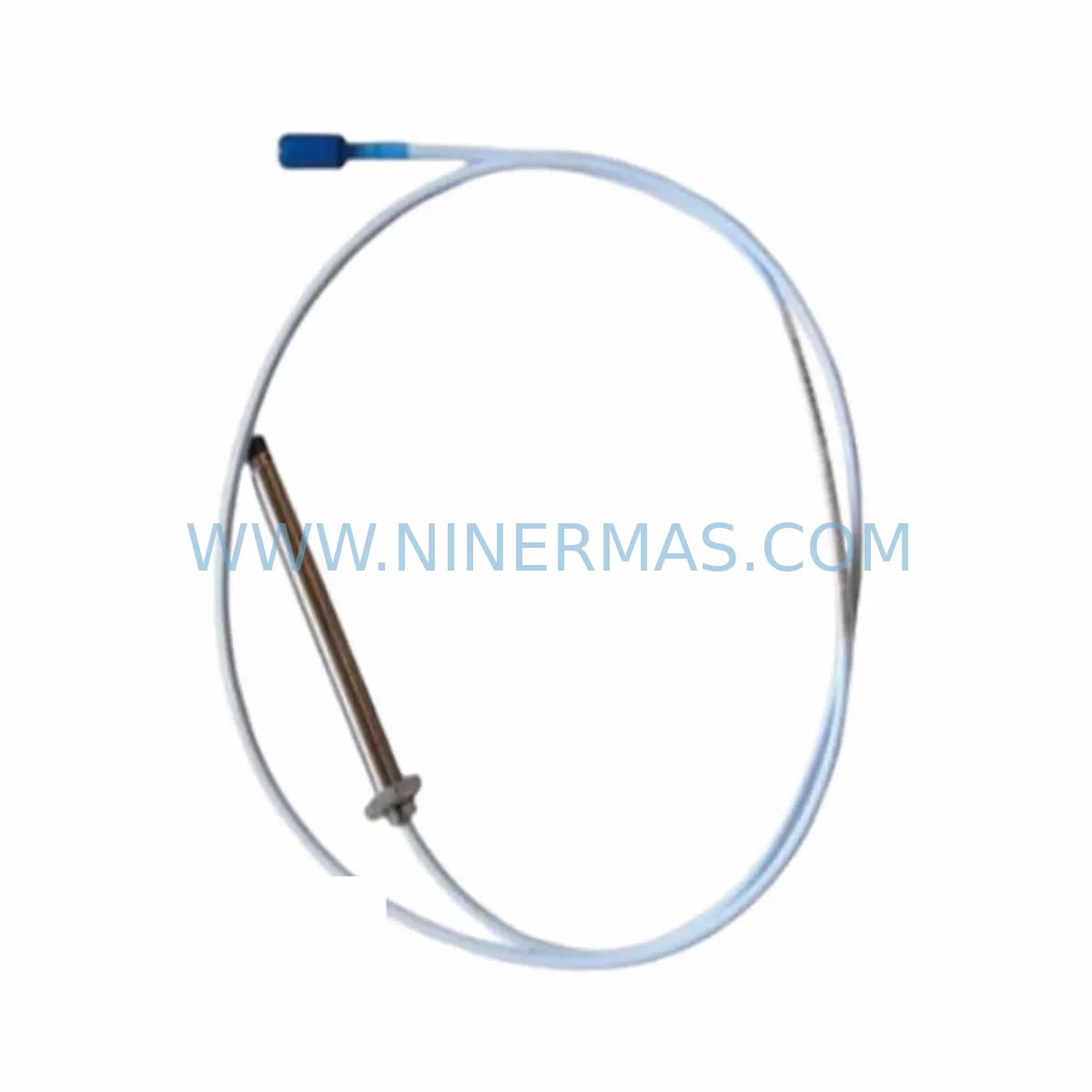

The Bently Nevada 330104-00-15-10-01-CN is a ruggedized proximity probe module from the industry-proven 3300 Series vibration monitoring platform. Designed for continuous operation in harsh industrial environments, this module delivers reliable non-contact displacement and vibration measurement for rotating machinery — including turbines, compressors, pumps, and gearboxes — where unplanned downtime carries significant operational and financial risk.

For maintenance engineers managing aging DCS and machinery protection systems, securing a verified, service-ready replacement for the 330104-00-15-10-01-CN is a critical step in any spare parts program. This module is pre-tested prior to shipment, covered by a 12-month warranty, and available for rapid global dispatch to minimize machine downtime and support emergency restoration workflows.

Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for a critical asset, the 330104-00-15-10-01-CN provides the measurement accuracy and environmental resilience required by processing industries operating under API 670 machinery protection standards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-15-10-01-CN proximity probe module during a planned or emergency maintenance event, a thorough inspection of the surrounding measurement chain and control cabinet is essential to ensure system integrity and prevent repeat failures.

Begin by verifying the condition of the Bently Nevada 330130-080-00-00 extension cable connecting the probe to the proximitor. Cable insulation degradation, connector corrosion, or mechanical damage at the conduit entry point are common failure contributors that are frequently overlooked during probe-only replacements. Simultaneously, inspect the associated 3300 XL 8mm proximitor/driver (such as the 330180-X1-05) for output voltage drift, which can indicate driver aging or contamination.

At the monitor rack level, confirm that the corresponding Bently Nevada 3500/40M proximitor I/O module or the 3500/42M Proximitor Monitor card is functioning within specification. A faulty I/O card can produce false vibration readings even after a probe replacement, leading to misdiagnosis. If the system uses a 3500/20 rack power supply, verify output voltage stability — power supply degradation is a leading cause of intermittent vibration signal faults in aging 3500 Series racks.

For installations integrated with a Bently Nevada TDXnet or System 1 condition monitoring platform, validate that the communication module (such as the 3500/92 communication gateway) is correctly transmitting updated channel data after the probe swap. Failure to re-initialize the channel can result in stale alarm setpoints remaining active.

In control cabinets housing multiple measurement loops, also inspect terminal blocks, signal isolators, and any Pepperl+Fuchs or equivalent Zener barriers used in intrinsically safe installations. Corroded terminals or degraded isolation barriers can introduce ground loops that corrupt vibration signals. Where the 330104-00-15-10-01-CN feeds into a DCS analog input card (such as a Honeywell or Emerson I/O module), verify the 4–20 mA or voltage signal range at the field junction box before closing the cabinet.

Procurement engineers building a strategic spare parts inventory for rotating machinery protection systems should consider stocking the 330104-00-15-10-01-CN alongside complementary components: a spare 3300 XL proximitor, at least one 3500/40M I/O module, a replacement 3500/20 power supply, and a set of pre-terminated 330130 extension cables in the most common lengths used on site. This multi-component approach ensures that any single-point failure in the measurement chain can be resolved within a single maintenance window, avoiding secondary callouts and extended downtime.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow site LOTO (Lockout/Tagout) procedures. Confirm the machine is in a safe state before accessing the probe installation point. Note the existing probe gap voltage (typically –10 VDC at nominal gap) using a calibrated voltmeter before disconnection — this serves as your baseline for the replacement setup.

Step 2 — Probe Removal: Disconnect the coaxial cable at the proximitor end first to avoid connector damage. Unthread the 330104-00-15-10-01-CN from the probe holder using the appropriate spanner. Inspect the probe tip and holder bore for contamination, scoring, or oil ingress that may have contributed to the original failure.

Step 3 — Installation and Gap Setting: Install the replacement 330104-00-15-10-01-CN and set the probe gap per the OEM specification (typically 1.0–1.5 mm / 40–60 mil for 8 mm probes, yielding –10 VDC ±0.5 VDC). Use a non-ferrous feeler gauge or the proximitor output voltage as the gap reference. Secure the locknut to the specified torque.

Step 4 — Signal Verification: Reconnect the extension cable and verify the proximitor output voltage at the monitor rack. Confirm the channel reads within the OK band in the 3500 Series monitor or System 1 software. Check that no latched alarms remain from the previous fault condition.

Step 5 — Documentation and Return to Service: Record the replacement in the site CMMS (e.g., SAP PM or Maximo), including the new part serial number, gap voltage, and date. Update the spare parts inventory to trigger replenishment of the consumed 330104-00-15-10-01-CN unit, maintaining minimum stock levels for critical assets.

This structured replacement workflow minimizes re-work risk, ensures measurement accuracy from first startup, and supports audit-ready maintenance documentation for regulated processing facilities.

Spare Parts Support FAQ

Q1: Is the 330104-00-15-10-01-CN compatible with both the Bently Nevada 3300 and 3500 Series monitoring systems?
The 330104-00-15-10-01-CN is a 3300 Series proximity probe and is natively compatible with 3300 XL proximitors and monitors. It can also be used with 3500 Series racks when paired with the appropriate 3500/40M or 3500/42M I/O module. Always verify the cable length suffix and connector type match your installation before ordering.

Q2: How do you verify the 330104-00-15-10-01-CN is genuine and functional before shipment?
Every unit supplied by NINERMAS undergoes pre-shipment functional testing, including output voltage verification at nominal gap and insulation resistance checks on the coaxial cable assembly. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: What is the recommended spare parts holding strategy for the 330104-00-15-10-01-CN on a critical rotating machine?
For critical assets (turbines, main compressors), we recommend holding a minimum of two units on-site per machine train, with one additional unit in the central warehouse. Given the lead time risk for legacy 3300 Series components, a long-term supply agreement with NINERMAS ensures priority allocation and price stability over a 12–24 month horizon.

Q4: Can NINERMAS support long-term or blanket purchase orders for the 330104-00-15-10-01-CN?
Yes. NINERMAS supports blanket PO arrangements, consignment stock programs, and annual supply contracts for the 330104-00-15-10-01-CN and related 3300/3500 Series components. Contact our team to discuss volume pricing, delivery scheduling, and warranty terms tailored to your maintenance program.
