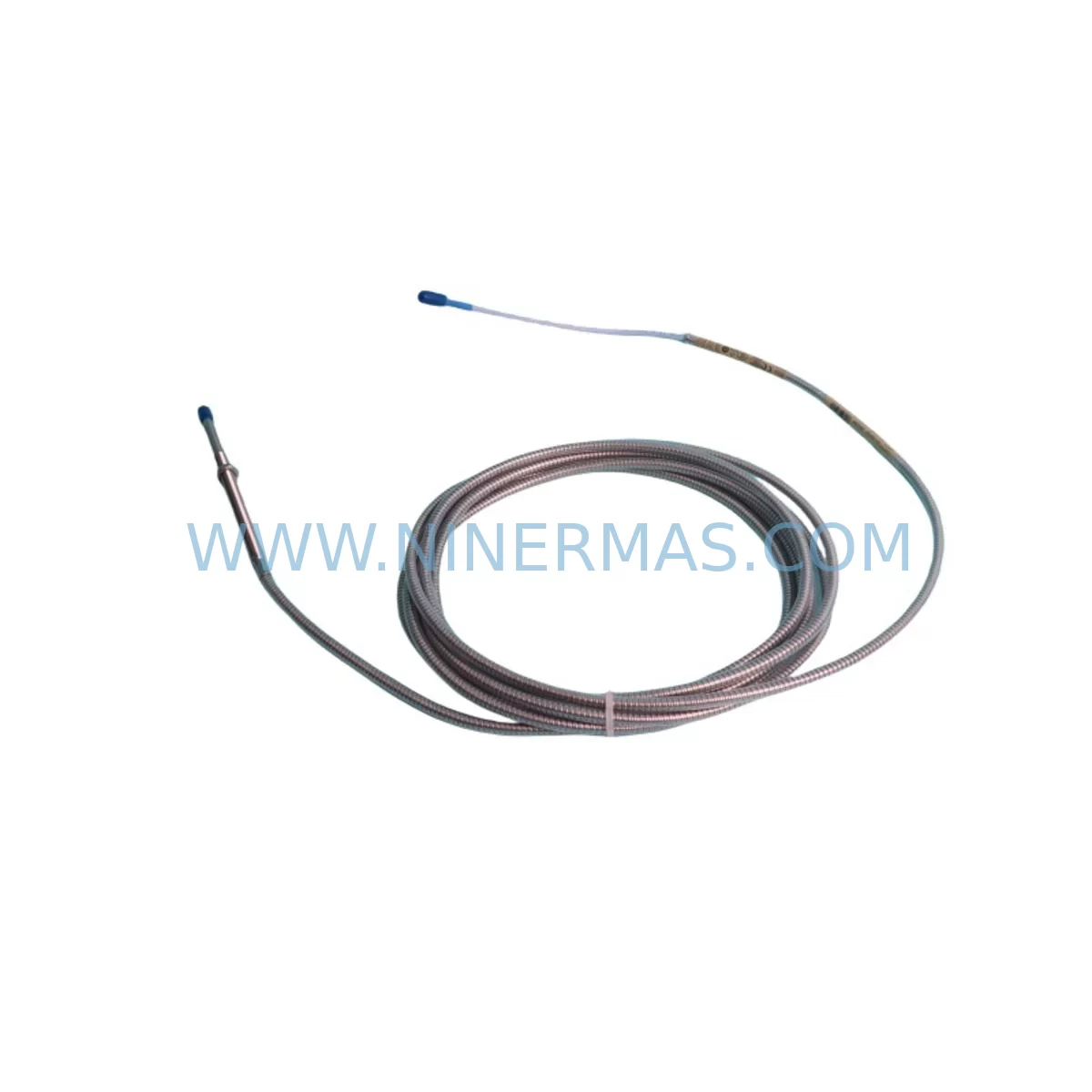

Bently Nevada 330104-00-14-50-02-00 Safety-Reliable Proximity Transducer

Bently Nevada 330104-00-14-50-02-00 Safety-Reliable Proximity Transducer for Critical Control Sites

The Bently Nevada 330104-00-14-50-02-00 is a high-performance eddy-current proximity transducer engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series proximity system, this transducer delivers exceptional signal stability, outstanding electromagnetic interference (EMI) rejection, and long-term mechanical reliability — making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, marine vessels, and continuous process manufacturing lines.

At NINERMAS, we maintain verified in-stock inventory of the 330104-00-14-50-02-00 with full pre-shipment functional testing and a 12-month quality warranty, ensuring your critical control cabinet stays protected against unplanned downtime.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In safety-critical rotating machinery protection systems, a single point of signal failure can cascade into catastrophic equipment damage or unplanned production shutdown. The Bently Nevada 330104-00-14-50-02-00 proximity transducer is designed to eliminate exactly these risks when integrated into a properly engineered protection architecture.

The transducer pairs directly with the Bently Nevada 3300 XL Proximitor® Sensor (e.g., 330180-X1-05), which conditions the raw eddy-current signal into a clean, calibrated voltage output fed to the Bently Nevada 3500 Series Machinery Protection System rack. Within that rack, modules such as the 3500/42M Proximitor®/Seismic Monitor and the 3500/22M Transient Data Interface process shaft vibration, eccentricity, and axial position data in real time, triggering alarm and trip outputs before mechanical damage occurs.

To protect the entire measurement loop from power-line transients and surge events — particularly in heavy-load switchgear rooms and variable-frequency drive (VFD) environments — the Bently Nevada 3500/15 Power Supply Module provides regulated, isolated DC power to the monitoring rack. Complementing this, surge protection devices such as the MTL 5053 Zener Barrier or equivalent intrinsic safety barriers are commonly installed in the field junction box to clamp voltage spikes before they reach the transducer cable, preventing signal drift and sensor burnout in hazardous-area installations.

In high-electromagnetic-interference environments — such as those near large motors, arc furnaces, or high-voltage bus bars — the coaxial extension cable assembly (e.g., Bently Nevada 330130-045-00-00 armored extension cable) shields the low-level transducer signal from induced noise, maintaining measurement accuracy within ±1% of full scale even under severe EMI conditions. Proper cable routing, grounding at a single point, and the use of Bently Nevada 3300 XL system-matched cable sets are essential to preserving signal integrity across long cable runs in large control cabinets.

For facilities operating under IEC 61511 functional safety requirements or API 670 machinery protection standards, the 330104-00-14-50-02-00 transducer is a qualified sensing element within a Safety Instrumented System (SIS) loop. When combined with a Bently Nevada 3500/20 Rack Interface Module and a safety-rated DCS or PLC — such as the Rockwell Automation GuardLogix 5580 or Siemens SIMATIC S7-400 FH — the complete loop achieves the redundancy and diagnostic coverage required for SIL 2 machinery protection applications. This architecture is widely deployed in compressor trains, steam turbines, boiler feed pumps, and induced draft fans across petrochemical and power generation facilities.

Additionally, for installations requiring continuous online monitoring without process interruption, the Bently Nevada System 1® Evolution software platform connects to the 3500 rack via Ethernet, enabling real-time trending, alarm management, and predictive maintenance analytics — reducing the risk of undetected bearing wear, rotor imbalance, or shaft misalignment that could otherwise lead to catastrophic failure during peak production periods.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous catalytic cracking (FCC) units, ethylene crackers, and LNG compressor trains, shaft radial vibration and axial position monitoring are mandatory under API 670. The 330104-00-14-50-02-00 provides the precise, drift-free position sensing required to detect rotor instability, oil whirl, and thrust bearing wear before they escalate to a trip event or mechanical failure. Its IP67 sealing and high-temperature rating make it suitable for hot-section installations near process gas compressors operating above 100°C.

Power Generation: Steam turbine-generator sets in thermal and nuclear power plants demand the highest level of vibration monitoring reliability. The transducer’s stable output across wide temperature swings and its immunity to the strong electromagnetic fields generated by large generators make it a trusted sensing element in turbine supervisory instrumentation (TSI) systems. Paired with the Bently Nevada 3500 rack, it supports both alarm and automatic trip functions that protect multi-hundred-megawatt generating assets.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, heavy dust ingress, and moisture. The 330104-00-14-50-02-00‘s robust IP67 construction and its ability to operate reliably in dusty, wet, and high-vibration conditions make it ideal for protecting critical drive-end and non-drive-end bearings on these high-value assets, where unplanned downtime can cost tens of thousands of dollars per hour.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities operate continuously, often in humid and chemically aggressive environments. Proximity transducers in these applications must resist corrosion and moisture ingress while delivering consistent signal output. The 3300 XL series transducer meets these demands, enabling early detection of impeller wear and bearing degradation before pump failure disrupts water supply or treatment capacity.

Metallurgy & Steel Mills: Rolling mill drives, continuous casting machines, and large induction furnace blowers generate intense electromagnetic interference and mechanical shock. The 330104-00-14-50-02-00‘s high EMI rejection and vibration-rated construction allow it to deliver reliable shaft monitoring data even in these electrically noisy, mechanically harsh environments, supporting predictive maintenance programs that reduce costly unscheduled roll changes and drive failures.

Port Cranes & Marine Vessels: Ship propulsion systems, thruster drives, and port crane hoisting machinery require compact, reliable vibration sensors that can withstand salt-air corrosion, mechanical shock, and wide ambient temperature ranges. The transducer’s sealed construction and proven performance in marine-grade installations make it a dependable choice for protecting critical propulsion and lifting equipment in these high-consequence applications.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Bently Nevada 330104-00-14-50-02-00?
All units supplied by NINERMAS carry a 12-month quality warranty from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. Our warranty covers manufacturing defects and functional performance failures, giving your maintenance team confidence in every spare part sourced from us.

Q2: How is the 330104-00-14-50-02-00 tested before shipment?
Every unit undergoes a full pre-shipment functional verification at our facility. This includes output signal linearity checks, insulation resistance testing, and connector integrity inspection. Only units that pass all test criteria are released for shipment, ensuring that the transducer you receive is ready for immediate installation without additional incoming inspection delays.

Q3: Is the 330104-00-14-50-02-00 compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330104-00-14-50-02-00 is a direct-fit replacement for the Bently Nevada 3300 XL proximity system. It is fully compatible with standard 3300 XL Proximitor® Sensors, 3500 Series monitoring racks, and system-matched extension cable assemblies. No recalibration of the monitoring rack is required when replacing a like-for-like transducer, minimizing maintenance time and reducing the risk of configuration errors during replacement.

Q4: Can NINERMAS support long-term and emergency supply requirements for this part?
Yes. NINERMAS maintains dedicated safety stock of the 330104-00-14-50-02-00 to support both planned maintenance schedules and emergency breakdown situations. We offer fast international shipping to petrochemical, power, mining, and manufacturing facilities worldwide. For critical sites requiring guaranteed availability, we recommend establishing a blanket order or consignment stock arrangement with our sales team to ensure zero lead-time access to this essential spare part.
