Bently Nevada 330104-00-14-10-02-05 Spare Part Industrial: Precision Vibration Monitoring Replacement for Downtime-Critical Systems

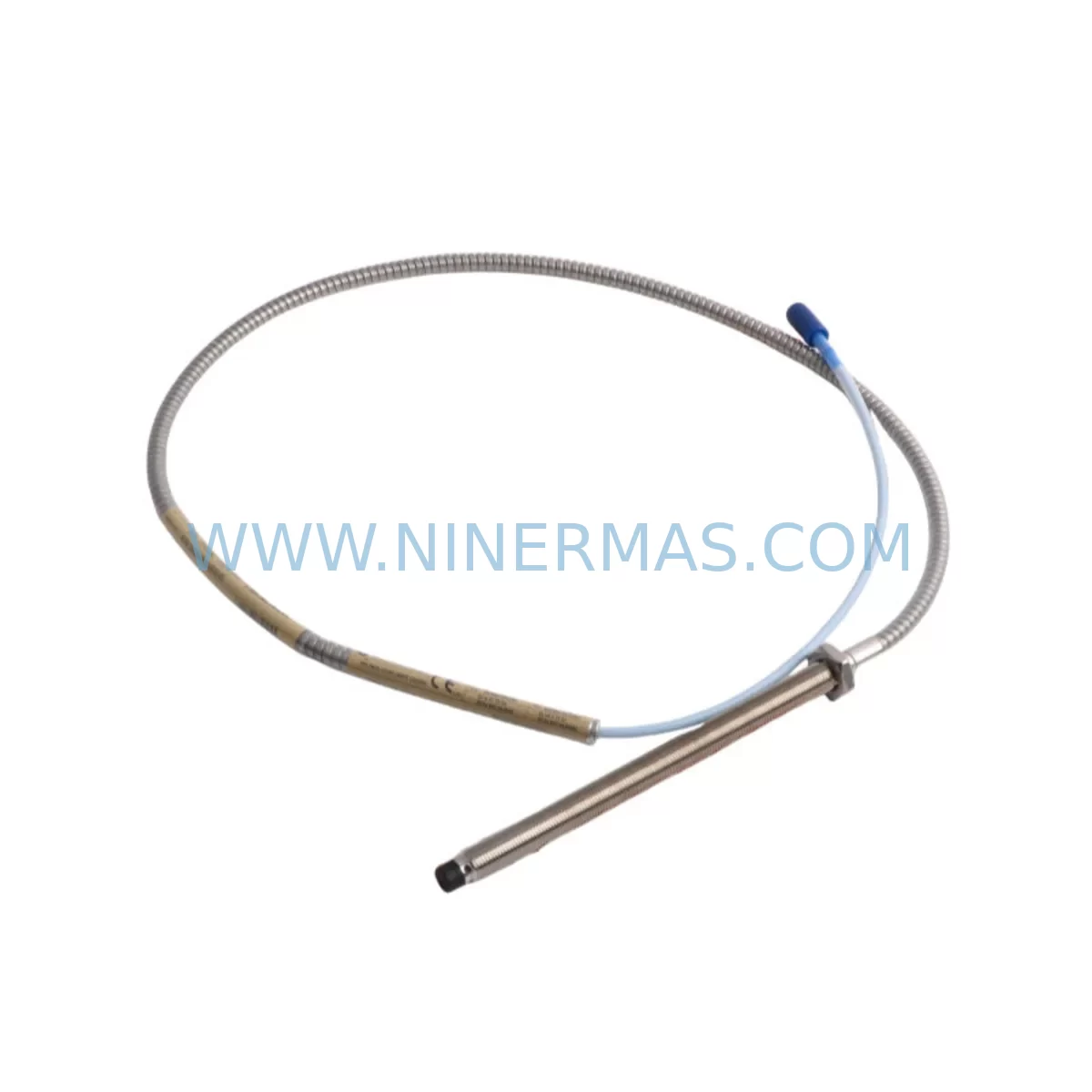

The Bently Nevada 330104-00-14-10-02-05 is a factory-original proximity transducer assembly engineered for the 3300 XL Series continuous vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy processing industries. When a vibration monitoring channel goes offline, the consequences extend far beyond a single sensor: turbine protection logic may trip, compressor health data becomes blind, and maintenance teams lose the early-warning visibility that prevents catastrophic mechanical failures.

At NINERMAS, every 330104-00-14-10-02-05 unit is sourced from verified supply channels, pre-shipment tested for output linearity and gap voltage response, and dispatched with a 12-month warranty. Whether you are executing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts buffer for aging 3300 XL infrastructure, this transducer is available for rapid global fulfillment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 330104-00-14-10-02-05 proximity transducer does not operate in isolation. In a correctly configured 3300 XL machinery protection loop, the transducer works in concert with a matched 330130 extension cable and a 330180 or 330185 driver/oscillator module housed in the monitor rack. When replacing this probe, maintenance engineers should simultaneously inspect the extension cable for jacket cracking, connector corrosion, and continuity — a degraded cable is the most common cause of erratic gap voltage readings that are misdiagnosed as probe failure.

Inside the 3300 XL monitor rack, verify the condition of the 3300/16-02-01 dual-channel vibration monitor card and its associated 3300/20 power supply module. A failing rack power supply can introduce noise into the −24 VDC transducer bias line, producing false high-vibration alarms even when the mechanical condition of the shaft is normal. If the rack has been in service for more than eight years, the 3300/55 keyphasor module and any installed 3300/25 temperature monitor cards should be included in the inspection scope.

For sites running parallel protection on critical turbine trains, the 3500/42M proximitor I/O module is frequently used alongside 3300 XL hardware in hybrid rack configurations. Confirm that the driver impedance and sensitivity settings on the 3500 rack are matched to the 330104 series probe geometry before commissioning. Mismatched sensitivity scaling is a documented source of protection system nuisance trips during startup.

Beyond the transducer circuit itself, a thorough control cabinet inspection during a 330104-00-14-10-02-05 replacement should cover: terminal block torque verification on the signal wiring (loose terminals cause intermittent open-circuit faults), inspection of signal isolators feeding the DCS historian inputs, and confirmation that any surge protection devices on the transducer cable entry are within their rated clamping voltage. Where the 3300 XL rack communicates via Modbus RTU or RS-485 to a DCS or SCADA system, verify the communication module’s firmware version and cable shielding continuity — ground loops on the communication cable are a known interference source for vibration channel data.

Procurement engineers building a strategic spare parts inventory for 3300 XL-equipped facilities should consider stocking the 330104-00-14-10-02-05 alongside the 330130-080-00-00 extension cable, at least one spare 3300/16 monitor card, and a replacement 3300/20 power supply. This four-component kit covers the majority of field-replaceable failures in a 3300 XL radial vibration channel and enables same-shift restoration of full protection coverage without waiting for emergency procurement cycles.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the existing probe part number against the rack configuration record. The 330104 series uses a 14 mm tip diameter; substituting a 25 mm or 8 mm probe without recalibrating the driver will produce incorrect gap voltage and invalidate the protection setpoints. Record the current gap voltage (typically −10 VDC ± 0.5 VDC at the nominal air gap) as a baseline for post-installation verification.

Step 2 — Safe isolation: Coordinate with the control room to place the affected vibration channel in bypass mode on the 3300 XL monitor before disconnecting the transducer. This prevents a spurious trip signal from reaching the turbine protection logic during the cable swap. Document the bypass in the permit-to-work system.

Step 3 — Physical replacement: Remove the old probe from the mounting bracket, noting the installed gap dimension. Thread the new 330104-00-14-10-02-05 to the same gap dimension (typically 50 mil / 1.27 mm for most shaft applications) and torque the locknut to the manufacturer’s specification. Connect the extension cable, ensuring the connector is fully seated and the locking ring is engaged.

Step 4 — Commissioning check: With the driver powered, measure the DC output voltage at the driver output terminals. Adjust the probe gap if necessary to achieve the target gap voltage. Verify that the vibration channel reads near-zero (mechanical runout only) with the shaft stationary. Remove the channel bypass and confirm the monitor card accepts the channel without alarm.

Step 5 — Documentation: Update the equipment history record with the new probe serial number, installation date, gap voltage, and technician sign-off. This record is essential for future troubleshooting and for demonstrating compliance with API 670 machinery protection standards.

This workflow applies equally to legacy installations where the 330104-00-14-10-02-05 replaces an older 330104-00-14-10-00-00 or similar variant. The physical and electrical interface is backward-compatible within the 3300 XL driver family, making this a drop-in replacement that does not require rack reconfiguration in the majority of field applications.
