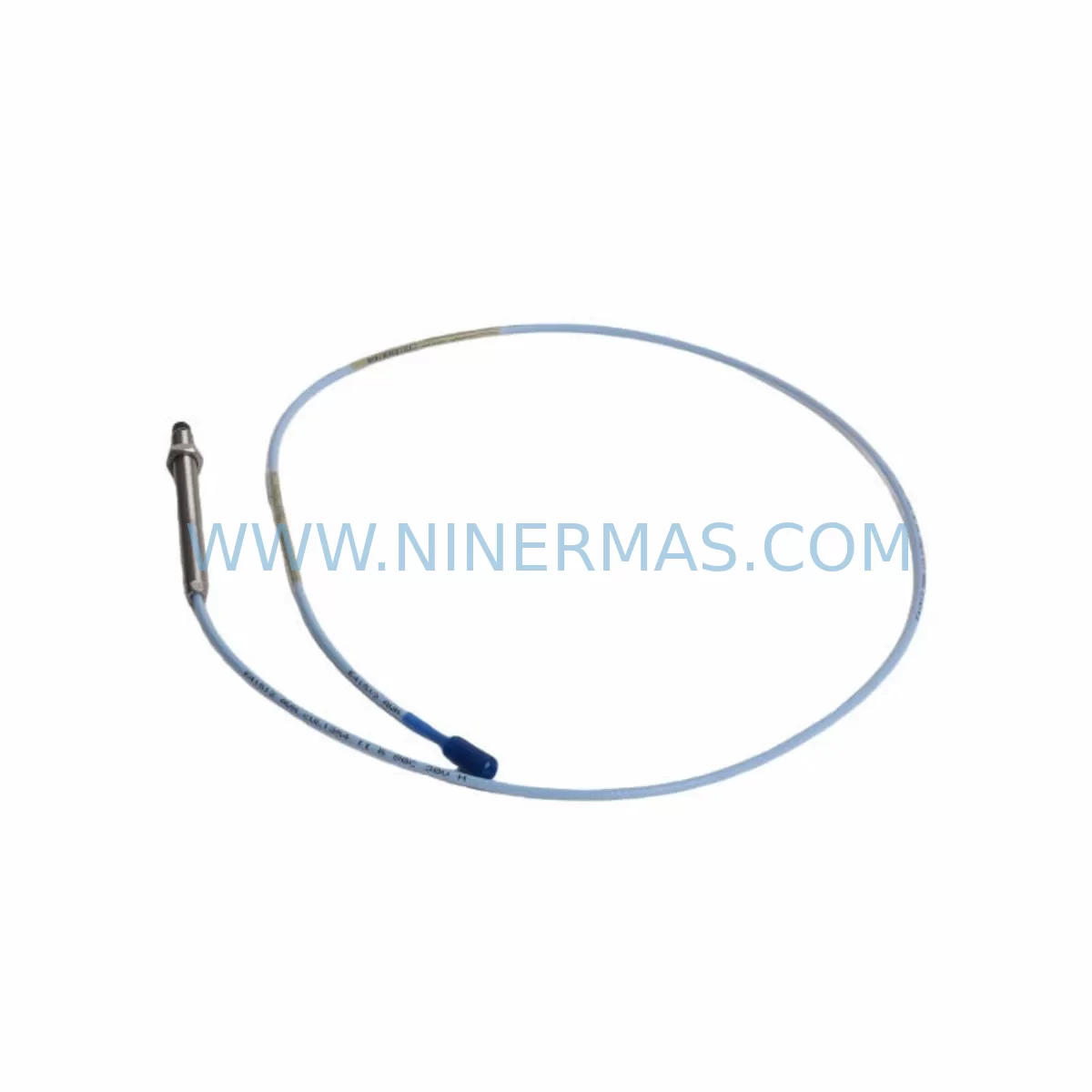

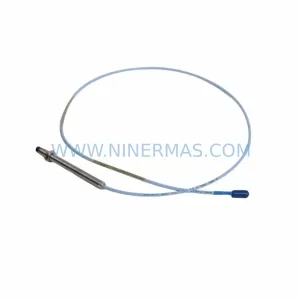

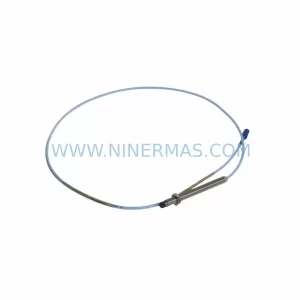

The Bently Nevada 330104-00-12-05-02-CN is an original proximity transducer designed for the 3300 XL Series machinery protection and condition monitoring system. This eddy-current proximity sensor delivers precise non-contact displacement and vibration measurements critical to rotating machinery health monitoring in turbines, compressors, pumps, and motors across oil & gas, power generation, petrochemical, and heavy industrial facilities.

When a vibration monitoring system triggers an alarm or a transducer channel fails during routine inspection, unplanned downtime becomes an immediate risk. Stocking the 330104-00-12-05-02-CN as a certified service-ready spare ensures your maintenance team can execute a rapid swap without waiting on lead times. This part ships tested and verified, backed by a 12-month warranty, giving procurement engineers confidence in both quality and long-term supply continuity.

Whether you are managing a planned annual overhaul, responding to an emergency shutdown, or building a strategic spare parts inventory for aging 3300 XL systems, the 330104-00-12-05-02-CN is a foundational component in any Bently Nevada-based machinery protection cabinet.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330104-00-12-05-02-CN proximity transducer is rarely an isolated task. In a well-maintained 3300 XL monitoring cabinet, the transducer works in concert with a full signal chain. Maintenance engineers should treat a transducer replacement as an opportunity to inspect and verify the entire measurement loop.

Start with the Bently Nevada 3300 XL Extension Cable (typically 330130 series) that connects the probe to the proximitor. Cable insulation degradation, connector corrosion, or mechanical damage from vibration fatigue are common failure contributors that go undetected until a transducer swap fails to restore the channel. Inspect the full cable run and replace if continuity or insulation resistance is out of specification.

The 3300 XL Proximitor/Oscillator-Demodulator (such as the 330180 series) converts the probe’s raw signal into a usable DC voltage. If the replacement transducer still shows erratic readings, the proximitor itself may be the root cause. Always bench-test the proximitor with a known-good probe before closing out the work order.

Within the monitoring rack, verify the 3300 XL Monitor Module (e.g., 3300/16 or 3300/20 series) input card is functioning correctly. I/O channel faults, blown input protection fuses, or degraded signal conditioning circuits can mimic transducer failures. Check the monitor’s OK relay output and confirm the channel is not latched in a fault state before declaring the transducer as the failed component.

For systems integrated into a DCS or Safety Instrumented System (SIS), confirm that the 4–20 mA or relay output from the monitor is correctly received at the marshalling cabinet. Inspect terminal blocks, signal isolators, and any interposing relays in the loop. A faulty signal isolator or corroded terminal strip can introduce noise that appears as a transducer problem.

If the machine train includes axial position monitoring, the 330104 series thrust position probe and its paired proximitor should be cross-checked simultaneously. Axial and radial channels often share the same power supply rail within the monitor rack — a sagging 24 VDC instrument power supply can affect multiple channels at once. Verify supply voltage at the rack backplane under load.

For facilities running older 3300 XL systems approaching end-of-support, consider stocking complementary spares: 3300 XL power supply modules, spare I/O terminal boards, and at least one spare monitor module per critical machine train. This approach supports a proactive spare parts strategy that reduces mean time to repair (MTTR) and extends the operational life of legacy protection systems without requiring a full platform migration.

Procurement engineers should also evaluate stocking the 330104-00-08-05-02-CN (8-inch variant) and 330104-00-18-05-02-CN (18-inch variant) alongside the 12-inch version to cover multiple installation depths across the plant. Standardizing on a small family of 330104 variants simplifies inventory management and reduces the risk of ordering errors during emergency procurement.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the affected monitor channel. Place the monitor in bypass mode to prevent spurious trips during the replacement. Document the existing gap voltage reading before disconnecting the probe.

Step 2 — Probe Removal: Disconnect the extension cable at the proximitor end. Carefully unthread the probe from the bearing housing, noting the installed gap (number of turns from flush). Inspect the probe tip for contamination, oil fouling, or mechanical damage that may indicate a secondary issue.

Step 3 — New Probe Installation: Install the 330104-00-12-05-02-CN replacement probe. Set the initial gap to the manufacturer’s recommended starting point (typically 50 mils / 1.27 mm for standard steel targets). Reconnect the extension cable, ensuring the connector is fully seated and the locking ring is secure.

Step 4 — Gap Voltage Verification: With the machine at rest, power up the channel and measure the gap voltage at the proximitor output. Adjust the probe gap until the output falls within the linear range center (typically –12 VDC ±0.5 VDC). Record the final gap and voltage for the maintenance log.

Step 5 — System Functional Test: Remove the monitor bypass, confirm the OK LED is illuminated, and verify the channel reads correctly in the DCS or historian. Perform a slow-roll check if the machine can be safely rotated to confirm dynamic response before returning to full operation.

Step 6 — Documentation: Update the equipment maintenance record with the new part number, installation date, final gap voltage, and technician sign-off. Replenish the consumed spare to maintain inventory levels.
