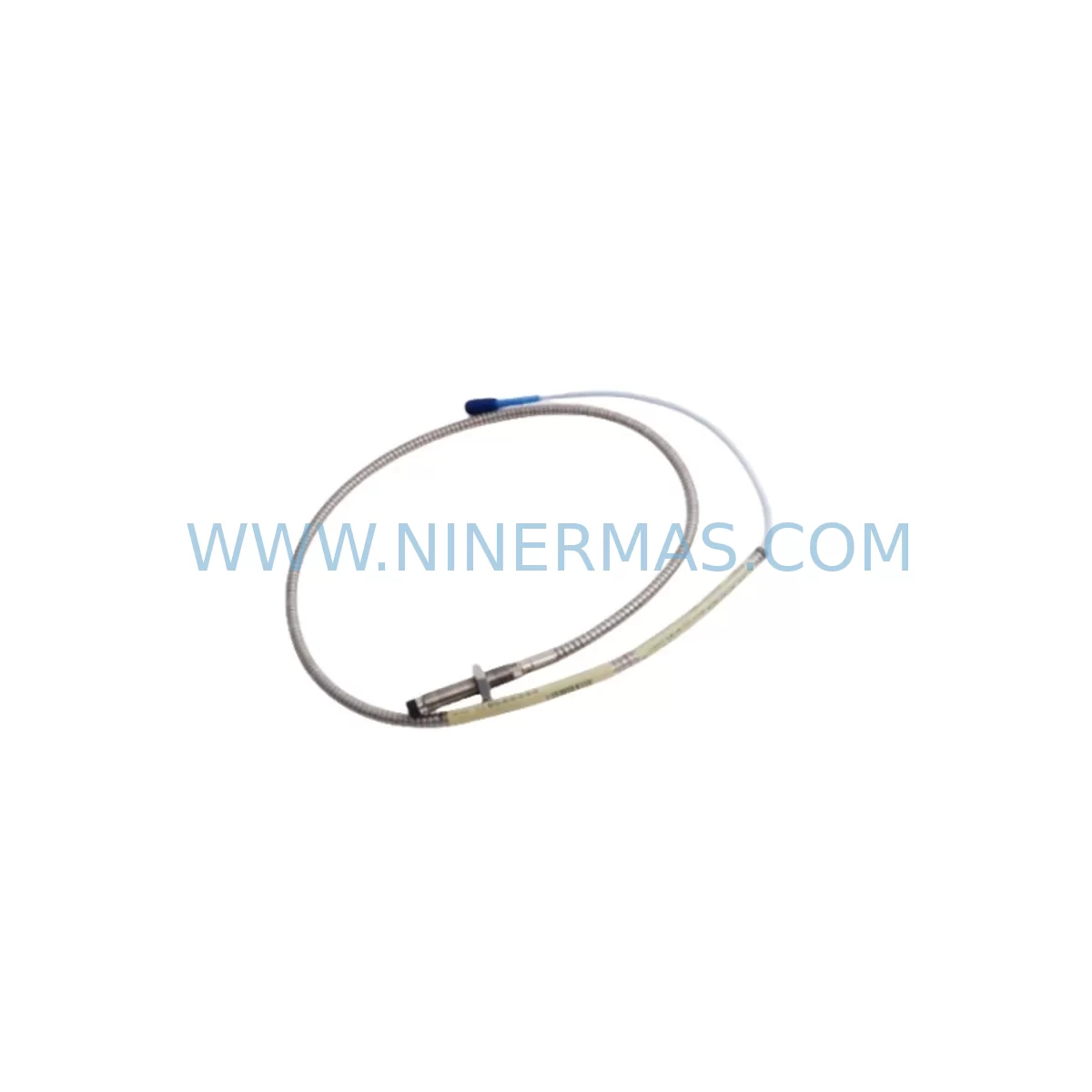

The Bently Nevada 330104-00-10-10-02-CN is a proximity transducer designed for use within the 3300 XL Series condition monitoring system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy industrial facilities. This service-ready spare part is stocked to support emergency replacement, planned annual overhaul, and long-term spare parts inventory programs for maintenance engineers managing critical rotating assets.

When a proximity transducer in the 3300 XL system fails or degrades, the consequences extend beyond a single sensor. The entire vibration monitoring loop — from the transducer tip through the extension cable, proximitor/driver, and into the 3300 XL monitor rack — must be evaluated as a system. Sourcing a verified original replacement such as the 330104-00-10-10-02-CN ensures that signal output, gap voltage, sensitivity, and frequency response remain within the calibrated parameters expected by the monitoring system, avoiding false trips, missed alarms, or recalibration delays during a critical production window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Maintenance engineers responsible for rotating machinery protection systems understand that the 330104-00-10-10-02-CN does not operate in isolation. A complete vibration monitoring loop in a 3300 XL installation involves multiple interdependent components, and a proactive spare parts strategy must account for each one.

When replacing this proximity transducer, the associated 3300 XL proximitor/driver module (such as the 330180 or 330130 series) should be inspected for output drift, connector corrosion, and housing integrity. The extension cable connecting the probe to the proximitor — typically a 330130 or 330140 series armored cable — is a common failure point in high-vibration or high-temperature environments and should be replaced or tested simultaneously. The junction box and field wiring terminals should be checked for moisture ingress and terminal torque.

At the rack level, the 3300 XL monitor card (such as the 3300/16 or 3300/20 series) should be verified for alarm setpoint integrity and OK relay status after transducer replacement. The 3300 XL rack power supply — typically a -24 VDC regulated supply — should be load-tested to confirm it can sustain all active channels without voltage sag. If the installation includes a 3300 XL keyphasor module, its gap voltage and signal quality should be confirmed as part of the same maintenance window.

For facilities running integrated condition monitoring, the System 1 Evolution software interface or equivalent DCS historian connection should be checked to confirm that the replacement transducer’s channel is correctly mapped and that trend data resumes without gap. Where 4–20 mA output isolators or signal conditioners are used to interface the 3300 XL output to a DCS or safety system, these should be loop-tested after transducer swap. Surge protection devices on the field wiring should also be inspected, as transducer failures are sometimes caused by upstream electrical transients rather than mechanical wear.

Procurement engineers building annual MRO spare parts lists for turbine or compressor trains should consider stocking the 330104-00-10-10-02-CN alongside compatible 330130 extension cables, 330180 proximitor modules, and at least one spare 3300 XL monitor card per critical machine train. This multi-component approach reduces mean time to repair (MTTR) and eliminates the risk of a secondary component failure extending an already costly unplanned outage.

Site Replacement Workflow

Replacing the 330104-00-10-10-02-CN in the field follows a structured sequence to minimize downtime and ensure system compatibility. Begin by documenting the existing gap voltage reading and OK status from the monitor before de-energizing the channel. Remove the probe from its mounting bracket, noting the exact gap distance (typically 1.0–1.5 mm for 8 mm probes) using a feeler gauge or gap voltage reference chart.

Install the replacement 330104-00-10-10-02-CN and reconnect the extension cable, ensuring connector threads are clean and fully engaged. Re-energize the proximitor supply and adjust the probe gap until the output voltage falls within the system’s OK window (typically -10 VDC ±1 VDC for standard 3300 XL configurations). Confirm OK relay status at the monitor card and verify that the vibration channel is reading within expected baseline levels before returning the machine to service.

This replacement procedure is compatible with legacy 3300 Series installations as well as current 3300 XL deployments, making the 330104-00-10-10-02-CN a suitable cross-generation spare for facilities managing mixed-vintage monitoring infrastructure. No firmware changes or rack reconfiguration are required for a like-for-like transducer replacement, significantly reducing the skill level and time required for field execution.

Spare Parts Support FAQ

Q: Is the 330104-00-10-10-02-CN compatible with both legacy 3300 and current 3300 XL systems?
A: Yes. The 330104-00-10-10-02-CN is designed for the 3300 XL platform and is backward-compatible with earlier 3300 Series installations that use the same 8 mm eddy current probe standard. Always verify the proximitor model and gap voltage specification before installation to confirm channel compatibility.

Q: What is the recommended inventory quantity for a critical rotating machine train?
A: Industry best practice for critical machinery protection systems recommends holding a minimum of one spare transducer per monitored measurement plane, plus one additional unit as a buffer for emergency response. For facilities with multiple identical machine trains, a shared pool of 3–5 units is typically sufficient to cover planned and unplanned maintenance events across a 12-month operating cycle.

Q: How is the unit tested before shipment?
A: Each 330104-00-10-10-02-CN unit is functionally tested prior to dispatch. Gap voltage output, sensitivity linearity, and OK status are verified against Bently Nevada specification parameters. A test report is available upon request for quality-critical procurement programs.

Q: What warranty and long-term supply support is provided?
A: All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Long-term supply continuity is supported through established sourcing channels, ensuring availability for facilities managing extended asset lifecycles or obsolescence risk on legacy 3300 XL installations.
