Bently Nevada 330104-00-09-05-02-00 Service-Ready Spare Part

Bently Nevada 330104-00-09-05-02-00 Service-Ready Spare Part: Proximity Probe Replacement for Downtime Risk Control

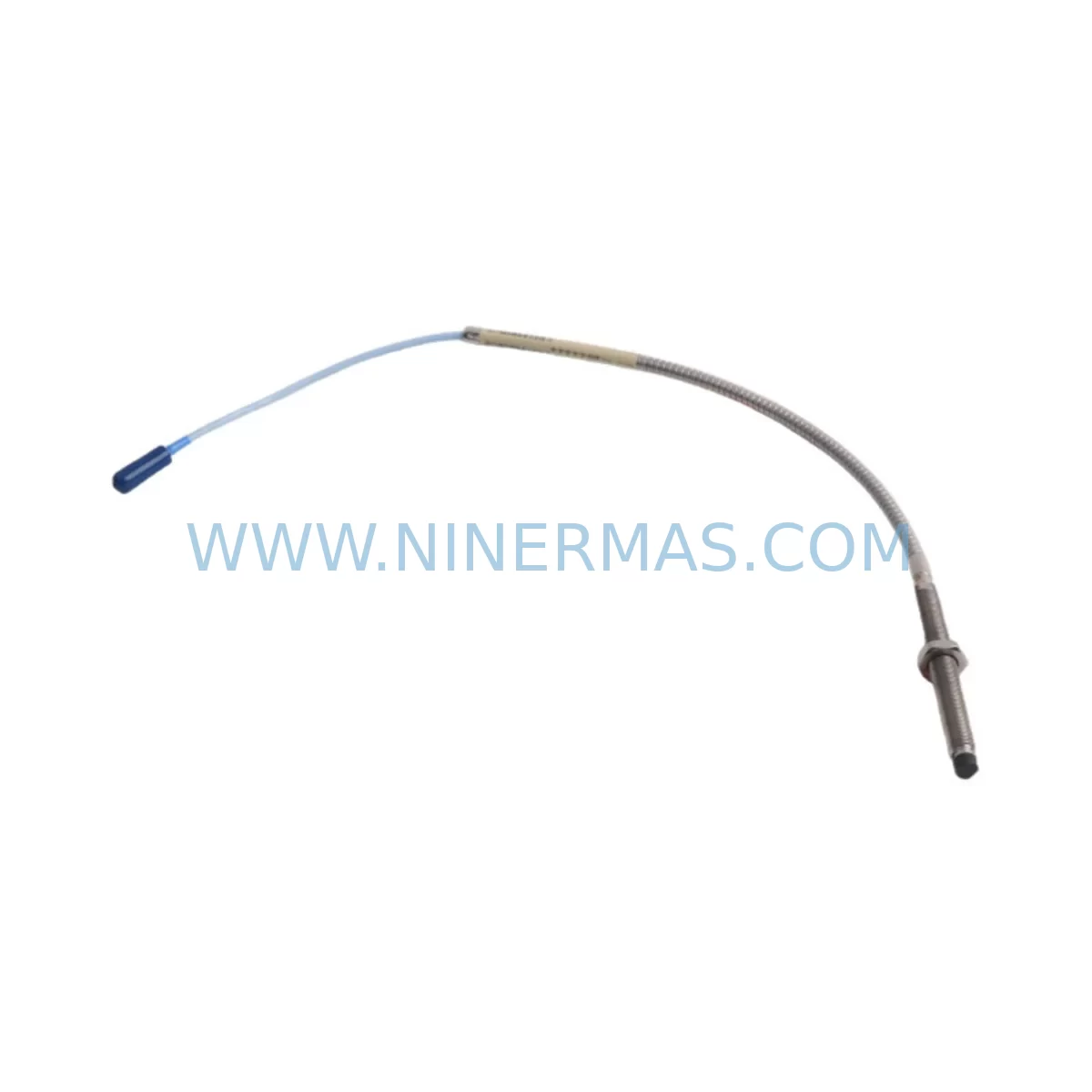

The Bently Nevada 330104-00-09-05-02-00 is a ruggedized proximity probe module designed for continuous vibration monitoring in demanding industrial environments. As a critical component within the Bently Nevada 3300 Series proximity transducer system, this module provides non-contact measurement of shaft radial vibration, axial position, and differential expansion — functions that are essential for protecting rotating machinery including steam turbines, gas compressors, centrifugal pumps, and large induction motors in oil & gas, petrochemical, power generation, and heavy processing facilities.

For maintenance engineers managing aging control infrastructure, sourcing a verified service-ready replacement for the 330104-00-09-05-02-00 is a time-critical priority. Unplanned vibration monitoring failures can trigger protective shutdowns, mask developing mechanical faults, or — in worst-case scenarios — allow machinery damage to progress undetected. Holding a qualified spare in your maintenance inventory eliminates this risk and supports rapid site restoration when a probe module fails during routine inspection or emergency response.

NINERMAS supplies the 330104-00-09-05-02-00 as a pre-tested, service-ready spare part backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm output sensitivity, gap voltage linearity, and signal integrity before dispatch. This ensures that the replacement module performs to OEM specification from the moment it is installed — reducing commissioning time and eliminating the risk of introducing a defective component into a live monitoring loop.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-09-05-02-00 proximity probe module, a thorough site inspection of the surrounding measurement chain and control cabinet is strongly recommended. Proximity transducer systems operate as a complete signal loop — a fault or degradation in any adjacent component can produce erroneous readings even after the probe itself has been replaced.

Maintenance engineers should begin by inspecting the 3300 XL extension cable (typically a 330130-series component) that connects the probe to the proximitor sensor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown in high-temperature or chemically aggressive environments. A worn extension cable will introduce signal noise or DC offset errors that mimic probe failure. Similarly, the 330180-series proximitor sensor (oscillator-demodulator) should be verified for correct output voltage and sensitivity before the new probe is commissioned.

Within the control cabinet, inspect the 3500/42M Proximitor I/O Module or equivalent rack-mounted I/O card that receives the transducer signal. Confirm that the channel configuration, gap voltage setpoints, and alarm thresholds are correctly programmed in the 3500 Rack Configuration Software. If the rack has been in service for more than five years, it is advisable to also inspect the 3500/15 Power Supply Module for output voltage stability, as power supply degradation is a common root cause of intermittent vibration channel faults.

For facilities running legacy 3300 Series monitoring racks rather than the 3500 platform, verify the condition of the 3300/20 Proximitor Monitor cards and associated terminal strip wiring. Loose or corroded terminal connections at the field junction box are a frequent source of signal dropout that is often misdiagnosed as probe failure. Replacing the probe without addressing terminal integrity will result in repeat failures.

Procurement engineers building annual maintenance budgets should consider stocking the following complementary components alongside the 330104-00-09-05-02-00: 330130-series extension cables in the appropriate lengths for each machine train, 330180-series proximitor sensors as matched spares, 3500/42M I/O modules for critical monitoring channels, and 3500/15 power supply modules for rack redundancy. For facilities with multiple machine trains, a 3500/22M Transient Data Interface module spare is also advisable to protect waveform capture capability during a rack fault event. Fuse holders and DIN rail terminal blocks within the marshalling cabinet should be inspected and replaced on a five-year cycle as part of a proactive cabinet maintenance program.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the affected monitoring channel at the rack I/O module. Do not power down the entire monitoring rack unless required by site safety rules, as this will affect all channels simultaneously.

Step 2 — Probe Removal: Disconnect the extension cable at the probe connector. Unthread the 330104-00-09-05-02-00 probe from its mounting bracket. Note the installed gap measurement using a feeler gauge or gap voltage reading before removal — this serves as the baseline for reinstallation.

Step 3 — Extension Cable Inspection: Before installing the new probe, inspect the full length of the extension cable for kinking, abrasion, or connector damage. Measure cable resistance and verify connector integrity. Replace the extension cable if any anomaly is found — installing a new probe on a degraded cable will not restore system performance.

Step 4 — New Probe Installation: Thread the replacement 330104-00-09-05-02-00 into the mounting bracket. Set the probe gap to the OEM-specified value (typically 1.0–1.5 mm, confirmed against the machine-specific setup documentation). Reconnect the extension cable and verify connector seating.

Step 5 — Signal Verification: Restore power to the monitoring channel. Measure the gap voltage at the proximitor output and confirm it falls within the linear range specified for the probe-cable-proximitor combination. Verify that the 3500 or 3300 rack displays a valid, stable reading with no alert or danger alarms active at the resting gap.

Step 6 — System Restoration: Clear any latched alarms at the monitoring rack and DCS/SCADA interface. Confirm that the channel is active and reporting correctly before returning the machine to service. Document the replacement in the site maintenance management system (CMMS) with the new probe serial number and gap setting.

This structured replacement workflow minimizes total downtime, ensures system compatibility is maintained, and provides a documented audit trail for regulatory and insurance compliance purposes.

Spare Parts Support FAQ

Q1: Is the 330104-00-09-05-02-00 compatible with both the Bently Nevada 3300 and 3500 Series monitoring systems?
The 330104-00-09-05-02-00 proximity probe is a 3300 Series transducer component. It is directly compatible with 3300 Series monitoring racks and proximitor sensors. Compatibility with 3500 Series racks depends on the specific I/O module installed — the 3500/42M Proximitor I/O Module supports 3300 XL probes when correctly configured. Customers should confirm their rack I/O module type and channel configuration before ordering. NINERMAS technical support can assist with compatibility verification.

Q2: What pre-shipment testing does NINERMAS perform on the 330104-00-09-05-02-00?
Each unit is tested for output sensitivity (mV/mil or mV/mm), gap voltage linearity across the measurement range, and signal integrity under simulated operating conditions. Units that do not meet OEM specification thresholds are quarantined and not dispatched. A test record is available upon request for quality-critical applications.

Q3: Can NINERMAS support long-term or blanket order supply of the 330104-00-09-05-02-00 for multi-site maintenance programs?
Yes. NINERMAS offers scheduled spare parts supply agreements for facilities managing multiple machine trains or multi-site operations. Blanket orders allow customers to lock in pricing and ensure stock availability for planned annual shutdowns and emergency call-off requirements. Contact sale@ninermas.com to discuss program terms and lead time commitments.

Q4: What is covered under the 12-month warranty, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects, premature component failure under normal operating conditions, and any deviation from the verified pre-shipment test parameters. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or chemical contamination beyond the rated environmental specification. To initiate a warranty claim, contact NINERMAS with the order reference, installation date, and a description of the observed fault. Replacement units are dispatched on a priority basis to minimize site downtime.
