Bently Nevada 330104-00-08-10-02-00 Retrofit Proximity Transducer

Bently Nevada 330104-00-08-10-02-00 Retrofit Proximity Transducer: Legacy System Compatibility & Smooth Upgrade

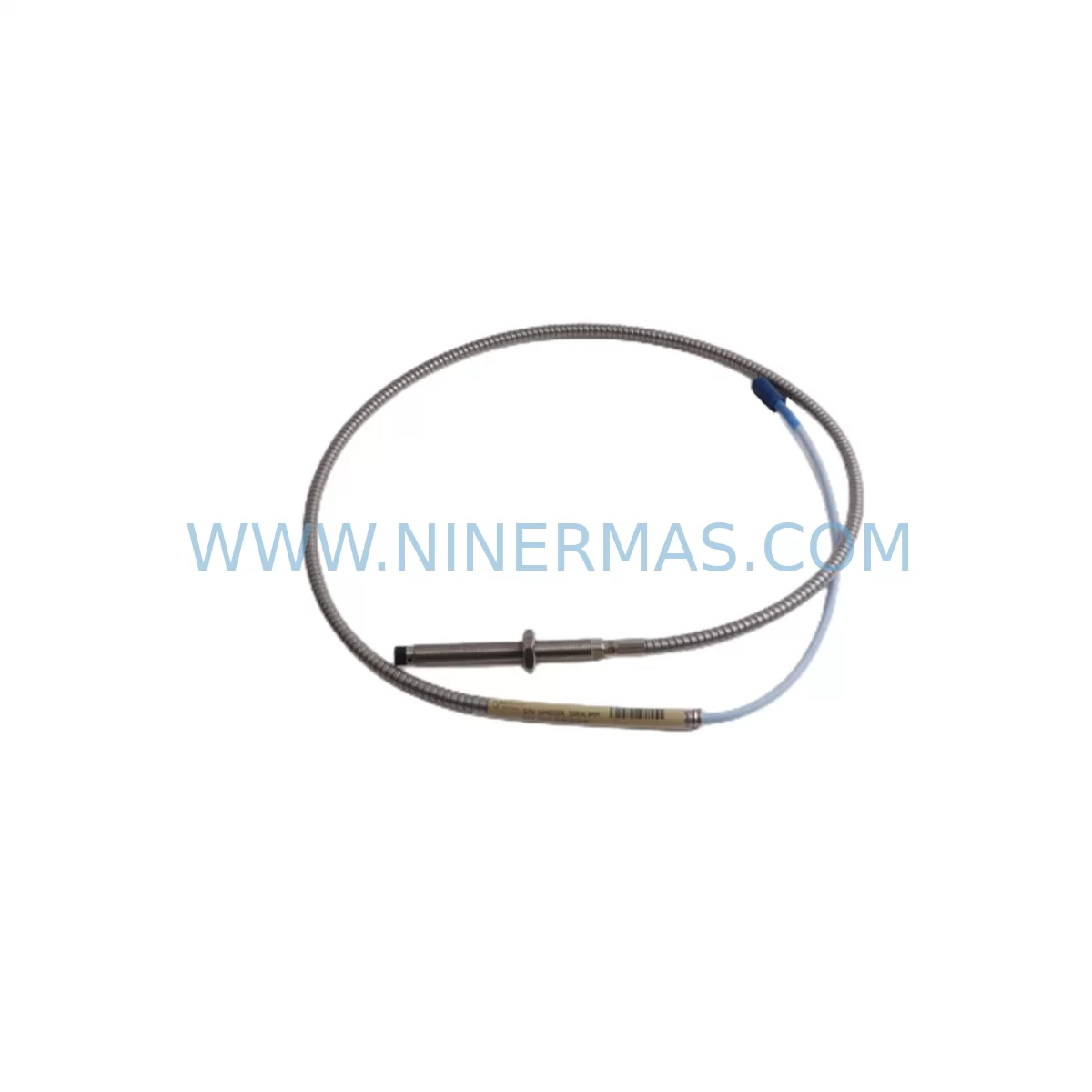

The Bently Nevada 330104-00-08-10-02-00 is a high-precision eddy-current proximity transducer engineered for the 3300 Series vibration monitoring platform. As legacy industrial control systems age and OEM support windows close, this unit has become a critical retrofit component for facilities seeking to extend the operational life of their existing machinery protection infrastructure without committing to a full platform migration. Whether you are replacing a discontinued sensor on a turbine train, upgrading a compressor monitoring loop, or restoring a mothballed control cabinet, the 330104-00-08-10-02-00 delivers the signal integrity and dimensional compatibility your system demands.

At NINERMAS, we maintain verified stock of the 330104-00-08-10-02-00 to support planned maintenance shutdowns, emergency breakdowns, and long-cycle procurement programs. Each unit ships with a 12-month warranty and passes pre-shipment functional testing to confirm output linearity, gap voltage response, and cable continuity before leaving our facility.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-00-08-10-02-00 into a legacy machinery protection system requires a structured pre-outage review. Begin by auditing the existing Bently Nevada 3300 monitor cards installed in your rack — common companions include the 3300/16 Dual Vibration Monitor and the 3300/20 Thrust Position Monitor, both of which accept the standard 3300 Series transducer signal without firmware modification. Confirm that the rack backplane and power supply module (such as the 3300/05 Power Supply) can sustain the additional sensor load if you are replacing multiple transducers in a single outage window.

For facilities running a Bently Nevada 3500 Series rack in parallel or as a migration target, note that the 330104-00-08-10-02-00 is also compatible with 3500/42 Proximitor I/O modules when used with the appropriate extension cable assembly. This makes it a practical bridging component during phased migrations where the 3300 rack remains active while the 3500 rack is being commissioned. During this transition, pay close attention to the 3500/22M Transient Data Interface configuration — ensure that the new transducer’s scale factor and gap voltage are correctly entered to avoid false alarm conditions on the vibration channels.

Wiring adaptation is a common challenge in retrofit projects. Older field cable runs may use non-standard shielding or connector terminations that differ from current Bently Nevada specifications. In these cases, a 330130 Series extension cable with the correct length suffix should be ordered alongside the transducer to ensure the total cable assembly matches the monitor’s calibrated range. Verify shield grounding at the junction box — improper grounding is a leading cause of noise on proximity channels and can trigger nuisance trips on the 3300/16 monitor.

If your control cabinet includes a Rockwell Automation ControlLogix or Siemens S7-300 PLC receiving vibration data via analog I/O cards, confirm that the 4–20 mA or voltage output from the 3300 monitor is correctly scaled in the PLC program. A transducer replacement does not alter the monitor’s output signal range, but a re-gap at the machine will shift the DC gap voltage, which may require a corresponding update to the PLC’s engineering unit conversion block. Coordinate with your controls engineer to update the HMI faceplate on the FactoryTalk View or WinCC display to reflect the new sensor tag and calibration reference before returning the machine to service.

For systems where the proximity loop feeds a DCS analog input card — such as a Honeywell Experion or Emerson DeltaV module — document the existing channel configuration (range, alarm setpoints, and engineering units) before disconnecting the old transducer. This allows rapid restoration of the loop in the event of a commissioning issue and reduces the risk of extended downtime. Keep a copy of the original 3300 monitor calibration record and the new transducer’s test certificate in the equipment file for future reference.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a proximity transducer on a running production asset. For planned replacements, schedule the swap during a routine maintenance window and pre-stage all required components — including the 330104-00-08-10-02-00 transducer, extension cable, gap-setting tool, and a calibrated voltmeter — at the work site before the machine is shut down. This eliminates search time during the outage and keeps the critical path as short as possible.

Before de-energizing the monitor rack, capture a screenshot or printout of the current vibration trend and gap voltage readings from the System 1 condition monitoring software or your DCS historian. This baseline data serves as a reference during post-installation verification and helps confirm that the new transducer is performing within the expected range before the machine is restarted.

During installation, protect the original PLC program and HMI logic by placing the affected monitor channel in bypass mode rather than allowing it to generate a spurious trip signal. On the 3300/16 Dual Vibration Monitor, this is typically accomplished via the front-panel bypass switch or through the System 1 software interface. Restore the channel from bypass only after the gap voltage has been set, the monitor OK relay has been verified, and the vibration reading has been confirmed stable at low-speed roll.

For emergency replacements where no planned outage is available, NINERMAS maintains ready stock of the 330104-00-08-10-02-00 to support same-day or next-day dispatch. Contact our team with your machine tag, monitor card model, and cable length requirement to confirm compatibility before ordering. Our pre-shipment test report accompanies every unit, reducing the risk of a second outage caused by a defective replacement part.

Retrofit Support FAQ

Q1: Is the 330104-00-08-10-02-00 a direct drop-in replacement for my existing 3300 Series proximity transducer?
In most cases, yes. The 330104-00-08-10-02-00 is designed to the 3300 Series specification and is compatible with standard 3300 monitor cards. However, you should verify the mounting thread size, cable length, and connector type against your existing installation before ordering. If your system uses a non-standard bracket or a modified cable assembly, contact us with your machine drawing and we will confirm compatibility.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the transducer gap to the nominal value specified on the 3300 monitor calibration sheet (typically 1.0 mm for standard targets). Measure the DC gap voltage at the monitor input and confirm it falls within the OK window. Verify that the monitor OK relay is energized and that the vibration channel reads a stable value consistent with the machine’s normal baseline. Document the gap voltage and date in the equipment maintenance log.

Q3: Does NINERMAS provide a test certificate with each unit, and what does the 12-month warranty cover?
Yes. Every 330104-00-08-10-02-00 shipped by NINERMAS is accompanied by a pre-shipment test report confirming output linearity, gap voltage response, and cable continuity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, over-range mechanical contact, or exposure to environments outside the transducer’s rated specifications.

Q4: Can this transducer be used with a Bently Nevada 3500 Series rack?
Yes, with the appropriate I/O module. The 330104-00-08-10-02-00 is compatible with the 3500/42 Proximitor I/O module when the total cable assembly length matches the monitor’s calibrated range. Ensure that the scale factor and gap voltage are correctly configured in the 3500 rack’s configuration software (Rack Configuration) before enabling the channel. If you are migrating from a 3300 rack to a 3500 rack, our team can advise on the correct extension cable and I/O module pairing for your specific machine application.
