Bently Nevada 330104-00-07-90-02-00 Retrofit Proximity Probe

Bently Nevada 330104-00-07-90-02-00 Retrofit-Compatible Proximity Probe for Legacy Vibration Monitoring Systems

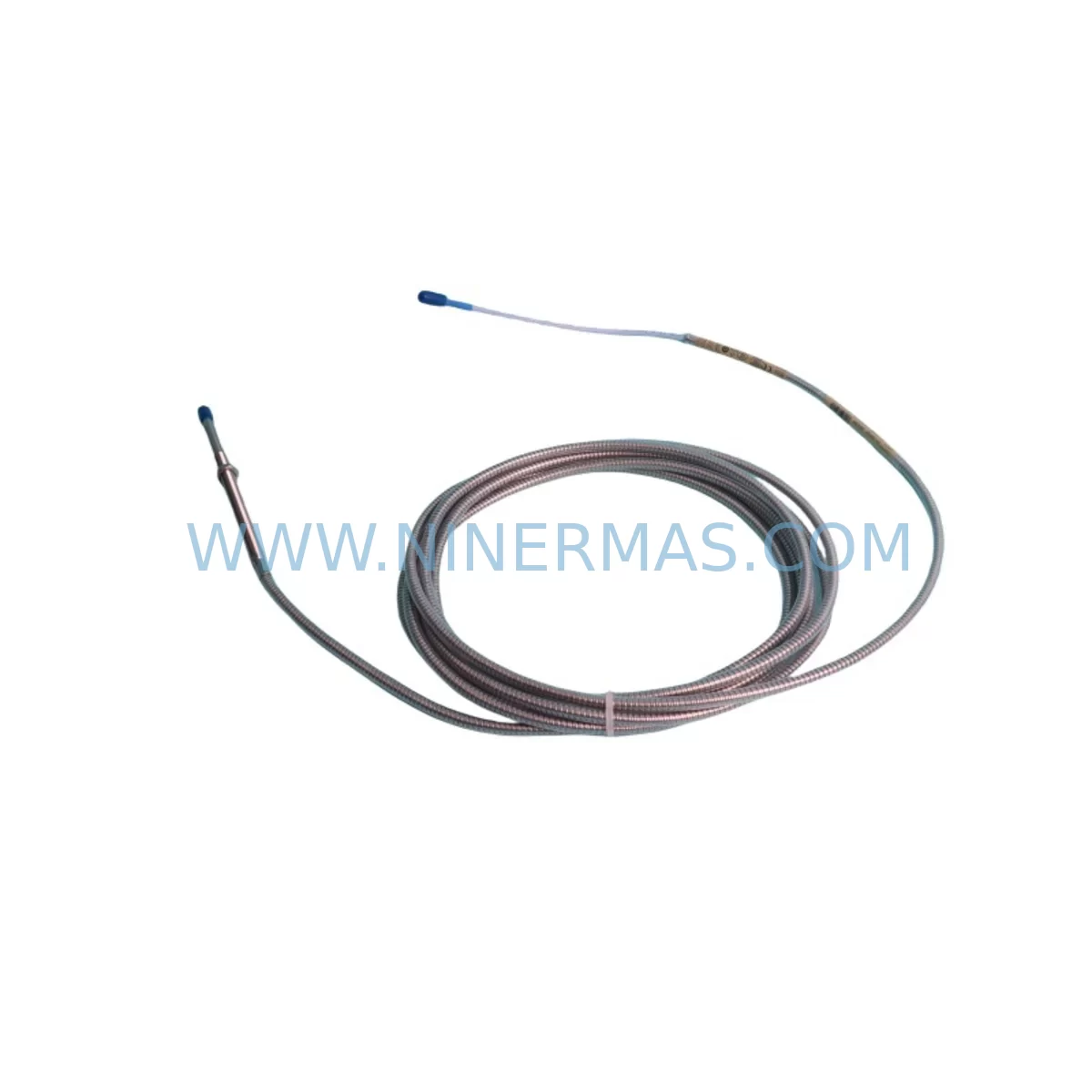

The Bently Nevada 330104-00-07-90-02-00 is a ruggedized eddy-current proximity probe engineered for continuous shaft vibration, axial position, and eccentricity measurement in rotating machinery. As part of the industry-standard Bently Nevada 3300 Series proximity probe system, this module is widely deployed across turbines, compressors, pumps, and gearboxes in oil & gas, power generation, petrochemical, and heavy industrial facilities. With a large installed base of legacy 3300 Series systems still in active service, the 330104-00-07-90-02-00 represents one of the most critical retrofit and spare parts procurement targets for maintenance engineers managing aging condition monitoring infrastructure.

This probe is designed for direct drop-in replacement of discontinued or end-of-life 3300 Series proximity probes without requiring changes to the existing extension cable, proximitor/oscillator driver, or rack-mounted monitor card. The 330104-00-07-90-02-00 maintains full electrical compatibility with the Bently Nevada 3300 XL 8mm Proximity Transducer System, ensuring that existing calibration curves, gap voltage settings, and sensitivity specifications (typically 7.87 V/mm or 200 mV/mil) remain valid after replacement. This eliminates the need for full system recalibration in most standard retrofit scenarios, significantly reducing planned maintenance downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit involving the 330104-00-07-90-02-00, maintenance teams must first audit the full transducer chain. The 3300 Series proximity system is a three-component assembly: the probe itself, the extension cable (typically a 330130-XX or 330180-XX series cable matched to the probe body length), and the proximitor/oscillator driver (such as the 3300/55 or 3300/65 proximitor). All three components must be electrically matched to ensure the system operates within the calibrated linear range. If the existing extension cable has been damaged or its length altered, the entire transducer chain must be re-characterized before returning the machine to service.

In facilities running Bently Nevada 3500 Series rack-based monitoring systems, the 330104-00-07-90-02-00 probe feeds signal into monitor cards such as the 3500/42M four-channel position monitor or the 3500/45 position monitor, which process gap voltage and convert it to engineering units for display and alarm management. Engineers should verify that the I/O module configuration within the 3500 rack — including channel assignment, full-scale range, and alarm setpoints — remains consistent with the replacement probe’s sensitivity curve. In cases where the legacy system used an older 3300/16 or 3300/20 monitor card, the retrofit may present an opportunity to migrate to the 3500 Series platform, which offers improved diagnostics, Modbus RTU or FOUNDATION Fieldbus communication options, and compatibility with modern DCS and SCADA architectures.

For facilities operating mixed-vendor control environments — for example, where a GE Mark VI or Emerson Ovation DCS receives vibration data from the Bently Nevada rack — the retrofit plan must also address the signal interface between the 3500 rack’s output modules and the DCS analog input cards. The 3500/20 rack power supply module and the 3500/22M transient data interface should be reviewed to confirm that existing wiring terminations and signal scaling remain valid after the probe replacement. Where the DCS uses a 4–20 mA input, the proximitor output scaling must be confirmed to match the DCS channel configuration.

In turbine control cabinet upgrades where the Bently Nevada system coexists with other instrumentation — such as Woodward 505 speed controllers, Yokogawa EJA series pressure transmitters, or Pepperl+Fuchs signal isolators — the installation space within the control cabinet must be confirmed before ordering replacement probes with different body lengths or connector orientations. The 330104-00-07-90-02-00 suffix structure encodes probe body length, cable length, and connector type; engineers must decode the suffix carefully to ensure the replacement matches the physical installation envelope of the original probe.

Where the legacy system includes a Bently Nevada 3300/05 power supply or an older rack backplane, the retrofit team should assess whether the backplane’s probe power distribution circuit can sustain the current draw of the replacement probe under worst-case gap conditions. This is particularly relevant in high-channel-count installations where multiple probes share a common power rail. Documenting the existing wiring schedule — including terminal block assignments, cable routing, and shield grounding points — before beginning the replacement is essential for maintaining signal integrity and avoiding ground loop interference in the vibration measurement circuit.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330104-00-07-90-02-00 probe should be bench-tested using a calibrated target simulator to verify gap voltage output, sensitivity, and OK relay behavior. This pre-shipment functional verification — which NINERMAS performs prior to dispatch — confirms that the replacement unit will perform within specification before it reaches the plant floor, eliminating the risk of discovering a defective spare during a live outage.

During the replacement procedure, the original probe’s gap voltage reading should be recorded before disconnection. After installing the 330104-00-07-90-02-00, the gap should be re-set to achieve the same operating gap voltage (typically -10 VDC ± 0.5 VDC for most 8mm probe applications), and the OK relay output should be confirmed active before the monitor card is returned to normal operation. If the machine control system uses a Bently Nevada 3500/01 rack communication gateway to transmit vibration data to a plant historian or condition monitoring platform such as System 1, the gateway’s channel mapping should be verified to confirm that the replacement probe’s data is correctly tagged and archived.

For facilities with redundant probe configurations — where two probes are installed 90° apart on the same bearing journal — the replacement of one probe should not require a full machine shutdown if the monitoring system supports single-channel bypass mode. The 3500 Series rack supports channel inhibit functions that allow maintenance on one channel while the complementary channel remains in service, preserving the machine’s protection coverage during the probe swap. This approach can reduce the effective downtime for a single probe replacement to less than two hours in well-prepared facilities.

After the replacement is complete and the machine has been returned to service, a short-term trend review of the gap voltage, direct vibration amplitude, and 1X/2X vector data should be performed to confirm that the replacement probe is tracking correctly and that no mechanical changes occurred during the outage. This post-commissioning verification step is a standard requirement under most plant machinery protection protocols and should be documented in the maintenance management system for future reference.

Retrofit Support FAQ

Q1: Is the 330104-00-07-90-02-00 a direct replacement for other 330104 suffix variants?
The 330104 base part number designates the 8mm ruggedized proximity probe family within the Bently Nevada 3300 Series. Suffix digits encode probe body length, integral cable length, and connector type. The -07-90-02-00 suffix specifies a particular body and cable configuration. Before ordering, confirm that the physical dimensions, cable length, and connector type of the 330104-00-07-90-02-00 match the installation requirements of the probe being replaced. In most cases, probes with the same body length suffix are electrically interchangeable within the 3300 Series transducer system, but physical fit must be verified against the bearing housing and cable routing constraints.

Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, set the probe gap to achieve the target gap voltage specified in the original system documentation (typically -10 VDC for standard 8mm probes). Confirm that the OK relay output is active and that the monitor card is displaying a valid vibration reading. If the system uses a 3500 Series rack, verify that the channel is not in inhibit mode and that alarm setpoints are active. Record the as-found and as-left gap voltage values in the maintenance log. For systems connected to a DCS or historian, confirm that the vibration tag is updating correctly before closing the work order.

Q3: Can this probe be used with non-Bently Nevada monitor systems?
The 330104-00-07-90-02-00 is an eddy-current probe that requires a compatible proximitor/oscillator driver to function. It is designed for use with Bently Nevada 3300 Series proximitors. Use with third-party drivers is possible in principle if the driver is designed for 8mm eddy-current probes with matching sensitivity and supply voltage specifications, but compatibility must be verified by the system integrator. NINERMAS recommends using the probe within the validated Bently Nevada 3300 Series transducer system to ensure measurement accuracy and system warranty compliance.

Q4: What are the inventory availability and warranty terms?
NINERMAS maintains stock of the 330104-00-07-90-02-00 for rapid dispatch to support planned maintenance and emergency breakdown scenarios. All units are supplied with a 12-month warranty covering manufacturing defects and functional performance. Pre-shipment functional testing is performed on each unit before dispatch. For urgent requirements, please contact our team directly to confirm current stock availability and lead time. Long-term spare parts programs and blanket order arrangements are available for facilities with recurring procurement needs.
