Bently Nevada 330103-15-20-10-02-00 Retrofit Proximity Transducer

Bently Nevada 330103-15-20-10-02-00 Retrofit-Compatible Proximity Transducer for Legacy Vibration Monitoring Systems

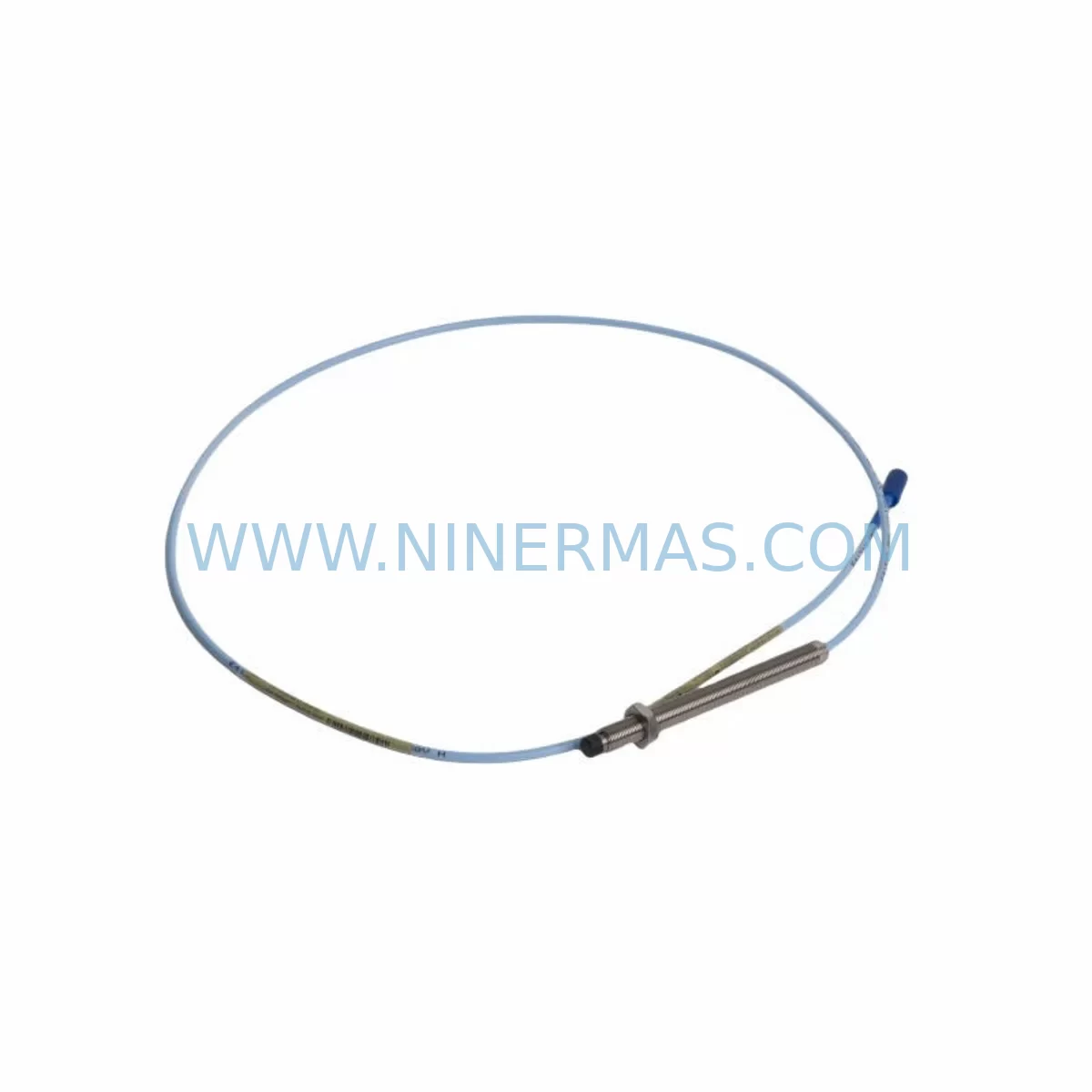

The Bently Nevada 330103-15-20-10-02-00 is a rugged eddy-current proximity transducer engineered for continuous shaft vibration, position, and eccentricity measurement in rotating machinery. As part of the widely deployed Bently Nevada 3300 Series proximity system, this transducer is a direct retrofit solution for facilities operating legacy monitoring infrastructure that must be upgraded, extended, or restored without full system replacement.

With a 15 mm probe tip diameter, 20-inch (500 mm) probe cable, 10-foot (3 m) extension cable, and a standard 2 mm gap range, the 330103-15-20-10-02-00 integrates seamlessly into existing 3300 XL monitor racks, Keyphasor modules, and signal conditioning assemblies. It is fully compatible with the 3300/16 RAM and 3300/20 RAM rack-mounted monitor systems, making it an ideal drop-in replacement for aging or discontinued transducer assemblies in turbine, compressor, pump, and motor protection panels.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 330103-15-20-10-02-00, the scope of work typically extends beyond the transducer itself. A complete vibration monitoring upgrade on a legacy turbine or compressor train will involve reviewing the full signal chain from the probe tip back to the control room. The 3300 XL 8mm Proximitor® driver module must be confirmed as serviceable or replaced in parallel — a failed or drifted Proximitor® will produce erroneous gap voltage readings even with a new transducer installed.

In rack-based systems, the 3300/16 RAM or 3300/20 RAM monitor cards govern alarm setpoints, danger thresholds, and relay output logic. Before removing the old transducer, engineers should export or document all channel configuration parameters from the monitor, including full-scale range, alert and danger setpoints, time delays, and relay assignments. If the facility is migrating to the newer 3500 Series platform — for example, replacing a 3300/20 RAM with a 3500/42M Proximitor® Monitor — the transducer itself remains compatible, but the rack backplane, power supply module, and I/O terminal blocks will require replacement. The 3500/15 Power Supply and 3500/20 Rack Interface Module are commonly ordered alongside the transducer in such upgrade projects.

For facilities running a System 1 or System 1 Evolution condition monitoring platform, the transducer signal feeds into the data acquisition layer through the monitor’s buffered output. Confirm that the BNC or terminal output from the monitor is correctly mapped in the System 1 configuration database before going live. If the plant uses a Keyphasor® module (such as the 3500/25) for phase reference, verify that the Keyphasor® signal is still correctly routed and that the once-per-revolution marker on the shaft is undisturbed during the mechanical work.

Terminal wiring is a frequent source of commissioning delays. The three-wire coaxial cable from the Proximitor® to the monitor uses a defined pin assignment on the 3500 I/O module or the 3300 rack terminal strip. Mislabeled field cables, reversed shield grounding, or incorrect terminal block torque values can introduce noise or signal loss that mimics a faulty transducer. Always perform a point-to-point continuity check and measure gap voltage at the Proximitor® output before declaring the installation complete.

Where the legacy system includes a 3300/55 Dual Voting or 3300/65 Overspeed Detection module, confirm that the transducer replacement does not affect the voting logic or overspeed trip setpoints. These safety-critical functions must be re-verified after any transducer change, and the test records should be retained for compliance documentation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a proximity transducer on a running production asset. The recommended approach is to schedule the swap during a planned maintenance window, with the machine at rest and the monitor channel bypassed or inhibited at the DCS level to prevent spurious trips during the installation period.

Before the outage begins, prepare a pre-work checklist that includes: the current gap voltage reading (recorded from the Proximitor® output), the alarm and danger setpoints from the monitor, the terminal block wiring diagram, and the torque specification for the probe boss. Having the 330103-15-20-10-02-00 pre-tested and gap-verified on the bench before the outage window opens can reduce field installation time to under 30 minutes for a straightforward like-for-like replacement.

If the project involves a broader rack upgrade — for example, replacing a 3300 series rack with a 3500 Series chassis — the original PLC or DCS program logic does not need to change, provided the analog output signal range (typically –24 VDC gap voltage or 4–20 mA converted signal) remains consistent. The control narrative, HMI faceplate, and historian tag assignments can be preserved without modification, which significantly reduces the software validation burden and keeps the outage window tight.

For multi-machine facilities performing a phased fleet upgrade, it is advisable to maintain a buffer stock of the 330103-15-20-10-02-00 and its associated Proximitor® driver to support rapid swap-out if a transducer fails between scheduled maintenance intervals. All units supplied by NINERMAS are pre-shipment tested and include a 12-month warranty, providing assurance that the replacement unit will perform to specification from the moment it is installed.

Retrofit Support FAQ

Q1: Is the 330103-15-20-10-02-00 a direct replacement for other 330103 variants?
The 330103 series uses a standardized suffix structure where the digits encode probe diameter, cable length, extension length, gap range, and connector type. The 330103-15-20-10-02-00 is directly interchangeable with units of the same suffix in the same mounting configuration. If your existing unit has a different suffix (e.g., 330103-15-05-10-02-00 with a shorter probe cable), confirm the cable length is sufficient for your installation before ordering. NINERMAS can advise on cross-reference compatibility.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to the nominal value specified for your shaft material (typically 1.0–2.0 mm for steel targets). Measure the DC gap voltage at the Proximitor® output — it should fall within the linear range specified in the 3300 XL calibration curve (typically –10 to –18 VDC for a 2 mm gap on steel). Verify that the monitor channel is reading correctly, confirm alarm and danger setpoints are active, and release the channel inhibit at the DCS. Record all as-found and as-left values in the maintenance management system.

Q3: Can this transducer be used with a 3500 Series monitor without additional hardware?
Yes. The 330103-15-20-10-02-00 is compatible with the 3500/42M Proximitor® Monitor when used with the appropriate 3500 I/O module and a compatible Proximitor® driver. No modification to the transducer is required. However, the rack backplane, power supply, and I/O terminal assignments differ between the 3300 and 3500 platforms, so a full wiring review is necessary during the rack migration.

Q4: What does the 12-month warranty cover, and is pre-shipment testing included?
All 330103-15-20-10-02-00 units supplied by NINERMAS include a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes a pre-shipment functional test to verify gap sensitivity, cable continuity, and connector integrity before dispatch. In the event of a warranty claim, NINERMAS provides replacement or repair support with documented test records available upon request.
