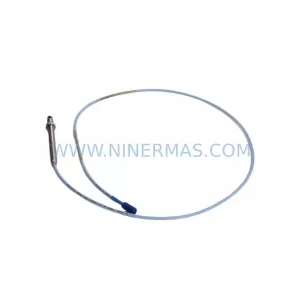

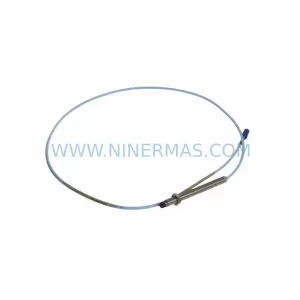

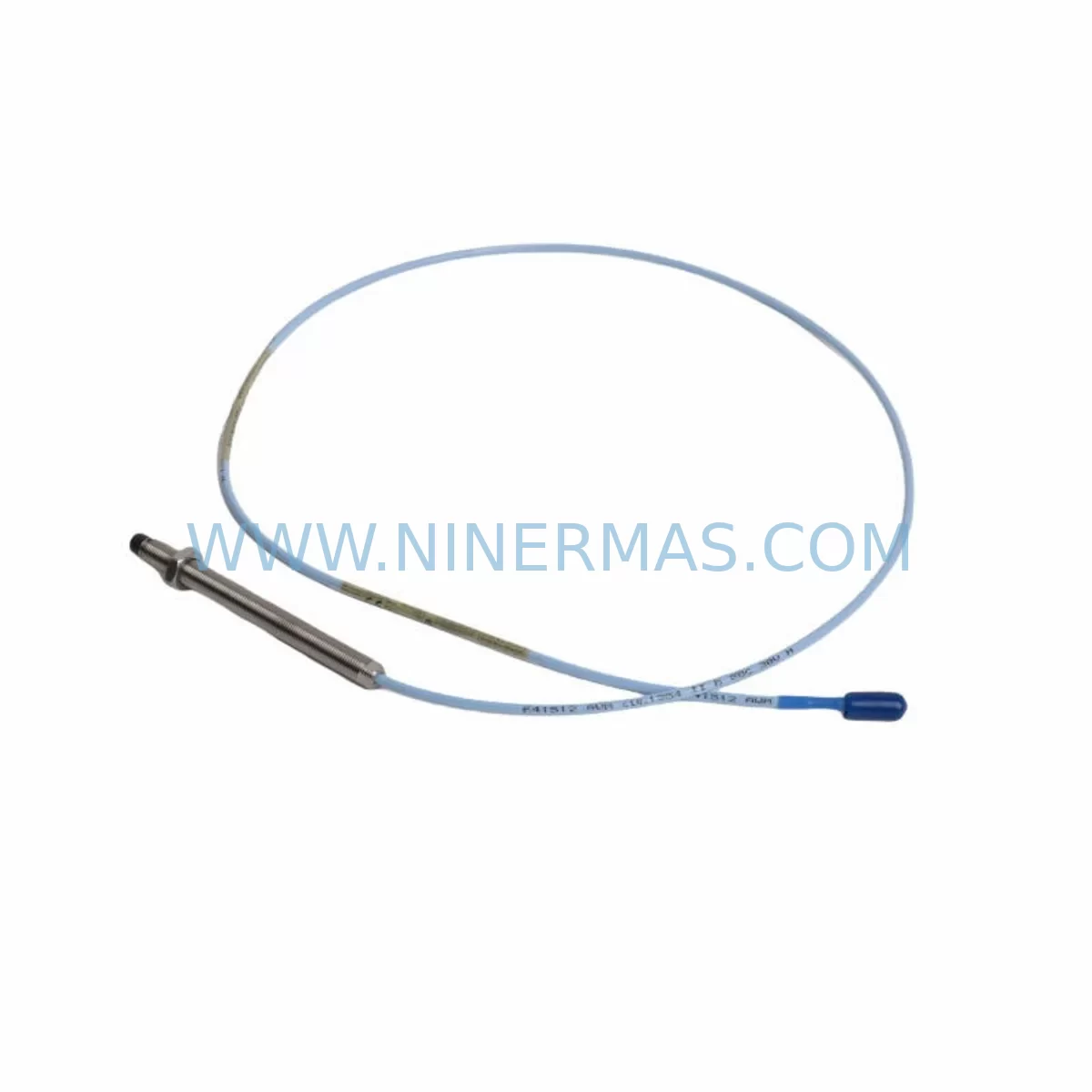

Bently Nevada 330103-08-12-05-02-00 Retrofit-Compatible Proximitor for Legacy Systems

Bently Nevada 330103-08-12-05-02-00 Retrofit-Compatible Proximitor for Legacy Systems

The Bently Nevada 330103-08-12-05-02-00 is a high-reliability Proximitor sensor module designed for the 3300 Series vibration monitoring platform. As legacy machinery continues to operate well beyond its original design life, the demand for verified retrofit-compatible replacements for discontinued Bently Nevada components has grown significantly across oil & gas, power generation, petrochemical, and heavy manufacturing industries. This unit serves as a direct functional replacement for aging or failed 330103-series Proximitors, enabling engineers to restore full vibration monitoring capability without redesigning the existing control architecture.

When integrating the 330103-08-12-05-02-00 into an existing installation, the retrofit process begins with a thorough review of the power supply capacity feeding the 3300 rack. The Proximitor requires a stable –24 VDC bias voltage, and the existing 3300/20 Power Supply or 3300/15 Power Supply must be confirmed to have sufficient headroom to support the replacement module without voltage droop under full sensor load. Engineers should verify terminal wiring against the original loop drawing, paying close attention to the coaxial cable routing between the Proximitor and the eddy-current probe — cable length directly affects the system scale factor and must remain within the specified range for the probe series in use.

Backplane interface compatibility is a critical checkpoint. The 330103-08-12-05-02-00 is designed to seat into the standard 3300 Series rack backplane, but technicians must confirm that the rack’s I/O slot assignment and module address configuration match the original channel mapping stored in the System 1 condition monitoring software or the connected DCS/PLC. If the plant uses a Bently Nevada 3500 Series rack in parallel for newer machinery, the address scheme differs and must not be cross-applied. For sites migrating from older 7200 Series Proximitors, a full probe-and-cable replacement is typically required alongside the monitor module swap, as the 7200-series uses a different gap voltage range and scale factor.

Communication link integrity should be validated before and after the swap. Many 3300 Series installations interface with a plant historian or safety system via 4–20 mA analog output or RS-232/RS-485 serial links. Technicians should confirm that the replacement module’s output signal levels are correctly received at the DCS input card or safety PLC — particularly where the vibration channel feeds a SIL-rated shutdown loop. Any HMI faceplate or operator display configured to show vibration trend data from this channel should be verified for correct engineering unit scaling after the module is commissioned.

Installation space confirmation is straightforward for like-for-like 3300 Series rack replacements, as the module occupies a standard single-slot position. However, in control cabinets where the rack has been supplemented with signal isolators, terminal blocks, or I/O marshalling panels, the technician should verify that the coaxial cable bend radius and connector clearance are maintained. Where the original installation used a 3300/55 Dual Voting or 3300/46 Tachometer module in adjacent slots, care must be taken not to disturb those connections during the swap.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-08-12-05-02-00 into an operating plant requires a structured pre-outage planning process. The first step is to pull the existing loop diagram and confirm the probe model currently paired with the Proximitor — common pairings include the 330101 Proximity Probe and 330130 Extension Cable, both of which must be within specification for the replacement Proximitor to deliver accurate gap and vibration readings. If the probe or cable is also aged or damaged, replacing all three components as a matched set is strongly recommended to avoid calibration drift after commissioning.

The rack’s 3300/20 Power Supply output should be load-tested prior to the outage window. A degraded power supply that has been running at capacity for years may not sustain the inrush current when a new Proximitor module is seated. Having a spare 3300/15 Power Supply on hand as a contingency is good practice for critical machinery trains. Similarly, the 3300 Series rack backplane connectors should be inspected for corrosion or pin damage before the new module is inserted.

For plants running System 1 Evolution software, the channel configuration database should be exported and backed up before any hardware change. After the replacement module is installed, the software’s device discovery or manual channel assignment function must be used to re-associate the physical slot with the correct machine train and measurement point. Where the control system interfaces with a Rockwell Automation ControlLogix or Siemens S7-300 PLC via the analog I/O card, the input scaling parameters in the PLC program should be cross-checked against the new module’s output range to prevent false alarms or missed trips during the post-retrofit proving run.

Signal isolators installed between the Proximitor output and the DCS input — such as those used to break ground loops in older installations — should be tested for correct pass-through scaling after the module swap. In some legacy installations, a programming cable (such as the Bently Nevada RS-232 configuration cable) may be needed to access the module’s internal configuration registers if the unit was previously customized for a non-standard scale factor or alert setpoint.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a vibration monitoring module on a running machinery train. The recommended approach is to schedule the swap during a planned maintenance window and to pre-stage all replacement components — including the 330103-08-12-05-02-00 Proximitor, matched probe, and extension cable — at the work site before the outage begins. A pre-written commissioning checklist covering gap voltage measurement, vibration signal verification, alert and danger setpoint confirmation, and communication link test will reduce the time the machinery train spends in an unmonitored state.

Where the plant’s safety system requires continuous vibration monitoring and a bypass is not permitted, a temporary portable vibration analyzer can be connected to the probe tip during the module swap to maintain measurement continuity. After the new Proximitor is seated and powered, the gap voltage should be measured at the monitor front panel or via the System 1 software before the machinery is restarted. The original program logic — including alert setpoints, danger setpoints, time delays, and voting logic — should be verified against the pre-outage backup to confirm no configuration was lost during the hardware change. HMI trend displays should be checked for correct signal continuity and engineering unit labeling before the bypass is lifted and the machinery train is returned to service.

Retrofit Support FAQ

Q1: Is the 330103-08-12-05-02-00 a direct drop-in replacement for the original Bently Nevada OEM part?
Yes. This unit is functionally equivalent to the original OEM 330103-08-12-05-02-00 and is designed to seat directly into the 3300 Series rack backplane without mechanical modification. Electrical interface, output signal range, and power requirements are identical to the original specification. On-site gap voltage and scale factor verification is still required after installation.

Q2: What commissioning steps are required after installing the replacement module?
After seating the module, technicians should measure the Proximitor output gap voltage with the probe at the correct operating gap, verify the vibration signal against a known reference (or portable analyzer), confirm alert and danger setpoints in the monitoring system, and test the 4–20 mA or serial output at the receiving DCS or PLC input card. A full channel function test should be completed before the machinery train is returned to service.

Q3: Is this unit in stock and what is the lead time?
Yes, the 330103-08-12-05-02-00 is held in stock and is available for immediate shipment. Standard orders are processed and dispatched within 1–3 business days. Expedited shipping options are available for urgent plant recovery situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for current availability and shipping timelines.

Q4: What warranty is provided and does it cover field failures?
All units are covered by a 12-month warranty from the date of shipment. Each module undergoes functional testing prior to dispatch to verify output signal integrity and power consumption within specification. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions. Our technical team is available to support troubleshooting and, where applicable, arrange replacement under warranty without extended lead times.
