Bently Nevada 330103-02-08-10-02-05 Retrofit Proximity Probe

Bently Nevada 330103-02-08-10-02-05 Retrofit-Compatible Proximity Probe for Legacy Systems

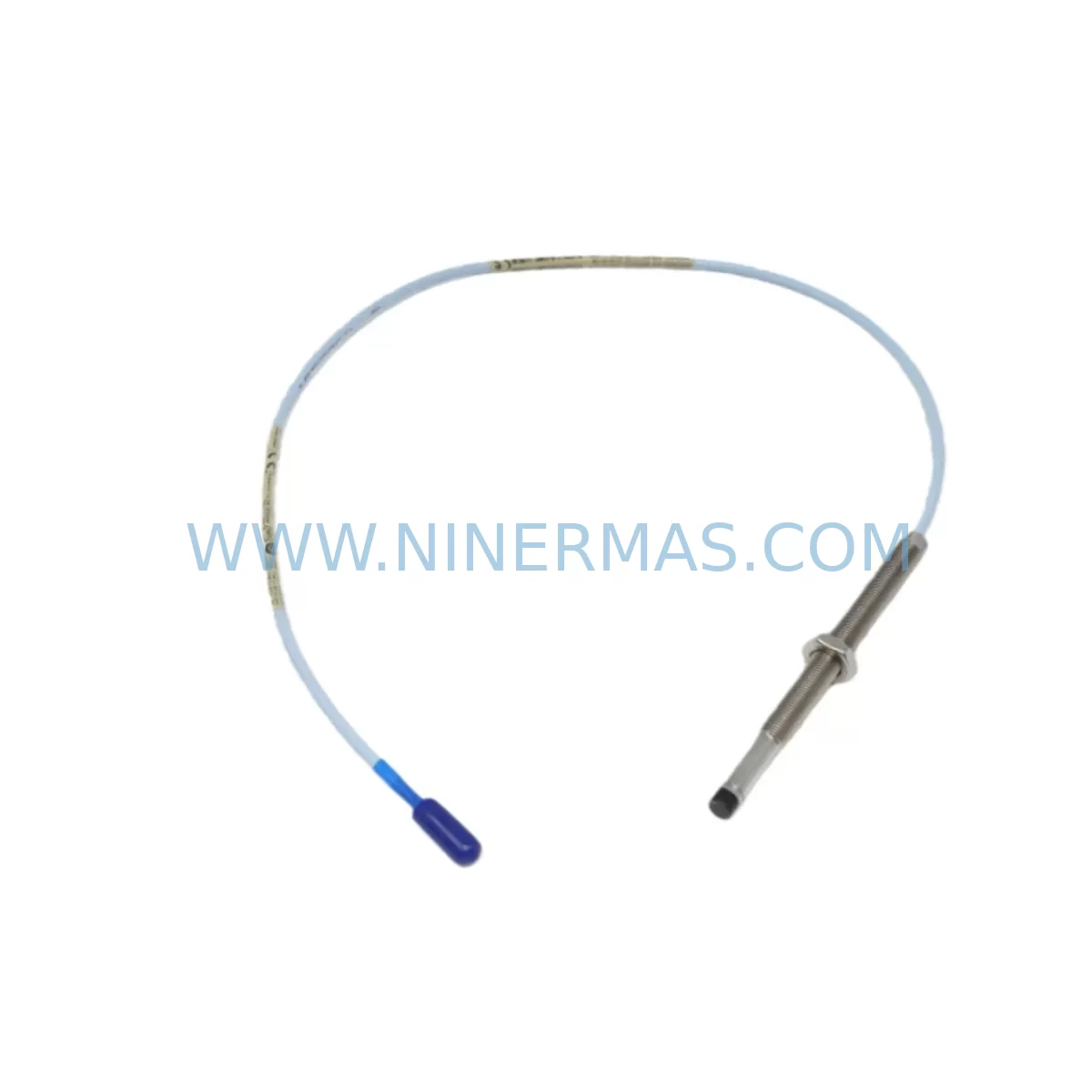

The Bently Nevada 330103-02-08-10-02-05 is a ruggedized proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As part of the industry-standard 3300 XL series, this probe is widely deployed in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, and heavy manufacturing facilities. With a growing number of legacy 3300 and 7200 series monitoring systems reaching end-of-life, the 330103-02-08-10-02-05 has become a critical retrofit and replacement component for engineers tasked with extending the operational life of existing machinery protection infrastructure without committing to a full platform migration.

This probe operates on the standard Bently Nevada eddy-current sensing principle, delivering a linear output signal compatible with the 3300 XL proximitor/seismic transducer system. Its ruggedized housing is designed to withstand harsh industrial environments, including high-temperature zones, chemical exposure, and mechanical vibration. When replacing a failed or end-of-life probe in an existing installation, engineers must verify the cable length configuration — in this case the 02-08-10-02-05 suffix encodes the probe, extension cable, and proximitor combination — to ensure the replacement matches the original gap voltage calibration and sensitivity factor (typically 200 mV/mil or 7.87 V/mm) expected by the connected monitor module.

Before installation, confirm that the existing 3300 XL proximitor, such as the 330180 or 330130 series, is compatible with the replacement probe’s tip diameter and target material. Mismatched combinations can result in incorrect gap voltage readings and false alarm conditions on the connected 3500/42M or 3500/40M monitor cards. If the installation involves a rack-mounted 3500 series machinery protection system, verify that the I/O module slot assignments and channel configuration in the System 1 software or rack configuration utility have not been altered since the original commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-02-08-10-02-05 into an existing machinery protection system requires a structured retrofit plan that addresses both the mechanical and signal chain aspects of the installation. Begin by auditing the full transducer chain: the probe itself, the extension cable (typically a 330130 or 330180 proximitor cable), and the proximitor driver. Each component in the chain must be matched to the same calibrated system to maintain measurement accuracy. A mismatch between the probe tip diameter and the proximitor’s calibration curve will introduce offset errors that cannot be corrected at the monitor level without recalibration.

For installations involving a Bently Nevada 3500 rack system, the retrofit process should include a review of the rack’s power supply module — commonly the 3500/15 or 3500/05 power supply — to confirm that the available current budget accommodates the replacement probe and any additional I/O modules being added during the same maintenance window. If the retrofit is being performed alongside an I/O expansion, such as adding a 3500/64 process variable monitor or a 3500/50 tachometer input module, the total rack power draw must be recalculated before energizing the system.

Communication continuity is another critical consideration. If the 3500 rack communicates with a plant DCS or historian via a 3500/92 communication gateway module using Modbus TCP or OPC-DA, verify that the channel mapping and tag assignments in the gateway configuration remain valid after the probe replacement. A probe swap that triggers a channel re-initialization in the monitor card can temporarily disrupt the data stream to the DCS, causing false “sensor fault” alarms in the control room. Coordinate with the DCS operator before beginning the swap to suppress non-critical alarms during the maintenance window.

For older installations still using the Bently Nevada 7200 series transducer system, the 330103-02-08-10-02-05 is not a direct plug-in replacement due to differences in the proximitor driver circuit and output scaling. In these cases, a migration path typically involves replacing the 7200 series proximitor with a 3300 XL proximitor and updating the monitor card input configuration accordingly. The 3300 XL system’s improved temperature stability and extended linear range make it a preferred upgrade target for facilities planning a phased modernization of their machinery protection infrastructure.

HMI screen updates are often overlooked during probe replacements. If the plant uses a System 1 Evolution or System 1 Classic software platform for vibration trending and alarm management, confirm that the probe channel’s engineering unit scaling, full-scale range, and alarm setpoints are correctly reflected in the HMI configuration after the swap. A probe with a different gap voltage characteristic — even within the same 330103 family — can shift the displayed vibration amplitude by several mils if the HMI scaling is not updated to match.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-stage the replacement 330103-02-08-10-02-05 probe, verify its gap voltage output on the bench using a portable oscilloscope or a Bently Nevada field calibration kit, and confirm that the replacement unit’s sensitivity matches the original within the acceptable tolerance band before the machine is taken offline.

During the swap, protect the original program logic in the 3500 rack by placing the affected monitor channel in bypass mode rather than removing power from the entire rack. This preserves the rack’s communication link to the DCS and prevents the control system from interpreting the maintenance activity as a process fault. If the installation requires the machine to remain in a reduced-load operating state during the probe swap — common in continuous process industries — coordinate with the operations team to establish a safe reduced-speed operating window that keeps the shaft within the probe’s linear measurement range.

After the replacement probe is installed and the gap is set, perform a slow-roll vibration check at low shaft speed before returning the machine to full load. Compare the slow-roll vector against the historical baseline stored in the System 1 database to confirm that the replacement probe is tracking correctly. Any significant deviation in the 1X or 2X vibration component at slow-roll speed is an indicator of a gap setting error, a probe orientation issue, or a target surface condition that requires attention before the machine is returned to service.

Document the as-found and as-left gap voltage readings, the probe serial number, and the installation date in the plant’s maintenance management system. This record supports future troubleshooting and provides the baseline data needed to detect probe degradation during subsequent inspections. With a 12-month warranty covering this unit, any performance deviation identified during the warranty period can be addressed through the supplier’s replacement process without additional cost to the facility.

Retrofit Support FAQ

Q1: Is the 330103-02-08-10-02-05 a direct replacement for other 330103 suffix variants?
The 330103 base part number is common across the 3300 XL ruggedized probe family, but the suffix encodes the probe length, extension cable length, and proximitor type. Before ordering, confirm that the suffix of the replacement unit matches the original installation’s cable length and proximitor model. In many cases, a different suffix variant can be used if the total system length is maintained and the proximitor is recalibrated to match. Contact our technical team with your existing part number for a confirmed cross-reference.

Q2: What commissioning steps are required after installing this probe?
After mechanical installation, set the probe gap to achieve the nominal output voltage specified for your proximitor model — typically -10 VDC ±0.5 V for standard 3300 XL systems. Verify the output using a calibrated voltmeter at the proximitor output terminals before connecting to the monitor card. Once connected, confirm that the 3500 monitor card displays a valid gap voltage within the OK relay threshold and that the channel’s vibration reading at slow-roll speed is consistent with the historical baseline. Update the System 1 channel configuration if the probe’s sensitivity or scaling differs from the original.

Q3: Can this probe be used with legacy 7200 series monitor systems?
The 330103-02-08-10-02-05 is designed for use with the 3300 XL proximitor system and is not directly compatible with 7200 series monitor inputs without a proximitor upgrade. Facilities operating 7200 series systems should plan a phased migration that includes replacing the 7200 proximitor with a 3300 XL unit and updating the monitor card input configuration. Our team can provide a migration checklist and compatible component list for your specific 7200 series installation.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every 330103-02-08-10-02-05 unit shipped by NINERMAS is tested for output sensitivity, gap voltage linearity, and connector integrity before dispatch. The 12-month warranty covers manufacturing defects and performance deviations from the published specification under normal operating conditions. Units that fail to meet specification within the warranty period will be replaced or refunded. Warranty claims require the original purchase documentation and a description of the failure mode. Contact sale@ninermas.com to initiate a warranty claim.
