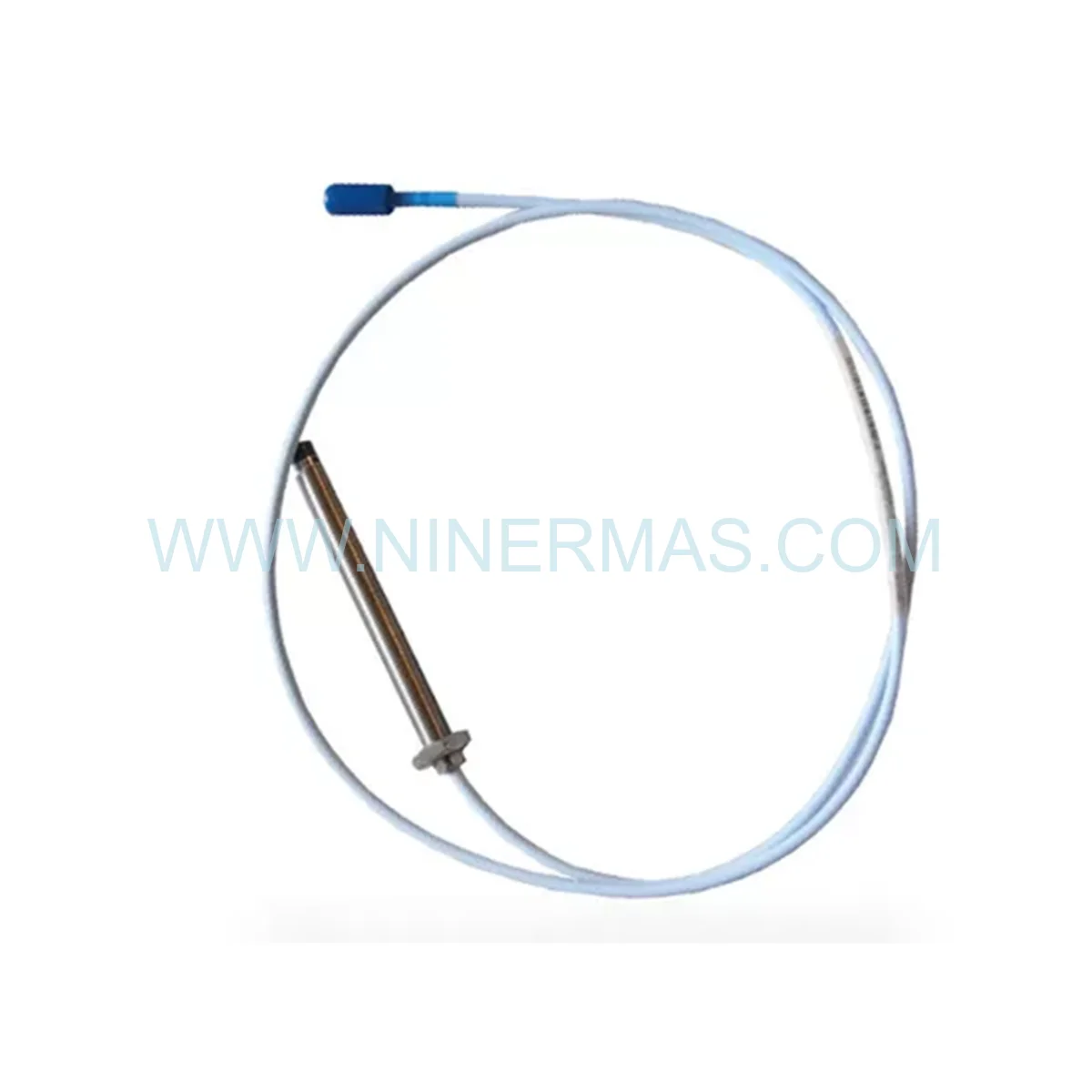

Bently Nevada 330103-00-16-10-02-05 | 3300 XL 8mm Retrofit & Upgrade Probe

Bently Nevada 330103-00-16-10-02-05 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades, the Bently Nevada 330103-00-16-10-02-05 stands as a cornerstone component in any machinery protection modernization initiative. This 3300 XL 8mm eddy current proximity probe delivers the precision and reliability required to breathe new life into aging vibration monitoring infrastructures — extending equipment lifespan while dramatically improving measurement accuracy across turbines, compressors, and rotating machinery platforms. Its role in performance enhancement is not merely incremental; it represents a fundamental shift in how legacy systems can achieve modern-grade diagnostics without full system replacement.

The 330103-00-16-10-02-05 is engineered with backward compatibility at its core, making it an ideal upgrade path component for facilities still operating on legacy 7200 series proximitor frameworks. Its M10 x 1.0 threaded interface and BNC connector architecture align with established installation footprints, eliminating the need for costly mechanical modifications during retrofit projects. This hardware upgrade preserves existing wiring infrastructure while delivering the enhanced frequency response (0-10 kHz) and extended temperature tolerance (-40°C to +125°C) demanded by modern API 670 machinery protection standards.

From a migration risk perspective, deploying the 330103-00-16-10-02-05 as part of a phased modernization strategy significantly reduces both capital expenditure and operational disruption. Rather than committing to a full DCS or TSI platform overhaul, plant engineers can achieve measurable performance gains — improved signal linearity, reduced noise floor, and enhanced EMI/RFI immunity — through targeted hardware upgrades. This approach compresses migration timelines, lowers integration risk, and delivers a compelling ROI for facilities balancing operational continuity with modernization mandates.

Upgrade Highlights & Compatibility

• ✅ Drop-in Legacy Compatibility: Direct replacement for aging 7200 series and early 3300 series probes — zero mechanical re-engineering required
• Enhanced Signal Performance: 7.87V/mm output sensitivity with 0-10 kHz bandwidth delivers superior dynamic range vs. predecessor models
• ✅ Future-Proof Architecture: API 670 compliant design ensures compatibility with next-generation monitoring platforms and IIoT-ready data acquisition systems
• Thermal Resilience: -40°C to +125°C operating range supports seamless integration into high-temperature process environments without derating
• ✅ Reduced Migration Footprint: Standard M10 x 1.0 thread and 10-meter cable length minimize installation rework during system migration projects
• EMI/RFI Hardened: Robust shielding architecture maintains signal integrity in electrically noisy industrial environments — critical for retrofit deployments near VFDs and switchgear

Modernization Use Cases & Success Stories

DCS-Integrated Turbine Monitoring Retrofit:
In combined-cycle power plants transitioning from standalone vibration panels to fully integrated DCS architectures, the 330103-00-16-10-02-05 serves as the sensing foundation for the upgrade. Its wide frequency response captures both subsynchronous instabilities and high-frequency blade-pass events, feeding clean analog signals into modern 3500 series rack monitors or third-party DCS I/O modules. Plants report a 40-60% reduction in nuisance trips following probe replacement from legacy 7200 series units.

TSI System Modernization in Petrochemical Facilities:
For turbomachinery supervisory instrumentation (TSI) upgrades in refineries and gas processing plants, this probe enables a non-invasive performance leap. Retrofit teams replace worn or thermally degraded legacy probes with the 330103-00-16-10-02-05 during planned turnarounds, restoring factory-calibrated measurement accuracy and extending the operational window of existing Proximitor signal conditioners by 5-10 years before full platform migration is required.

Compressor Train Predictive Maintenance Enablement:
In facilities implementing condition-based maintenance programs, deploying the 330103-00-16-10-02-05 across critical compressor trains provides the high-fidelity shaft displacement data required for advanced analytics platforms. The probe’s stable output characteristics enable reliable trend baselines — a prerequisite for AI-assisted fault prediction and digital twin integration in Industry 4.0 retrofit programs.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every 330103-00-16-10-02-05 unit is sourced as genuine Bently Nevada OEM hardware, shipped in original factory packaging with full material traceability documentation. No refurbished, remanufactured, or gray-market components.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain strategic inventory positions enabling same-day dispatch to major industrial hubs across Asia-Pacific, the Middle East, Europe, and the Americas. DDP and DAP shipping terms available for seamless customs clearance.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Bently Nevada system architectures. Whether you’re migrating from a 7200 series platform, integrating into a 3500 rack, or troubleshooting an existing 3300 XL installation, we provide gap calibration guidance, signal conditioner compatibility verification, and retrofit bill-of-materials consultation at no additional charge.

Retrofit FAQ (Upgrade Guide)

Q: Will the 330103-00-16-10-02-05 physically fit in my existing probe mounting without machining?
A: In the vast majority of retrofit scenarios, yes. The M10 x 1.0 thread and 8mm probe body are dimensionally identical to legacy 3300 and 7200 series probes. Verify your existing bracket bore diameter (minimum 10.5mm clearance) and thread engagement depth before installation. No machining is required for standard OEM mounting configurations.

Q: How does this probe communicate with older DCS or TSI platforms that use 4-20mA inputs?
A: The 330103-00-16-10-02-05 outputs a raw voltage signal (-18V to -2V DC) that requires a compatible Proximitor sensor (e.g., 3300 XL Proximitor) for signal conditioning. The Proximitor converts the probe signal to industry-standard outputs compatible with legacy DCS analog input cards. No protocol conversion hardware is needed for standard 4-20mA or voltage output DCS integrations.

Q: Are there approved substitute or alternative part numbers if the 330103-00-16-10-02-05 is temporarily unavailable?
A: The closest functional equivalents within the 3300 XL family are the 330103-00-08-10-02-05 (8m cable variant) and 330103-00-09-10-02-05 (9m cable variant). These share identical probe head geometry and electrical characteristics — only cable length differs. Always verify cable length adequacy for your installation before substituting. Contact our technical team for cross-reference validation.

Q: What is the recommended recalibration interval after installing this probe in a retrofit application?
A: Bently Nevada recommends initial gap voltage verification at commissioning (target: -10.0V ±0.5V at 1.0mm gap on 4140 steel). Subsequent recalibration is typically performed during annual turnarounds or whenever the probe is disturbed. For critical machinery, validate gap voltage quarterly as part of your predictive maintenance program.

Q: Can this probe support IIoT or digital twin integration as part of a broader Industry 4.0 retrofit?
A: Yes. The 330103-00-16-10-02-05 provides the high-fidelity analog signal foundation required for digital twin platforms. When paired with modern 3500 series monitors or third-party edge computing gateways, the probe’s 0-10 kHz bandwidth supports real-time vibration spectrum analysis, enabling AI-assisted fault detection and predictive maintenance algorithms central to Industry 4.0 modernization strategies.

Q: What documentation is provided to support retrofit project engineering packages?
A: We supply the Bently Nevada product datasheet, installation drawing, and calibration certificate upon request. For retrofit engineering packages requiring ATEX/IECEx hazardous area certification documentation or API 670 compliance declarations, contact our technical support team with your project specifications.
