Bently Nevada 330103-00-10-15-02-05 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 330103-00-10-15-02-05 Service-Ready Spare Part for Industrial Maintenance

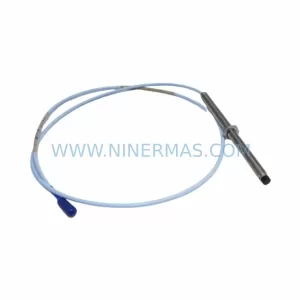

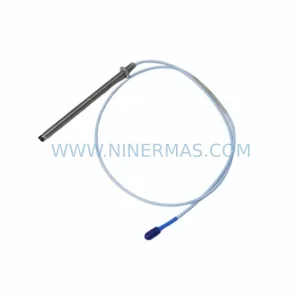

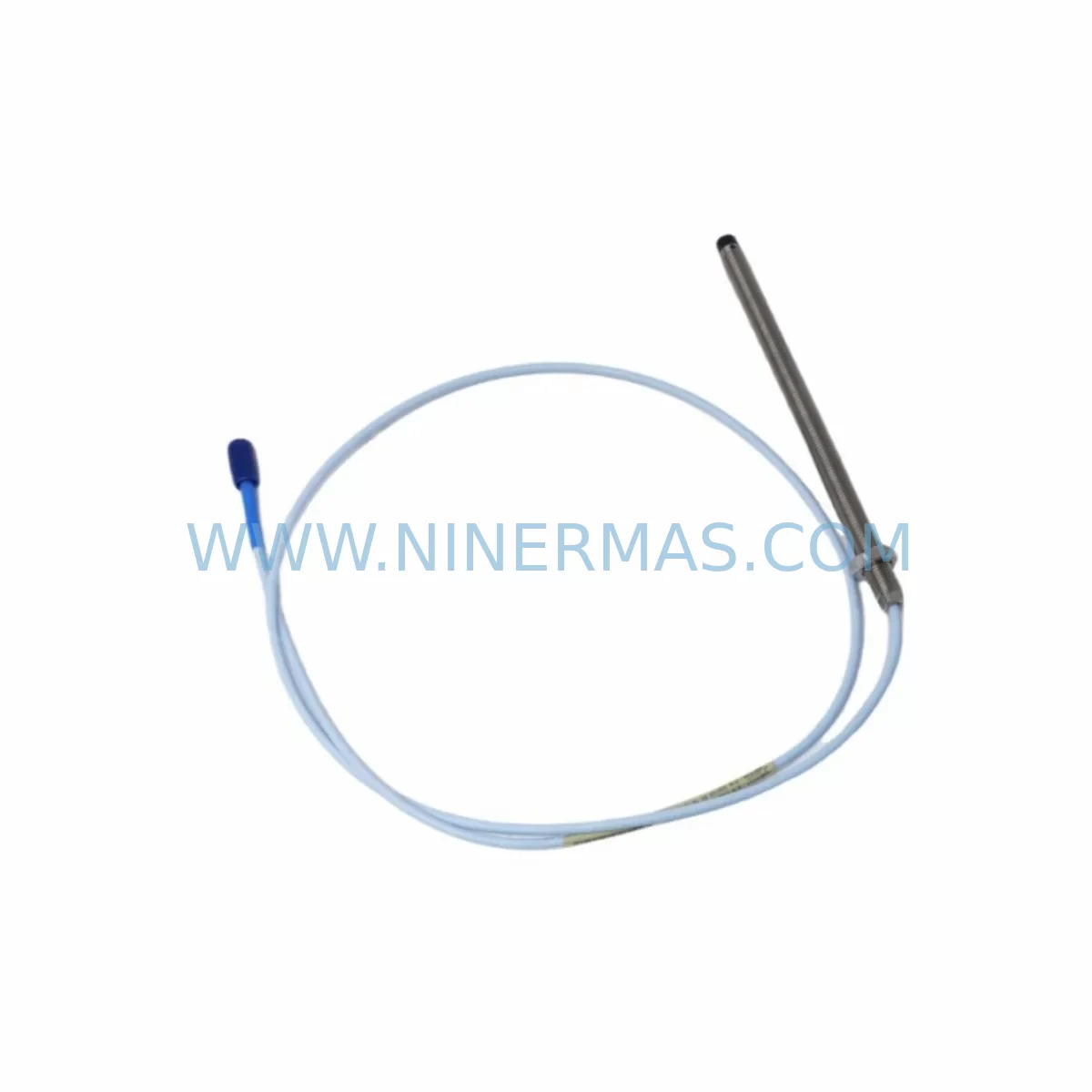

The Bently Nevada 330103-00-10-15-02-05 is a precision proximity transducer engineered for the 3300 XL 8mm Series vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery applications worldwide. Whether you are managing a scheduled annual overhaul, responding to an unplanned shutdown, or building a strategic spare parts inventory for a critical turbine train or compressor skid, this transducer represents a direct, service-ready replacement that restores system integrity without requiring reconfiguration or recalibration of the monitoring rack.

Maintenance engineers operating in petrochemical plants, power generation facilities, offshore platforms, and heavy industrial environments rely on the 3300 XL 8mm proximity transducer system to deliver continuous, real-time shaft displacement and vibration data. When a transducer in this loop fails — whether due to cable damage, tip contamination, mechanical impact, or end-of-service-life degradation — the entire monitoring channel goes offline. Without a verified replacement on the shelf, the result is extended downtime, manual vibration checks, and elevated risk of undetected rotor instability. Stocking the 330103-00-10-15-02-05 as a certified spare eliminates this exposure.

At NINERMAS, every unit of the 330103-00-10-15-02-05 is sourced through verified supply channels, inspected prior to dispatch, and shipped with a 12-month warranty covering manufacturing defects and functional performance. Our team supports maintenance planners and procurement engineers with lead time confirmation, compatibility verification, and long-term supply continuity for legacy Bently Nevada systems that may no longer be actively supported by the OEM.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330103-00-10-15-02-05 transducer in isolation is rarely sufficient for a complete channel restoration. Experienced maintenance engineers understand that the 3300 XL proximity system operates as a matched assembly: the transducer, the extension cable (such as the 330130-045-00-00 or 330130-080-00-00 series), and the Proximitor® driver (such as the 3300 XL 8mm Proximitor® Sensor, part 330180-X1-05) must all be within specification for the system to deliver accurate gap voltage and vibration amplitude readings.

During a channel fault investigation or planned replacement, maintenance teams should simultaneously inspect the following components to prevent repeat failures and reduce future downtime exposure:

Extension Cables: The coaxial extension cable connecting the transducer to the Proximitor driver is a common failure point in high-vibration or high-temperature zones. Cables in the 330130 series should be checked for jacket integrity, connector corrosion, and continuity. A degraded cable will produce erratic gap voltage even with a new transducer installed.

Proximitor® Driver Module: The 3300 XL Proximitor® sensor (driver) conditions the transducer signal and provides the –24 VDC excitation. If the driver output is outside the –10 to –18 VDC gap voltage window after transducer replacement, the driver itself should be evaluated for replacement. Stocking a spare Proximitor module alongside the 330103-00-10-15-02-05 is standard practice in high-availability plant environments.

3500 Series Rack I/O Modules: In installations where the 3300 XL transducer feeds into a 3500 Series monitoring rack, the corresponding I/O module (such as the 3500/42M or 3500/40M) should be verified for correct channel configuration, alarm setpoints, and communication status. A rack module fault can mask a healthy transducer signal or generate false alarms post-replacement.

Terminal Blocks and Field Wiring: Loose or corroded terminal connections in the junction box or marshalling cabinet are a frequent source of signal noise. During transducer replacement, inspect all field wiring terminations, verify shield grounding continuity, and confirm that cable routing avoids proximity to high-voltage power cables or variable frequency drives that may induce electrical interference.

Signal Isolators and Barriers: In hazardous area installations, Zener barriers or galvanic isolators in the signal loop should be tested for correct voltage clamping and isolation resistance. A degraded barrier can attenuate the transducer signal or introduce offset errors that affect vibration alarm accuracy.

Power Supply Modules: The –24 VDC supply feeding the Proximitor driver should be verified for voltage stability and ripple. Power supply degradation is a common root cause of intermittent transducer faults that are misdiagnosed as transducer failures. Redundant power supply modules in the monitoring rack should be confirmed as active and healthy.

HMI and DCS Integration: After channel restoration, confirm that the vibration trend data is correctly received at the DCS or plant historian. Check the engineering unit scaling, alarm thresholds, and trip setpoints in the operator interface to ensure they match the pre-fault configuration. Any discrepancy should be resolved before returning the machine to service.

Building a structured spare parts kit that includes the 330103-00-10-15-02-05 transducer, a matched extension cable, a Proximitor driver, and the associated rack I/O module provides complete channel redundancy and supports a target restoration time of under four hours for a single-channel fault — a benchmark that is achievable with pre-staged, tested components and a documented replacement procedure.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Coordinate with the control room to place the affected monitoring channel in bypass mode. Follow site LOTO procedures before accessing the transducer installation point. Do not remove the transducer while the machine is running unless the installation design specifically permits hot-swap replacement.

Step 2 — Gap Voltage Verification (Pre-Removal): Record the existing gap voltage reading from the Proximitor driver output before disconnecting the transducer. This baseline confirms whether the fault is in the transducer, the extension cable, or the driver, and prevents unnecessary replacement of serviceable components.

Step 3 — Transducer Removal and Inspection: Remove the 330103-00-10-15-02-05 from the probe holder. Inspect the tip for mechanical damage, contamination, or corrosion. Inspect the integral cable for jacket damage at the strain relief point. Document findings for the maintenance record.

Step 4 — New Transducer Installation: Install the replacement 330103-00-10-15-02-05 in the probe holder. Set the initial gap to the manufacturer-specified nominal value (typically 1.0 mm for 8mm transducers) using a non-ferrous feeler gauge or the gap voltage method. Torque the locknut to specification.

Step 5 — Gap Voltage Confirmation: With the Proximitor driver powered, verify that the gap voltage falls within the linear range (typically –10 to –18 VDC). Adjust the transducer position as required to achieve the target gap voltage. Record the final gap voltage in the maintenance log.

Step 6 — System Restoration and Alarm Verification: Remove the channel bypass, confirm that the vibration reading is stable and within normal operating range, and verify that no alarms or trips are active. Notify the control room that the channel is restored and document the completed replacement in the plant maintenance management system.

This workflow is applicable to both direct OEM replacement and cross-compatible substitution scenarios. The 330103-00-10-15-02-05 is a direct replacement for earlier 3300 XL 8mm transducer variants, eliminating the need for bracket modification or cable adapter assemblies in most standard installations.

Spare Parts Support FAQ

Q1: Is the 330103-00-10-15-02-05 compatible with both the 3300 XL and 3500 Series monitoring systems?
The 330103-00-10-15-02-05 is designed for the 3300 XL 8mm proximity transducer system. It is compatible with 3300 XL Proximitor® drivers and 3300 XL extension cables. When used as an input to a 3500 Series rack via a 3300 XL Proximitor, the signal is fully compatible with 3500/40M and 3500/42M I/O modules. Direct connection to 3500 Series rack-mounted transducer interface modules requires verification of the specific rack configuration.

Q2: Does NINERMAS test units before shipment, and what does the 12-month warranty cover?
Yes. All units dispatched by NINERMAS are inspected for physical integrity and verified against manufacturer specifications prior to shipment. The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or credit resolution within agreed lead times.

Q3: Can NINERMAS support long-term supply for legacy Bently Nevada 3300 XL components?
Yes. NINERMAS maintains sourcing relationships that support long-term supply continuity for legacy Bently Nevada components, including the 3300 XL 8mm transducer series, Proximitor drivers, and extension cables. We work with maintenance planners to establish annual blanket orders, consignment stock arrangements, and priority allocation for critical plant spares. Contact our team to discuss a supply agreement tailored to your plant’s maintenance schedule.

Q4: What information should I provide when ordering to ensure I receive the correct compatible unit?
To confirm compatibility and avoid procurement errors, please provide the full part number (330103-00-10-15-02-05), the Proximitor driver model in use, the extension cable length and part number, and the monitoring rack type (3300 XL standalone or 3500 Series integrated). Our technical team will verify the configuration and confirm the correct replacement before order confirmation.
