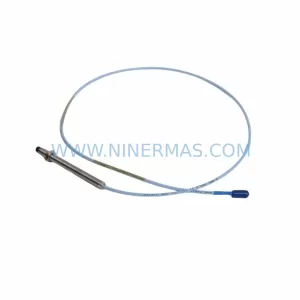

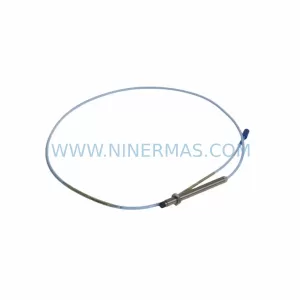

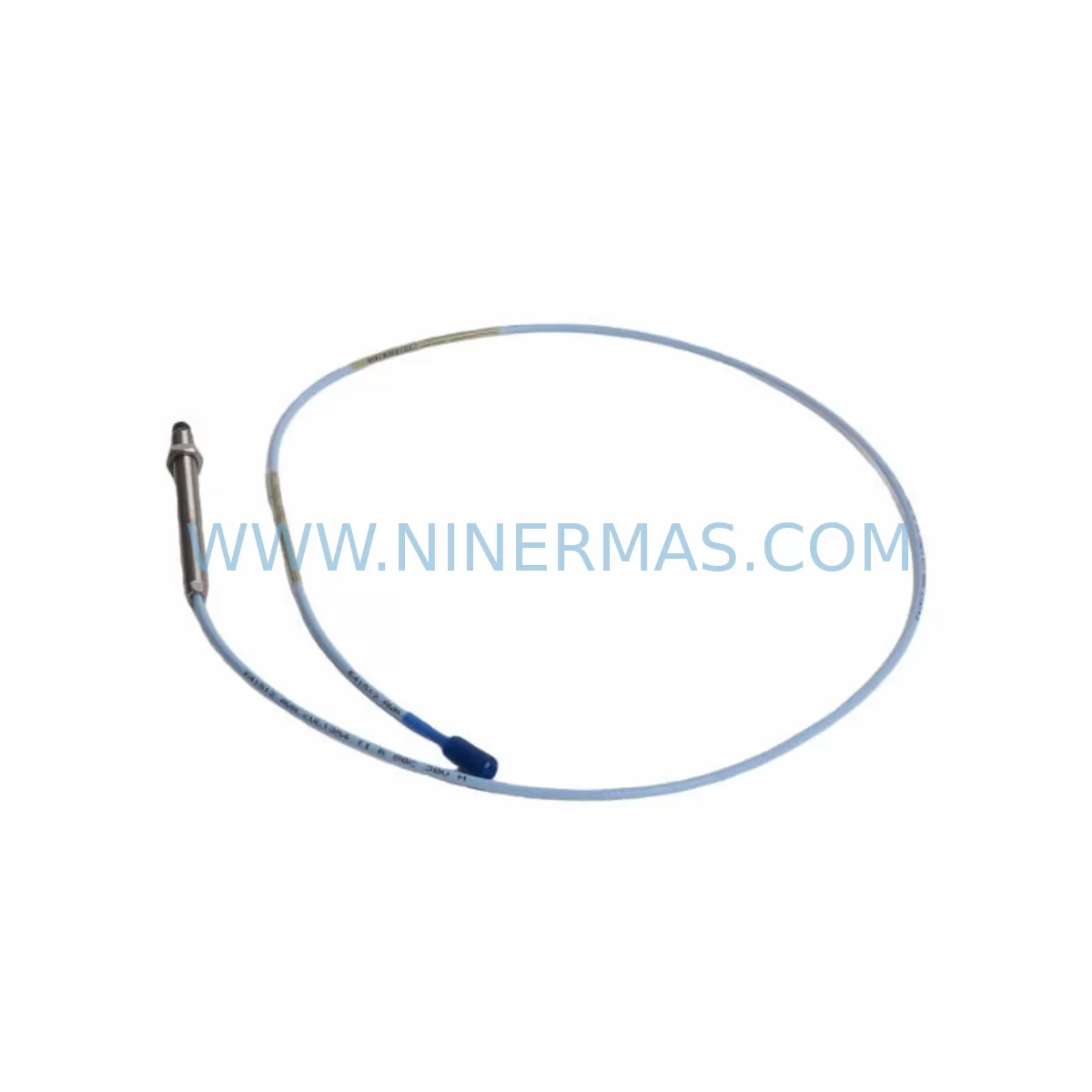

Bently Nevada 330103-00-10-05-02-CN Retrofit-Compatible Proximitor for Legacy Systems

Bently Nevada 330103-00-10-05-02-CN Retrofit-Compatible Proximitor for Legacy Systems

The Bently Nevada 330103-00-10-05-02-CN is a high-reliability Proximitor sensor module designed for the Bently Nevada 3300 Series vibration monitoring platform. As aging distributed control systems and machinery protection networks reach end-of-life, this module serves as a proven retrofit-compatible replacement for facilities managing legacy rotating equipment — including turbines, compressors, pumps, and gearboxes — where continuous vibration monitoring is critical to plant safety and uptime.

Whether you are executing a planned control system migration, responding to an obsolete spare parts shortage, or upgrading a legacy monitoring rack to meet current API 670 standards, the 330103-00-10-05-02-CN provides a direct-fit solution that minimizes engineering rework, preserves existing field wiring, and reduces commissioning time on the plant floor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 330103-00-10-05-02-CN into an existing machinery protection system requires a structured approach that accounts for both the mechanical and electrical environment of the legacy installation. In most retrofit scenarios, the Proximitor module is installed within a Bently Nevada 3300 Series rack alongside companion modules such as the 3300/16 Dual Vibration Monitor or the 3300/20 Dual Vibration Monitor, which process the proximity signal and generate trip and alarm outputs to the plant safety system.

Before removing the failed or obsolete Proximitor, technicians should document the existing gap voltage reading — typically between −10 VDC and −18 VDC for standard eddy current systems — as this value confirms correct probe-to-target spacing and serves as the baseline for post-installation verification. The field wiring from the 330130 Series extension cable or 330180 Series armored extension cable must be inspected for continuity and insulation integrity, as degraded cables are a common source of false OK relay trips during commissioning.

In control cabinets where the 3300 Series rack shares a backplane with other I/O infrastructure, confirm that the power supply module — such as the Bently Nevada 3300/15 Power Supply — can sustain the additional current draw of the replacement Proximitor without exceeding its rated output capacity. Overloaded power supplies are a frequent cause of intermittent module faults in aging control cabinets and should be load-tested prior to final commissioning.

For facilities migrating from older 7200 Series or 9000 Series Bently Nevada platforms to the 3300 architecture, the signal scaling and OK relay logic may differ. In these cases, the HMI display — whether a legacy operator workstation running System 1 software or a modern equivalent — must have its tag engineering units and alarm setpoints reconfigured to match the 3300 Series output characteristics. Failure to update HMI alarm thresholds is one of the most common commissioning oversights in cross-series migrations.

Where the plant DCS communicates with the machinery protection system via a Modbus RTU or 4–20 mA hardwired interface, the signal mapping between the 330103-00-10-05-02-CN output and the DCS analog input card must be verified. In some installations, a signal isolator or signal conditioner is inserted between the Proximitor output and the DCS input to prevent ground loops — particularly in older facilities where the control cabinet grounding scheme does not meet current IEC 61000 standards.

Physical installation space should also be confirmed before ordering. The 330103-00-10-05-02-CN occupies a standard 3300 Series module slot; however, in densely populated racks where adjacent modules such as the 3300/46 Keyphasor Module or 3300/50 Overspeed Detection Module are installed, slot availability and airflow clearance must be verified to prevent thermal derating of adjacent modules.

Downtime Control During System Migration

Minimizing unplanned downtime during a Proximitor replacement is achievable with disciplined pre-outage preparation. The recommended approach is to perform all documentation, wiring verification, and spare parts staging during a planned maintenance window rather than during an emergency response, where time pressure increases the risk of commissioning errors.

Before initiating the swap, export the current System 1 configuration file or equivalent machinery protection system database to preserve all alarm setpoints, trip multipliers, and channel assignments. This backup ensures that if the replacement module requires reconfiguration, the original logic can be restored without relying on paper records or technician memory.

During the physical swap, isolate the affected monitor channel at the 3300 Series rack terminal block rather than disconnecting field wiring at the junction box, which reduces the risk of disturbing adjacent channels that remain in service. After seating the 330103-00-10-05-02-CN, restore power and verify the OK relay status before re-enabling the trip output to the plant safety system — this sequence prevents a nuisance trip from propagating to the emergency shutdown system during the commissioning phase.

For critical machinery where continuous monitoring cannot be interrupted, a temporary bypass relay or inhibit function within the safety system can be activated for the duration of the swap, provided that the plant’s management of change (MOC) procedure authorizes the bypass and a qualified technician maintains direct observation of the machine during the inhibit period. Once the replacement Proximitor is confirmed operational — with gap voltage, vibration amplitude, and OK relay all within specification — the bypass is removed and the channel is returned to normal protective service.

All commissioning results, including gap voltage readings, vibration baseline values, and OK relay confirmation, should be recorded in the plant maintenance management system (CMMS) to support future troubleshooting and to establish the performance baseline for the replacement module over its service life.

Retrofit Support FAQ

Q1: Is the 330103-00-10-05-02-CN a direct drop-in replacement for earlier 330103 suffix variants?
In most cases, yes. The -02-CN suffix designates a specific cable length and connector configuration. Before installation, confirm that the probe cable length, extension cable type, and target material match the specifications of the original installation. If the original module used a different suffix, verify gap voltage range compatibility with the 3300 Series monitor in use.

Q2: What pre-shipment testing is performed on this module?
Each 330103-00-10-05-02-CN unit supplied by NINERMAS undergoes functional verification prior to dispatch, including OK relay output confirmation and signal output continuity checks. Units are shipped with protective packaging to prevent electrostatic discharge and mechanical damage during transit. A 12-month warranty covers manufacturing defects and functional performance from the date of shipment.

Q3: Can this module be used with non-Bently Nevada monitors or third-party vibration systems?
The 330103-00-10-05-02-CN is optimized for use within the Bently Nevada 3300 Series platform. While the eddy current output signal is a standard analog format, the OK relay logic, power supply requirements, and gap voltage calibration are designed for 3300 Series monitors. Use with third-party systems requires independent compatibility verification by the end user’s instrumentation engineer.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains inventory of the 330103-00-10-05-02-CN to support urgent retrofit and emergency replacement requirements. Standard orders are processed and dispatched within 3–5 business days. For large-quantity orders or project-based procurement, contact our sales team to confirm availability and arrange expedited shipping if required.
