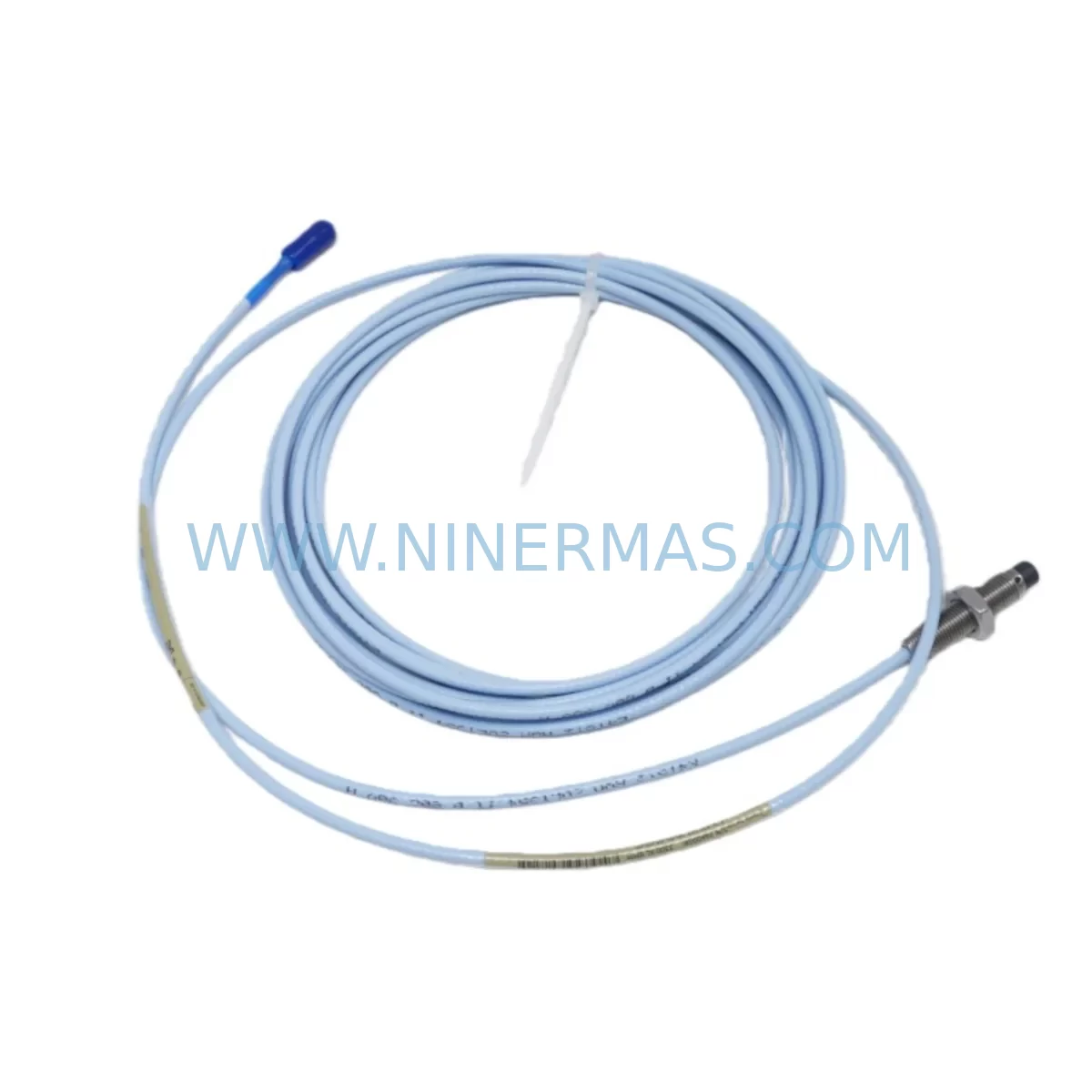

Bently Nevada 330103-00-04-50-12-CN Safety Proximity Probe

Bently Nevada 330103-00-04-50-12-CN Safety Proximity Probe: Critical Control and Machinery Protection Reliability

The Bently Nevada 330103-00-04-50-12-CN is a ruggedized eddy-current proximity probe engineered for continuous, safety-critical machinery monitoring in the most demanding industrial environments. As part of the renowned Bently Nevada 3300 Series, this probe delivers precise, non-contact vibration and position measurement for rotating equipment — including turbines, compressors, pumps, and motors — where unplanned downtime or control interruption carries severe operational and safety consequences.

Designed to operate reliably under high electromagnetic interference, mechanical vibration, extreme temperatures, moisture ingress, and heavy particulate contamination, the 330103-00-04-50-12-CN is the trusted choice for engineers who cannot afford signal drift, false trips, or measurement failure in critical interlock and protection loops.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection architecture, the Bently Nevada 330103-00-04-50-12-CN proximity probe does not operate in isolation. It forms the sensing front-end of a complete vibration monitoring chain that must remain coherent and interference-free from the machine bearing housing all the way to the control room. Signal integrity begins at the probe tip and depends on every component in the loop.

The probe pairs directly with the Bently Nevada 330130-040-00-00 or compatible 3300 XL extension cable, which maintains the precise impedance characteristics required for accurate eddy-current measurement over long cable runs in electrically noisy environments. Any impedance mismatch or cable damage in this segment introduces signal drift that can trigger nuisance trips or, worse, mask genuine vibration events.

The conditioned signal feeds into a Bently Nevada 3300 XL 8mm Proximitor Sensor (such as the 330180-91-00), which converts the raw probe output into a calibrated voltage proportional to gap distance. This Proximitor must be mounted in a clean, thermally stable junction box or marshalling cabinet — ideally protected by a Phoenix Contact QUINT-PS/1AC/24DC/10 or equivalent DIN-rail power supply with integrated surge protection, ensuring the 24 VDC instrument bus remains stable even during grid disturbances or motor start transients.

Downstream, the vibration signal enters a Bently Nevada 3500/42M Proximitor/Seismic Monitor card housed in the 3500 Rack — a modular, safety-rated platform capable of driving relay outputs directly into the plant’s Emergency Shutdown System (ESD). In high-criticality applications such as steam turbine trains or centrifugal compressor strings, this rack communicates over Modbus RTU or Ethernet/IP to a Rockwell Automation ControlLogix L8x safety PLC, where the vibration high-high setpoint is hardwired into the SIL 2 interlock logic.

To protect the entire signal chain from surge events — particularly in outdoor substations, coastal facilities, or sites with frequent lightning activity — MTL Surge Technologies SDL-24 or Pepperl+Fuchs KFD2-STC4-Ex1 Zener barriers or galvanic isolators should be installed at the cabinet entry point. These devices prevent destructive transients from propagating into the sensitive Proximitor circuitry and the 330103-00-04-50-12-CN probe itself.

For facilities operating in ATEX Zone 1 or NEC Class I Division 1 classified areas — common in petrochemical, offshore, and gas processing plants — the probe installation must be paired with an approved Bently Nevada 3300 XL Intrinsically Safe barrier assembly, ensuring the entire loop remains within safe energy limits even under fault conditions. Grounding discipline is equally critical: the probe cable shield must be grounded at one end only, typically at the Proximitor, to prevent ground loop currents that introduce 50/60 Hz noise into the vibration signal.

Completing the protection layer, a Weidmüller KLIPPON TB series terminal block assembly with integrated test points allows field technicians to perform in-situ loop checks and probe gap verification without breaking the live circuit — a key requirement for continuous production sites where taking a measurement point offline for maintenance is not operationally acceptable.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-04-50-12-CN proximity probe is deployed across the full spectrum of heavy industry wherever rotating machinery forms the backbone of continuous production or safety-critical utility supply.

In petrochemical and refining complexes, this probe monitors the radial vibration and axial position of high-speed centrifugal compressors, reactor charge pumps, and crude distillation column overhead compressors. A single undetected bearing failure in these machines can result in catastrophic release of flammable or toxic process fluid — making reliable, drift-free vibration measurement a non-negotiable safety requirement. The ruggedized construction of the 330103-00-04-50-12-CN withstands the hydrocarbon-laden, high-humidity atmospheres typical of these facilities without signal degradation.

In thermal and combined-cycle power generation, the probe is installed on steam turbine journal bearings, boiler feed pump turbines, and gas turbine compressor stages. Grid operators demand maximum availability from these assets, and the 3300 Series probe’s proven long-term stability — with minimal zero drift over years of continuous service — directly supports high plant availability factors and reduces the frequency of costly borescope inspections triggered by false alarms.

In underground and open-cut mining operations, the 330103-00-04-50-12-CN protects large ball mill pinion bearings, SAG mill trunnion bearings, and conveyor drive gearboxes operating in environments saturated with silica dust, water spray, and mechanical shock. The probe’s ruggedized tip and shielded cable construction resist the abrasive and conductive contamination that degrades standard industrial sensors within months.

In water and wastewater treatment facilities, the probe monitors large vertical turbine pumps and blower trains that must operate continuously to maintain regulatory compliance. Unexpected pump failure in a municipal water supply system carries both public health and legal consequences — making the reliability of the vibration monitoring chain as important as the mechanical integrity of the pump itself.

In metallurgical and steel production plants, the probe is applied to rolling mill main drive motors, continuous caster withdrawal roll drives, and blast furnace top gas compressors — all of which operate under extreme thermal cycling, heavy electromagnetic interference from large variable-frequency drives, and persistent mechanical vibration from the production process itself.

In port and marine applications, including ship propulsion systems and harbor crane slewing drives, the 330103-00-04-50-12-CN provides reliable shaft position feedback in salt-air environments where corrosion resistance and sealed cable construction are essential for long service intervals between dry-dock maintenance periods.
