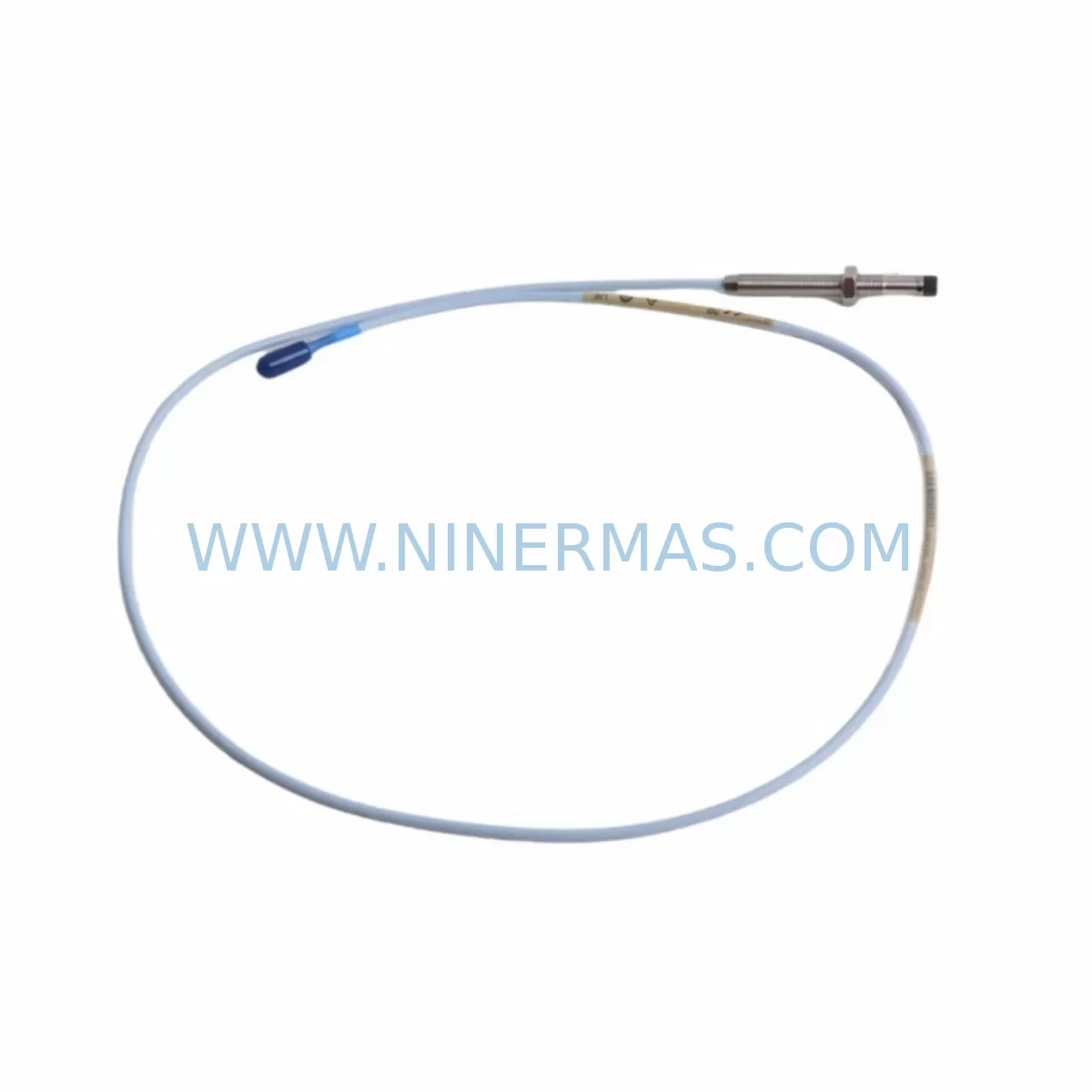

Bently Nevada 330101-00-70-10-02-00 Ruggedized Proximity Transducer

Bently Nevada 330101-00-70-10-02-00 Ruggedized Proximity Transducer: Spare Parts Replacement & Downtime Risk Control

The Bently Nevada 330101-00-70-10-02-00 is a ruggedized proximity transducer engineered for continuous shaft vibration and position monitoring in demanding industrial environments. As a core sensing element within the Bently Nevada 3300 Series proximity system, this transducer is widely deployed in rotating machinery protection systems across power generation, oil & gas, petrochemical, and heavy manufacturing facilities. Maintaining a verified service-ready spare of the 330101-00-70-10-02-00 is a fundamental requirement for any maintenance team responsible for turbine trains, compressors, pumps, and gearboxes where unplanned downtime carries significant operational and financial risk.

Maintenance engineers and reliability teams recognize that proximity transducer failure — whether caused by cable damage, connector corrosion, tip contamination, or mechanical impact — can trigger a full machinery trip. Without a pre-qualified replacement on the shelf, the recovery window extends from hours to days. The 330101-00-70-10-02-00 offered here is sourced as an original spare, tested prior to shipment, and backed by a 12-month warranty, ensuring your team can execute a rapid swap and restore normal operation with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330101-00-70-10-02-00 proximity transducer, best practice demands a systematic inspection of the entire measurement chain and associated control cabinet components. Proximity transducer faults rarely occur in isolation — connector degradation, cable shield breaks, or Proximitor® sensor drift often accompany or precede transducer failure.

Begin by verifying the condition of the Bently Nevada 330130-080-00-00 extension cable that links the transducer to the Proximitor® sensor. Extension cable shield integrity is critical; any breach introduces noise that mimics shaft vibration and can cause nuisance trips. Next, inspect the Bently Nevada 330180-X1-05 3300 XL 8mm Proximitor® Sensor — the active electronics module that conditions the transducer signal. A drifting or failed Proximitor® will invalidate readings even from a new transducer.

Within the Bently Nevada 3500 Series Machinery Protection System rack, confirm that the associated 3500/42M Proximitor®/Seismic Monitor module is functioning correctly and that its channel configuration matches the replacement transducer’s sensitivity and gap voltage parameters. If the rack has been in service for more than five years, this is also an appropriate time to inspect the 3500/15 Power Supply module for output voltage stability, as power supply degradation is a common root cause of intermittent transducer faults.

For facilities running parallel vibration monitoring on the same machine train, cross-check the companion 330103-00-70-10-02-00 proximity transducer (Y-axis or thrust position channel) to ensure it remains within calibrated gap voltage range. Procurement engineers should consider stocking both X and Y channel transducers as a matched pair to eliminate asymmetric replacement risk.

Terminal blocks and field wiring within the junction box should be inspected for corrosion, loose terminations, and moisture ingress. Phoenix Contact or equivalent DIN rail terminal blocks used in the field junction box are inexpensive insurance against signal loss. Additionally, verify that any signal isolators or galvanic isolators installed between the field device and the monitor rack are operating within specification — these components are frequently overlooked during routine maintenance but can introduce offset errors that mask real machinery faults.

For facilities with older Bently Nevada 7200 Series or 3300 NSv systems being maintained alongside newer 3500 racks, ensure that the replacement transducer’s gap voltage and sensitivity specifications are compatible with the installed Proximitor® model. Mixed-generation systems require careful compatibility verification before any spare part is installed. Procurement teams should document the exact transducer-Proximitor®-monitor combination in the site spare parts register to prevent cross-installation errors during emergency shutdowns.

Finally, if the machine train includes a Bently Nevada 3500/22M Transient Data Interface or a System 1® condition monitoring software node, confirm that the replacement transducer’s channel data is correctly mapped and that baseline waveform data is captured immediately after installation to establish a new reference for trend analysis.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 330101-00-70-10-02-00 matches the installed transducer’s thread size (10–32 UNF), cable length (70 inches), and tip diameter. Cross-reference the part number against the machine’s instrumentation drawing and the 3500 rack channel configuration sheet.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. De-energize the Proximitor® sensor supply at the 3500/15 Power Supply or field junction box. Do not disconnect the transducer under live –24 VDC supply to avoid connector damage.

Step 3 — Removal and Gap Measurement: Remove the old transducer using the appropriate spanner. Record the installed gap (typically 50 mil / 1.27 mm for standard steel targets). Clean the mounting boss and inspect for thread damage.

Step 4 — Installation and Gap Setting: Install the new 330101-00-70-10-02-00 and set the gap to the machine’s specified value using a calibrated gap-setting tool or digital multimeter (target gap voltage: approximately –10.4 VDC for 50 mil gap on AISI 4140 steel). Secure the locknut to the manufacturer’s specified torque.

Step 5 — Signal Verification: Re-energize the Proximitor® sensor and verify gap voltage at the 3500 monitor channel. Confirm the channel reads within the OK band (typically –2 VDC to –18 VDC). Check for alarm and danger setpoint integrity before returning the machine to service.

Step 6 — Documentation: Update the site maintenance management system (CMMS) with the replacement date, new part serial number, installed gap voltage, and technician sign-off. Archive the pre- and post-replacement gap voltage readings for future trend reference.

This structured workflow minimizes replacement time, eliminates re-work caused by incorrect gap setting, and ensures the machine protection system is fully functional before restart — reducing total downtime from a potential 8–24 hour event to a controlled 2–4 hour maintenance window.

Spare Parts Support FAQ

Q1: Is the 330101-00-70-10-02-00 compatible with both the 3300 Series and 3500 Series Bently Nevada systems?
The 330101-00-70-10-02-00 transducer is a 3300 Series proximity transducer designed to operate with 3300 XL 8mm Proximitor® sensors. It is fully compatible with the Bently Nevada 3500 Series Machinery Protection System when paired with the correct Proximitor® module (e.g., 330180 series). Always verify the Proximitor® model and monitor channel configuration before installation to ensure system-level compatibility.

Q2: What is your inventory and long-term supply strategy for this part?
NINERMAS maintains dedicated stock of the 330101-00-70-10-02-00 and related 3300/3500 Series components to support both emergency replacement and planned annual maintenance programs. We offer long-term supply agreements for procurement teams managing multi-site spare parts inventories, ensuring consistent availability even for discontinued or hard-to-source Bently Nevada part numbers.

Q3: How is the transducer tested before shipment?
Every 330101-00-70-10-02-00 unit undergoes pre-shipment functional testing, including gap voltage output verification, cable continuity check, and connector integrity inspection. Units that do not meet original specification are not shipped. A test report is available upon request for quality-critical procurement requirements.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, output signal failure under normal operating conditions, and connector or cable integrity issues attributable to the component itself. Warranty claims are supported by NINERMAS directly, with replacement or credit issued upon failure verification. The warranty period begins from the date of shipment and applies to units installed and operated within the manufacturer’s specified environmental and electrical parameters.
