Bently Nevada 330101-00-41-10-02-05 Retrofit Proximity Probe

Bently Nevada 330101-00-41-10-02-05 Retrofit Proximity Probe: Legacy System Compatible Upgrade

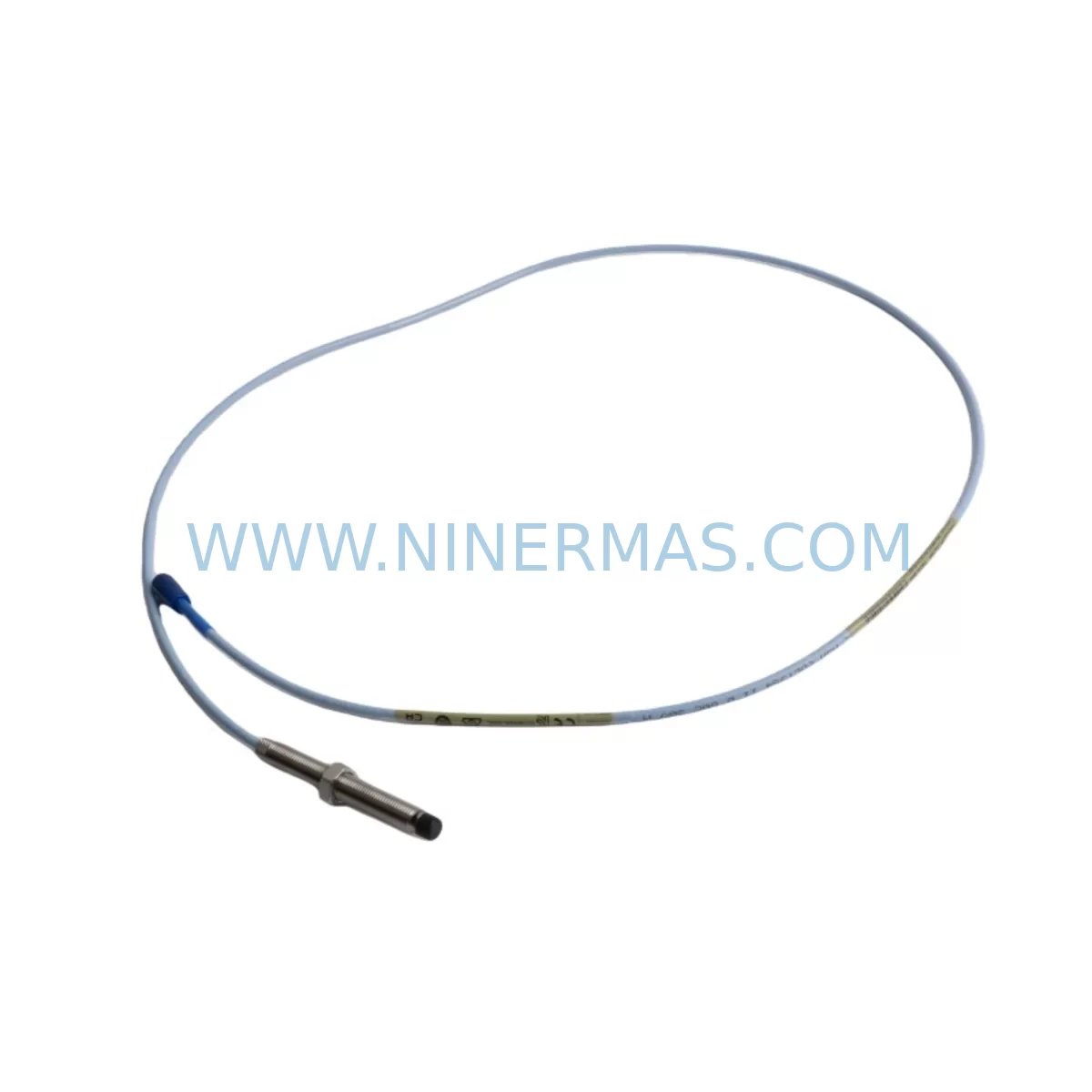

The Bently Nevada 330101-00-41-10-02-05 is a ruggedized eddy-current proximity probe engineered for continuous vibration and radial position monitoring on rotating machinery. As part of the proven Bently Nevada 3300 Series platform, this probe is widely deployed in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. With original Bently Nevada production of this exact part number discontinued or subject to extended lead times, NINERMAS maintains verified in-stock inventory to support urgent retrofit, replacement, and system upgrade projects.

This probe is fully compatible with the Bently Nevada 3300 XL 8mm Proximity Transducer System and integrates directly with existing 3300/16 RAM and 3300/20 RAM rack-mounted monitor modules without requiring hardware modification. Engineers planning a control system retrofit or spare parts replenishment program will find this probe a reliable, field-proven solution that eliminates the need for costly signal chain redesign.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant requires careful coordination across multiple system layers. The 330101-00-41-10-02-05 probe connects to the Bently Nevada 330180 Proximitor Sensor (or equivalent 3300 XL Proximitor), which converts the eddy-current signal into a –24 VDC output readable by the vibration monitor rack. Before scheduling a replacement outage, maintenance engineers should confirm the existing extension cable part number — typically from the 330130 Series (available in 3 m, 5 m, and 9 m lengths) — to ensure the total system cable length matches the Proximitor’s calibrated range. Mismatched cable lengths are a leading cause of incorrect gap voltage readings after probe replacement.

At the monitor rack level, the probe signal feeds into a Bently Nevada 3300/16 RAM or 3300/20 RAM monitor module, or in upgraded installations, a 3500/42M Proximitor Monitor. If the plant is migrating from a legacy 3300 Series rack to the newer 3500 Series platform, the 330101-00-41-10-02-05 probe remains compatible, but the Proximitor module and rack backplane connections must be verified against the 3500 Series I/O module pinout. In many cases, the 3500/20 Rack Interface I/O Module serves as the communication bridge between field wiring and the 3500 rack, and its terminal block assignments must be mapped against the original 3300 wiring diagram before cutover.

For plants running System 1 condition monitoring software (formerly Bently Nevada System 1, now Baker Hughes System 1), the probe replacement does not require software reconfiguration provided the Proximitor output scaling remains unchanged. However, if the site is simultaneously upgrading from an older Bently Nevada 3300 Rack to a 3500 Rack, the System 1 database point configuration must be updated to reflect the new monitor module address and channel mapping. This is particularly important in facilities where the vibration data feeds into a DCS (Distributed Control System) such as a Honeywell Experion PKS or ABB 800xA, where analog 4–20 mA or Modbus RTU outputs from the vibration monitor are hardwired into the DCS I/O cabinet.

In control cabinets where space is constrained, engineers should also verify the physical installation envelope. The 330101-00-41-10-02-05 uses a standard M10 × 1 mm mounting thread and an 8 mm probe tip, consistent across the 3300 XL family. If the existing probe bracket or armored conduit fitting was sized for a different probe body diameter, a replacement bracket from the Bently Nevada 330105 Probe Mounting Kit family may be required. Additionally, in high-temperature zones near turbine bearing housings, the integral cable jacket rating should be confirmed against the local ambient temperature — the standard version of this probe is rated for environments up to 177°C (350°F) at the probe tip.

NINERMAS supplies this probe as pre-shipment tested stock, with each unit verified for gap voltage linearity and output signal integrity before dispatch. All units ship with a 12-month warranty and are available for express delivery to support unplanned outage recovery scenarios.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or vibration monitoring system upgrade requires a structured pre-outage preparation process. The most effective approach is to complete all wiring verification, gap setting calculations, and Proximitor calibration checks during a planned maintenance window rather than during an emergency shutdown.

Before the outage begins, retrieve the existing probe’s gap voltage reading from the Bently Nevada 3300/16 RAM or 3500/42M monitor display and record it as the baseline. This value — typically between –9.5 VDC and –10.5 VDC at nominal shaft gap — will be your commissioning target after the new 330101-00-41-10-02-05 probe is installed. If the plant’s condition monitoring system is integrated with a System 1 historian or a DCS alarm management layer, coordinate with the control room to suppress the vibration high-high trip alarm during the replacement window to prevent a spurious unit trip.

During installation, use a calibrated gap-setting tool to position the probe tip at the correct distance from the shaft surface — typically 1.0 mm (40 mils) for standard steel targets, though this must be confirmed against the original installation drawing. After mechanical installation, reconnect the 330130 Series extension cable and verify continuity before energizing the Proximitor. Power up the Proximitor and measure the output voltage at the monitor module input terminals. If the gap voltage is outside the ±0.5 V tolerance, adjust the probe axial position in small increments until the target voltage is achieved.

For sites migrating from a 3300 Series rack to a 3500 Series rack simultaneously with the probe replacement, the recommended approach is to complete the probe replacement first on the existing 3300 rack, confirm stable operation, and then perform the rack migration as a separate planned activity. This two-step approach preserves the original program logic and alarm setpoints in the 3300 monitor and allows the 3500 rack to be configured and tested offline before cutover, significantly reducing the risk of a prolonged outage.

NINERMAS can provide pre-shipment test reports for each 330101-00-41-10-02-05 unit upon request, supporting your site’s incoming inspection and commissioning documentation requirements.

Retrofit Support FAQ

Q1: Is the 330101-00-41-10-02-05 a direct drop-in replacement for my existing Bently Nevada 3300 Series proximity probe?
Yes, provided your existing installation uses the same 8 mm probe tip diameter, M10 × 1 mm mounting thread, and 1.0 m integral cable length. Verify the full part number suffix (–00-41-10-02-05) against your installation drawing to confirm cable length and connector type before ordering. If your system uses a different cable length variant, the Proximitor will require recalibration after replacement.

Q2: What commissioning steps are required after installing this probe?
After mechanical installation, reconnect the extension cable, energize the Proximitor, and measure the DC output voltage at the monitor module input. Adjust the probe axial gap until the output reads –10 VDC ± 0.5 V at the nominal shaft gap distance. Confirm the vibration monitor displays a stable reading within the expected baseline range before returning the machine to service. For 3500 Series monitor installations, also verify the channel configuration in the 3500 rack software matches the probe sensitivity (V/mm).

Q3: Does NINERMAS test this probe before shipment, and what warranty is provided?
Yes. Every 330101-00-41-10-02-05 unit supplied by NINERMAS undergoes pre-shipment functional testing, including gap voltage linearity verification and output signal integrity checks. All units are covered by a 12-month warranty from the date of shipment. Test documentation is available upon request to support your incoming inspection process.

Q4: Can this probe be used in a system being upgraded from Bently Nevada 3300 to 3500 Series monitors?
Yes. The 330101-00-41-10-02-05 probe is compatible with both 3300 Series and 3500 Series Proximitor modules. When migrating to a 3500 Series rack, ensure the 3500/42M Proximitor Monitor channel is configured for 8 mm probe sensitivity and that the extension cable total length matches the Proximitor’s calibration. No probe replacement is required solely due to the rack upgrade — the probe can remain in service while the monitor rack is changed out.
