Bently Nevada 330101-00-36-10-01-00 Spare Part 3300 Series: Precision Vibration Monitoring for Uninterrupted Industrial Operations

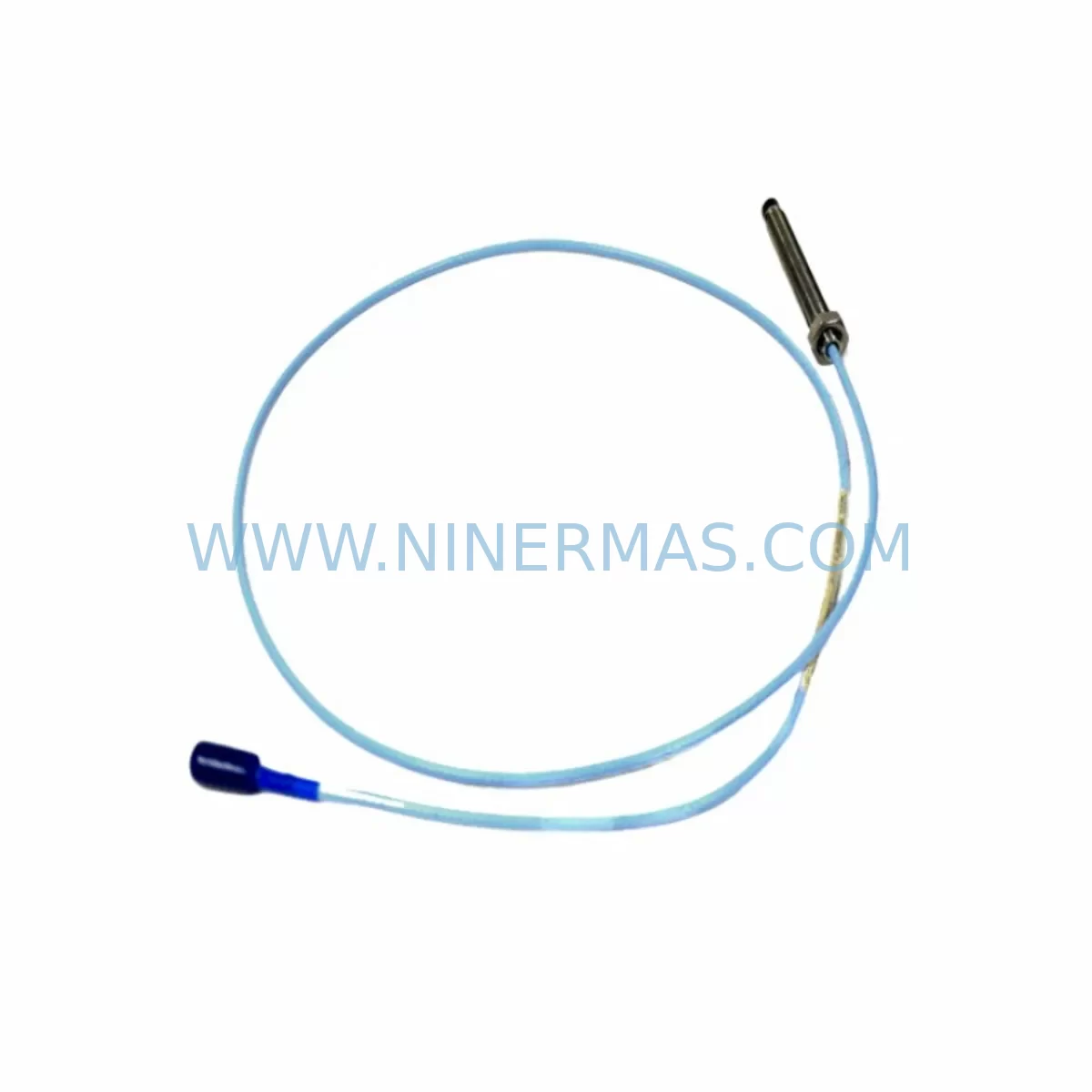

The Bently Nevada 330101-00-36-10-01-00 is a factory-original proximity probe forming part of the renowned 3300 Series Proximity Transducer System — one of the most widely deployed eddy-current sensing platforms in rotating machinery protection and condition monitoring worldwide. Designed for continuous shaft vibration, position, and eccentricity measurement, this probe is a critical component in turbine protection panels, compressor control cabinets, and DCS-integrated machinery health systems across oil & gas, power generation, petrochemical, and heavy manufacturing facilities.

When a proximity probe fails or degrades, the consequences extend far beyond a single sensor. Vibration data gaps trigger protective shutdowns, mask developing faults, and expose rotating assets to undetected imbalance, misalignment, or bearing wear. Sourcing a verified, tested replacement — with confirmed 3300 Series compatibility — is the fastest path to restoring full monitoring coverage and resuming safe, productive operation.

At NINERMAS, every 330101-00-36-10-01-00 unit is pre-shipment tested, documented, and dispatched with a 12-month warranty, supporting your maintenance team’s need for speed, confidence, and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-36-10-01-00 probe is rarely an isolated task. In a properly maintained rotating machinery protection loop, the proximity probe works in concert with a matched driver and monitor — and any degradation in the probe’s cable, connector, or tip geometry will propagate measurement error through the entire channel. During a planned replacement, maintenance engineers should simultaneously inspect the paired Bently Nevada 3300 XL Driver (e.g., 330180-91-00) for output drift, verify the 3300 RAM Monitor channel calibration, and confirm that the proximitor extension cable (typically 330130-series) shows no insulation breakdown or connector corrosion.

In turbine and compressor control cabinets, the vibration monitoring loop interfaces directly with the 3500/22M Transient Data Interface or equivalent rack-mounted monitor cards. These cards should be checked for firmware currency and I/O channel integrity during any probe swap. If the cabinet also houses 3500/42M Proximitor Monitor modules, their OK relay outputs and buffered outputs should be re-verified after probe replacement to ensure protective relay logic remains correctly armed.

Power supply quality is a frequently overlooked factor in proximity system reliability. The 3300 Series driver requires a stable −24 VDC supply; fluctuations from aging Bently Nevada 3500/15 Power Supply modules or third-party DIN-rail PSUs can introduce noise floors that mimic shaft vibration. Replacing the probe without auditing the power rail is a common source of repeat call-outs. Similarly, signal isolators and Zener barriers in hazardous-area installations should be tested for correct clamping voltage and leakage current.

For facilities running integrated DCS platforms — such as Emerson DeltaV, Honeywell Experion, or ABB System 800xA — the vibration channel’s 4–20 mA or digital output to the process controller should be loop-tested end-to-end after probe installation. Terminal blocks, marshalling cabinet wiring, and any intermediate signal conditioning modules between the 3300 driver and the DCS I/O card are all potential failure points that a probe replacement event should trigger for inspection.

Annual maintenance schedules for rotating assets should include gap voltage verification for all installed 330101-series probes, cross-referenced against the original commissioning baseline. Probes showing gap voltage drift beyond ±0.5 VDC from the nominal setpoint — without corresponding shaft movement — are candidates for immediate replacement before the next planned outage window. Maintaining a minimum of two 330101-00-36-10-01-00 units in your site spare parts inventory eliminates lead-time risk during emergency shutdowns and supports rapid restoration of full machinery protection coverage.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a Permit to Work and isolate the affected machinery channel at the 3500 or 3300 monitor rack. Place the monitor in bypass mode to prevent spurious protective trips during probe removal.

Step 2 — Gap Measurement & Documentation: Before removing the old probe, record the existing gap voltage and physical gap distance. This baseline confirms whether the probe or the driver is the root cause of any measurement anomaly.

Step 3 — Probe Removal: Unthread the 330101-00-36-10-01-00 probe from its mounting bracket. Inspect the probe tip for mechanical damage, shaft contact marks, or contamination. Inspect the cable armor and connector for corrosion or pinch damage.

Step 4 — New Probe Installation: Install the replacement 330101-00-36-10-01-00 to the manufacturer-specified gap (typically 1.0 mm / −10.0 VDC for steel targets). Use a non-metallic gap-setting tool to avoid tip damage. Torque the locknut to specification.

Step 5 — System Verification: Reconnect the driver and confirm output voltage at the monitor input. Verify OK status on the monitor channel. Perform a slow-roll check if the machine can be barred over, confirming runout compensation is within acceptable limits.

Step 6 — Return to Service: Remove bypass, restore protective relay logic, and document the replacement in the CMMS. Update the spare parts inventory to trigger reorder of the consumed unit — maintaining stock continuity for the next event.

This workflow applies equally to legacy 3300 NSv installations and current 3300 XL systems, making the 330101-00-36-10-01-00 a versatile, cross-generation spare that reduces the number of distinct SKUs required in a site’s critical spares register.

Spare Parts Support FAQ

Q1: Is the 330101-00-36-10-01-00 compatible with both 3300 NSv and 3300 XL driver systems?
Yes. The 330101-00-36-10-01-00 probe is designed for use within the Bently Nevada 3300 Series ecosystem and is compatible with both NSv and XL driver variants when the correct gap and cable length configuration is matched. Always verify the driver part number and system documentation before installation to confirm the matched system calibration.

Q2: What pre-shipment testing does NINERMAS perform on this spare part?
Each 330101-00-36-10-01-00 unit undergoes electrical continuity verification, insulation resistance testing, and output voltage characterization against a reference target before dispatch. Units that do not meet Bently Nevada performance specifications are quarantined. A test record is available upon request, and all units ship with a 12-month warranty from the date of shipment.

Q3: How should we manage long-term inventory for 3300 Series proximity probes?
For facilities with four or more monitored machines using 3300 Series probes, we recommend maintaining a minimum of two 330101-00-36-10-01-00 units on-site at all times. NINERMAS supports standing purchase orders and scheduled replenishment programs to ensure your critical spares register is never depleted. Contact our team to discuss volume pricing and long-term supply agreements.

Q4: Can this probe be used as a direct replacement for older Bently Nevada 330101 variants with different suffix codes?
Suffix codes in the 330101 series encode cable length, connector type, and temperature rating. The -00-36-10-01-00 configuration specifies a 36-inch armored cable with standard connectors. Before substituting a different suffix variant, confirm that the cable length, connector compatibility, and temperature rating match your installation requirements. NINERMAS technical support can assist with cross-reference verification prior to order placement.
