Bently Nevada 330101-00-20-05-02-05 Safety Proximity Probe

Bently Nevada 330101-00-20-05-02-05 Safety Proximity Probe: Reliable Vibration Monitoring for Critical Control Sites

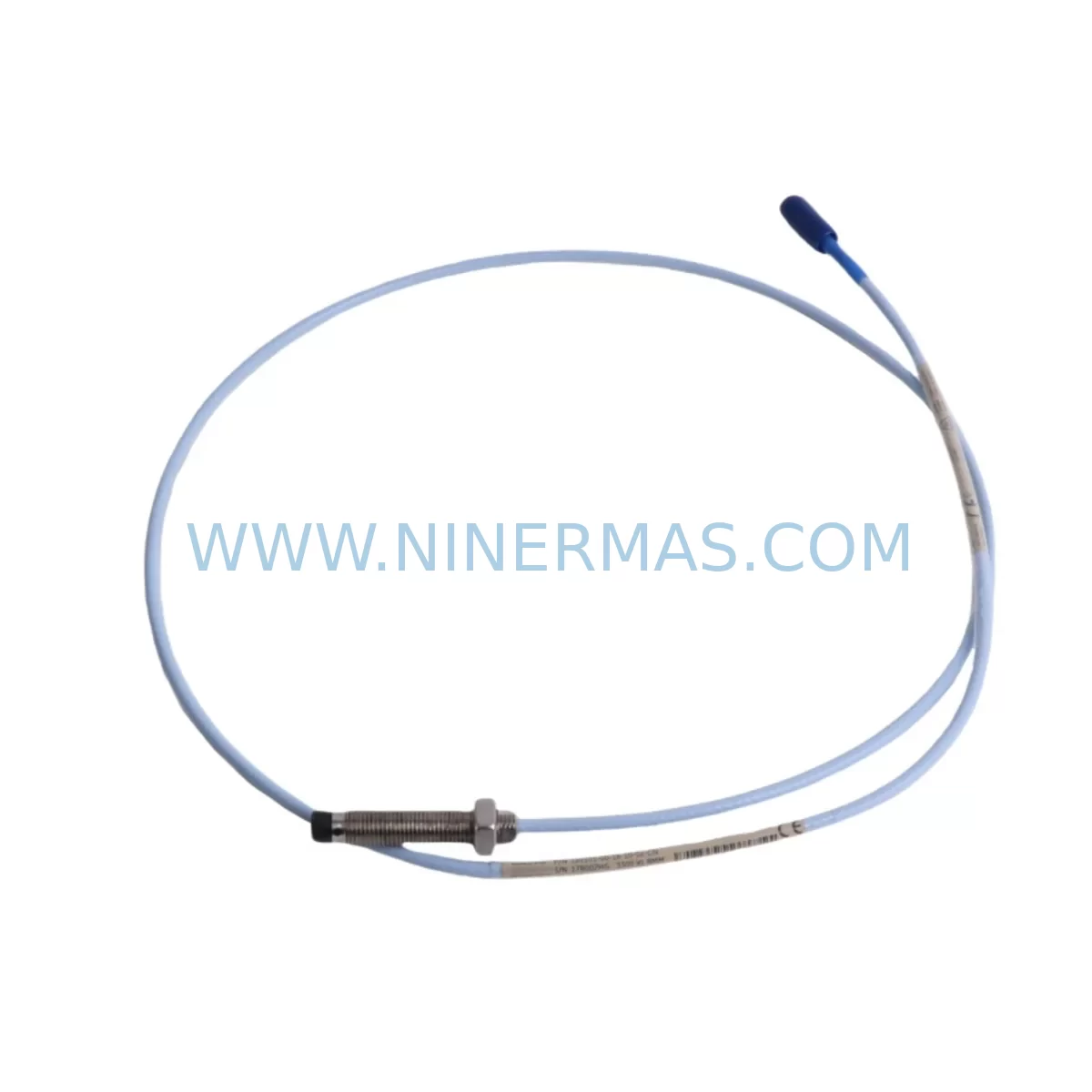

The Bently Nevada 330101-00-20-05-02-05 is a ruggedized eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of Bently Nevada’s trusted 3300 XL Series, this probe delivers stable, drift-free output signals even under conditions of high electromagnetic interference, mechanical vibration, extreme temperature cycling, moisture ingress, and corrosive atmospheres — precisely the conditions found in petrochemical plants, power generation facilities, mining operations, and heavy metallurgical processes.

In critical rotating machinery protection systems, signal integrity is non-negotiable. The 330101-00-20-05-02-05 uses a hardened stainless steel housing and a ruggedized cable assembly rated for harsh field deployment, ensuring that the probe maintains consistent gap voltage output without signal drift or false trips. This directly reduces the risk of nuisance shutdowns, missed fault detection, and unplanned downtime — three of the most costly failure modes in continuous production environments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection architecture, the Bently Nevada 330101-00-20-05-02-05 proximity probe does not operate in isolation. It forms the sensing front-end of a complete vibration monitoring chain that depends on the integrity of every upstream and downstream component. The probe connects to a Bently Nevada 3300 XL 8mm Proximitor® Sensor (such as the 330180-X1-05 or 330180-X1-CN), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to shaft gap. This signal is then fed into a Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module, where trip and alarm setpoints are enforced in real time.

Within the control cabinet, signal quality is protected by proper cable routing away from high-voltage conductors and variable frequency drives. Surge protection devices — such as the Phoenix Contact TRABTECH PT 2X2-BE/S-24DC-ST or equivalent DIN-rail surge arresters — are recommended at the cabinet entry point to guard against transient overvoltage events that could corrupt the low-level analog signal or damage the Proximitor® input circuitry. For cabinet power supply integrity, a PULS PIANO PI200.241D or Siemens SITOP PSU8200 24 VDC redundant power supply ensures that the monitoring system remains energized even during mains disturbances, preventing false de-energization of safety relays.

The overall safety interlock loop typically includes a Pilz PNOZ X3 safety relay or equivalent, which receives the trip output from the 3500 rack and executes a controlled machine shutdown sequence. In high-vibration environments such as compressor trains or turbine-generator sets, the Bently Nevada 330130-080-00-00 armored extension cable is often paired with this probe to provide additional mechanical protection against cable abrasion and pull-out forces. For installations requiring intrinsic safety in Zone 1 or Zone 2 hazardous areas, a Pepperl+Fuchs KFD2-STC4-Ex1.H or equivalent Zener barrier or galvanic isolator is inserted between the Proximitor® and the monitoring rack to maintain Ex certification compliance.

Commissioning engineers should also verify that the Bently Nevada 330105-02-12-10-02-00 or equivalent proximity probe driver is correctly gapped and calibrated using a certified gap tool before system handover, ensuring that the entire measurement chain — from probe tip to trip relay — meets the accuracy and response-time requirements of API 670 and IEC 61511 functional safety standards.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-20-05-02-05 proximity probe is deployed across a wide spectrum of safety-critical industrial sites where rotating machinery failure carries severe consequences for personnel, production continuity, and environmental compliance.

In petrochemical and refinery plants, this probe monitors radial shaft vibration and axial position on centrifugal compressors, boiler feed pumps, and reactor agitators. An undetected bearing failure or rotor rub in these machines can escalate within seconds to a catastrophic seal failure, hydrocarbon release, or fire. The 330101-00-20-05-02-05 provides the continuous, real-time gap signal that allows the 3500 protection system to initiate a controlled shutdown before damage propagates.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — this probe is used on turbine shaft monitoring systems to detect sub-synchronous oscillations, oil whirl, and rotor imbalance. The ruggedized construction withstands the high-temperature steam environments and strong electromagnetic fields generated by large generators and excitation systems.

In mining and mineral processing operations, the probe is installed on ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes. These environments combine extreme dust loading, high humidity, chemical splash, and continuous mechanical shock — conditions that would rapidly degrade a standard proximity probe but are well within the design envelope of the 330101-00-20-05-02-05’s IP67-rated, stainless steel construction.

In water and wastewater treatment plants, the probe monitors large vertical turbine pumps and blower trains that must operate continuously without interruption to maintain regulatory compliance. In metallurgical and steel-making facilities, it is used on rolling mill drive trains and continuous casting machine drives, where the combination of high temperature, scale, and water spray creates one of the most hostile probe environments in industry. Port and marine applications include crane hoist drives and ship propulsion shaft monitoring, where saltwater corrosion resistance and vibration immunity are paramount.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide on the Bently Nevada 330101-00-20-05-02-05?
All Bently Nevada spare parts supplied by NINERMAS, including the 330101-00-20-05-02-05, carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional inspection and packaging verification. If a warranty claim arises, NINERMAS provides direct technical support and replacement coordination to minimize your site downtime.

Q2: How is the probe tested before shipment?
Every 330101-00-20-05-02-05 unit is subject to outgoing quality control checks including visual inspection of the probe tip, cable jacket, and connector; continuity and insulation resistance verification; and packaging integrity review. Units are shipped in anti-static, moisture-barrier packaging with full traceability documentation to support your incoming inspection process.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 system installations?
Yes. The 330101-00-20-05-02-05 is a direct OEM-equivalent replacement for 3300 XL Series installations using 8mm eddy-current probe systems. It is fully compatible with Bently Nevada 3300 XL Proximitor® Sensors and 3500 Series rack monitors. Always verify the driver part number and gap calibration range during installation to ensure system-level accuracy is maintained.

Q4: Can NINERMAS support long-term or blanket-order supply for critical spare parts programs?
Yes. NINERMAS specializes in long-term spare parts supply programs for industrial automation and machinery protection components. We support scheduled delivery, consignment stock arrangements, and multi-year procurement planning for critical SKUs including the 330101-00-20-05-02-05. Contact our team to discuss your site’s lifecycle management requirements and establish a reliable supply chain for your Bently Nevada installed base.
