Bently Nevada 330101-00-20-05-02-00 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 330101-00-20-05-02-00 Service-Ready Spare Part for Industrial Maintenance

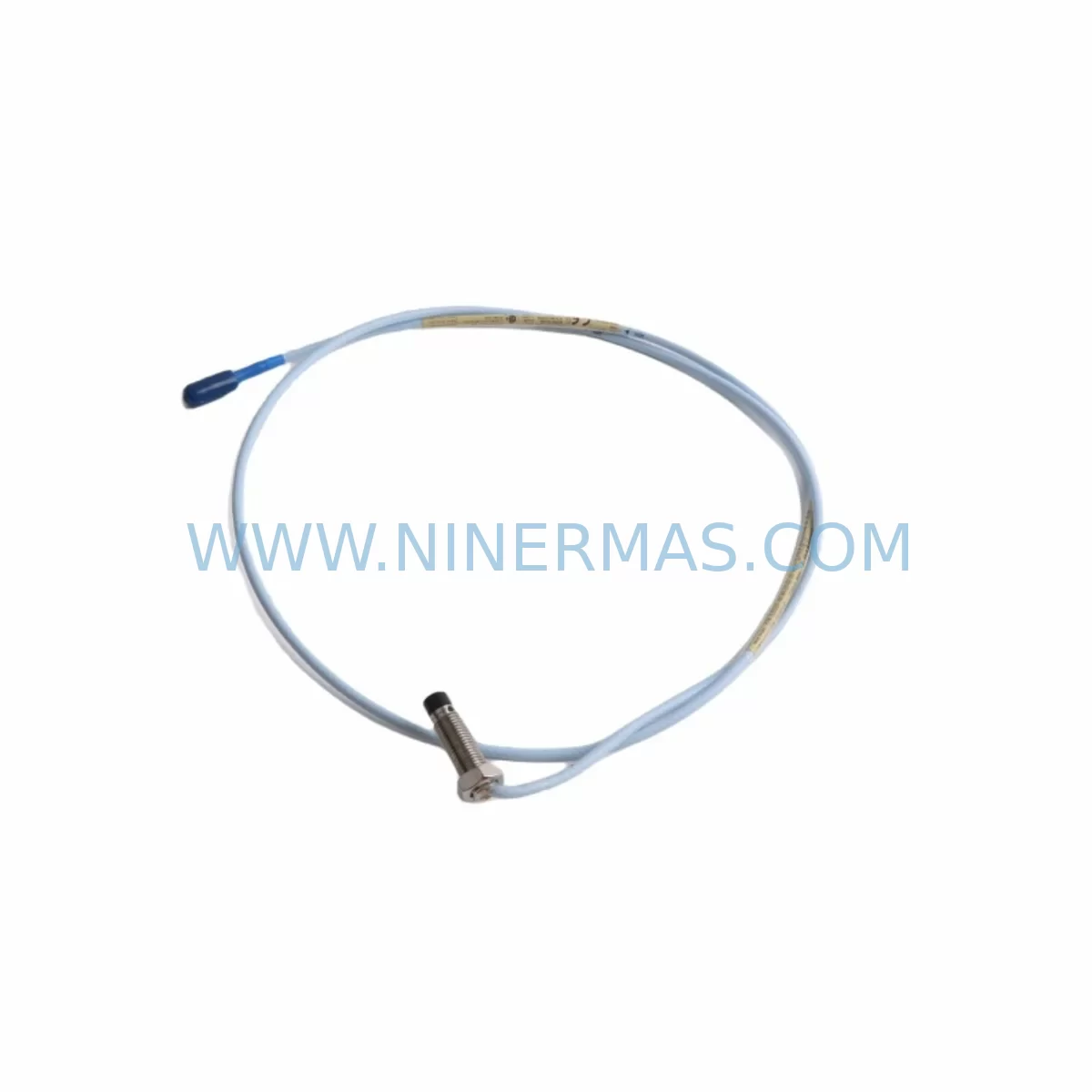

The Bently Nevada 330101-00-20-05-02-00 is a ruggedized proximity transducer module engineered for continuous vibration and position monitoring in demanding industrial environments. As a core component of the Bently Nevada 3300 Series proximity transducer system, this module delivers reliable eddy-current sensing for rotating machinery protection — including turbines, compressors, pumps, and gearboxes — where unplanned downtime carries severe operational and financial consequences.

For maintenance engineers managing critical rotating assets, the 330101-00-20-05-02-00 represents a field-proven solution for radial vibration, axial position, and differential expansion measurement. Its ruggedized construction is specifically designed to withstand high-temperature, high-vibration, and chemically aggressive plant environments, making it a preferred choice for petrochemical, power generation, oil & gas, and heavy manufacturing facilities.

Stocking this module as a verified spare ensures your maintenance team can execute rapid in-situ replacement during scheduled outages or emergency shutdowns — restoring system integrity without waiting on extended lead times from OEM channels. NINERMAS maintains ready inventory of the 330101-00-20-05-02-00 with full pre-shipment inspection and a 12-month warranty, supporting both planned maintenance cycles and unplanned failure recovery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-20-05-02-00 proximity transducer in the field, a disciplined maintenance approach requires evaluating the entire measurement loop — not just the transducer tip itself. The 3300 Series system operates as a three-component chain: the transducer probe, the extension cable, and the Proximitor (driver) module. Replacing only one element without inspecting the others is a common source of post-maintenance signal errors and repeat failures.

Begin by verifying the condition of the 3300 Series extension cable (typically a 330130-XX-XX series cable). Extension cables are subject to insulation degradation, connector corrosion, and mechanical fatigue — particularly in high-vibration or high-temperature zones near turbine casings. A compromised extension cable will produce erratic gap voltage readings even with a new transducer installed.

Next, inspect the Bently Nevada Proximitor sensor module (such as the 330180 or 3300 XL Proximitor). This driver converts the transducer’s impedance change into a usable DC voltage signal for the monitoring system. Proximitor modules can develop internal component drift over time, especially in environments with wide thermal cycling. Confirm output voltage at the known gap distance matches the system’s calibration curve before returning the loop to service.

At the monitoring system level, verify the Bently Nevada 3500 Series rack or equivalent monitoring chassis — including the 3500/42M Proximitor / Seismic Monitor module or 3500/40M Proximitor Monitor — is correctly configured for the transducer’s sensitivity factor (typically 7.87 V/mm or 200 mV/mil for standard 3300 series probes). Incorrect sensitivity settings will cause false alarms or missed trip conditions.

For facilities running integrated machinery protection systems, also inspect the 3500 rack power supply module (e.g., 3500/15 Power Supply) and the 3500/20 Rack Interface Module. Power supply instability is a frequent but overlooked contributor to transducer signal noise. Confirm DC rail voltages are within specification before commissioning the replaced transducer.

In control cabinet environments where the 3300 Series interfaces with a DCS or safety system, review the I/O terminal connections and signal isolators in the vibration monitoring loop. Loose terminal blocks, corroded signal isolator inputs, or degraded shielding on instrument cables can introduce ground loops that mask genuine vibration changes or trigger nuisance trips.

For older installations where the 330101-00-20-05-02-00 is part of a legacy machinery protection system, consider auditing adjacent relay output modules and communication gateway cards (such as Modbus or FOUNDATION Fieldbus interface modules) that transmit vibration data to the plant DCS or historian. These components are often overlooked during transducer-focused maintenance but are critical to ensuring that replaced sensors are correctly reporting to the control room.

Procurement engineers should note that the 3300 Series has been in service for decades across global rotating machinery fleets. While Bently Nevada continues to support this platform, sourcing verified original spare parts — including the 330101-00-20-05-02-00 — from a reliable industrial spare parts supplier with documented inspection and warranty coverage is essential for managing procurement risk, particularly for facilities with long-term asset life extension programs.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed or degraded transducer part number matches 330101-00-20-05-02-00. Cross-reference the SKU suffix segments: probe body style (-00), cable length (-20 = 5m), connector type (-05), and environmental rating (-02-00). Substituting an incorrect suffix variant will result in calibration mismatch and potential system trip.

Step 2 — Loop Isolation: Inhibit the associated channel on the 3500 Series monitor rack before disconnecting the transducer. This prevents nuisance trips to the machinery protection system during the replacement procedure. Document the pre-removal gap voltage reading for post-installation comparison.

Step 3 — Physical Replacement: Remove the existing transducer from the probe holder. Clean the probe tip and target area. Install the 330101-00-20-05-02-00 and adjust the gap to the system’s specified setpoint (typically 1.0–1.5 mm for standard steel targets). Torque the locknut to specification to prevent gap drift under vibration.

Step 4 — Loop Verification: Reconnect the extension cable and Proximitor. With the machine at rest, verify the DC gap voltage at the Proximitor output matches the expected value for the set gap distance. Compare against the calibration curve for the 3300 Series system. Confirm the 3500 monitor channel displays a valid, stable reading before releasing the inhibit.

Step 5 — Return to Service: Remove the channel inhibit, confirm alarm and trip setpoints are active, and document the replacement in the maintenance management system. Schedule a follow-up inspection at the next planned outage to verify gap stability and cable condition.

This workflow minimizes machine downtime, ensures system compatibility is maintained, and provides a documented audit trail for reliability and compliance purposes.

Spare Parts Support FAQ

Q1: Is the 330101-00-20-05-02-00 an original Bently Nevada part or a compatible replacement?
NINERMAS supplies original Bently Nevada 330101-00-20-05-02-00 modules sourced from authorized distribution and verified surplus channels. Each unit undergoes pre-shipment inspection to confirm physical integrity, connector condition, and part number authenticity. We do not supply uncertified compatible substitutes for safety-critical vibration monitoring components.

Q2: What is the warranty coverage and what does it include?
All 330101-00-20-05-02-00 units shipped by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation verification and compatibility confirmation at no additional charge during the warranty period.

Q3: Can this transducer replace older 3300 Series variants with different suffix codes?
The suffix segments in the 330101-00-20-05-02-00 part number define cable length, connector type, and environmental specification. Direct substitution of a different suffix variant requires engineering review to confirm gap voltage compatibility, cable length adequacy, and connector interface match with the existing extension cable and Proximitor. Contact our technical team before substituting suffix variants in safety-critical applications.

Q4: How does NINERMAS support long-term spare parts supply for legacy 3300 Series systems?
NINERMAS maintains ongoing inventory of 3300 Series proximity transducer components, including the 330101-00-20-05-02-00 and related extension cables, Proximitor modules, and monitor rack components. For facilities with long-term asset life extension programs, we offer reserved stock arrangements and multi-unit procurement pricing to reduce supply chain risk for aging but operationally critical machinery protection systems.

—
