Bently Nevada 330101-00-19-10-02-05 Safety-Reliable Proximity Transducer

Bently Nevada 330101-00-19-10-02-05 Safety-Reliable Proximity Transducer for Critical Control Sites

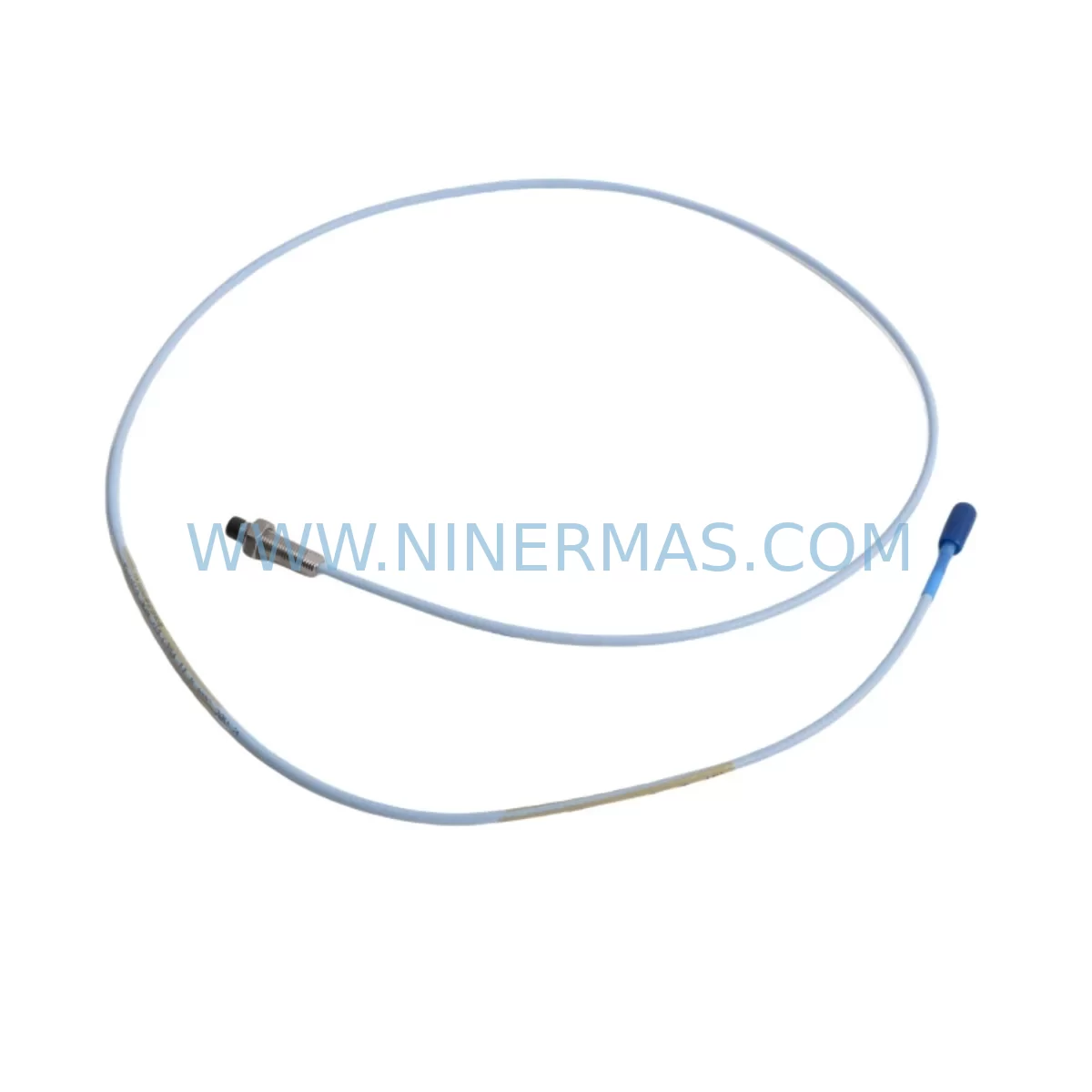

The Bently Nevada 330101-00-19-10-02-05 is a high-precision eddy-current proximity transducer engineered for the Bently Nevada 3300 XL Series continuous vibration monitoring system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous manufacturing lines — this transducer delivers the signal integrity and mechanical durability that safety-critical rotating machinery protection demands.

In critical control sites where unplanned downtime carries severe operational and safety consequences, the 330101-00-19-10-02-05 provides stable, drift-free proximity measurement of shaft radial vibration, axial position, and differential expansion. Its robust construction resists signal drift caused by electromagnetic interference, temperature fluctuation, and mechanical vibration — conditions that routinely compromise lesser sensing components. By maintaining accurate, continuous output to the 3300 XL Proximitor Sensor and associated signal conditioning modules, this transducer forms the first line of defense against bearing failure, rotor instability, and catastrophic machinery events.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Reliable vibration monitoring begins at the transducer, but the integrity of the entire protection chain depends on every component in the signal path performing to specification. The 330101-00-19-10-02-05 is designed to work seamlessly within a complete Bently Nevada 3300 XL monitoring loop. In a typical critical machinery protection cabinet, this transducer interfaces with the Bently Nevada 3300 XL 8mm Extension Cable to bridge the gap between the probe tip and the 3300 XL Proximitor Sensor — the signal conditioning module that converts raw eddy-current response into a calibrated DC voltage readable by the monitoring system.

That conditioned signal feeds directly into the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor Seismic Monitor rack module, where trip and alarm setpoints are enforced in real time. In high-EMI environments — common in motor control centers, variable frequency drive (VFD) enclosures, and switchgear rooms — the shielded coaxial cable architecture of the 330101-00-19-10-02-05 suppresses induced noise that would otherwise cause nuisance trips or mask genuine machinery faults.

For power supply integrity within the monitoring rack, the Bently Nevada 3500/15 Power Supply Module provides regulated, isolated DC power to all rack-mounted monitors, ensuring that voltage fluctuations on the plant bus do not propagate into the measurement chain. Surge and transient protection is further reinforced by coordinating the monitoring system power feed with appropriately rated surge protective devices on the incoming AC supply.

In safety instrumented systems (SIS) where the vibration monitor output feeds a Triconex or Emerson DeltaV SIS logic solver, signal integrity from the 330101-00-19-10-02-05 is critical to maintaining the integrity of the safety function. Any signal drift, open-circuit fault, or intermittent connection at the transducer level can generate a spurious trip or — more dangerously — a dangerous undetected failure. The robust construction and verified calibration of this transducer directly supports the diagnostic coverage requirements of SIL-rated protection loops.

Complementary components commonly deployed alongside this transducer in a complete machinery protection strategy include the Bently Nevada 330130-040-00-00 Proximitor Sensor, the 3300 XL Reverse Mount Probe for installations with restricted access, and the Bently Nevada 990 Vibration Transmitter for applications requiring 4–20 mA output integration with a DCS such as the Emerson DeltaV or Honeywell Experion PKS. Together, these components form a layered, redundant protection architecture that minimizes the risk of control interruption, signal loss, and unplanned machinery shutdown.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-19-10-02-05 proximity transducer is deployed across a broad spectrum of critical industrial applications where rotating machinery protection is non-negotiable.

In petrochemical and refining facilities, this transducer monitors the radial vibration of centrifugal compressors, steam turbines, and boiler feed pumps — machinery whose failure can trigger process shutdowns, fire and explosion hazards, and significant environmental liability. Continuous, accurate vibration data from the 330101-00-19-10-02-05 enables early detection of rotor imbalance, bearing wear, and oil whirl instability before these conditions escalate to catastrophic failure.

In power generation plants — both thermal and combined-cycle — the transducer provides the shaft monitoring data required by turbine protection systems to enforce vibration trip limits mandated by OEM specifications and insurance requirements. The ability to maintain calibrated output across the wide temperature range of a turbine bearing housing environment is a key reliability advantage in this application.

In mining and mineral processing operations, where large rotating mills, crushers, and slurry pumps operate in high-dust, high-vibration environments, the mechanical robustness of the 330101-00-19-10-02-05 ensures continuous monitoring without the signal degradation or connector failures that plague less ruggedized sensing solutions.

In water and wastewater treatment facilities, the transducer supports the protection of large vertical turbine pumps and blower trains, where the consequences of undetected bearing failure include both process disruption and significant repair costs. The high-humidity and chemical-exposure tolerance of this transducer makes it well suited to the wet, corrosive atmospheres common in these plants.

In metallurgical and steel production environments, where induction furnaces, rolling mill drives, and continuous casting equipment generate intense electromagnetic fields, the EMI-resistant design of the 330101-00-19-10-02-05 maintains signal integrity where standard instrumentation would be compromised. Port and marine propulsion applications similarly benefit from the transducer’s vibration and shock resistance in high-dynamic-load installations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330101-00-19-10-02-05?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers defects in materials and workmanship under normal operating conditions. Our warranty support includes technical consultation, replacement coordination, and documentation to assist with your maintenance records and audit requirements.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-19-10-02-05 undergoes full functional verification and calibration confirmation prior to dispatch. Testing includes output voltage linearity check, scale factor verification, insulation resistance measurement, and cable continuity inspection. A test report is available upon request to support your incoming inspection and quality management processes.

Q3: Is this transducer compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330101-00-19-10-02-05 is a direct-fit replacement for the standard Bently Nevada 3300 XL 8mm proximity transducer system. It is compatible with the full range of 3300 XL Proximitor Sensors and integrates with 3500 Series rack monitors when used with the appropriate Proximitor. Always verify cable length and connector type against your existing installation before ordering.

Q4: Can NINERMAS support long-term or scheduled spare parts supply for this transducer?
Yes. NINERMAS maintains stock of the 330101-00-19-10-02-05 and related 3300 XL Series components to support planned maintenance programs, turnaround schedules, and emergency replacement requirements. We can work with your procurement and reliability teams to establish a standing supply arrangement, ensuring that critical spare parts are available when your maintenance window demands them — without lead-time risk.
