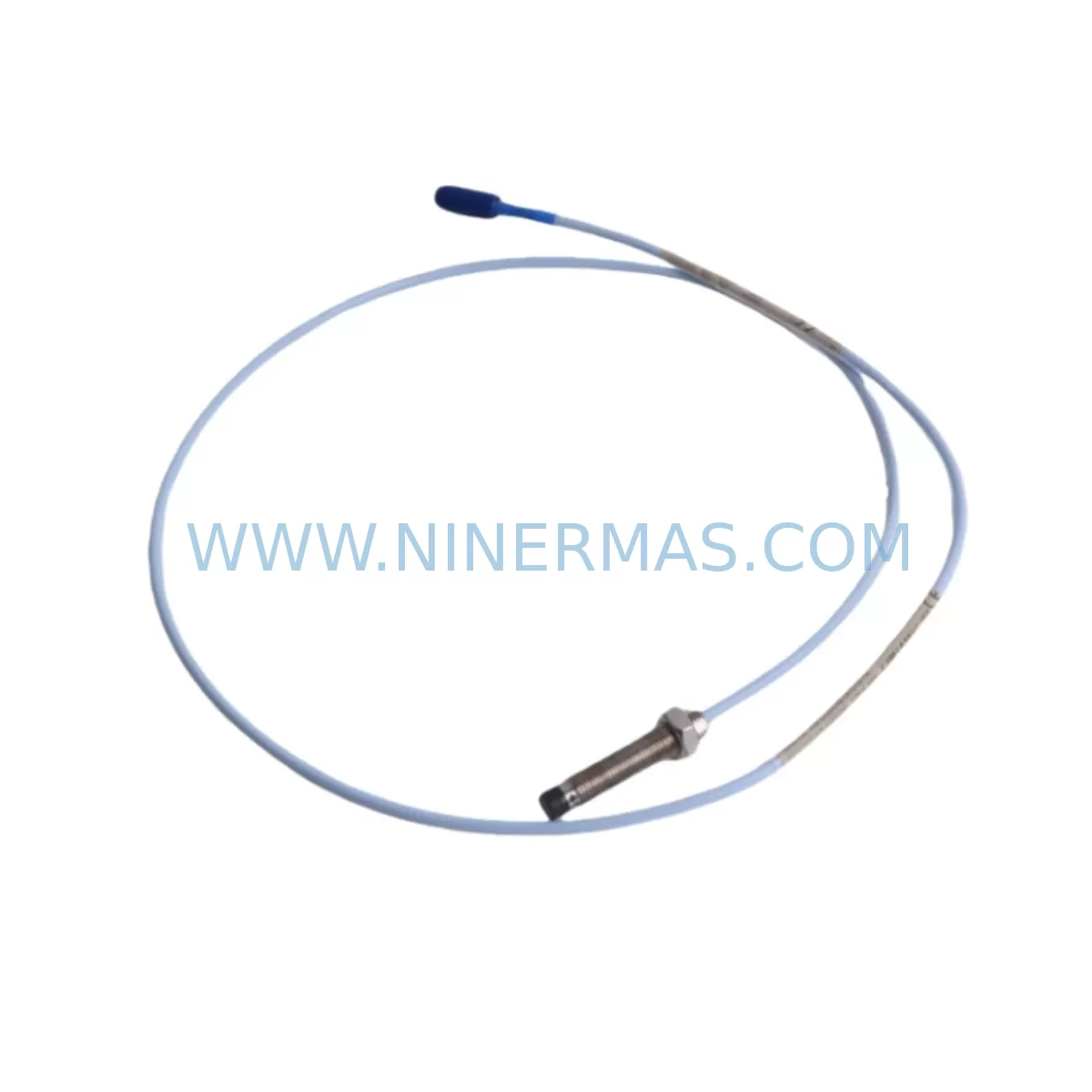

Bently Nevada 330101-00-15-20-02-00 Spare Proximity Probe

Bently Nevada 330101-00-15-20-02-00 Spare Proximity Probe: Reliable Replacement for Critical Vibration Monitoring Systems

The Bently Nevada 330101-00-15-20-02-00 is a ruggedized eddy-current proximity probe engineered for continuous shaft vibration and position measurement in demanding industrial environments. As a direct spare part for the Bently Nevada 3300 Series monitoring system, this probe is a cornerstone component in predictive maintenance programs across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. When a proximity probe fails or degrades, the consequences extend far beyond a single sensor — unmonitored shaft displacement can lead to catastrophic bearing failure, unplanned shutdowns, and costly production losses. Maintaining a verified stock of the 330101-00-15-20-02-00 is a fundamental risk-reduction strategy for any maintenance team responsible for rotating machinery protection.

This probe features a 15 mm diameter tip, 20-inch (500 mm) cable length, and is rated for operation in high-temperature, high-vibration, and chemically aggressive environments. Its ruggedized construction ensures dimensional stability and signal integrity even under continuous mechanical stress, making it suitable for direct installation on turbines, compressors, pumps, motors, and gearboxes where shaft eccentricity and axial position must be tracked without interruption.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing rotating machinery protection systems, replacing the 330101-00-15-20-02-00 probe is rarely an isolated task. A thorough inspection and replacement workflow should encompass the entire signal chain to ensure restored measurement accuracy and system integrity.

Begin with the Bently Nevada 330180-91-00 Proximitor Sensor — the signal conditioning module that pairs directly with this probe. If the probe has been operating in a high-temperature zone for an extended period, the Proximitor should be inspected for drift or calibration shift simultaneously. The interconnecting 330130-045-00-CN extension cable is another critical component: damaged shielding or connector corrosion on the extension cable is a frequent source of signal noise that is often misdiagnosed as probe failure. Always replace the extension cable when the probe is changed during a scheduled outage.

Within the control cabinet, verify the condition of the 3500/42M Proximitor I/O Module, which receives the buffered output from the Proximitor and feeds shaft vibration data into the Bently Nevada 3500 rack-based machinery protection system. A degraded I/O module can introduce false alarms or mask genuine vibration events even after a probe replacement. Alongside this, inspect the 3500/20 Rack Power Supply — power quality directly affects the bias voltage supplied to the proximity transducer system, and any ripple or sag can cause measurement instability that mimics probe degradation.

For facilities running integrated safety and control architectures, the 3500/33 16-Channel Relay Module should be verified to confirm that trip setpoints and relay logic remain correctly configured after any hardware replacement. In high-EMI environments such as motor control centers or near variable frequency drives, adding or inspecting signal isolators between the Proximitor output and the DCS analog input card is strongly recommended to prevent ground loop interference from corrupting vibration trend data.

Maintenance teams should also audit the terminal blocks and field wiring within the junction box at the machine skid. Loose or corroded terminals are a leading cause of intermittent signal faults that are difficult to trace remotely. Where the system interfaces with a DCS analog input module — such as those used in Emerson DeltaV or Honeywell Experion systems — confirm that the input range and scaling parameters match the 200 mV/mil sensitivity of the 330101-00-15-20-02-00 after installation.

Finally, for older installations where the 3300 series rack itself may be approaching end-of-life, this is an appropriate time to assess whether a phased migration to the Bently Nevada 3500 Series platform is warranted. Stocking the 330101-00-15-20-02-00 as a verified spare ensures continuity of protection during any transition period, preserving uptime while long-term upgrade planning proceeds.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing probe, record the current gap voltage using a calibrated voltmeter at the Proximitor output terminals. This baseline reading confirms the expected linear range and provides a reference for post-installation verification. Document the existing probe serial number and installation date for maintenance records.

Step 2 — Safe Isolation: Coordinate with the control room to acknowledge and bypass the relevant vibration channel in the machinery protection system. Follow site-specific lock-out/tag-out (LOTO) procedures before accessing the probe mounting location. Do not remove the probe while the machine is running unless the site’s hot-work procedures explicitly permit it.

Step 3 — Physical Replacement: Remove the 330101-00-15-20-02-00 probe from its mounting bracket, noting the installed gap distance (typically 50 mil / 1.27 mm from the shaft surface for standard 3300 series applications). Install the new probe to the same gap distance, using a non-metallic feeler gauge or the Proximitor output voltage as a reference. Torque the probe locknut to the manufacturer’s specification to prevent vibration-induced loosening.

Step 4 — Signal Verification: After installation, confirm the gap voltage at the Proximitor output falls within the linear range (-10 VDC ±1 VDC at nominal gap). Verify that the vibration channel displays a stable, noise-free reading in the 3500 rack or DCS historian before restoring the channel to normal monitoring mode.

Step 5 — Documentation and Stock Replenishment: Update the CMMS (Computerized Maintenance Management System) with the replacement date, new probe serial number, and post-installation gap voltage. Immediately initiate a purchase order to replenish the consumed spare, maintaining a minimum stock level of one probe per critical machine train.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 330101-00-15-20-02-00?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional and dimensional verification prior to dispatch to ensure it meets Bently Nevada 3300 series specifications.

Q2: Is this probe compatible with both the 3300 and 3500 series Bently Nevada systems?
The 330101-00-15-20-02-00 is a 3300 Series proximity probe designed to operate with the 3300 XL Proximitor (330180 series). It is compatible with 3500 series rack systems when used with the appropriate Proximitor and I/O module configuration. Customers are advised to confirm the Proximitor model and rack configuration before ordering to ensure full system compatibility.

Q3: How does NINERMAS ensure long-term supply availability for this spare part?
NINERMAS maintains dedicated inventory of high-demand Bently Nevada spare parts including the 330101-00-15-20-02-00 to support emergency replacement and planned maintenance programs. For facilities with multiple critical machine trains, we recommend establishing a blanket purchase agreement to guarantee priority allocation and fixed lead times, reducing procurement risk during peak demand periods.

Q4: What should be inspected alongside the probe during a replacement to minimize repeat failures?
To prevent recurrence, inspect the extension cable (330130 series), Proximitor sensor (330180 series), junction box terminal connections, and the I/O module in the 3500 rack. Verify power supply output quality and check for EMI sources near the signal cable routing. Addressing the full signal chain during a planned replacement significantly reduces the risk of a repeat fault within the next maintenance cycle.
