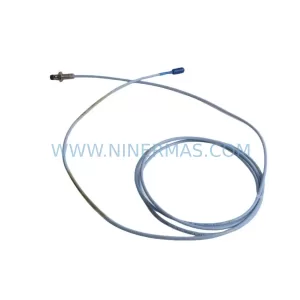

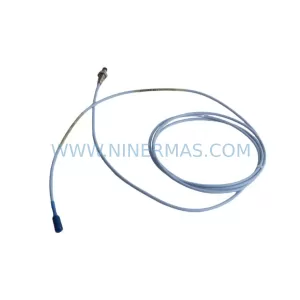

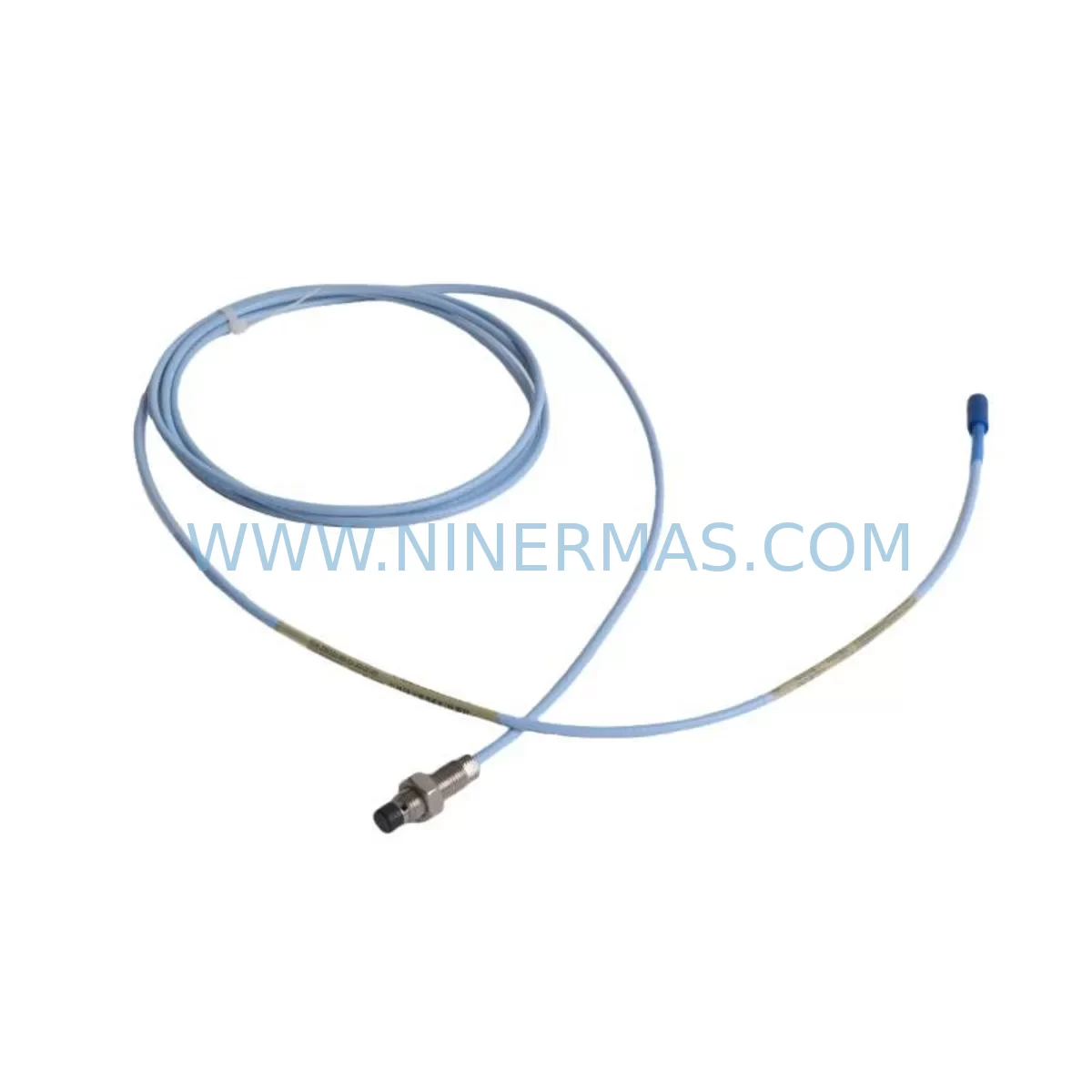

The Bently Nevada 330101-00-11-10-02-00 is a precision proximity transducer designed for the 3300 XL Series condition monitoring system — one of the most widely deployed vibration monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned shutdown, or building a strategic spare parts inventory for a critical turbine train, compressor skid, or pump station, this module represents a direct, service-ready replacement that restores full system functionality without requiring firmware reconfiguration or hardware adaptation.

At NINERMAS, every unit of the 330101-00-11-10-02-00 is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We understand that downtime in industrial environments is not merely an inconvenience — it is a measurable financial and operational risk. Our inventory and logistics infrastructure is built to support rapid response, with test-before-ship protocols and long-term supply continuity for legacy and active Bently Nevada 3300 XL installations alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-11-10-02-00 in a live industrial environment requires more than a direct swap of the transducer body. Experienced maintenance engineers know that a proximity transducer system is a matched three-component assembly: the probe, the extension cable, and the driver (proximitor). When any one element is replaced, the entire signal chain must be verified. If you are stocking the 330101-00-11-10-02-00 as a critical spare, it is equally important to maintain inventory of the corresponding Bently Nevada 330130 series extension cables and the 330180 or 330190 series proximitor drivers, which are the active signal conditioning components mounted in the field junction box or control cabinet.

Within the control cabinet, the 3300 XL monitor rack should be inspected during any transducer replacement event. The 3300/16 or 3300/20 monitor modules that receive the transducer signal are subject to their own aging and drift characteristics. Maintenance teams should verify that the monitor’s OK relay output, alert setpoints, and danger setpoints remain correctly configured after any field wiring disturbance. The 3300/05 power supply module feeding the rack should also be checked for output voltage stability, as a marginal power supply can introduce noise into the transducer signal chain and produce false vibration readings or nuisance trips.

For installations integrated with a DCS or safety system, the 4–20 mA output cards or relay output modules connected downstream of the 3300 XL rack should be tested for continuity and correct scaling. In older installations, terminal blocks and field wiring connectors in the junction box are a common source of intermittent faults that mimic transducer failure — inspect and re-torque all terminations when replacing the 330101-00-11-10-02-00. Signal isolators or barriers installed between the 3300 XL output and the DCS input should also be verified, particularly in hazardous area installations where Zener barriers or galvanic isolators are used to maintain intrinsic safety compliance.

If the machine train includes a Bently Nevada 3500 Series rack operating alongside legacy 3300 XL hardware, ensure that the replacement transducer’s sensitivity and gap range are compatible with the monitor’s input configuration. Cross-series installations are common in plants that have undergone partial upgrades, and a mismatch in transducer sensitivity (e.g., 7.87 V/mm vs. 8.0 V/mm) can result in calibration errors that are difficult to diagnose without a full system audit. In such cases, the 3500/42M or 3500/45 monitor modules may require sensitivity reconfiguration after transducer replacement.

For annual shutdown planning, procurement engineers should treat the 330101-00-11-10-02-00 as a consumable spare with a recommended replacement interval aligned to the machine’s major inspection cycle. Alongside the transducer, the shutdown BOM should include spare proximitor drivers, extension cable assemblies, terminal block inserts, and any associated fuse holders or circuit protection devices in the monitor power distribution circuit. Maintaining a minimum of two spare transducer assemblies per critical machine train is a widely accepted practice in rotating equipment reliability programs.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit and confirm the machine is in a safe state. Do not remove the transducer from a running machine. Isolate the monitor channel to prevent a false danger trip from triggering protective shutdown logic during the replacement.

Step 2 — Document Existing Gap Voltage: Before disconnecting the old transducer, record the existing gap voltage (typically between -10 VDC and -18 VDC for standard steel targets). This baseline confirms the target condition and provides a reference for commissioning the replacement unit.

Step 3 — Remove and Inspect: Unscrew the probe body using the correct spanner. Inspect the probe tip for mechanical damage, contamination, or corrosion. Inspect the extension cable connector and the proximitor input connector for pin damage or moisture ingress.

Step 4 — Install Replacement 330101-00-11-10-02-00: Thread the new probe to the correct gap distance per the OEM gap table (typically 1.0 mm to 2.0 mm for standard installations). Secure with the locknut. Reconnect the extension cable and verify connector seating.

Step 5 — Commission and Verify: Power the proximitor and measure the output voltage at the monitor input terminals. Confirm the gap voltage is within the linear range. Check the monitor’s OK status LED and verify that the channel is reading correctly in the DCS or historian. Document the as-left gap voltage in the maintenance record.

Step 6 — Return to Service: Re-enable the monitor channel, confirm no active alarms, and return the machine to normal operation. Update the spare parts inventory to reflect consumption of the 330101-00-11-10-02-00 and initiate a replenishment order to maintain minimum stock levels.

This workflow is applicable to direct replacement of legacy 330101 series transducers in existing 3300 XL installations. No firmware changes or monitor reconfiguration are required when replacing like-for-like within the same SKU suffix configuration. For cross-series or cross-sensitivity replacements, consult the Bently Nevada installation manual or contact NINERMAS technical support for compatibility guidance.

Spare Parts Support FAQ

Q1: Is the 330101-00-11-10-02-00 a direct drop-in replacement for older 330101 series transducers?
Yes. The 330101-00-11-10-02-00 is designed as a direct replacement within the Bently Nevada 3300 XL proximity transducer system. The SKU suffix encodes the probe length, extension cable length, and driver type — confirm that your existing installation matches the suffix configuration before ordering. NINERMAS can assist with suffix decoding and compatibility verification prior to shipment.

Q2: What is included in the 12-month warranty, and what does the pre-shipment test cover?
Every 330101-00-11-10-02-00 dispatched by NINERMAS is tested for electrical continuity, output voltage linearity, and physical integrity before shipment. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental range. Warranty claims are processed directly through NINERMAS with a target response time of 5 business days.

Q3: Can NINERMAS support long-term supply for plants with multiple 3300 XL installations?
Yes. NINERMAS maintains ongoing inventory of Bently Nevada 3300 XL series components, including the 330101 transducer family, extension cables, and proximitor drivers. For plants managing large fleets of rotating equipment, we offer blanket order arrangements and reserved stock programs to ensure supply continuity across multi-year maintenance cycles. Contact our sales team to discuss volume pricing and lead time commitments.

Q4: How should the 330101-00-11-10-02-00 be stored as a long-term spare?
Store the transducer in its original packaging in a clean, dry environment at temperatures between 0°C and 40°C, away from strong electromagnetic fields and mechanical vibration. Inspect the probe tip and connector annually for corrosion or physical damage. Do not remove the protective cap from the probe tip until installation. Properly stored units maintain full functionality well beyond the standard 12-month warranty period, making them suitable for multi-year strategic inventory programs.
