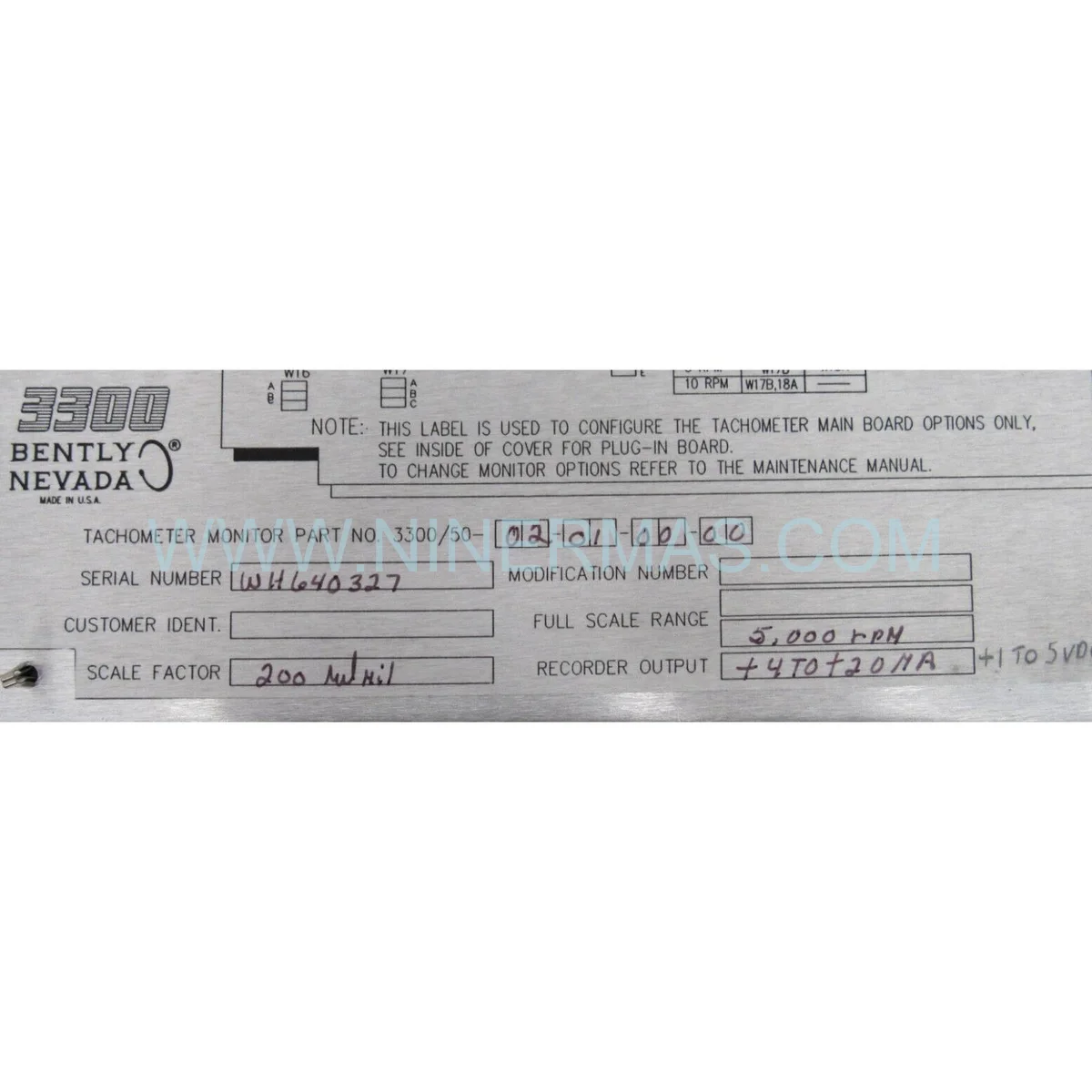

Bently Nevada 3300/50-02-01-00-00 Tachometer Module
The Bently Nevada 3300/50 is a precision tachometer module designed for the 3300 XL proximity transducer system. This dual-channel module converts proximity probe signals into accurate speed measurements for rotating machinery monitoring, providing critical data for turbine control, compressor protection, and predictive maintenance programs.
Why 3300 XL Tachometer Modules?
Accurate speed measurement is fundamental to machinery protection and performance optimization. The 3300/50 module delivers:
- Dual-Channel Design — Monitor two machines or redundant speed inputs with single module
- Wide Speed Range — Measure from 60 to 250,000 RPM with high accuracy
- Multiple Output Formats — 4-20mA analog, relay contacts, and buffered probe outputs
- Programmable Alarms — Configurable overspeed and underspeed setpoints
- Hot-Swappable — Replace modules without system shutdown in critical applications
Technical Specifications
| Model Number | 3300/50-02-01-00-00 |
| Module Type | Dual-channel tachometer |
| Input Type | Proximity probe (3300 XL 8mm or 11mm probes) |
| Speed Range | 60 to 250,000 RPM (1 to 4,167 Hz) |
| Accuracy | ±0.01% of reading ±1 RPM |
| Analog Output | 4-20 mA (isolated, 600 © max load) |
| Relay Outputs | 2 SPDT per channel (overspeed/underspeed alarms) |
| Buffered Output | Proximity probe signal pass-through |
| Power Supply | -24 VDC (18-30 VDC range) |
| Power Consumption | Typ. 4W per channel |
| Operating Temp | -30 °C to +65 °C |
| Mounting | 3300 XL rack (quarter-height module) |
| Certifications | CE, UL, CSA, ATEX, IECEx |
| Dimensions (W H D) | 24.4mm — 241.8mm — 241.3mm |
| Weight | 0.7 kg |
Industrial Applications
Turbine Speed Monitoring
Monitor steam, gas, and hydro turbine speeds for control systems and overspeed protection. Dual-channel redundancy ensures safety in critical power generation applications.
Compressor Protection
Detect surge conditions, bearing failures, and rotor instability through continuous speed monitoring. Integrate with vibration and temperature sensors for comprehensive machinery protection.
Motor Control Systems
Provide speed feedback for variable frequency drives (VFDs) and motor control panels. 4-20mA output interfaces directly with PLCs and DCS systems.
Gearbox Monitoring
Track input and output shaft speeds to detect gear tooth damage, misalignment, and lubrication issues. Calculate gear ratios and detect slippage in real-time.
3300 XL System Integration
Complete Monitoring Solution
- Proximity Probes: 3300 XL 8mm or 11mm probes with extension cables
- Proximitor Sensors: 3300 XL proximitor for signal conditioning (if not using tach module buffered output)
- Mounting Rack: 3300 XL rack system (holds up to 4 quarter-height modules)
- Power Supply: -24 VDC rack power supply module
- Cables: Shielded cables for probe connections and output signals
Typical Configuration
For dual-machine speed monitoring:
- 1 3300/50-02-01-00-00 tachometer module (this product)
- 2 3300 XL 8mm proximity probes
- 2 Extension cables (length based on installation)
- 1 3300 XL rack with power supply
- Alarm relay wiring to control system
Installation & Setup
Quick Start Guide
- Probe Installation — Mount proximity probe perpendicular to shaft, targeting gear teeth or keyphasor notch. Maintain 1mm gap (0.040 inch).
- Module Installation — Insert module into 3300 XL rack slot. Secure with front panel screws.
- Probe Connection — Connect proximity probe cable to module input connector. Verify polarity and shielding.
- Output Wiring — Wire 4-20mA output to PLC/DCS analog input. Connect relay contacts to alarm circuits.

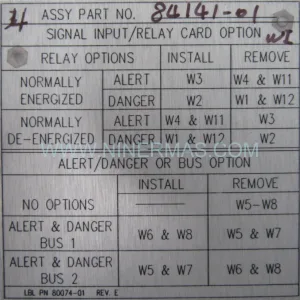

- Configuration — Set speed range, alarm setpoints, and output scaling using front panel DIP switches or software.
- Calibration — Verify speed reading against known reference (strobe tachometer or encoder).
Configuration Parameters
- Teeth/Notches: Program number of gear teeth or keyphasor events per revolution
- Speed Range: Select appropriate range for application (low, medium, high)
- Alarm Setpoints: Configure overspeed and underspeed trip points
- Output Scaling: Map 4-20mA output to desired speed range (e.g., 0-3600 RPM = 4-20mA)
LED Indicators & Diagnostics
| LED | Color | Meaning |
|---|---|---|
| OK | Green | Module operating normally, valid speed signal |
| TX | Green (flashing) | Speed pulses detected, normal operation |
| ALERT | Yellow | Speed approaching alarm setpoint (warning zone) |
| DANGER | Red | Overspeed or underspeed alarm activated |
| BYPASS | Yellow | Module in bypass mode (alarms disabled) |
| FAULT | Red | Module fault (power, probe, or configuration error) |
3300/50 vs. Alternative Solutions
| Feature | 3300/50 (This Product) | Magnetic Pickup | Optical Encoder |
|---|---|---|---|
| Speed Range | 60-250,000 RPM | 100-10,000 RPM | 0-100,000 RPM |
| Installation | Non-contact (1mm gap) | Non-contact (variable gap) | Shaft-mounted (contact) |
| Accuracy | ±0.01% ±1 RPM | ±0.5% typical | ±0.001% (high-end) |
| Environment | Harsh (oil, dust, temp) | Moderate | Clean (sensitive to contamination) |
| Maintenance | Low (no wear parts) | Low | Medium (bearing wear) |
| Cost | High | Low | Very High |
| Best For | Critical machinery, high speeds | General purpose, low cost | Precision control, clean environments |
Troubleshooting Common Issues
| Problem | Cause | Solution |
|---|---|---|
| No speed reading | Probe gap too large | Adjust probe to 1mm gap (0.040 inch) |
| Erratic speed display | Electrical noise interference | Verify cable shielding, separate from power cables |
| Speed reading 2 actual | Incorrect teeth count setting | Reprogram module with correct number of teeth |
| Alarm won’t reset | Speed still above/below setpoint | Verify machine speed, adjust setpoint if needed |
| 4-20mA output incorrect | Output scaling misconfigured | Recalibrate output scaling parameters |
Authenticity & Quality Assurance
Counterfeit Module Risks
Non-genuine tachometer modules can cause:
- Inaccurate speed readings leading to improper control
- Failed overspeed protection causing equipment damage
- Incompatibility with 3300 XL system components
- Premature failure in critical applications
- Voided Bently Nevada warranty and support
NINERMAS Guarantee
- 100% Genuine Bently Nevada — Factory-sealed with serial numbers
- Full Traceability — Certificate of conformity and calibration data
- Authorized Distributor — Verify at Baker Hughes partner portal
- ï¸ 24-Month Warranty — Manufacturer warranty honored globally
- ESD Protection — Anti-static packaging prevents damage
- Technical Support — Application engineering assistance
Package Contents
- 1 Bently Nevada 3300/50-02-01-00-00 tachometer module
- Front panel mounting screws
- Product documentation and configuration guide
- Calibration certificate
Not Included: Proximity probes, extension cables, mounting rack, and power supply must be ordered separately.
Related Products
- Proximity Probes: 3300 XL 8mm (330180-90-00) or 11mm (330180-91-00)
- Extension Cables: Various lengths (1m to 9m) for probe-to-module connection
- Mounting Rack: 3300 XL rack system with power supply
- Proximitor Sensors: 3300 XL proximitor for vibration monitoring
Technical Support & Services
- Application Engineering — Email us your machine specifications for probe selection and configuration
- Documentation Library — Installation manuals, configuration guides, troubleshooting procedures
- Training Resources — 3300 XL system training and best practices
- Commissioning Support — Remote assistance for initial setup and calibration
- 30-Day Returns — Unused modules in original packaging
Frequently Asked Questions
Q: Can I use this module with non-Bently Nevada proximity probes?
A: Not recommended. The module is calibrated for 3300 XL probes. Using other probes may result in inaccurate readings.
Q: What is the maximum cable length between probe and module?
A: Up to 9 meters (30 feet) with standard extension cables. Longer distances require signal conditioning.
Q: Can I monitor belt-driven equipment?
A: Yes, but install probe on driven shaft (not belt). Belt slippage will cause inaccurate readings if monitoring drive shaft.
Q: How do I set the number of teeth for speed calculation?
A: Use front panel DIP switches or configuration software. Count actual gear teeth or keyphasor events per revolution.
Q: Is this module compatible with 3300 NSv (newer system)?
A: No, 3300/50 is for 3300 XL system only. For 3300 NSv, use compatible tachometer modules.
| Product Series | 3300 System |
|---|---|
| Country of Origin | US |
