Bently Nevada 3300/45 Safety-Reliable Expansion Module

Bently Nevada 3300/45 Safety-Reliable Expansion Module: Critical Industrial Control Reliability

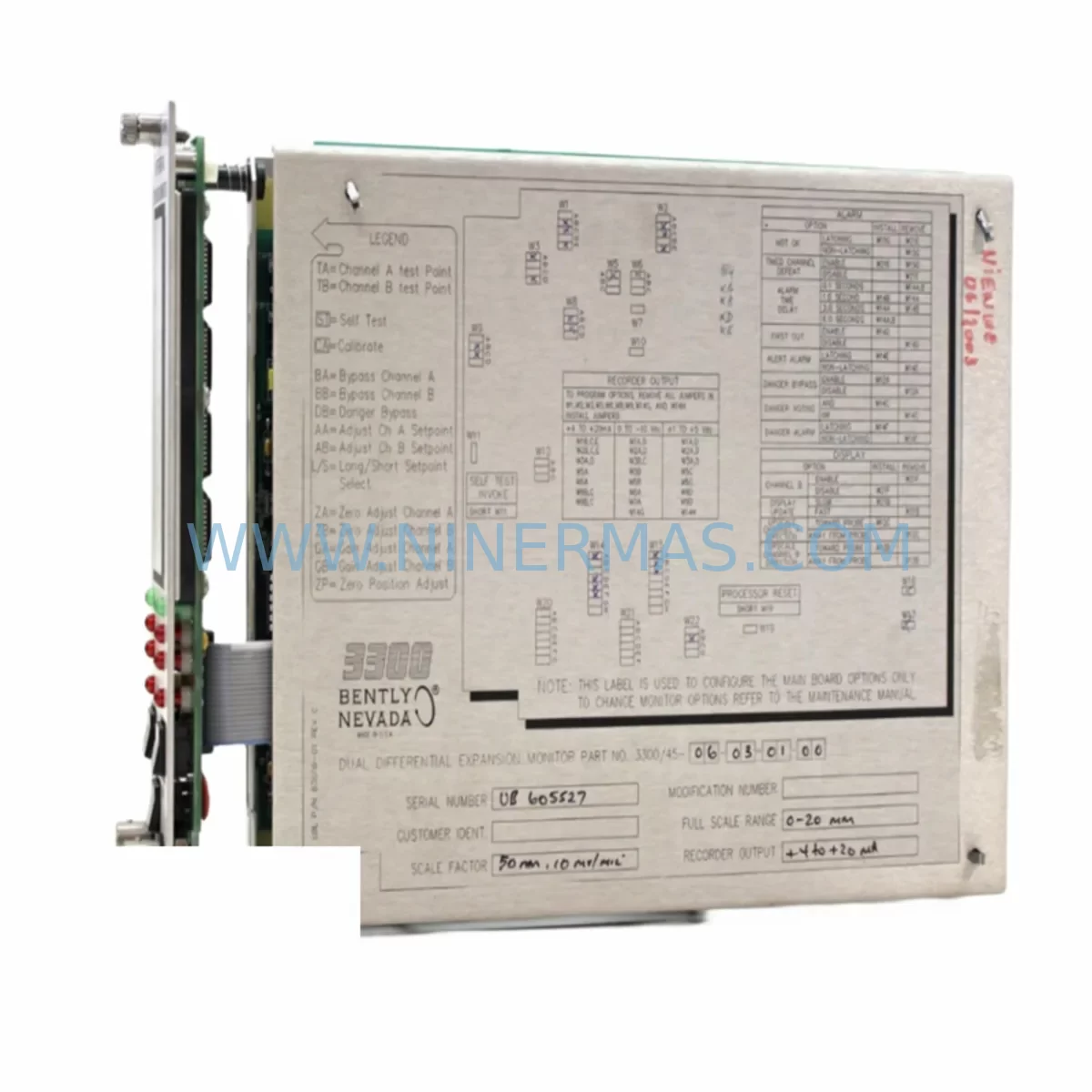

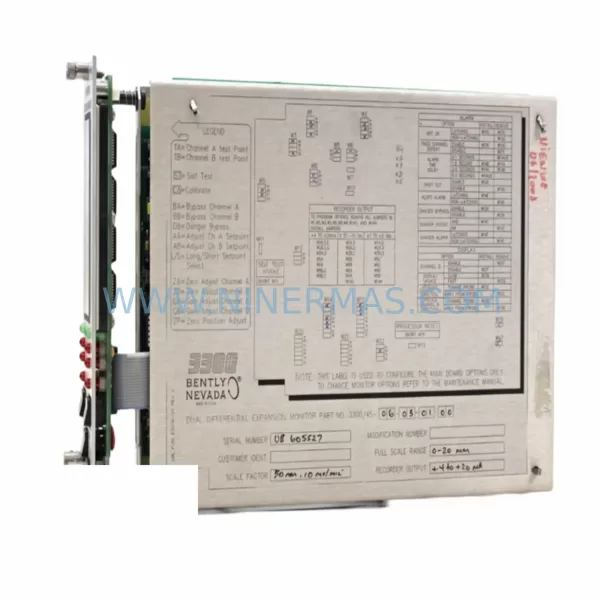

The Bently Nevada 3300/45 Ruggedized Dual Differential Expansion Module is engineered for the most demanding safety-critical industrial environments. Designed as a core component of the Bently Nevada 3300 Series continuous vibration monitoring system, this module delivers uncompromising measurement accuracy and signal integrity in continuous production facilities where unplanned downtime is not an option. Whether deployed in petrochemical processing trains, power generation turbines, mining compressor stations, or metallurgical rolling mills, the 3300/45 provides the differential expansion measurement precision that plant safety engineers and reliability teams depend on.

In critical interlock loops and safety instrumented systems (SIS), signal drift and measurement latency can trigger spurious trips or — far more dangerously — fail to detect a developing fault. The 3300/45 addresses this risk through its ruggedized dual-channel differential architecture, which maintains measurement fidelity even under high electromagnetic interference (EMI), ground loop noise, and power supply fluctuations common in heavy industrial switchgear rooms and motor control centers. Its robust design resists the effects of dust ingress, condensation, high ambient temperature, and mechanical vibration that routinely degrade lesser monitoring hardware.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Protecting a critical turbine or compressor train requires a layered approach across the entire monitoring and control architecture. The Bently Nevada 3300/45 sits at the heart of this strategy, but its effectiveness is amplified when integrated with complementary 3300 Series modules and system components.

In a typical heavy-duty gas turbine protection cabinet, the 3300/45 expansion module operates alongside the Bently Nevada 3300/16 Dual Voting Vibration Monitor, which provides redundant radial vibration measurement and voting logic to prevent spurious trips. The Bently Nevada 3300/20 Dual Channel Vibration Monitor handles shaft absolute vibration channels, while the Bently Nevada 3300/55 Keyphasor Module supplies the phase reference signal essential for accurate vector analysis and balancing diagnostics. Together, these modules share a common Bently Nevada 3300 Series Rack Power Supply, which must deliver clean, regulated ±24 VDC even during upstream power disturbances — making surge-protected, redundant power supply design a non-negotiable element of any safety-rated installation.

On the transducer side, the 3300/45 is designed to interface with Bently Nevada 3300 XL 8mm Proximity Transducer Systems, including the probe, extension cable, and proximitor. Maintaining the integrity of this transducer chain — from probe tip to module input — is critical to eliminating signal drift and false readings. In high-vibration environments such as reciprocating compressors or rolling mill drives, transducer cable routing and connector integrity deserve the same engineering attention as the module itself.

For facilities running integrated plant asset management, the 3300/45 can feed differential expansion data into a System 1 Evolution software platform, enabling trend analysis, alarm rationalization, and predictive maintenance scheduling. When combined with the Bently Nevada 3500 Series rack system for newer installations, cross-platform data sharing allows engineering teams to maintain a unified machinery health picture across legacy and modern monitoring infrastructure — a critical capability for aging plant lifecycle extension programs.

In control cabinets exposed to high electromagnetic interference from variable frequency drives (VFDs), large motor starters, or arc furnace equipment, additional EMI shielding, proper cable segregation, and the use of Bently Nevada signal conditioning accessories are recommended to preserve the measurement accuracy that the 3300/45 is designed to deliver. Surge protection devices on I/O terminals further reduce the risk of transient-induced module damage in lightning-prone or high-switching-frequency environments.

Critical Industrial Safety Applications

The Bently Nevada 3300/45 is deployed across the full spectrum of process-critical and safety-critical industrial sites where rotating machinery protection is paramount.

In petrochemical and refinery facilities, the module monitors differential thermal expansion on steam turbine-driven compressor trains, providing early warning of casing distortion or rotor rub conditions that could escalate to catastrophic failure. Continuous measurement allows operators to manage startup and shutdown thermal transients safely, reducing the risk of forced outages during critical production campaigns.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the 3300/45 supports turbine protection systems that must respond within milliseconds to abnormal expansion events. Its integration with relay-based trip systems ensures that danger setpoint breaches result in immediate, reliable machine shutdown, protecting both personnel and capital assets.

In mining and mineral processing operations, large ball mill drives, crusher motors, and ventilation fan trains operate in environments characterized by extreme dust loading, temperature cycling, and structural vibration. The ruggedized design of the 3300/45 ensures sustained measurement accuracy under these conditions, supporting both planned maintenance intervals and emergency shutdown reliability.

In water and wastewater treatment infrastructure, pump and blower protection systems rely on continuous vibration and expansion monitoring to prevent bearing failures that could interrupt critical public services. The 3300/45 provides the measurement stability needed for long-interval, unattended operation in remote pumping stations.

In metallurgical and steel plants, rolling mill main drives and continuous casting machine drives are subject to severe mechanical shock and thermal cycling. The 3300/45’s ruggedized architecture maintains signal integrity in these environments, supporting both process safety and equipment lifecycle management objectives.

In port and marine applications, shipboard propulsion turbines and cargo pump drives require monitoring systems that perform reliably under vessel motion, salt-laden air, and wide ambient temperature ranges. The 3300/45 meets these demands, making it a trusted choice for marine engineering teams managing critical rotating machinery.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 3300/45?
All 3300/45 modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement coordination to minimize site downtime.

Q2: What pre-shipment testing is performed on the 3300/45 before dispatch?
Every unit undergoes full functional verification prior to shipment, including power-on testing, channel output verification, and alarm relay function checks. This ensures that the module arrives at site ready for installation without the risk of infant-mortality failures during commissioning.

Q3: Is the 3300/45 compatible with existing Bently Nevada 3300 Series rack installations?
Yes. The 3300/45 is designed for direct installation into standard Bently Nevada 3300 Series rack chassis and is compatible with the existing 3300 Series power supply, I/O wiring, and transducer infrastructure. Compatibility with specific rack configurations and software versions should be confirmed against your site’s system documentation prior to installation.

Q4: Can NINERMAS support long-term spare parts supply for the 3300/45?
Yes. NINERMAS maintains ongoing stock of the 3300/45 and related 3300 Series components to support planned maintenance programs, emergency replacements, and long-term spare parts agreements. Our supply capability is designed to support customers managing aging control infrastructure where OEM availability may be limited or lead times extended.
