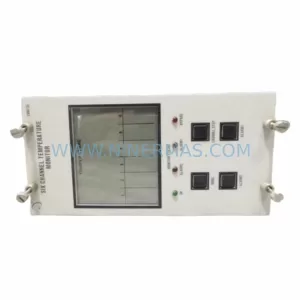

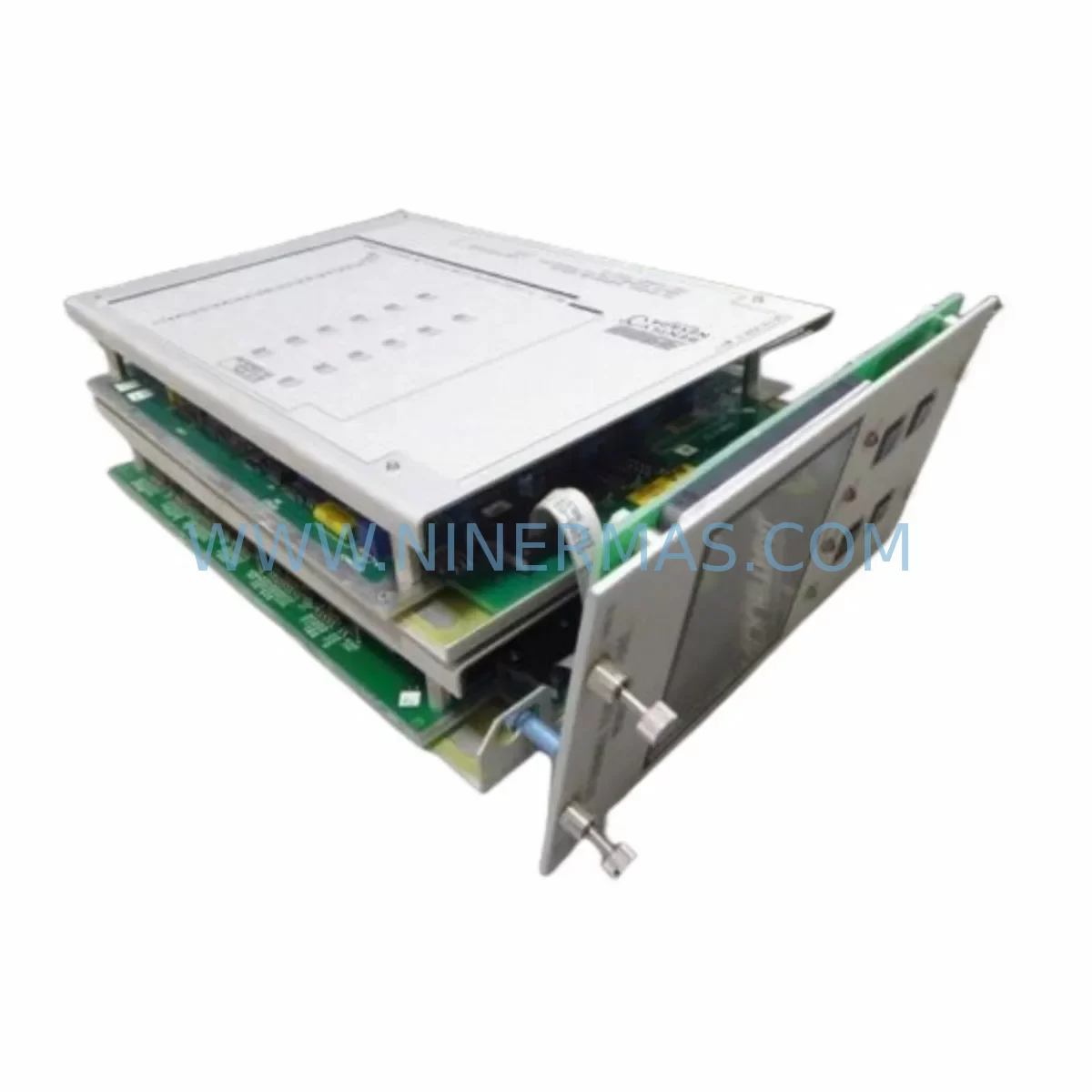

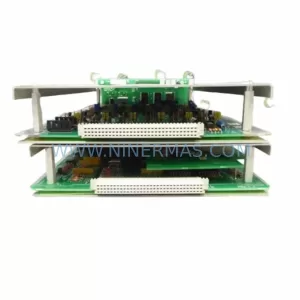

The Bently Nevada 3300/35 is a critical spare part within the 3300 Series vibration monitoring platform, widely deployed across rotating machinery protection systems in oil & gas, power generation, petrochemical, and heavy manufacturing facilities. When a 3300/35 module fails or degrades, the consequences extend far beyond a single measurement channel — the entire machinery protection loop may be compromised, leaving turbines, compressors, pumps, and motors without adequate vibration oversight. Sourcing a verified, service-ready replacement is not optional; it is a fundamental requirement of any responsible maintenance strategy.

At NINERMAS, every 3300/35 unit is inspected, function-tested, and shipped with full documentation to support rapid site installation and system restoration. Our inventory is maintained specifically to serve maintenance engineers and procurement teams who cannot afford extended lead times or the risk of receiving untested surplus stock.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Bently Nevada 3300/35 in the field is rarely an isolated task. Experienced maintenance engineers understand that a module swap is the ideal moment to audit the surrounding system for latent faults that could trigger the next unplanned shutdown. Before returning the machinery protection loop to service, the following components and subsystems should be inspected or verified as part of a disciplined maintenance workflow.

Begin with the 3300 Series rack power supply module — typically a dedicated 24 VDC unit feeding the entire backplane. A degraded power supply can cause intermittent module resets, false alarms, or measurement drift that is easily misattributed to the monitor module itself. Verify output voltage stability under load before re-energizing the replaced 3300/35.

Next, inspect the Bently Nevada 3300/20 or 3300/25 keyphasor module if the machine train uses phase-referenced measurements. The keyphasor signal is shared across multiple monitor channels; a failing keyphasor module will corrupt speed and phase data system-wide. Confirm signal integrity and cable continuity at the terminal block.

The proximitor sensors and extension cables connected to the 3300/35 inputs deserve close attention. Eddy-current transducer systems are sensitive to cable damage, connector corrosion, and gap voltage drift. Measure the static gap voltage at each proximitor output and compare against the manufacturer’s calibration chart. Replace any sensor showing gap voltage outside the –10 to –18 VDC window.

Review the terminal strip wiring and field junction boxes associated with the vibration loop. Loose terminations, corroded ferrules, and improperly shielded cables are among the most common root causes of noise-induced false trips. Re-torque all terminals and verify shield grounding is single-point at the rack end.

If the 3300 Series rack communicates with a DCS or safety PLC via a 3300/46 or 3300/55 communication gateway module, confirm that the data link is re-established after the module replacement and that the host system is receiving valid vibration values. A communication module that has been in service for many years may itself be approaching end-of-life and should be flagged for the next planned outage.

For facilities running GE Mark V, Mark VI, or Emerson Ovation DCS platforms alongside Bently Nevada protection systems, verify that the analog input cards receiving the 4–20 mA vibration signals are calibrated and that the engineering unit scaling in the DCS matches the monitor’s configured measurement range. Misconfigured scaling can mask a genuine high-vibration condition.

Inspect the relay output wiring from the 3300/35 to the machinery trip relay panel. Relay contacts should be tested for continuity in both energized and de-energized states. Interposing relays, terminal blocks, and fuse holders in the trip circuit are often overlooked during module-focused maintenance activities.

Finally, if the plant operates an Operator Interface Terminal (HMI) or condition monitoring workstation connected to the 3300 Series system, confirm that alarm setpoints, danger setpoints, and time-delay parameters are correctly restored after the module replacement. Some 3300/35 configurations store setpoints locally; a factory-reset or replacement module will require re-programming before it is operationally equivalent to the unit it replaces.

Maintaining a small buffer stock of the 3300/35 alongside related modules — including spare proximitor sensors, rack power supplies, keyphasor modules, and communication gateway cards — is strongly recommended for any facility where rotating machinery protection is safety-critical. A single spare on the shelf can reduce mean time to repair from days to hours.

Site Replacement Workflow

Step 1 — Preparation and Permit: Obtain a work permit and coordinate with the control room to place the affected machinery channel in bypass or inhibit mode. Document the current alarm and danger setpoints from the existing 3300/35 before removal.

Step 2 — Module Removal: De-energize the rack slot if the system design permits hot-swap isolation. Disconnect field wiring at the terminal block, labeling each conductor. Remove the 3300/35 module from the rack by releasing the front-panel locking mechanism.

Step 3 — Replacement Module Inspection: Verify the replacement 3300/35 part number, firmware revision (if applicable), and physical condition. Confirm the unit has been function-tested and that the test report accompanies the shipment.

Step 4 — Installation and Wiring: Seat the replacement module firmly in the rack slot. Reconnect field wiring in accordance with the original termination schedule. Verify shield grounding and cable routing before re-energizing.

Step 5 — Configuration Restore: Re-enter alarm setpoints, danger setpoints, time delays, and measurement range parameters as documented in Step 1. For systems using a configuration software tool (e.g., Bently Nevada System 1 or rack configuration utility), upload the saved configuration file.

Step 6 — Functional Verification: With the machine at rest, verify static gap voltage at each proximitor input. Confirm 4–20 mA output values are within expected range. Test relay outputs by simulating an alarm condition. Remove the bypass/inhibit and return the channel to normal monitoring service.

Step 7 — Documentation: Record the replacement in the plant maintenance management system (CMMS), including the new module serial number, installation date, and post-replacement test results. Update the spare parts inventory to reflect consumption and trigger a replenishment order if buffer stock falls below the minimum level.

Spare Parts Support FAQ

Q1: Is the 3300/35 still available as a new original part, or is it only available as refurbished surplus?
The Bently Nevada 3300 Series has been in service for decades, and while some variants may be discontinued from the OEM’s current production catalog, NINERMAS maintains a curated inventory of original and service-ready 3300/35 units sourced through authorized channels. Each unit undergoes functional testing before shipment. If you require documentation of the unit’s condition and test results, these are available upon request.

Q2: How do I confirm compatibility between a replacement 3300/35 and my existing rack configuration?
Compatibility is primarily determined by the rack model, slot assignment, and the transducer type connected to the module. Provide your rack part number, the existing module’s label information, and the proximitor model in use, and our technical team will confirm compatibility before shipment. We recommend cross-referencing the Bently Nevada 3300 Series installation manual for slot-specific configuration requirements.

Q3: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact NINERMAS with the original order reference, a description of the failure mode, and photographic evidence of the unit’s condition. Replacement or repair will be arranged promptly to minimize your downtime.

Q4: Can NINERMAS support long-term supply agreements for 3300/35 and related 3300 Series modules?
Yes. For facilities running extended plant life programs or managing aging DCS and machinery protection infrastructure, NINERMAS offers long-term supply agreements that guarantee stock reservation, priority shipment, and fixed pricing over a defined contract period. This is particularly valuable for plants that cannot afford to depend on spot-market availability for safety-critical spare parts. Contact our sales team to discuss your annual consumption requirements and preferred stocking arrangement.
