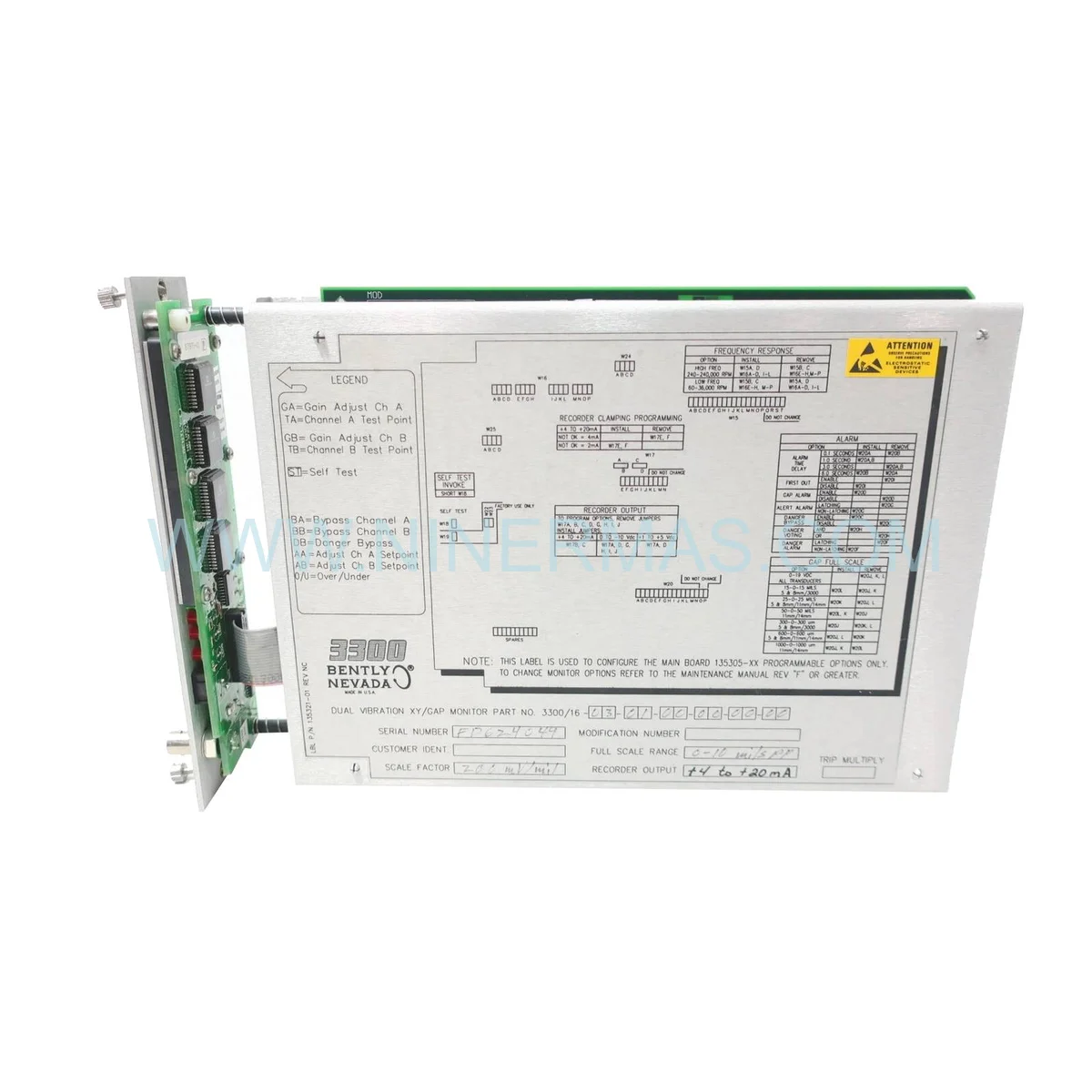

Bently Nevada 3300/16-03-01-00-00-00-00 | Dual XY/Gap Vibration Monitor – Original Spare Parts

Bently Nevada 3300/16-03-01-00-00-00-00 — Dual-Channel XY/Gap Vibration Monitor | Original Industrial Spare Parts

As a procurement manager sourcing critical rotating machinery protection components, you need absolute confidence in part authenticity and performance. The Bently Nevada 3300/16-03-01-00-00-00-00 is a factory-sealed, 100% Brand New and Factory Sealed dual-channel XY/Gap vibration monitor engineered for the Bently Nevada 3300 platform — one of the most trusted PLC System and DCS-integrated machinery protection architectures in Industrial Automation. This Original New spare part delivers simultaneous orthogonal vibration measurement and axial displacement tracking, providing comprehensive rotor dynamics analysis for turbomachinery and other critical rotating assets.

Downtime in high-stakes environments — refineries, power generation, compressor stations — is never acceptable. The 3300/16-03-01-00-00-00-00 addresses this directly: it is a plug-in replacement for legacy 3300 rack infrastructure, eliminating rewiring and reconfiguration delays. Designed for Oil & Gas, Power Plants, and heavy process industries, this Control Module integrates seamlessly with System 1 Evolution software and existing 3300 backplanes, making it the preferred choice for engineers managing EOL legacy systems and demanding API 670-compliant SIS environments.

Sourced directly as Original New inventory, this unit ships with full serialized traceability and factory calibration documentation. Whether you are replacing a failed module or building strategic spare parts stock, this is the definitive solution for uninterrupted machinery protection.

Technical Specifications & Selection Guide

Selection Tip: Confirm your existing rack accepts the 3300/16 series card format. The 3300/16-03-01-00-00-00-00 is backward-compatible with all standard 3300 rack backplanes and requires no additional configuration hardware for direct replacement.

Core Features & Technical Advantages

• Precision Orbit Analysis: XY channel pairing enables real-time Lissajous pattern visualization — revealing oil whirl/whip, rotor rub, and precession modes invisible to single-axis systems.
• Robust Axial Gap Measurement: Dedicated thrust position monitoring with ±0.001-inch resolution detects thermal growth anomalies and magnetic center shifts before catastrophic bearing failure.
• Heavy-duty Transient Capture: 25.6 kHz sampling rate records startup/shutdown sequences and trip events, providing forensic data for root cause analysis.
• Seamless DCS/SIS Integration: 4-20 mA analog outputs and programmable relay contacts interface directly with existing DCS and Safety Instrumented System (SIS) architectures.
• Zero-Rewire Retrofit: Direct plug-in replacement for installed 3300 series racks — minimizes planned outage duration and eliminates probe cable reconfiguration.
• API 670 Compliance: Meets 4th and 5th Edition standards for machinery protection systems in critical service applications.

Typical Application Scenarios

Oil & Gas — Centrifugal Compressors & Expanders: Pipeline and LNG facility operators rely on the 3300 platform to protect high-speed centrifugal compressors where undetected rotor instability causes multi-million-dollar failures. This module’s orbit analysis capability identifies subsynchronous vibration patterns hours before a trip event.

Power Plants — Steam & Gas Turbines: Utility and cogeneration operators use XY/Gap monitoring to track rotor eccentricity and thrust bearing wear across load cycles. Early detection of axial displacement anomalies prevents catastrophic rotor-stator contact in high-pressure turbine stages.

Petrochemical — Reactor Agitators & Pumps: Heavy-duty agitator drives and large process pumps in ethylene and refining facilities benefit from continuous proximity probe monitoring, catching bearing degradation and seal wear before unplanned shutdowns disrupt production schedules.

Hydroelectric Generation: Francis and Kaplan turbine installations use gap measurement to monitor guide bearing clearance and runner axial float, detecting cavitation-induced wear and wicket gate irregularities in real time.

Pulp & Paper — Dryer Cans & Calendar Rolls: Continuous paper machine operations depend on vibration monitoring to detect roll eccentricity and bearing defects that cause sheet breaks, quality defects, and costly unscheduled maintenance windows.

Logistics & Professional Service

• ✅ 2-Day Express Shipping available to major global destinations — minimizing your plant downtime window.
• ✅ 1-Year Warranty on all Original New units, backed by full serialized traceability documentation.
• ✅ EOL Legacy System Support: Specialized inventory maintained for discontinued and hard-to-source Bently Nevada 3300 series components — your single source for obsolete PLC System and Control Module spare parts.
• ✅ Documentation Package: Factory calibration report, installation manual, and wiring schematics included with every shipment.
• ✅ Global Export Compliance: Certificate of Origin and customs documentation available upon request for international procurement teams.

FAQ — Frequently Asked Questions

Q: What is the lead time for the Bently Nevada 3300/16-03-01-00-00-00-00?
A: In-stock units ship within 1-2 business days via express courier. For large quantity orders or special export documentation requirements, lead time is typically 3-5 business days. Contact our team at sale@ninermas.com for real-time stock confirmation and expedited shipping options.

Q: Is this unit 100% Original and Brand New?
A: Yes. Every 3300/16-03-01-00-00-00-00 unit we supply is 100% Original and Brand New, sourced from authorized distribution channels. Each module carries a unique factory serial number and ships with a calibration certificate for full traceability.

Q: Can I get a Datasheet or technical documentation for this part?
A: Yes. The official Bently Nevada 3300/16-03 series datasheet and installation manual are available upon request. Email sale@ninermas.com with your inquiry and we will provide the documentation package promptly.

Q: Is the 3300/16-03-01-00-00-00-00 compatible with my existing 3300 rack?
A: This module is designed as a direct plug-in replacement for all standard Bently Nevada 3300 rack backplanes. No additional hardware or rewiring is required. Confirm your rack accepts the 3300/16 card format before ordering — our technical team can assist with compatibility verification.

Q: Do you provide a Certificate of Origin for customs clearance?
A: Yes. Certificate of Origin and all required export documentation are available for international shipments. Please specify your requirements at the time of order.

Q: What warranty is provided?
A: All Original New units carry a 1-Year Warranty covering manufacturing defects. Our after-sales technical support team is available to assist with installation, commissioning, and troubleshooting throughout the warranty period.
