Bently Nevada 32000-29-05-10-072-07-02 Retrofit Proximity Probe

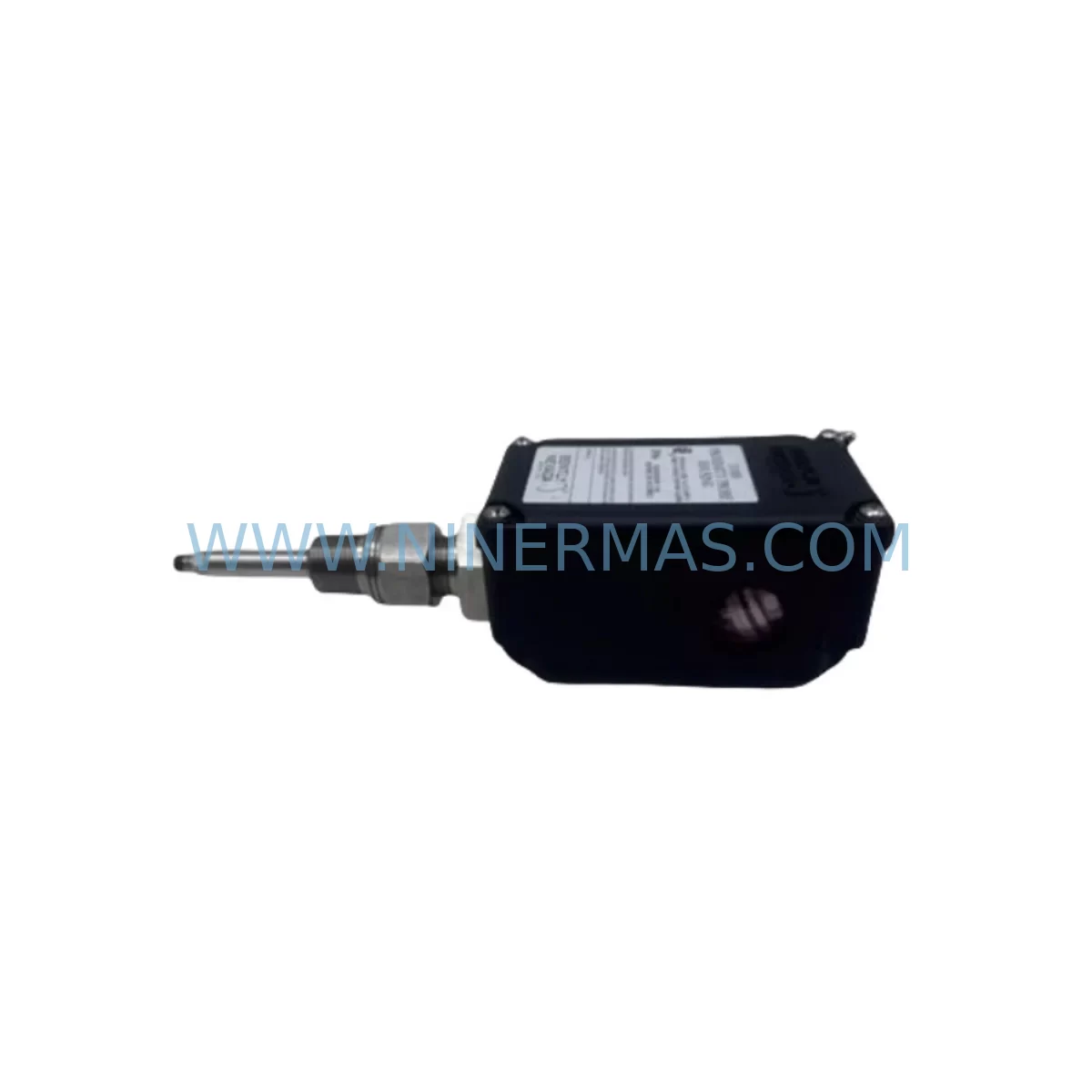

Bently Nevada 32000-29-05-10-072-07-02 Retrofit-Compatible Proximity Probe Housing Assembly for Legacy Systems

The Bently Nevada 32000-29-05-10-072-07-02 is a proximity probe housing assembly engineered for industrial vibration monitoring applications within the Bently Nevada 3300 Series platform. As original equipment reaches end-of-life and spare parts become increasingly scarce, this unit serves as a direct retrofit-compatible replacement for aging proximity probe installations across turbines, compressors, pumps, and rotating machinery control systems. NINERMAS maintains verified stock of this assembly to support planned maintenance shutdowns, emergency replacements, and long-term spare parts lifecycle programs.

Whether you are managing a brownfield upgrade, replacing a discontinued probe assembly in an existing control cabinet, or migrating a legacy vibration monitoring loop to a modernized architecture, the 32000-29-05-10-072-07-02 provides the dimensional and electrical compatibility required to minimize engineering rework and reduce commissioning time on site.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a proximity probe assembly within an operational plant requires careful coordination across multiple system layers. When replacing the 32000-29-05-10-072-07-02 in an existing installation, engineers must first confirm that the replacement probe housing is dimensionally compatible with the existing probe bracket, target material, and air gap specification. The extension cable — typically a Bently Nevada 330130 or 330180 series armored extension — must be inspected for continuity and connector integrity before reuse. If the extension cable is also being replaced, the total system length (probe + extension) must match the driver calibration range.

At the monitor rack level, the 3300 XL 16-channel monitor or the legacy 3500/40M proximitor monitor must be verified for channel configuration. If the plant is migrating from an older 3300 rack to a 3500 series rack, the 3500/40M proximitor module and its associated 3500/20 rack power supply must be confirmed as compatible with the new probe assembly’s sensitivity and scale factor. The 3500 rack’s I/O module terminal assignments and the existing field wiring termination blocks should be mapped before any physical swap is performed to avoid miswiring during the outage window.

For plants operating DCS or safety systems that receive vibration signals from the Bently Nevada monitor, the analog output signal range (typically –24 VDC gap voltage or 4–20 mA retransmission) must be verified against the DCS input card scaling. If the control system is a legacy Honeywell TDC 3000 or an older ABB Advant platform, the signal conditioning module at the marshalling cabinet may require reconfiguration to accept the new probe’s output characteristics. In modernized plants using a Rockwell Automation ControlLogix or Siemens S7-400 as the primary controller, the vibration signal is often routed through a dedicated vibration I/O module or a signal isolator before reaching the controller’s analog input card — confirm that the isolator’s input impedance is compatible with the probe driver output.

HMI screens that display shaft vibration, axial position, or eccentricity trends should be reviewed after replacement. If the plant uses a Wonderware InTouch or FactoryTalk View SE SCADA system, the tag scaling for the affected measurement point must be updated to reflect any change in sensitivity or engineering unit conversion. Failure to update HMI scaling can result in false alarms or suppressed trip conditions during the post-installation verification run.

Communication link integrity between the Bently Nevada monitor and the plant historian or condition monitoring software (such as System 1 Evolution) should be confirmed after the probe swap. The Modbus RTU or Ethernet/IP data path from the 3500 rack to the data concentrator must be tested to ensure that the channel data is updating correctly and that no communication timeout alarms are generated during the first operational cycle after restart.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is a primary concern for maintenance teams operating continuous process equipment. For the 32000-29-05-10-072-07-02, NINERMAS recommends pre-staging the replacement assembly, extension cable, and any required connector adapters at least 48 hours before the planned maintenance window. All gap voltage measurements should be taken with a calibrated voltmeter before the machine is shut down, and the target values should be documented for post-installation verification.

During the outage, the original probe should be removed carefully to avoid damaging the probe bracket or the target surface. The replacement housing assembly should be installed and the gap set to the manufacturer-specified voltage (typically –10 VDC ± 0.5 VDC for standard 8mm probes) before the extension cable is reconnected. The monitor channel should be placed in bypass mode during the swap to prevent spurious trips from propagating to the safety system or the turbine control system.

Once the probe is installed and the gap is set, the monitor channel should be taken out of bypass and the output signal verified at the DCS or controller input. A slow-roll vibration check should be performed before the machine is brought to full operating speed to confirm that the probe is reading correctly and that no mechanical interference exists between the probe tip and the rotating shaft. The original program logic in the controller — including vibration trip setpoints, alarm thresholds, and time delays — should remain unchanged unless a deliberate setpoint review is part of the upgrade scope. Preserving the original control logic reduces the risk of nuisance trips during the post-maintenance startup and maintains continuity of the plant’s safety instrumented function.

Retrofit Support FAQ

Q: Is the 32000-29-05-10-072-07-02 a direct drop-in replacement for my existing Bently Nevada proximity probe housing?
A: In most 3300 series installations, yes. Confirm the probe tip diameter, thread size, and extension cable connector type match your existing installation before ordering. NINERMAS can assist with compatibility verification based on your existing part number and installation drawings.

Q: What commissioning steps are required after installing this probe assembly?
A: After mechanical installation, set the air gap to achieve the specified gap voltage (typically –10 VDC for 8mm probes). Verify the output signal at the monitor channel, confirm alarm and trip setpoints are active, and perform a slow-roll check before returning the machine to service. Update HMI tag scaling if the probe sensitivity differs from the original unit.

Q: Has this unit been tested before shipment?
A: Yes. All units supplied by NINERMAS undergo pre-shipment functional verification including output signal check and physical inspection. Each unit is supplied with a 12-month warranty covering manufacturing defects and functional performance.

Q: What is the lead time and stock availability?
A: NINERMAS maintains inventory of the 32000-29-05-10-072-07-02 to support both planned maintenance and emergency replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for current stock status and delivery schedule.
