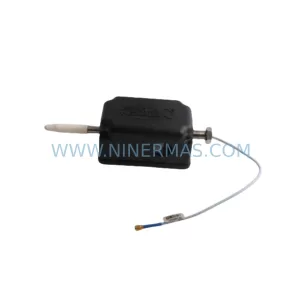

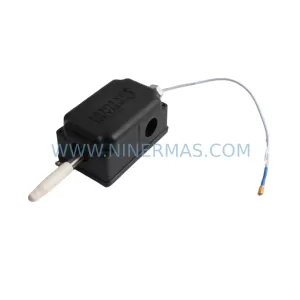

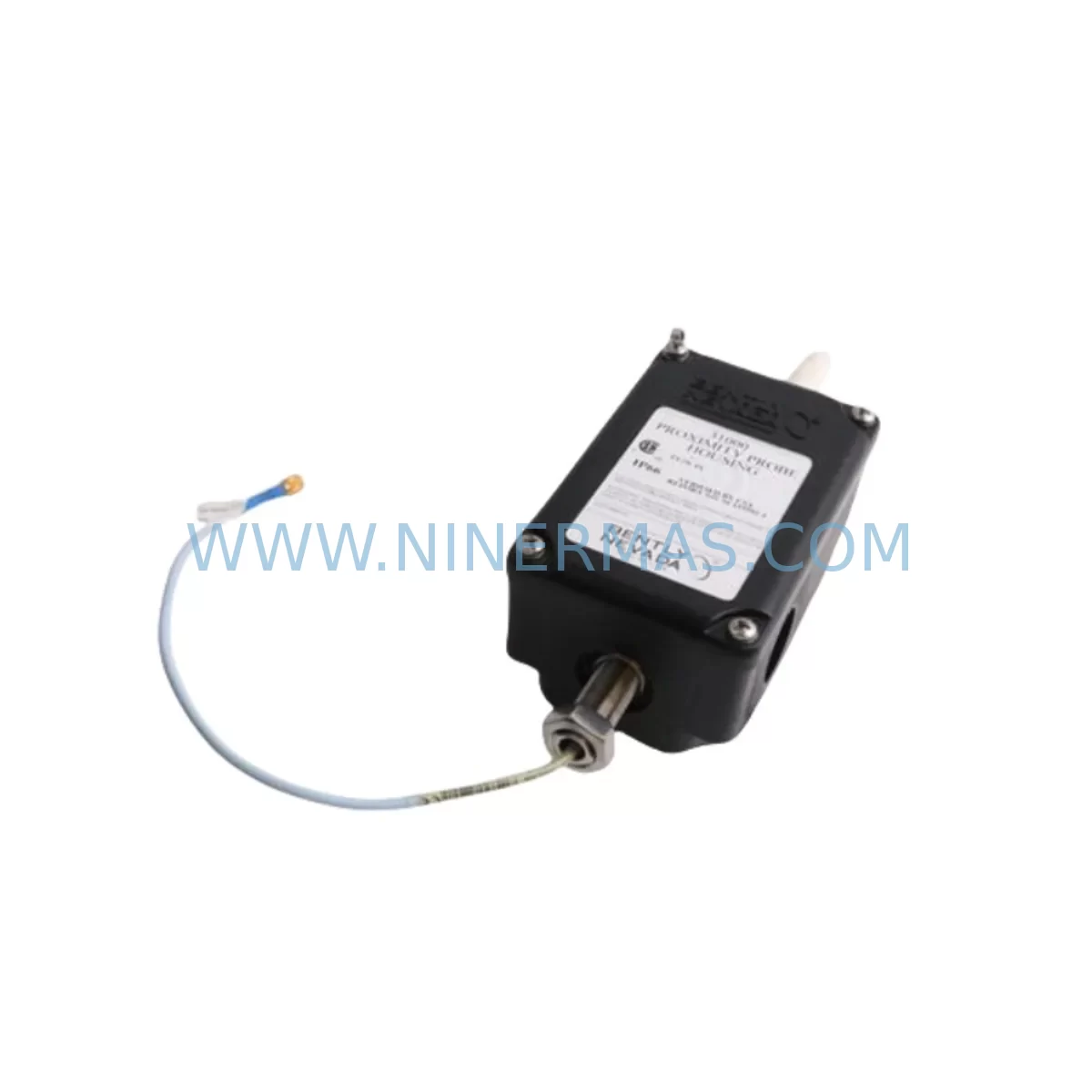

Bently Nevada 31000-28-10-00-026-00-02 Safety-Reliable Proximity Probe Housing

Bently Nevada 31000-28-10-00-026-00-02 Safety-Reliable Proximity Probe Housing for Critical Control Sites

The Bently Nevada 31000-28-10-00-026-00-02 is a precision-engineered proximity probe housing assembly designed for the 3300 Series vibration monitoring system — one of the most trusted platforms in industrial machinery protection worldwide. Built to perform in the most demanding continuous production environments, this housing assembly ensures that your proximity probes remain securely positioned, mechanically protected, and electrically stable even under extreme vibration, high temperatures, heavy dust ingress, and corrosive atmospheres.

In critical industrial facilities — from petrochemical compressor trains to power generation turbines and mining hoists — the integrity of the proximity probe housing is not a secondary concern. It is a frontline safety component. A compromised housing can lead to probe misalignment, signal drift, false trip events, or complete loss of vibration feedback, any of which can trigger unplanned shutdowns, equipment damage, or — in the worst case — catastrophic machinery failure. The 31000-28-10-00-026-00-02 eliminates these risks by providing a robust, field-proven mechanical interface that keeps your sensing system performing within specification at all times.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection architecture, the Bently Nevada 31000-28-10-00-026-00-02 housing assembly works as part of a tightly integrated signal chain. Its role begins at the machine surface — holding the Bently Nevada 3300 XL 8mm proximity probe in precise radial or axial position — and extends through the entire monitoring loop back to the control room.

The probe connects via a matched Bently Nevada 3300 XL extension cable, which routes the raw eddy-current signal to the Bently Nevada 3300 XL proximitor sensor (driver). This driver converts the gap signal into a DC voltage proportional to shaft displacement. That signal is then fed into a Bently Nevada 3500/42M proximitor monitor module housed in the 3500 Series rack, where it is processed, alarmed, and tripped against user-defined danger thresholds.

Any mechanical looseness, misalignment, or housing failure at the probe end introduces measurement error that propagates through this entire chain. A probe that shifts even fractions of a millimeter due to a degraded housing can cause the 3500/42M to read false vibration amplitudes, potentially triggering spurious trips or — more dangerously — masking real machinery faults. The 31000-28-10-00-026-00-02 housing prevents this by maintaining rigid, repeatable probe positioning under continuous mechanical stress.

In high-electromagnetic-interference environments such as variable frequency drive (VFD) motor rooms, arc furnace control buildings, or large transformer substations, signal integrity is further protected by pairing this housing with properly grounded Bently Nevada armored extension cable assemblies and ensuring the 3500 Series rack power supply module provides clean, regulated DC power to all monitor cards. Where power quality is a concern, upstream industrial UPS systems and surge protection devices (SPDs) on the 24 VDC or 28 VDC supply rails are strongly recommended to prevent transient-induced resets or monitor card damage.

For facilities running Bently Nevada System 1 condition monitoring software, the data integrity delivered by a correctly installed and mechanically sound housing assembly directly affects the quality of trend analysis, alarm rationalization, and predictive maintenance decisions. A degraded housing that introduces noise or drift into the proximity signal will corrupt historical baselines and reduce the effectiveness of early fault detection algorithms.

In safety instrumented systems (SIS) where the vibration monitor output feeds a Triconex safety PLC or a Rockwell Automation GuardLogix controller via hardwired trip relay or HART/Modbus interface, the mechanical reliability of the probe housing is a direct contributor to functional safety integrity. Facilities targeting SIL 2 or SIL 3 loop performance cannot afford mechanical variability at the sensing element level.

Critical Industrial Safety Applications

The Bently Nevada 31000-28-10-00-026-00-02 proximity probe housing assembly is deployed across the most demanding industrial sectors where continuous, uninterrupted machinery monitoring is a non-negotiable safety requirement.

Petrochemical and Refining: In ethylene crackers, crude distillation units, and LNG compression trains, rotating machinery operates continuously for years between planned turnarounds. Proximity probe housings on centrifugal compressors, expanders, and boiler feed pumps must withstand hydrocarbon atmospheres, thermal cycling, and high-frequency mechanical vibration without loosening or corroding. The 31000-28-10-00-026-00-02 provides the mechanical stability required to maintain API 670 compliance throughout the run.

Power Generation: Steam turbines, gas turbines, and large generator sets in utility and industrial power plants rely on Bently Nevada 3300 and 3500 Series systems for shaft vibration, eccentricity, and differential expansion monitoring. A failed or misaligned probe housing on a 300 MW turbine shaft can result in a forced outage costing millions per day. Reliable housing assemblies are a low-cost insurance policy against high-consequence failures.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drive gearboxes, and slurry pumps in open-pit and underground mining operations are exposed to extreme dust, moisture, and shock loading. Proximity probe housings in these environments must resist ingress and mechanical impact while maintaining probe alignment on shafts that experience significant radial runout and thermal growth.

Water and Wastewater Treatment: Large centrifugal pumps and blower units in municipal water treatment plants and desalination facilities run continuously with minimal maintenance windows. Vibration monitoring with properly housed proximity probes enables condition-based maintenance scheduling, reducing unplanned pump failures that could disrupt water supply to large populations.

Metallurgy and Steel Production: Rolling mill drives, blast furnace blowers, and continuous casting machine drives in steel plants operate in environments with extreme heat, scale, and electromagnetic noise from large DC and AC drives. The mechanical robustness of the 31000-28-10-00-026-00-02 housing ensures probe survival and signal continuity in these harsh conditions.

Port and Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane drives increasingly use Bently Nevada monitoring systems for predictive maintenance. Marine environments introduce salt spray, humidity, and vibration profiles that demand the highest levels of mechanical protection for sensing components.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 31000-28-10-00-026-00-02 carry?
This housing assembly is covered by a 12-month quality warranty from the date of shipment. The warranty covers manufacturing defects, dimensional non-conformance, and functional failure under normal operating conditions. Warranty claims are supported with replacement or full refund, subject to inspection.

Q2: What pre-shipment testing is performed on this part?
Every unit undergoes a full pre-shipment inspection including dimensional verification against OEM specifications, visual inspection for surface defects, thread integrity check, and functional fit verification. Units that do not meet specification are rejected before dispatch. A test record is available upon request for critical applications.

Q3: Is this housing assembly compatible with all 3300 Series proximity probes?
The 31000-28-10-00-026-00-02 is designed for use within the Bently Nevada 3300 Series proximity monitoring system. Compatibility with specific probe models, extension cable lengths, and mounting configurations should be verified against your system’s bill of materials or the original installation drawing. Our technical team can assist with cross-referencing if you provide your existing probe and cable part numbers.

Q4: Can long-term supply be guaranteed for this part?
Yes. We maintain dedicated inventory of Bently Nevada 3300 Series components including the 31000-28-10-00-026-00-02 to support both emergency replacement and planned maintenance programs. We supply to facilities worldwide and can support blanket purchase orders for customers requiring guaranteed stock availability over multi-year maintenance cycles. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply requirements.
