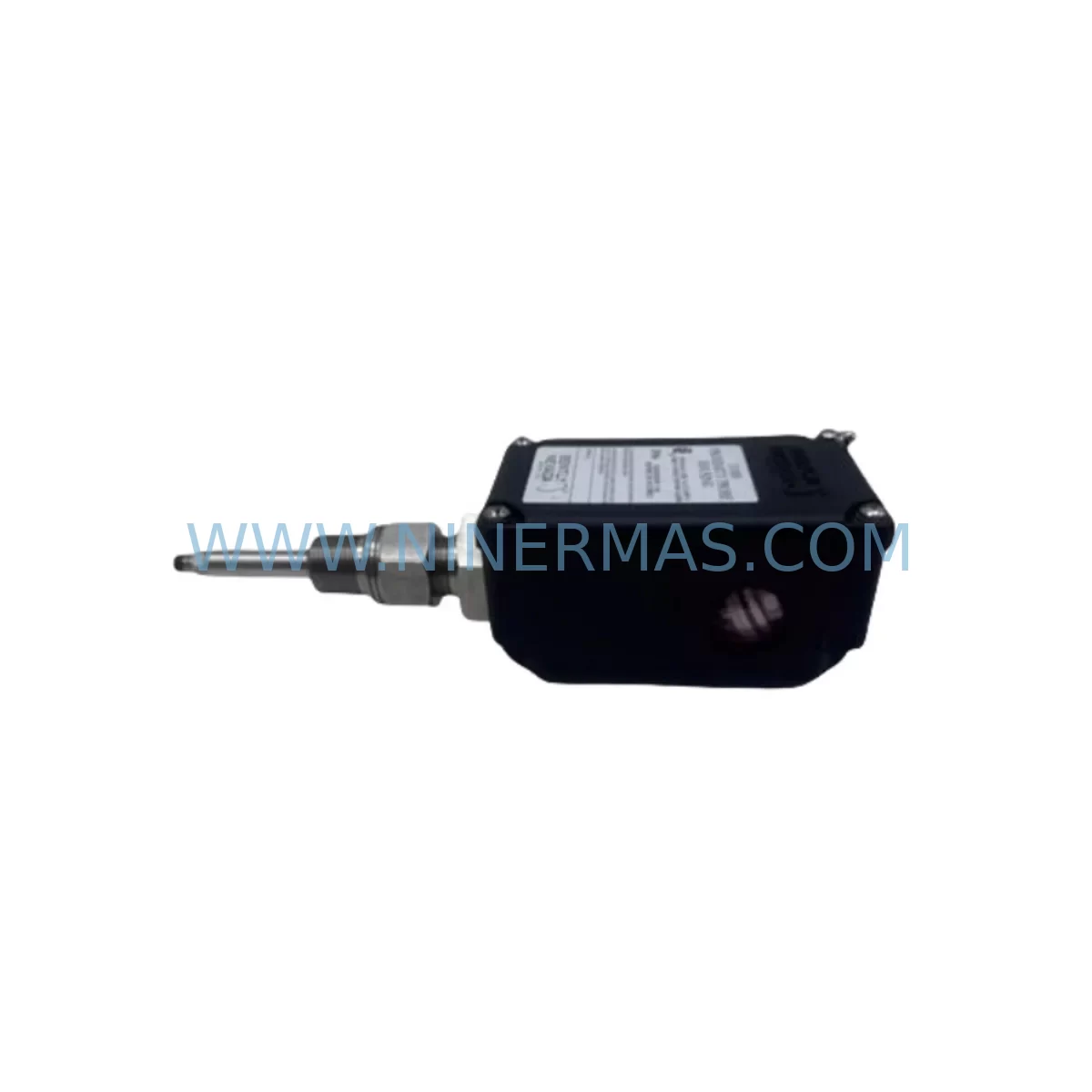

The Bently Nevada 31000-16-05-15-040-02-02 is a ruggedized proximity probe housing engineered for continuous vibration monitoring in demanding industrial environments. Designed to integrate seamlessly with Bently Nevada’s 3300 Series proximity transducer systems, this housing protects the probe tip and extension cable assembly against mechanical impact, chemical exposure, and high-temperature conditions commonly found in turbine halls, compressor trains, and rotating machinery installations.

For maintenance engineers managing critical rotating assets — steam turbines, gas turbines, centrifugal compressors, pumps, and gearboxes — the structural integrity of the proximity probe housing is not a secondary concern. A cracked, corroded, or mechanically compromised housing directly affects eddy-current gap measurement accuracy, leading to false vibration alarms, missed fault detection, or unplanned shutdowns. Replacing the 31000-16-05-15-040-02-02 housing as part of a scheduled inspection or emergency corrective action restores measurement confidence and protects the broader condition monitoring loop.

At NINERMAS, we supply this part as a service-ready spare with full dimensional and material verification prior to dispatch. Each unit is tested for thread integrity, housing concentricity, and material compliance before shipment, backed by a 12-month warranty covering manufacturing defects and dimensional non-conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a failed or degraded 31000-16-05-15-040-02-02 housing during a routine inspection or post-trip investigation, the replacement scope should never be limited to the housing alone. The proximity probe system is a tightly coupled measurement chain, and any mechanical disturbance to the housing may have introduced secondary damage or calibration drift across adjacent components.

Begin by inspecting the Bently Nevada 3300 XL 8mm proximity probe (such as the 330103 or 330104 series) for tip damage, cable jacket abrasion, or connector contamination. The probe tip gap — typically set between 1.0 mm and 2.5 mm depending on target material — must be re-verified after any housing replacement using a calibrated gap tool and oscillator/driver output check.

Next, trace the signal path to the extension cable assembly (commonly 330130 or 330180 series). Extension cables routed through conduit near the housing are frequently subject to the same mechanical stress events that damage the housing itself. Inspect for kinking, jacket cracking, and connector pin integrity at both the probe-side and proximitor-side terminations.

At the panel end, verify the condition of the Bently Nevada 3300 XL proximitor/oscillator-demodulator (e.g., 330180-51-05 or equivalent). These signal conditioning modules convert the raw eddy-current signal into a DC voltage proportional to gap distance. A housing impact event can introduce transient voltage spikes that degrade proximitor performance over time — check output voltage linearity and noise floor before returning the loop to service.

Within the Bently Nevada 3500 monitoring rack, confirm that the associated 3500/42M Proximitor I/O Module or 3500/40M Proximitor Monitor has not logged latent fault codes. Review the rack’s 3500/20 Rack Interface Module (RIM) communication status to ensure Modbus or RS-232/RS-485 data integrity has not been interrupted. If the plant uses a 3500/92 Communication Gateway Module for integration with a DCS or SCADA platform, verify that the channel mapping and alarm setpoints remain correctly configured after the maintenance event.

For plants operating older 3300 Series monitoring panels, this is also an appropriate time to assess the condition of barrier isolators and Zener barriers used in hazardous area installations. These passive safety components protect the monitoring system from fault currents in Zone 1 or Zone 2 classified areas and should be replaced on a defined lifecycle schedule regardless of apparent condition.

Procurement engineers building annual spare parts budgets for turbomachinery or compressor trains should consider stocking the 31000-16-05-15-040-02-02 housing alongside matched probe and extension cable sets, a spare proximitor module, and at least one replacement 3500 I/O module for each critical measurement channel. This approach eliminates multi-vendor lead time risk during emergency shutdowns and supports a same-day swap-and-restore maintenance strategy.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit and confirm the monitored shaft or bearing is in a safe state. Do not remove the probe housing from a live, rotating machine. Isolate the monitoring channel at the 3500 rack to prevent false trip signals during the replacement procedure.

Step 2 — Housing Removal: Disconnect the extension cable from the probe connector. Using the appropriate spanner, carefully unthread the existing 31000-16-05-15-040-02-02 housing from the probe bracket. Inspect the bracket threads and mounting surface for damage before installing the replacement unit.

Step 3 — Probe Inspection and Gap Setting: Before installing the new housing, inspect the probe tip for physical damage. Install the probe into the new housing and set the initial gap per the OEM specification for the target material and shaft diameter. Use a calibrated gap-setting tool and confirm the proximitor output voltage falls within the linear range (typically –10 VDC at nominal gap for 8mm probes).

Step 4 — Cable Reconnection and Loop Verification: Reconnect the extension cable. At the 3500 rack, verify channel OK status, confirm alarm setpoints are active, and perform a functional check by observing the DC gap voltage and AC vibration signal on the monitoring display or DCS trend screen.

Step 5 — Documentation: Record the replacement in the plant CMMS (Computerized Maintenance Management System), including the new part serial number, gap setting value, proximitor output voltage, and technician sign-off. Update the spare parts inventory to trigger reorder of the consumed housing unit.

This workflow applies equally to emergency corrective replacements and planned outage maintenance, and is compatible with both legacy 3300 Series panels and current 3500 Series rack installations.

Spare Parts Support FAQ

Q1: Is the 31000-16-05-15-040-02-02 compatible with both 3300 and 3500 Series Bently Nevada systems?
The ruggedized housing is a mechanical component that interfaces with the probe body and mounting bracket rather than directly with the monitoring electronics. It is compatible with standard Bently Nevada probe bracket configurations used across the 3300 and 3500 Series installations. Always confirm the probe thread specification and bracket dimensions against your site drawing before ordering.

Q2: What is included in the 12-month warranty for this spare part?
NINERMAS provides a 12-month warranty covering manufacturing defects, dimensional non-conformance, and material failures under normal installation and operating conditions. The warranty does not cover damage resulting from incorrect installation, mechanical overload, or chemical exposure beyond the rated specification. Warranty claims are supported with replacement dispatch within agreed lead times.

Q3: How does NINERMAS verify the part before shipment?
Each 31000-16-05-15-040-02-02 unit undergoes pre-shipment inspection covering thread integrity, housing concentricity, surface finish, and dimensional conformance to OEM drawings. Units are individually packaged to prevent transit damage. A test report or inspection certificate can be provided upon request for critical plant applications.

Q4: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. NINERMAS supports long-term supply agreements, blanket purchase orders, and annual maintenance contract supply for Bently Nevada spare parts including the 31000-16-05-15-040-02-02 housing. This is particularly valuable for plants operating multiple turbomachinery trains with identical monitoring configurations, where predictable spare parts availability directly reduces unplanned downtime risk. Contact our team to discuss pricing, lead time commitments, and inventory reservation options.
