Bently Nevada 30903-00-11-05-02-00 Retrofit NSv Transducer

Bently Nevada 30903-00-11-05-02-00 Retrofit-Compatible NSv Transducer for Legacy System Upgrades

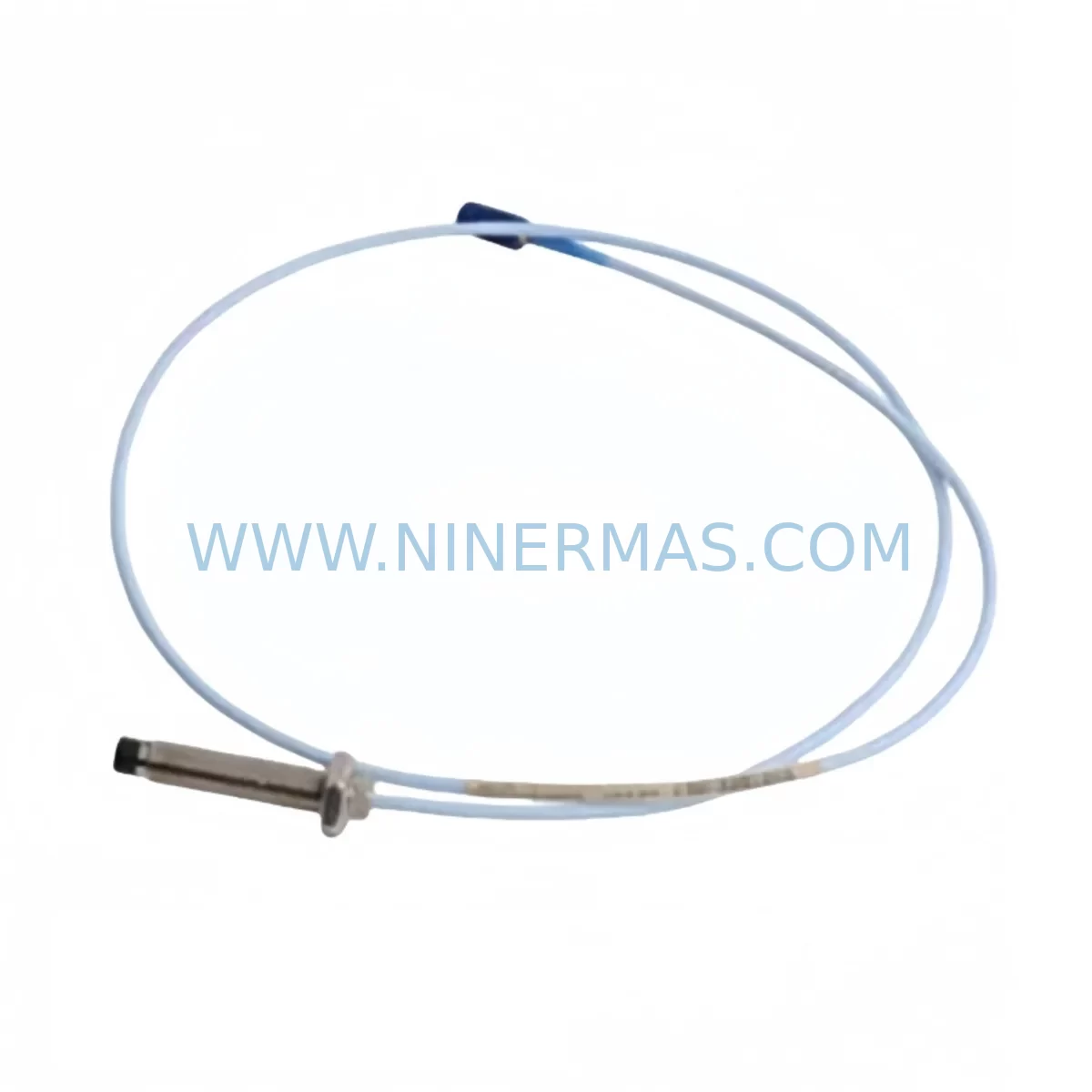

The Bently Nevada 30903-00-11-05-02-00 is a proximity transducer designed for the 3300 NSv (Non-contacting Vibration) measurement system. As aging distributed control systems and machinery protection platforms approach end-of-life, this transducer remains a critical retrofit component for facilities seeking to extend the operational lifespan of their existing monitoring infrastructure without committing to a full platform migration. NINERMAS maintains verified stock of this module with a 12-month warranty, supporting customers across power generation, petrochemical, oil & gas, and heavy manufacturing sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 30903-00-11-05-02-00 into an existing machinery protection or condition monitoring system, a structured retrofit plan is essential to avoid unplanned downtime and signal integrity issues. The transducer is typically installed in conjunction with a Bently Nevada 3300 XL 8 mm extension cable and a matched 3300 XL proximitor sensor, forming a complete proximity probe system. The proximitor converts the raw eddy-current signal into a usable DC voltage proportional to the gap between the probe tip and the rotating shaft.

In legacy control cabinets where the Bently Nevada 3300 Series monitor is still in service, the 30903-00-11-05-02-00 can be installed without changes to the existing rack wiring, provided the terminal block pinout and cable shield grounding are verified against the original engineering drawings. For facilities that have partially migrated to the Bently Nevada 3500 Series platform, the transducer remains compatible when paired with a 3500/25 Enhanced Keyphasor® Module or a 3500/42M Proximitor®/Seismic Monitor, which accepts the same analog proximity signal format.

Facilities running GE Mark V or Mark VI turbine control systems that rely on Bently Nevada vibration inputs should confirm the I/O termination board accepts the –24 VDC proximitor supply voltage and that the signal conditioning card is configured for the correct full-scale range. In cases where the original 3300 NSv monitor rack has been decommissioned but the field wiring remains intact, the 30903-00-11-05-02-00 can be re-terminated to a 3500/20 Rack Interface Module with appropriate signal scaling adjustments in the configuration software.

For I/O expansion projects where additional vibration measurement points are being added to an existing DCS or safety instrumented system (SIS), the transducer output can be routed through a signal isolator or signal conditioner to prevent ground loops and ensure galvanic isolation between the field device and the control room input card. This is particularly important in installations where the machinery protection system shares a common ground reference with a Modbus RTU or PROFIBUS DP communication network.

Before finalizing the retrofit bill of materials, engineers should also account for the proximitor power supply module capacity — typically a dedicated –24 VDC rail within the 3300 or 3500 rack — and confirm that adding the 30903-00-11-05-02-00 does not exceed the available current budget. In high-channel-count installations, a supplementary 3500/15 Power Supply Module may be required to support the additional transducer load.

Downtime Control During System Migration

Replacing a proximity transducer in an operating plant requires careful coordination between the instrumentation team, the control room operator, and the maintenance planner. The primary objective is to minimize the window during which the machinery protection system is in bypass mode, as this removes the automatic trip function and exposes the rotating equipment to unmonitored vibration excursions.

The recommended approach is to pre-configure and bench-test the 30903-00-11-05-02-00 assembly — including the extension cable and proximitor — before the scheduled maintenance window. Gap voltage should be set and verified on the bench using a calibrated gap simulator, so that field installation is reduced to a mechanical fit-up and terminal connection task. This approach typically reduces the in-field commissioning time to under 30 minutes per channel.

During the cutover, the original program logic in the DCS or PLC — including vibration high-high trip setpoints, alarm delay timers, and OK relay interlock logic — should be documented and preserved. If the replacement transducer is being installed as part of a broader migration from a 3300 Series to a 3500 Series rack, the configuration data from the legacy monitor should be exported using Bently Nevada System 1® software before decommissioning, ensuring that historical baseline data and alarm thresholds are retained for the new platform.

For critical machinery such as steam turbines, compressors, or large induction motors, it is advisable to schedule the transducer replacement during a planned outage rather than a running bypass. However, in cases where an emergency replacement is required, NINERMAS supports expedited shipment with pre-shipment functional testing documentation to reduce the risk of receiving a non-conforming part during a critical repair window. All units are covered by a 12-month warranty from the date of shipment.

Retrofit Support FAQ

Q1: Is the 30903-00-11-05-02-00 a direct replacement for other 3300 NSv transducer part numbers?
A: The 30903-00-11-05-02-00 is a specific configuration within the 3300 NSv proximity transducer family. The suffix digits encode probe length, cable length, connector type, and target material specification. Before substituting an alternative suffix variant, confirm that the physical dimensions, cable length, and gap voltage range match the original installation requirements. NINERMAS can assist with cross-reference verification prior to order placement.

Q2: What commissioning steps are required after installing this transducer?
A: After mechanical installation, the primary commissioning steps are: (1) set the probe gap to achieve the specified DC gap voltage (typically –10 VDC at mid-range for standard steel targets); (2) verify the OK relay output is energized and the monitor channel is not in alert or danger; (3) confirm the vibration reading is within the expected baseline range for the machine at normal operating speed; and (4) document the as-found and as-left gap voltage readings in the maintenance record. If the transducer is connected to a 3500/42M monitor, use the rack configuration software to verify channel scaling and alarm setpoints.

Q3: Can this transducer be used with non-Bently Nevada monitors or third-party vibration systems?
A: The 30903-00-11-05-02-00 is designed for use with the Bently Nevada 3300 NSv proximitor, which provides the –24 VDC excitation and signal conditioning. The output of the proximitor is a standard analog DC voltage signal, which can in principle be connected to any monitor or DCS input card that accepts a voltage input in the –24 VDC to 0 VDC range. However, compatibility with third-party systems should be verified against the input impedance and voltage range specifications of the receiving device.

Q4: What does the 12-month warranty from NINERMAS cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing before dispatch. The warranty period begins from the date of shipment. In the event of a warranty claim, NINERMAS will arrange for replacement or repair. Warranty does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental ratings.
