Bently Nevada 22811-00-04-10-02 Industrial Spare Part: Ruggedized Sensor Cable for Spare Parts Replacement and Downtime Risk Control

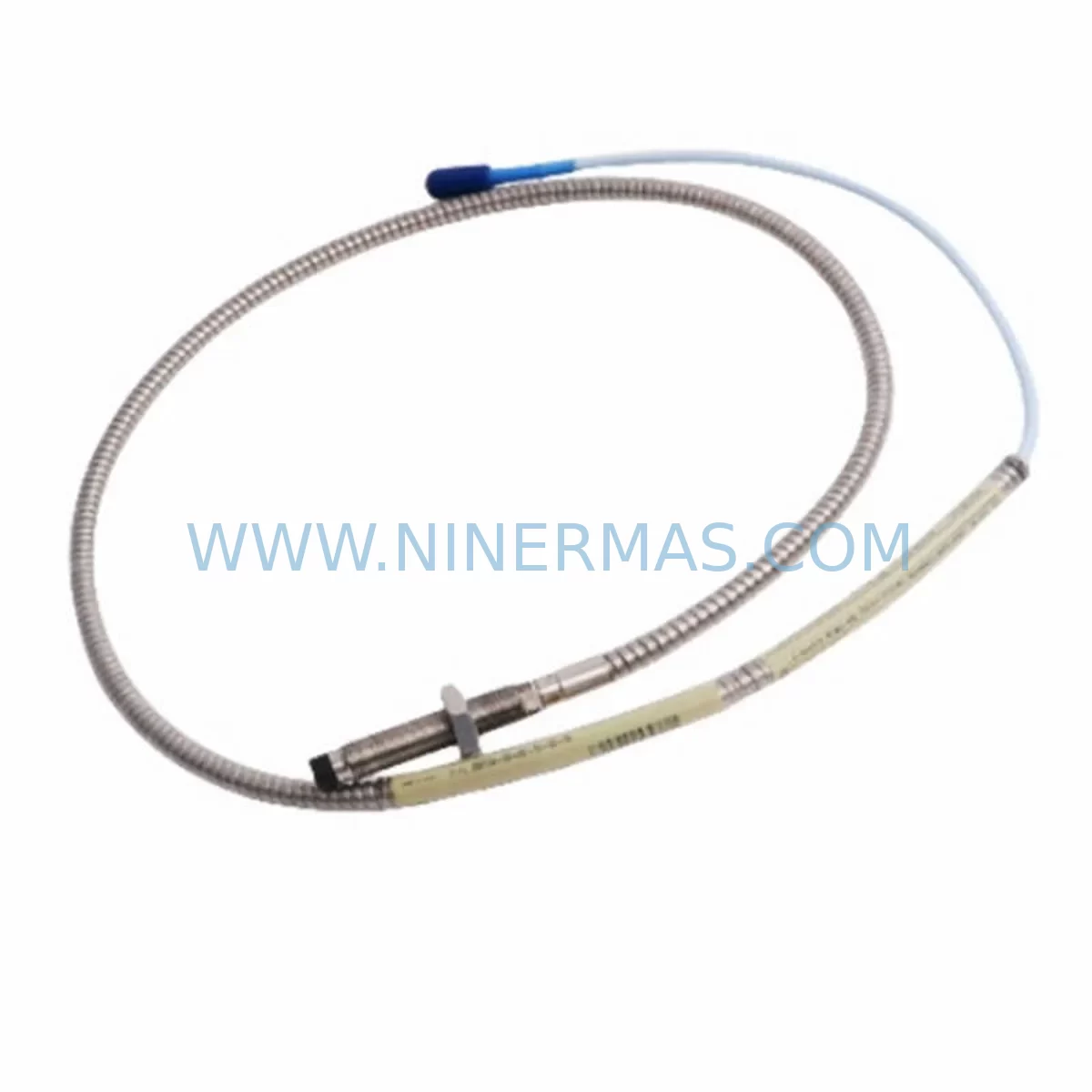

The Bently Nevada 22811-00-04-10-02 is a ruggedized sensor cable engineered for continuous-duty operation in harsh industrial environments. Designed to interface with Bently Nevada’s 3300 Series Proximitor® sensor systems, this cable delivers reliable signal transmission between proximity probes and monitoring electronics in rotating machinery protection applications. For maintenance engineers managing aging turbomachinery, compressors, pumps, and generator sets, maintaining a service-ready stock of the 22811-00-04-10-02 is a critical element of any proactive spare parts program.

Signal integrity in vibration monitoring systems depends entirely on the quality and condition of the interconnecting cable. A degraded or failed sensor cable can produce false alarms, mask genuine machinery faults, or trigger unplanned shutdowns — all of which carry significant operational and financial consequences. Sourcing a verified, original-specification replacement such as the 22811-00-04-10-02 ensures that your Bently Nevada monitoring loop performs to its rated accuracy from the moment of installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 22811-00-04-10-02 sensor cable, experienced maintenance engineers treat the cable swap as an opportunity to inspect and validate the entire vibration monitoring loop. The cable is one element in a three-component measurement chain: the proximity probe (such as the Bently Nevada 330101 or 330103 series), the extension cable (this unit), and the Proximitor® sensor module (such as the 330180 or 330130). All three must be matched in gap voltage, sensitivity, and cable length to maintain system calibration.

During a planned outage or annual inspection, the following components in the same monitoring cabinet or junction box should be checked alongside the cable replacement:

• Bently Nevada 3300 XL 8mm Proximity Probe — inspect tip condition, thread integrity, and gap setting; replace if tip erosion or contamination is detected.
• Bently Nevada 330180-51-05 Proximitor® Sensor — verify output voltage, check for moisture ingress in the housing, and confirm barrier compatibility if installed in a hazardous area.
• Bently Nevada 3500/22M Transient Data Interface — confirm firmware version and communication link to the 3500 rack; a faulty TDI can mask cable-related signal anomalies.
• Bently Nevada 3500/20 Rack Power Supply — measure output voltage under load; an aging power supply with marginal regulation will introduce noise into proximity measurement channels.
• Bently Nevada 3500/42M Proximitor®/Seismic Monitor — review alarm setpoints and OK relay status; reconfigure if probe system changes alter the expected gap voltage range.
• Terminal blocks and field junction boxes — inspect for corrosion, loose terminations, and moisture ingress; re-torque all cable shield drain connections to prevent ground loops.
• Signal isolators and Zener barriers — if the installation is in a Zone 1 or Zone 2 hazardous area, verify that the Zener barrier or galvanic isolator associated with this channel is within its rated service life and has not drifted.
• Conduit seals and cable glands — ruggedized cables in high-temperature zones are subject to jacket hardening and seal degradation; replace glands and conduit seals as part of the cable replacement scope.
• Bently Nevada 3500/15 Power Supply Input Module — confirm AC input fusing and check for capacitor aging symptoms such as increased ripple on the DC bus.
• Rack backplane and I/O module connectors — clean edge connectors with approved contact cleaner and inspect for bent pins that could cause intermittent channel faults after the cable is replaced.

Procurement engineers should note that the 22811-00-04-10-02 is a length-specific and connector-specific part. Ordering the incorrect cable length or connector variant will result in a gap voltage outside the linear range of the Proximitor® sensor, producing measurement errors that may not be immediately obvious during commissioning. Always confirm the full SKU — including the length and connector suffix segments — before raising a purchase order.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the existing cable, record the Proximitor® output voltage (typically –10 VDC ± 0.5 V at the calibrated gap) and document the current alarm and danger setpoints from the 3500 rack display or System 1 software. This baseline allows rapid confirmation that the replacement cable has restored correct system operation.

Step 2 — Safe isolation: Follow your site’s lock-out/tag-out (LOTO) procedure for the monitoring channel. Note that removing the cable will cause the OK relay to de-energize and may trigger a system alarm; coordinate with the control room before disconnecting.

Step 3 — Cable removal and inspection: Carefully unscrew the coaxial connectors at both the probe and Proximitor® ends. Inspect the connector threads and center pin for damage. If the probe connector shows signs of corrosion or mechanical damage, replace the probe assembly (e.g., Bently Nevada 330103-00-08-10-02-00) at the same time to avoid a repeat outage.

Step 4 — Installation of 22811-00-04-10-02: Route the new cable following the original cable path, maintaining minimum bend radius and avoiding contact with hot surfaces. Torque connectors to the manufacturer’s specification — finger-tight plus one-quarter turn is the standard for Bently Nevada coaxial connectors. Do not over-torque.

Step 5 — Gap verification and system confirmation: After reconnection, measure the Proximitor® output voltage and compare to the pre-removal baseline. Adjust the probe gap if necessary to restore the calibrated voltage. Confirm OK relay status and clear any latched alarms in the 3500 rack before returning the machine to service.

This five-step workflow minimizes downtime, eliminates re-calibration surprises, and ensures the monitoring system is fully functional before the machine is restarted — reducing the risk of undetected machinery faults during the critical post-maintenance run-up period.

Spare Parts Support FAQ

Q1: Is the 22811-00-04-10-02 a direct drop-in replacement for my existing Bently Nevada sensor cable?
Yes, provided your existing installation uses the same cable length (4 m) and the same connector configuration. The 22811 series cables are designed as direct replacements within the Bently Nevada 3300 Series measurement chain. No re-calibration of the monitoring rack is required when replacing a like-for-like cable, although gap voltage verification is always recommended as a best practice after any cable replacement.

Q2: How do you verify the cable before shipment, and what does the 12-month warranty cover?
Every 22811-00-04-10-02 unit undergoes pre-shipment testing including continuity verification, insulation resistance measurement, and connector integrity inspection. The 12-month warranty covers manufacturing defects and signal performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical abuse, or operation outside the rated temperature and chemical exposure limits.

Q3: Can you support long-term supply agreements for this part number?
Yes. NINERMAS supports blanket purchase orders and long-term supply arrangements for the 22811-00-04-10-02 and related Bently Nevada spare parts. For plants operating multiple machines with 3300 or 3500 Series monitoring systems, we recommend establishing a minimum stock level of two cables per monitored machine to ensure immediate availability during unplanned outages. Contact our team at sale@ninermas.com to discuss pricing, lead times, and consignment stock options.

Q4: What information should I provide to confirm compatibility before ordering?
To confirm compatibility, please provide: (1) the full Bently Nevada part number of your existing cable, (2) the probe model number installed on the machine, (3) the Proximitor® sensor model number, and (4) the monitored machine type and operating environment (temperature range, chemical exposure, hazardous area classification if applicable). Our technical team will verify that the 22811-00-04-10-02 is the correct replacement and advise on any associated components that should be inspected or replaced at the same time.
