Bently Nevada 21000-34-05-15-029-04-02 Safety Probe Housing

Bently Nevada 21000-34-05-15-029-04-02 Safety Probe Housing: Safety Control and Critical Industrial Site Reliability

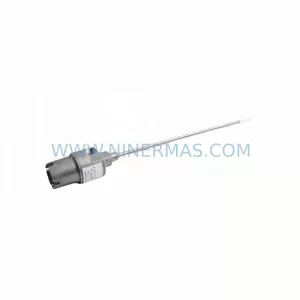

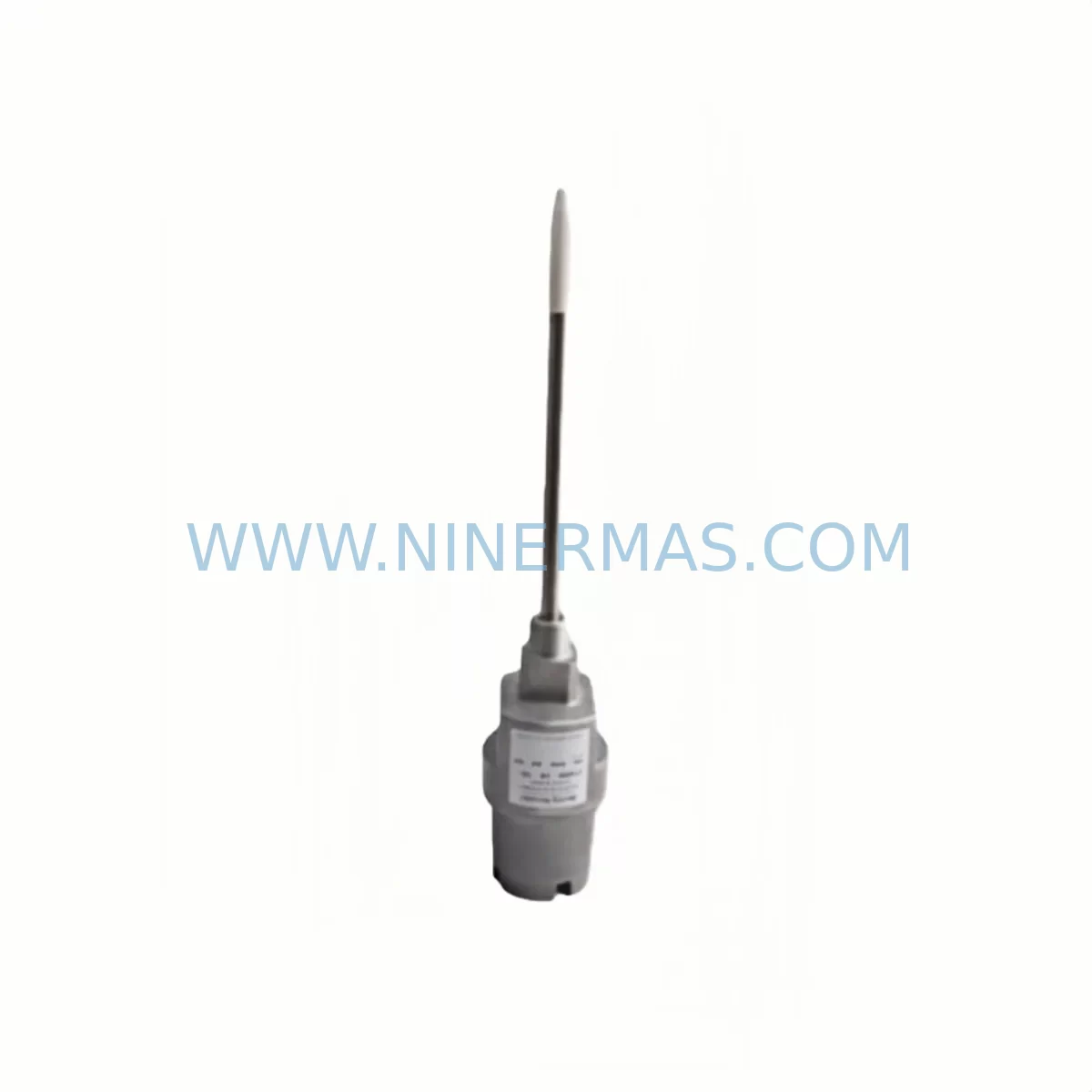

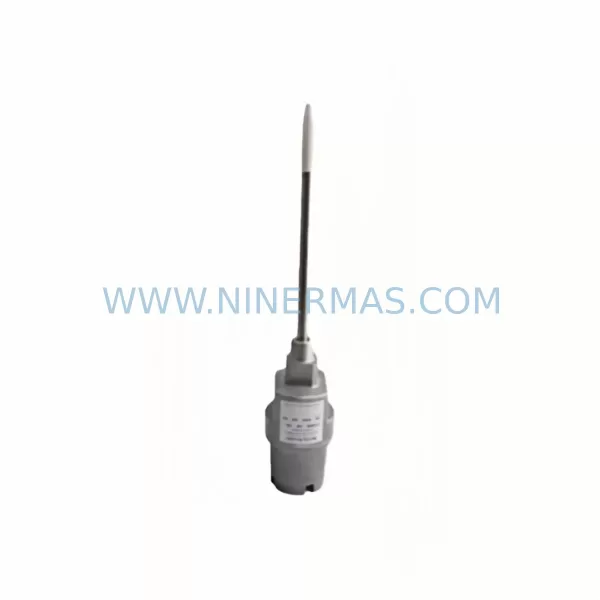

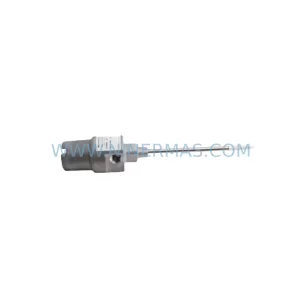

The Bently Nevada 21000-34-05-15-029-04-02 Proximity Probe Housing Assembly is a precision-engineered mechanical housing component designed to secure and protect eddy-current proximity probes in the most demanding continuous-process and safety-critical industrial environments. As part of Bently Nevada’s trusted 21000 Series proximity transducer system, this housing assembly ensures that probe positioning remains stable, mechanically protected, and electrically isolated — even under sustained vibration, thermal cycling, high electromagnetic interference (EMI), and exposure to process fluids, dust, or corrosive atmospheres.

In rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the mechanical integrity of the probe housing is as critical as the probe itself. A compromised housing leads to probe misalignment, signal drift, false trips, or — worse — missed machinery fault detection. The 21000-34-05-15-029-04-02 eliminates these risks by providing a rigid, dimensionally stable mounting interface that maintains the precise probe-to-target gap required for accurate vibration and position measurement.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered rotating machinery protection architecture, the Bently Nevada 21000-34-05-15-029-04-02 housing assembly is the first line of mechanical defense for the entire vibration monitoring chain. Its role begins at the field level — holding the proximity probe at the precise radial or axial gap distance from the rotating shaft — and its reliability directly determines the quality of the signal delivered to the Bently Nevada 3500 Series Machinery Protection System rack, which processes vibration, position, and speed data for trip and alarm decisions.

When the housing assembly degrades — through thread wear, corrosion, or mechanical loosening — the probe gap shifts. This introduces DC bias errors into the Bently Nevada 3500/42M Proximitor Monitor or 3500/40M Proximitor Monitor, causing nuisance alarms or, critically, masking real shaft displacement events. Replacing the housing assembly as a matched spare part — alongside the Bently Nevada 21000-29-05 Proximity Probe and the Bently Nevada 21000-29-05-05-00 Extension Cable — restores the full measurement chain integrity without requiring recalibration of the monitoring rack.

In high-EMI environments such as large motor control centers (MCCs), variable frequency drive (VFD) panels, or switchgear rooms, the housing’s grounding continuity is essential. A loose or corroded housing can introduce ground loops that corrupt the Proximitor® sensor output signal, leading to erratic readings on the Bently Nevada 3500/22M Transient Data Interface or triggering false trips in the safety instrumented system (SIS). Pairing the housing assembly with properly torqued Bently Nevada 21000 Series locknut assemblies and applying anti-seize compound on stainless threads prevents this failure mode in high-temperature or high-vibration installations.

For control cabinets serving critical safety loops — such as turbine overspeed protection or compressor surge control — the Bently Nevada 3500/53 Overspeed Detection Module depends on clean, uninterrupted proximity probe signals. Any mechanical instability in the probe housing introduces jitter into the speed pulse train, which can cause false overspeed trips or, in degraded-mode operation, fail to detect a real overspeed event. Maintaining a stock of 21000-34-05-15-029-04-02 housing assemblies as critical spares — alongside Bently Nevada 3500 rack power supply modules and I/O terminal blocks — is a recognized best practice in API 670-compliant maintenance programs.

In dusty, humid, or chemically aggressive environments such as cement plants, offshore platforms, or chemical processing units, the housing assembly’s material integrity determines long-term probe system availability. Corrosion-induced thread seizure is a leading cause of unplanned probe replacement outages. Stocking the 21000-34-05-15-029-04-02 as a ready-to-install spare eliminates the lead-time risk associated with OEM procurement and supports rapid mean-time-to-repair (MTTR) targets during planned or forced outages.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking (FCC) units, hydrocracker compressor trains, and crude distillation column overhead compressors, the Bently Nevada 21000-34-05-15-029-04-02 housing assembly secures proximity probes monitoring shaft radial vibration and rotor position. These measurements feed directly into the plant’s safety instrumented system (SIS), triggering automatic shutdown if vibration exceeds API 670 alarm or danger setpoints. A mechanically sound housing assembly is non-negotiable for SIL-rated protection loops.

Power Generation — Steam and Gas Turbines: Utility-scale steam turbines and combined-cycle gas turbines operate at shaft speeds of 3,000–3,600 RPM with bearing clearances measured in microns. The probe housing must maintain sub-millimeter positional stability across thermal transients from cold start to full load. The 21000-34-05-15-029-04-02 is designed for this duty, providing the mechanical rigidity required to keep the probe gap within the linear range of the Proximitor sensor throughout the turbine’s operating envelope.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pump drives in copper, gold, and iron ore processing plants operate in extreme dust and vibration environments. Proximity probe systems on these machines provide the only continuous bearing condition data available between scheduled maintenance windows. The robust housing assembly protects the probe from mechanical damage during liner changes and mill inspections, reducing the risk of probe loss events that would leave the machine unprotected.

Water and Wastewater Treatment: High-service pumping stations and blower trains in municipal water treatment facilities run continuously, often unattended. Proximity probe systems on these machines provide early warning of bearing wear and rotor imbalance. The 21000-34-05-15-029-04-02 housing assembly’s corrosion resistance makes it suitable for the humid, chemically treated atmospheres typical of water treatment infrastructure.

Metallurgy and Steel Production: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains operate in high-temperature, high-vibration, and high-EMI environments. The housing assembly’s mechanical robustness and thread integrity are critical for maintaining probe alignment on these machines, where vibration levels can exceed 25 mm/s RMS during normal operation.

Port and Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane drives increasingly use Bently Nevada proximity monitoring systems for condition-based maintenance. The 21000-34-05-15-029-04-02 housing assembly’s resistance to salt spray and humidity makes it suitable for marine-grade installations where OEM spare parts availability is a critical logistics consideration.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Bently Nevada 21000-34-05-15-029-04-02?
The 12-month warranty covers manufacturing defects, dimensional non-conformance, and functional failure under normal operating conditions from the date of shipment. If the housing assembly fails to meet its mechanical or dimensional specification within the warranty period, NINERMAS will provide a replacement unit at no additional cost. Warranty claims are processed via sale@ninermas.com with supporting documentation.

Q2: What pre-shipment inspection is performed on this housing assembly?
Each 21000-34-05-15-029-04-02 unit undergoes dimensional verification and thread integrity inspection prior to shipment. Units are confirmed to be new, original Bently Nevada components sourced from authorized supply channels. Inspection records are available upon request for quality-critical procurement processes.

Q3: Is this housing assembly compatible with all Bently Nevada 21000 Series probes and extension cables?
Yes. The 21000-34-05-15-029-04-02 is designed for use within the Bently Nevada 21000 Series proximity transducer system and is compatible with standard 5 mm tip probes and associated extension cables in 5 m and 9 m configurations. For non-standard configurations or legacy installations, contact NINERMAS technical support to confirm compatibility before ordering.

Q4: Can NINERMAS support long-term or repeat supply of this part for planned maintenance programs?
Yes. NINERMAS maintains inventory of Bently Nevada 21000 Series components to support planned outage schedules, annual maintenance contracts, and critical spare parts programs. For volume requirements or scheduled delivery agreements, contact sale@ninermas.com or +0086 187 5021 5667 to discuss supply terms and lead-time commitments.
