Bently Nevada 21000-28-05-00-021-03-02 Retrofit Proximity Probe

Bently Nevada 21000-28-05-00-021-03-02 Retrofit-Compatible Proximity Probe for Legacy Systems

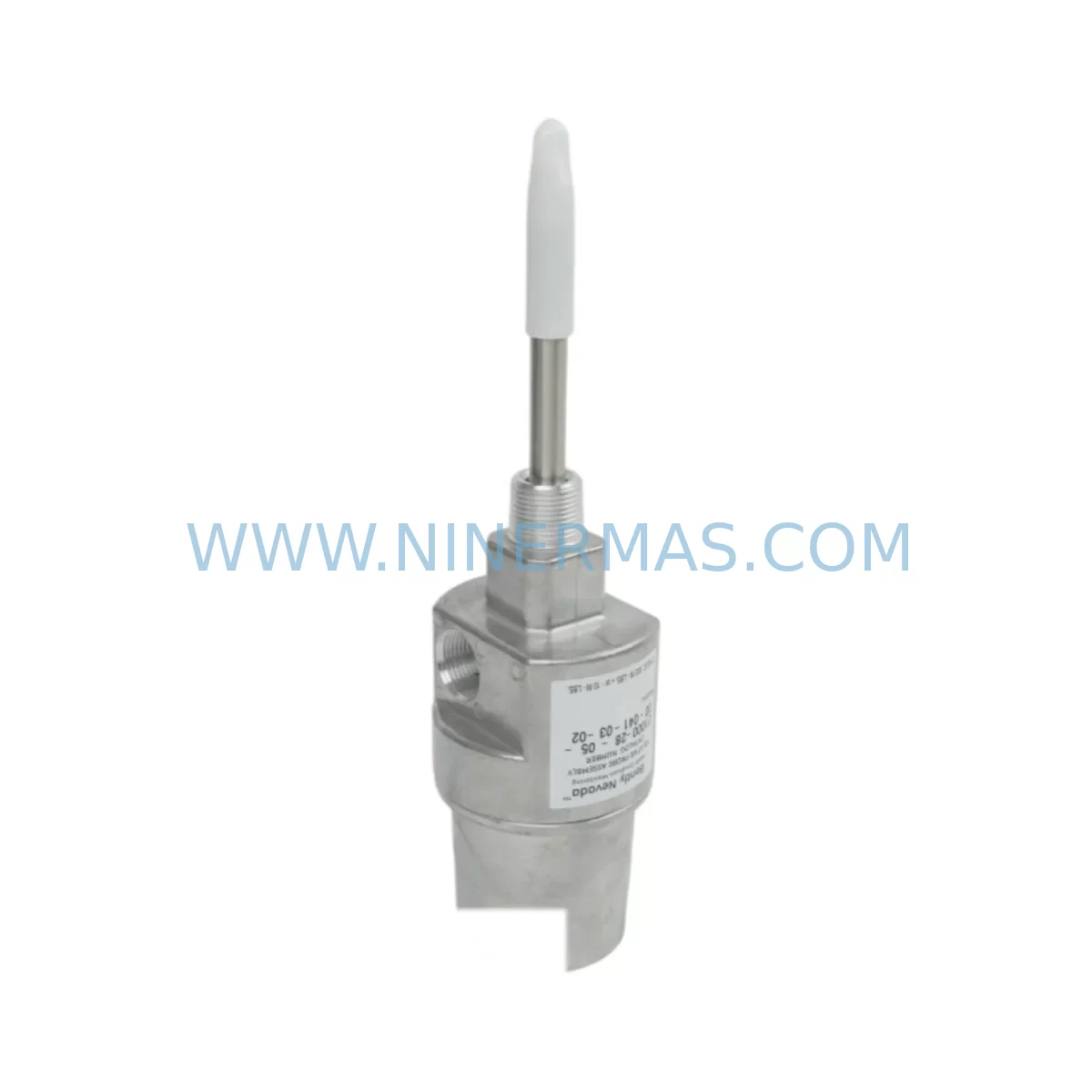

The Bently Nevada 21000-28-05-00-021-03-02 is a proximity probe assembly designed for continuous shaft vibration and position monitoring in rotating machinery applications. As part of the widely deployed Bently Nevada 21000 Series, this probe remains a critical component in turbine control panels, compressor monitoring racks, and legacy condition monitoring systems across oil and gas, power generation, and petrochemical industries. With many original 21000 Series components now discontinued or approaching end-of-life, sourcing a verified retrofit-compatible replacement is essential to maintaining system integrity without triggering a full platform overhaul.

This unit is fully compatible with existing 21000 Series eddy-current probe driver circuits and integrates directly with Bently Nevada 3300 Series proximitor sensors and signal conditioning modules. Engineers planning a retrofit should confirm the probe tip diameter, gap voltage range (typically –10 VDC at standard gap), cable length, and connector type before installation. The 21000-28-05-00-021-03-02 uses a standard 5-meter armored extension cable and is compatible with the 330130 and 330180 extension cable families, which are commonly retained during partial system upgrades to reduce rewiring scope.

When integrating this probe into an existing monitoring rack, technicians should verify the proximitor supply voltage (–24 VDC nominal), confirm the output signal range matches the connected Bently Nevada 3500/40M or 3500/42M vibration monitor card input specifications, and check that the probe mounting bracket and radial clearance meet the original installation drawing. Probe-to-shaft gap should be set using a calibrated gap tool and confirmed against the original system documentation before energizing the channel.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 21000-28-05-00-021-03-02 begins well before the maintenance window opens. The first step is a full audit of the existing monitoring rack — typically a Bently Nevada 3500 Series rack — to document which monitor cards, I/O modules, and power supply units are currently installed. In many legacy installations, the rack will contain a mix of 3500/15 power supply modules, 3500/20 keyphasor modules, and 3500/40M or 3500/42M vibration monitor cards. Each of these components has defined input impedance and signal range requirements that the replacement probe must satisfy.

Extension cable routing is a frequent source of delay during probe replacement. The 330130-05-00-05-02-00 extension cable is commonly paired with 21000 Series probes and should be inspected for jacket damage, connector corrosion, and continuity before reuse. If the extension cable must also be replaced, the new cable must match the original length precisely to maintain the calibrated gap voltage. Swapping to a non-matched cable length without recalibration will introduce measurement error and may trigger false alarms on the connected 3500/40M monitor card.

For sites running Bently Nevada System 1 condition monitoring software, the probe channel configuration — including full-scale range, alert setpoints, and danger setpoints — is stored in the System 1 database and does not need to be re-entered if the replacement probe is a direct equivalent. However, technicians should perform a live gap check and confirm the DC gap voltage reading in System 1 matches the expected value before returning the machine to service. If the site uses an older Bently Nevada ADRE 408 DSPi data acquisition system for transient analysis, the same channel mapping applies and no hardware reconfiguration is needed.

Where the retrofit involves upgrading from a fully discontinued probe model to the 21000-28-05-00-021-03-02, the installation team should also review the Bently Nevada TK-3 proximity calibrator procedure to verify the complete probe-cable-proximitor system as an assembly. This is particularly important when the proximitor itself — such as a 3300 XL 8mm proximitor — has also been replaced as part of the same maintenance event, since mismatched assemblies can produce out-of-tolerance gap voltages even when individual components test correctly in isolation.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation process. Before the machine is taken offline, the maintenance team should capture a full snapshot of the current vibration baseline — including 1X and 2X amplitude trends, DC gap voltage readings, and any active alert conditions — from the Bently Nevada 3500 rack or System 1 historian. This baseline serves as the acceptance criterion for post-installation verification and allows the team to confirm that the replacement probe is performing within the expected range before the machine is returned to service.

During the swap, the 3500 rack channel should be placed in bypass mode using the front-panel keyswitch or via System 1 to prevent spurious trips while the probe is disconnected. The replacement 21000-28-05-00-021-03-02 should be pre-gapped on the bench using a TK-3 calibrator before installation to reduce the time spent adjusting gap at the machine. Once installed, the gap voltage should be confirmed in the –10 VDC ±0.5 VDC range before the channel bypass is removed.

For critical machinery where even brief monitoring gaps are unacceptable, a temporary portable monitoring solution — such as a Bently Nevada ADRE 408 DSPi connected to the probe output — can maintain continuous vibration surveillance during the rack channel bypass period. This approach is particularly valuable during hot standby switchovers where the machine cannot be fully shut down for maintenance. After the replacement probe is confirmed in service, the portable system is disconnected and the permanent rack channel is restored to normal monitoring mode.

Proper documentation of the completed retrofit — including the new probe serial number, final gap voltage, post-installation vibration readings, and technician sign-off — should be entered into the site CMMS and the Bently Nevada System 1 asset record to support future maintenance planning and warranty claims.

Retrofit Support FAQ

Q: Is the 21000-28-05-00-021-03-02 a direct replacement for other 21000 Series probe configurations?
A: Yes, within the 21000 Series family, probes share the same eddy-current operating principle and connector standard. However, cable length and tip diameter must match the original specification. Confirm the last digits of the part number against your installation drawing before ordering to ensure the correct configuration.

Q: Does this probe require recalibration of the connected 3500 Series monitor card after installation?
A: If the replacement probe is an exact equivalent (same cable length, same proximitor model), no monitor card recalibration is required. A gap voltage verification using the TK-3 calibrator is recommended as a best practice. If any component in the probe-cable-proximitor assembly has changed, a full system calibration should be performed.

Q: What wiring checks should be completed before energizing the replacement probe?
A: Verify continuity of the extension cable, confirm the coaxial connector is fully seated at both the probe and proximitor ends, check that the proximitor supply voltage is –24 VDC ±1 VDC, and confirm there is no shield grounding conflict between the probe cable and the rack chassis. All checks should be completed with the rack channel in bypass mode.

Q: What does the 12-month warranty cover, and how is a warranty claim initiated?
A: The 12-month warranty covers manufacturing defects and DOA (dead-on-arrival) failures from the date of shipment. Each unit undergoes pre-shipment functional testing before dispatch. To initiate a warranty claim, contact sale@ninermas.com with the order number, unit serial number, and a description of the fault. Replacement units are dispatched from in-stock inventory to minimize your downtime.
