Bently Nevada 21000-16-10-15-071-03-02 Retrofit Proximity Probe

Bently Nevada 21000-16-10-15-071-03-02 Retrofit Proximity Probe: Legacy System Compatibility & Smooth Upgrade

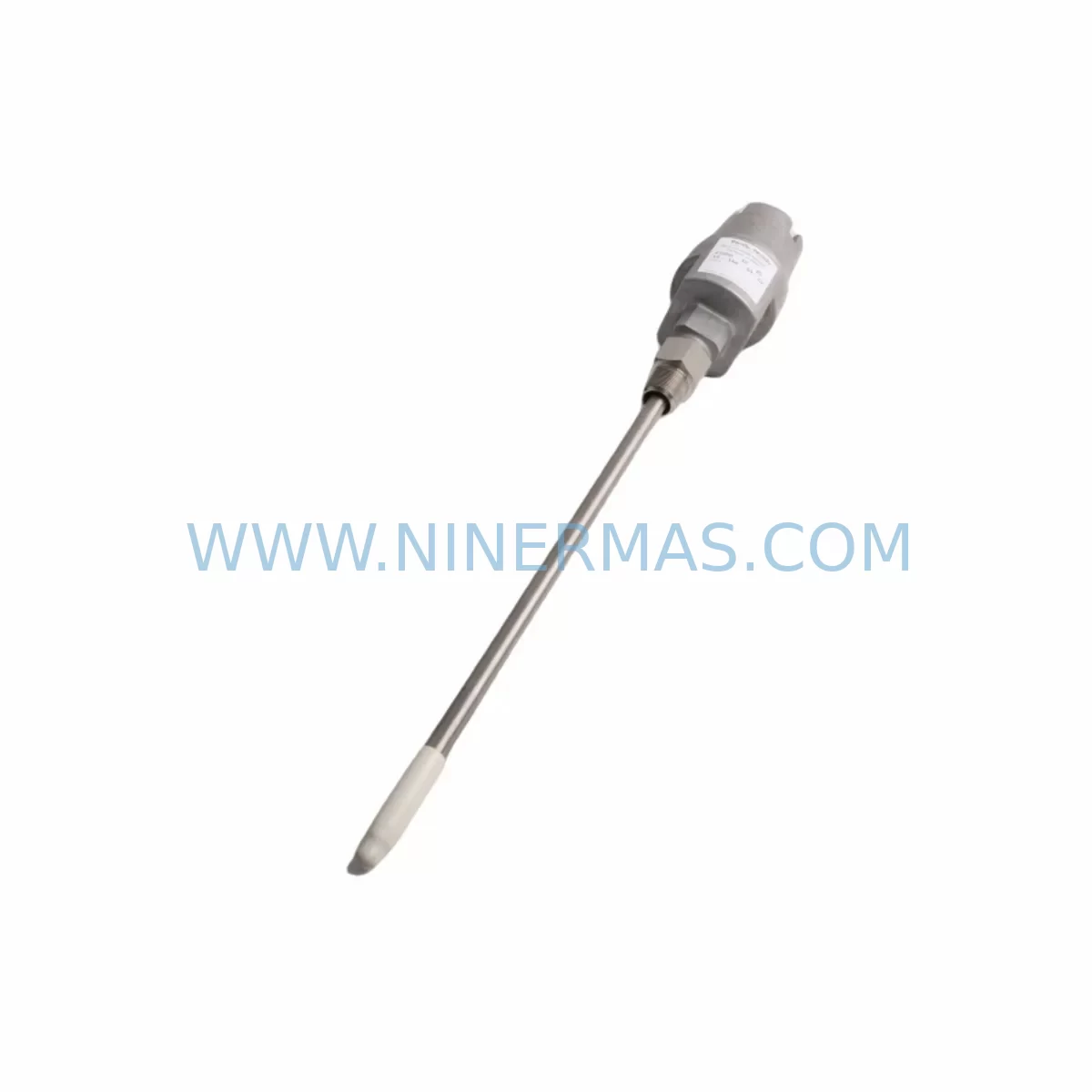

The Bently Nevada 21000-16-10-15-071-03-02 is a retrofit-compatible proximity probe housing designed for seamless integration into existing 21000 Series vibration monitoring systems. As industrial facilities face the growing challenge of maintaining aging machinery protection infrastructure, this unit provides a reliable, drop-in replacement path for plants still operating legacy Bently Nevada 3300, 7200, and 3500 series monitoring platforms. Whether you are managing a turbine protection panel, a compressor train, or a rotating equipment monitoring rack, this proximity probe housing delivers the dimensional accuracy, cable compatibility, and signal integrity required to restore full system functionality without forcing a complete platform overhaul.

When planning a retrofit around the 21000-16-10-15-071-03-02, engineers must carefully verify several critical parameters before committing to installation. Power supply capacity at the junction box or monitor rack must be confirmed, as legacy 3300 series proximitor power rails may differ from those feeding newer 3500/22M or 3500/42M monitor cards. Terminal wiring at the field junction box should be mapped against the original installation drawings, paying particular attention to the driver cable shield grounding scheme and the extension cable connector type — whether the existing run uses 9-pin or integral connector configurations. Backplane interface compatibility at the monitor rack must also be validated, especially if the site is migrating from a 3300 series rack to a 3500 series rack, where slot addressing and I/O channel mapping differ. Module address settings within the monitoring software, such as System 1 or Orbit, must be updated to reflect the new probe channel assignments. Program logic compatibility should be reviewed if the proximity signal feeds into a DCS or safety system, such as a Triconex or Yokogawa CENTUM VP, where the 4–20 mA or voltage output scaling may need recalibration. HMI display screens tied to the vibration monitoring loop should be updated to reflect the new probe tag and engineering unit range. Communication links between the Bently Nevada rack and the plant DCS via Modbus RTU, Modbus TCP, or OPC DA/UA should be tested end-to-end after installation. Installation space inside the machinery housing must be confirmed, as the 21000 series probe tip diameter and thread specification must match the existing drilled and tapped boss on the machine casing. Finally, a full field commissioning sequence — including gap voltage verification, slow-roll runout measurement, and alarm setpoint confirmation — must be completed before returning the machine to service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 21000-16-10-15-071-03-02 proximity probe housing typically involves a coordinated review of the entire signal chain from the probe tip to the control room. In most legacy installations, the probe is paired with a Bently Nevada 21000 series proximitor driver — a self-contained oscillator-demodulator module mounted in a field enclosure or directly on the machinery. When the probe housing is replaced, the existing proximitor driver, such as a 21000-00-55-10-02-00 or similar variant, must be tested for output linearity and noise floor performance. If the driver is also at end-of-life, it is common practice to replace both the probe and driver simultaneously to avoid a second outage.

The extension cable connecting the probe to the proximitor is another critical component. Standard 21000 series installations use a specific cable impedance and capacitance specification; substituting an incompatible cable will shift the gap voltage calibration curve and produce false vibration readings. When the retrofit also involves upgrading the monitor rack from a 3300 series to a 3500 series platform, the 3500/22M transient data interface or the 3500/42M vibration monitor card must be configured with the correct probe type and sensitivity factor. The 3500 rack’s I/O module addressing must be set to match the DCS tag database, and the System 1 software configuration file must be updated accordingly.

For plants also upgrading their safety instrumented system, the proximity signal may feed a voting logic block in a Triconex TRICON or a Yokogawa ProSafe-RS. In these cases, the 4–20 mA output from the 3500 rack must be verified against the SIS input card range and the safety function’s trip setpoint. If the site is also migrating communication protocols — for example, from a legacy serial Modbus RTU link to an Ethernet-based Modbus TCP or OPC UA connection — the 3500 rack’s communication gateway module, such as the 3500/92 communication gateway, must be configured and tested before the machine is returned to service. Power supply modules within the 3500 rack, such as the 3500/15 power supply, should also be inspected and replaced if they are approaching their rated service life, as an unstable power rail will compromise the accuracy of all connected transducers.

In control cabinet upgrades where the Bently Nevada rack shares enclosure space with other instrumentation — such as Pepperl+Fuchs signal isolators, Phoenix Contact terminal blocks, or Weidmuller power distribution modules — available rack space and thermal management must be reviewed. The 21000 series probe cable routing inside the cabinet should be separated from high-voltage AC wiring to prevent electromagnetic interference on the low-level proximity signal.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe retrofit requires a structured pre-outage preparation process. Before the maintenance window opens, all replacement components — including the 21000-16-10-15-071-03-02 probe housing, the matched extension cable, and any required proximitor driver — should be bench-tested and pre-configured. The existing System 1 or Orbit configuration file should be backed up, and a shadow configuration with the new probe parameters should be prepared and validated offline.

During the outage, the original probe gap voltage and slow-roll runout values should be recorded before disconnection, providing a baseline for post-installation verification. The new probe should be installed, gapped to the manufacturer’s specification (typically –10.0 VDC ± 0.5 VDC at the nominal gap), and the extension cable should be routed and secured following the original cable management scheme. The proximitor driver output should be verified with a calibrated voltmeter before reconnecting to the monitor rack input.

Once the monitor rack is reconnected, the System 1 or Orbit software should be used to verify that the new probe channel is reading correctly, that alarm and danger setpoints are active, and that the DCS is receiving the correct process variable value. If the site uses a Bently Nevada 3500/92 communication gateway, the Modbus register map should be confirmed against the DCS I/O list before the machine is started. A slow-roll coast-down or bump test should be performed to confirm that the vibration signal is clean and that the runout compensation value is within acceptable limits. Only after all these checks are complete should the machine be returned to normal operation, ensuring that the retrofit has not introduced any new risk to machinery protection continuity.

Retrofit Support FAQ

Q1: Is the 21000-16-10-15-071-03-02 a direct drop-in replacement for other 21000 series proximity probe housings?
A: In most cases, yes — provided the thread specification, tip diameter, and cable connector type match the existing installation. Always verify the probe body dimensions and the extension cable impedance specification against the original installation drawing before ordering. If the existing proximitor driver is a matched 21000 series unit, the replacement probe should be compatible without recalibration of the driver electronics.

Q2: What commissioning steps are required after installation?
A: After mechanical installation, the gap voltage must be set to the manufacturer’s specification using a calibrated DC voltmeter. Slow-roll runout should be measured and recorded. Alarm and danger setpoints in the monitor rack must be confirmed active. If the probe feeds a DCS or SIS, the 4–20 mA output scaling and the communication link (Modbus or OPC UA) must be verified end-to-end before the machine is returned to service.

Q3: Can this probe be used with both 3300 and 3500 series monitor racks?
A: The 21000 series proximity probe is compatible with both 3300 and 3500 series monitor platforms, subject to correct driver selection and cable specification. When migrating from a 3300 to a 3500 rack, the monitor card configuration — including probe type, sensitivity, and I/O channel address — must be updated in the System 1 software to match the new hardware.

Q4: What warranty and supply assurance does NINERMAS provide for this part?
A: NINERMAS provides a 12-month warranty on the 21000-16-10-15-071-03-02 covering manufacturing defects and functional performance. All units are subject to outgoing inspection and functional testing before shipment. NINERMAS maintains inventory stock to support urgent retrofit and emergency replacement requirements, with fast lead times for critical machinery protection applications. Contact sale@ninermas.com or +0086 187 5021 5667 for availability and lead time confirmation.
