Bently Nevada 21000-16-10-00-131-04-02 Spare Part

Bently Nevada 21000-16-10-00-131-04-02 Spare Part: Precision Replacement for Vibration Monitoring Continuity

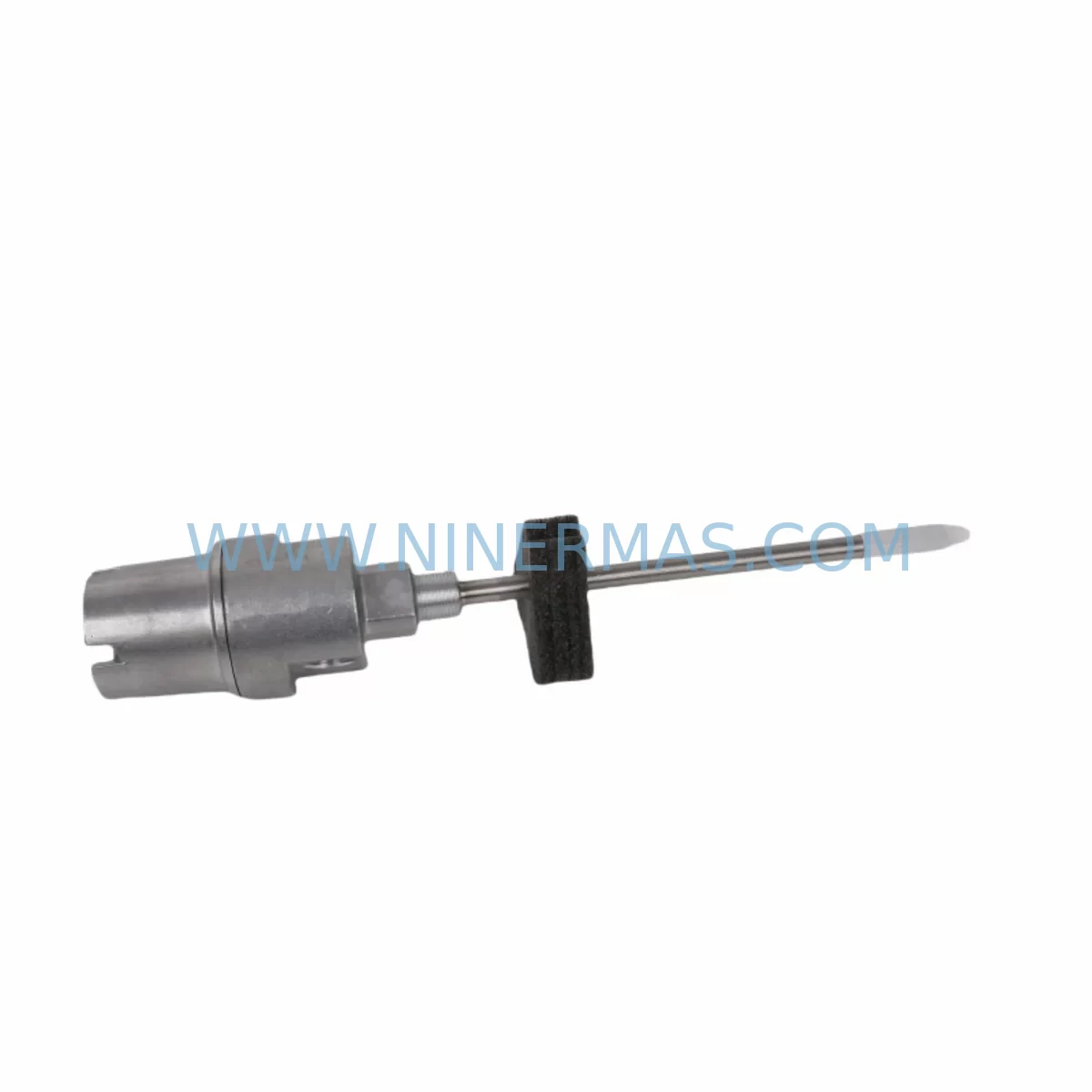

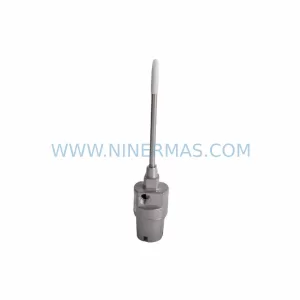

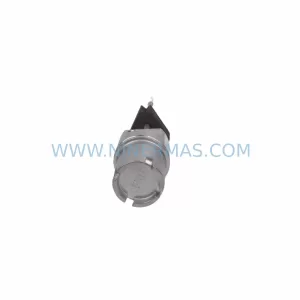

The Bently Nevada 21000-16-10-00-131-04-02 is a service-ready proximity probe housing spare part engineered for the Bently Nevada 21000 Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy manufacturing industries. When a proximity probe housing fails or degrades, the consequences extend far beyond a single sensor: the entire vibration channel becomes unreliable, triggering false alarms, masking real faults, or causing unplanned shutdowns that cost thousands of dollars per hour. Stocking the 21000-16-10-00-131-04-02 as a verified spare ensures your maintenance team can execute a fast, confident replacement without waiting on lead times during a critical outage.

For maintenance engineers managing rotating machinery — turbines, compressors, pumps, and gearboxes — the proximity probe housing is the mechanical interface between the eddy-current sensing tip and the machine casing. It must maintain precise gap geometry, resist vibration fatigue, and provide reliable electrical isolation. Over time, housing threads can corrode, mounting surfaces can wear, and cable entry seals can degrade, all of which compromise the accuracy of the 21000 Series proximity probe system. Replacing the housing with an original-specification 21000-16-10-00-131-04-02 restores the full measurement integrity of the channel without requiring recalibration of the entire loop.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 21000-16-10-00-131-04-02 proximity probe housing, the scope of inspection should never be limited to the housing alone. The 21000 Series vibration monitoring loop is an integrated system, and a housing replacement is the ideal opportunity to audit the full signal chain for latent faults that could cause the next unplanned shutdown.

Begin with the Bently Nevada 21000 Series proximity probe tip itself — inspect the sensing face for pitting, contamination, or mechanical damage that would affect the eddy-current gap. Next, check the 21000 Series extension cable (typically 5-metre or 9-metre armoured cable) for insulation cracking, connector corrosion, or continuity loss; a degraded cable is the most common cause of intermittent vibration readings after a housing swap. The Bently Nevada proximitor / signal conditioner (such as the 3300 XL 8mm proximitor) should be inspected for proper bias voltage output — typically -10 VDC to -18 VDC — and verified against the channel’s scale factor.

At the control cabinet level, confirm that the Bently Nevada 3500 Series rack or equivalent monitoring rack is receiving clean power from its dedicated 24 VDC or 28 VDC power supply module. A failing power supply can introduce noise into the vibration channel that mimics mechanical faults. Check the I/O terminal blocks and field wiring terminations for loose connections, which are a frequent source of signal dropout in high-vibration environments. If the installation uses a Bently Nevada 3500/42M or similar proximitor I/O module, verify that the module’s OK relay output is functioning correctly and that the channel is not latched in a fault state.

For plants running DCS integration via 4–20 mA or HART, inspect the signal isolator between the proximitor output and the DCS analog input card — signal isolators degrade over time and can introduce offset errors that shift vibration baselines. If the system uses a Bently Nevada 3500/93 or similar communication gateway for Modbus or OPC connectivity, confirm that the gateway firmware is current and that the vibration channel data is being correctly transmitted to the plant historian or DCS. Finally, review the fuse and surge protection on the field wiring circuit; a blown fuse or degraded MOV can leave the channel unprotected against the next transient event.

Procurement engineers should note that the 21000-16-10-00-131-04-02 is a long-lifecycle spare with stable availability through authorised distributors. Maintaining a minimum stock of two units per critical machine train is recommended practice for plants with API 670 machinery protection requirements, where mean time to repair (MTTR) targets are typically under four hours.

Site Replacement Workflow

Step 1 — Isolation and safety: Coordinate with the control room to place the affected vibration channel in bypass mode on the Bently Nevada 3500 rack or equivalent monitoring system. This prevents a spurious trip during the housing swap. Follow your site’s LOTO (lockout/tagout) procedure for the machine.

Step 2 — Remove the existing housing: Disconnect the extension cable from the proximitor and from the probe tip. Unscrew the existing 21000-16-10-00-131-04-02 housing from the machine casing using the correct spanner — avoid pipe wrenches that can damage the housing body. Note the existing probe gap setting (typically 1.0 mm to 2.5 mm for 8 mm probes) before removal.

Step 3 — Inspect the mounting boss: Clean the threaded bore in the machine casing. Inspect for thread damage, corrosion, or debris. Re-tap if necessary. A damaged mounting boss will cause the new housing to seat incorrectly, introducing gap error and mechanical stress.

Step 4 — Install the replacement housing: Thread the new 21000-16-10-00-131-04-02 housing into the mounting boss by hand first, then torque to the manufacturer’s specification. Reinstall the proximity probe tip and set the gap to the original specification using a non-ferrous feeler gauge or the proximitor’s bias voltage output as a reference.

Step 5 — Reconnect and verify: Reconnect the extension cable and confirm continuity. Power up the proximitor and verify bias voltage is within the normal operating range. Check the vibration channel reading at the 3500 rack or DCS display — the reading should be stable and consistent with the machine’s baseline at the current operating speed.

Step 6 — Remove bypass and return to service: Once the channel is verified, remove the bypass at the monitoring rack and confirm that the OK relay is energised. Document the replacement in the plant’s maintenance management system (CMMS) with the new part number, installation date, and gap setting for future reference.

This workflow is compatible with both direct replacement of the 21000-16-10-00-131-04-02 and upgrade scenarios where an older housing variant is being replaced with the current-specification part. The 21000 Series maintains backward mechanical compatibility across its housing variants, allowing maintenance teams to standardise on the current part number without machine modification.

Spare Parts Support FAQ

Q1: Is the 21000-16-10-00-131-04-02 compatible with all 21000 Series proximity probe assemblies?
The 21000-16-10-00-131-04-02 housing is designed for the Bently Nevada 21000 Series and is mechanically compatible with standard 21000 Series probe assemblies using the same thread specification. Always verify the thread size and probe diameter (typically 8 mm) against your existing installation before ordering. If you are replacing an older variant, contact our technical team with your existing part number for a compatibility confirmation.

Q2: What pre-shipment testing is performed on this spare part?
Every 21000-16-10-00-131-04-02 unit is mechanically inspected and electrically verified before dispatch. Testing includes dimensional checks on the housing threads and cable entry seal, continuity verification, and visual inspection for corrosion or damage. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: How many units should we stock for a critical machine train?
For machines covered by API 670 machinery protection requirements — such as steam turbines, gas compressors, or large pumps — we recommend stocking a minimum of two 21000-16-10-00-131-04-02 housings per machine train. Plants with multiple critical machines should consider a centralised spare parts pool with a reorder trigger at one unit remaining. Long-term supply agreements are available for plants requiring guaranteed stock availability over a 3–5 year horizon.

Q4: Can this part be used to replace discontinued or obsolete Bently Nevada housing variants?
Yes. The 21000-16-10-00-131-04-02 is the current-specification housing for the 21000 Series and is the recommended replacement for older or discontinued housing variants within the same series. It supports the life extension of legacy 21000 Series installations without requiring changes to the proximitor, extension cable, or monitoring rack. For installations where the original housing variant is no longer available, this part provides a direct upgrade path that maintains full system compatibility and measurement accuracy.
