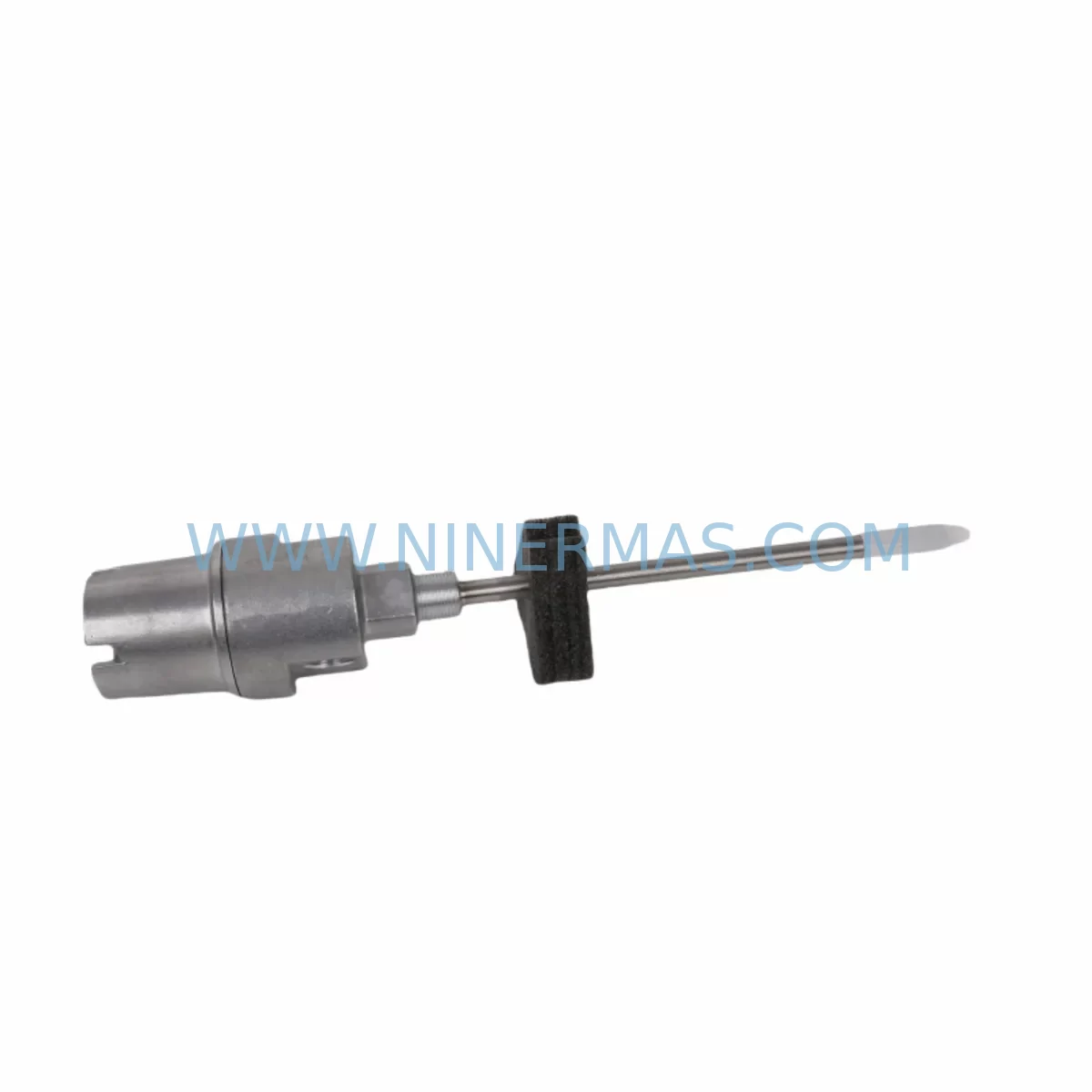

Bently Nevada 21000-16-10-00-102-03-02 Retrofit Proximity Probe

Bently Nevada 21000-16-10-00-102-03-02 Retrofit-Compatible Proximity Probe Housing for Legacy Systems

The Bently Nevada 21000-16-10-00-102-03-02 is a retrofit-compatible proximity probe housing engineered for seamless integration into existing 21000 Series vibration monitoring installations. As aging machinery protection systems approach end-of-life or face discontinued spare parts availability, this unit provides a reliable, drop-in upgrade path that preserves original wiring configurations, signal conditioning parameters, and rack-mount geometry. Whether you are managing a planned outage, responding to an unplanned failure, or executing a phased modernization of your rotating machinery protection infrastructure, this proximity probe housing delivers the dimensional accuracy, electrical compatibility, and field-proven performance required to restore system integrity with minimal disruption.

Industrial facilities operating gas turbines, steam turbines, compressors, pumps, and gearboxes under continuous monitoring rely on the 21000 Series platform for radial vibration, axial position, and speed measurement. When original components such as the 21000-16-10-00-102-03-02 housing become unavailable through standard distribution channels, the risk of extended downtime escalates significantly. NINERMAS maintains verified inventory of this part to support emergency replacement, scheduled maintenance, and long-term spare parts lifecycle planning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 21000-16-10-00-102-03-02 begins well before the maintenance window opens. Engineers should first audit the existing probe installation to confirm the housing thread specification, probe body diameter, and overall length match the replacement unit. The extension cable — typically an 330130 or 330180 Series armored cable — must be inspected for continuity and insulation integrity, as a degraded cable will introduce measurement error even with a new probe housing installed. The driver module, often a 3300 XL 8mm or 11mm proximitor, should be verified for output sensitivity and supply voltage compatibility before the new housing is installed.

Within the control cabinet, the 3500 Series rack — which may house a 3500/42M Proximitor/Seismic Monitor or a 3500/40M Proximitor Monitor — must be checked for available channel assignments and alarm setpoint configurations. If the retrofit is part of a broader migration from a 21000 Series standalone monitor to a 3500 Series rack-based system, the I/O terminal block wiring must be re-mapped to match the new module’s terminal assignments. This process requires careful cross-referencing of the original loop drawings against the 3500 Series I/O module pinout to avoid signal inversion or ground loop issues.

For facilities also upgrading their HMI layer, the transition from legacy panel meters to a System 1 Evolution condition monitoring software platform requires that each channel’s engineering unit scaling, full-scale range, and alarm thresholds be re-entered and validated against the original baseline data. If a Keyphasor module — such as the 3500/25 Keyphasor Module — is part of the installation, its trigger level and hysteresis settings must be confirmed to remain compatible with the new probe’s output characteristics.

Where communication protocol migration is involved — for example, moving from hardwired relay outputs to Modbus RTU or PROFIBUS DP via a 3500/92 Communication Gateway Module — the retrofit plan must include a network address assignment step and a full end-to-end communication test before the machine is returned to service. Signal isolators may be required at the interface between the 3500 rack and the DCS or SCADA system to prevent ground loops and ensure signal integrity across long cable runs.

Finally, installation space confirmation is essential. The 21000-16-10-00-102-03-02 housing must fit within the existing probe bracket and machinery casing clearance. Any change in probe body length or thread engagement depth will affect the gap setting and must be compensated during commissioning. NINERMAS recommends pre-testing each replacement unit on a bench fixture prior to installation to confirm dimensional conformance and electrical output before the machine is shut down.

Downtime Control During System Migration

Minimizing downtime during a proximity probe housing replacement requires a structured pre-outage preparation process. All replacement components — including the 21000-16-10-00-102-03-02 housing, matched extension cable, and driver module — should be on-site and bench-tested before the maintenance window begins. The original program logic in the 3500 Series rack should be exported and archived using the Rack Configuration Software prior to any hardware change, ensuring that alarm setpoints, danger levels, and time delays can be restored exactly if a configuration reset occurs.

During the replacement, the affected channel should be placed in bypass mode within the 3500 rack to prevent spurious trips while the probe is disconnected. Once the new housing is installed and the gap is set, the channel should be brought out of bypass incrementally, with the output signal verified at the monitor front panel before the bypass is fully removed. This approach protects the original control logic, maintains field control continuity on all other channels, and reduces the risk of a false shutdown during commissioning.

For facilities with redundant monitoring channels, the replacement can often be performed online by switching the protection function to the redundant channel while the primary channel is serviced. This strategy can reduce effective downtime to near zero for non-critical measurement points, while still allowing full commissioning and verification of the replacement unit before it is returned to active protection duty.

Retrofit Support FAQ

Q1: Is the 21000-16-10-00-102-03-02 a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is sourced and verified to match the original Bently Nevada 21000-16-10-00-102-03-02 specification in thread form, body diameter, overall length, and electrical output characteristics. No mechanical modification to the probe bracket or machinery casing is required for a standard replacement.

Q2: What commissioning steps are required after installation?
After mechanical installation, the probe gap must be set to the manufacturer’s specified value (typically 1.0–2.0 mm depending on target material and driver sensitivity). The driver module output should be verified with a calibrated voltmeter before the channel is returned to active monitoring. Alarm setpoints and OK relay thresholds should be confirmed in the 3500 Series rack configuration software before the machine is restarted.

Q3: Can this probe housing be used with 3300 XL or 3500 Series monitors?
Yes, when paired with a compatible 3300 XL or 3500 Series driver/proximitor module and the appropriate extension cable assembly, the 21000-16-10-00-102-03-02 housing is compatible with both monitor platforms. Confirm driver sensitivity (V/mm) and supply voltage match the probe specification before installation.

Q4: What is the warranty and delivery condition?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify dimensional conformance and electrical output. In-stock units are available for same-day or next-business-day dispatch. Contact sale@ninermas.com or +0086 187 5021 5667 for availability confirmation and lead time.
