Bently Nevada 21000-16-10-00-095-04-02 Service-Ready Spare Part

Bently Nevada 21000-16-10-00-095-04-02 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

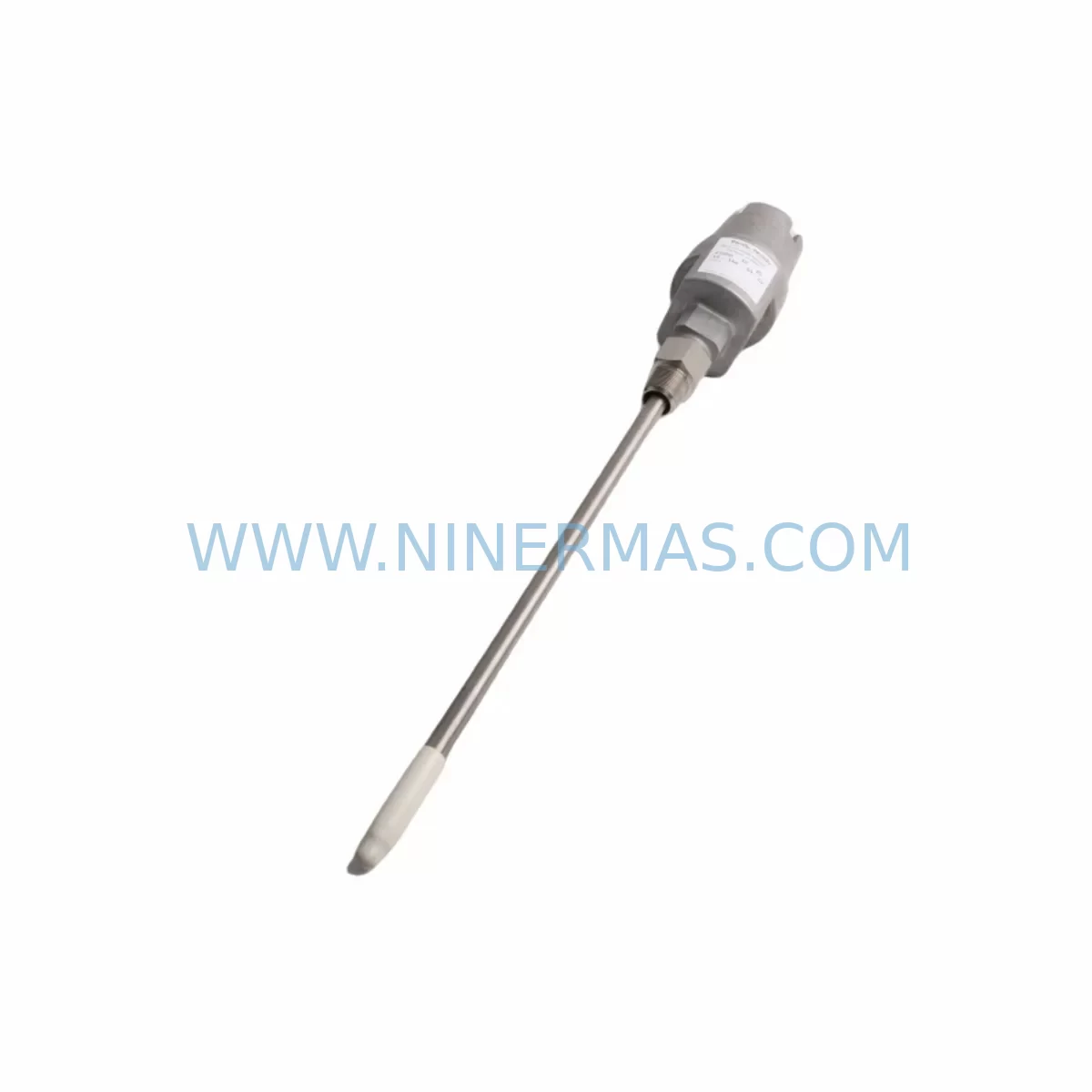

The Bently Nevada 21000-16-10-00-095-04-02 is a ruggedized probe module engineered for continuous vibration monitoring in demanding industrial environments. As a critical component within the Bently Nevada 21000 Series proximity probe system, this module provides reliable eddy-current displacement sensing for rotating machinery protection — including turbines, compressors, pumps, and motors. When a vibration monitoring channel fails or degrades, the consequences extend far beyond a single sensor: undetected shaft displacement, missed alarm thresholds, and unplanned shutdowns can cascade into costly production losses. Maintaining a service-ready spare of the 21000-16-10-00-095-04-02 in your critical spare parts inventory is a fundamental element of any proactive maintenance strategy.

At NINERMAS, every unit of the 21000-16-10-00-095-04-02 is sourced as an original Bently Nevada component, inspected prior to dispatch, and shipped with a 12-month warranty. Our supply chain supports long-term procurement for maintenance engineers and spare parts buyers who require consistent availability, verified compatibility, and documented traceability for audit and compliance purposes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 21000-16-10-00-095-04-02 ruggedized probe module does not operate in isolation. It is part of an integrated vibration monitoring loop that includes the Bently Nevada 3500/42M proximitor/monitor module, the 3500/22M transient data interface, and the 3500/15 power supply module housed within the 3500 Series rack. When performing a scheduled replacement or emergency swap of this probe module, maintenance engineers should simultaneously inspect the associated proximitor extension cable (typically 5 or 9-metre armored cable assemblies) and the 3500 Series I/O module connected to the monitoring channel.

In control cabinet inspections, it is equally important to verify the condition of the 3500/20 rack interface module and the 3500/92 communication gateway if the system is integrated with a DCS or SCADA platform via Modbus or Ethernet. Signal integrity issues at the probe level are frequently compounded by degraded terminal block connections or corroded shielded signal cables within the marshalling cabinet. A thorough inspection should include checking the barrier isolators or Zener barriers used in intrinsically safe installations, as these components age in parallel with the probe module and are often overlooked during single-component replacements.

For facilities running aging turbomachinery or legacy DCS platforms, the 21000-16-10-00-095-04-02 is frequently paired with Bently Nevada 330180 series extension cables and 330100 series proximity probes. Procurement engineers building annual MRO kits should consider including at least one spare of each interconnected component — including the 3500/45 position monitor for axial displacement channels — to ensure a complete channel can be restored without waiting on multiple separate deliveries. Fuse holders and 24 VDC instrument power supplies feeding the 3500 rack should also be verified during any planned outage involving this module.

Site Replacement Workflow

Replacing the 21000-16-10-00-095-04-02 in the field follows a structured sequence to minimize downtime and avoid introducing new faults. Begin by isolating the affected monitoring channel at the 3500 rack and confirming the bypass status in the machinery protection system to prevent spurious trips during the swap. Disconnect the extension cable at the proximitor end, noting the cable routing and any strain relief clamps that must be reinstalled correctly.

Before installing the replacement module, verify that the new unit’s gap voltage output falls within the system’s calibrated range — typically –10 VDC at the standard 1.0 mm gap for most 21000 Series configurations. This step is critical when substituting across minor revision codes, as output sensitivity can vary. Once installed, restore the channel, confirm alarm setpoints in the 3500/42M monitor, and document the as-found and as-left gap readings in the maintenance management system.

For sites transitioning away from end-of-life probe configurations, the 21000-16-10-00-095-04-02 provides a direct service-compatible replacement that maintains system calibration without requiring rack reconfiguration. This makes it particularly valuable for old system life extension programs where full platform upgrades are deferred. Keeping one or two units in the on-site critical spare inventory eliminates the lead-time risk associated with sourcing obsolete or low-volume industrial components on short notice.

Spare Parts Support FAQ

Q1: Is the 21000-16-10-00-095-04-02 compatible with all Bently Nevada 3500 Series racks?
The 21000-16-10-00-095-04-02 is designed for use within the Bently Nevada 21000 Series proximity probe system and is compatible with 3500 Series machinery protection racks when used with the appropriate proximitor and extension cable. Compatibility should be confirmed against your specific rack configuration, channel type (radial vs. axial), and cable length. NINERMAS can assist with compatibility verification prior to order.

Q2: What pre-shipment testing is performed on each unit?
Every 21000-16-10-00-095-04-02 dispatched by NINERMAS undergoes functional inspection and output verification before shipment. Units are checked for physical integrity, connector condition, and basic electrical performance. A 12-month warranty is provided on all units, covering defects in materials and workmanship under normal operating conditions.

Q3: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. NINERMAS supports annual MRO procurement contracts and blanket purchase orders for the 21000-16-10-00-095-04-02 and related Bently Nevada components. This is particularly suited to facilities with multiple turbomachinery trains or multi-site maintenance programs that require consistent supply, price stability, and documented traceability across procurement cycles.

Q4: What is the recommended inventory strategy for this module?
For critical rotating machinery applications, maintenance planners typically recommend holding a minimum of one to two spare units of the 21000-16-10-00-095-04-02 on-site, particularly where the monitored equipment is classified as critical or where lead times for replacement components exceed acceptable downtime windows. Pairing this spare with a replacement extension cable and a spare 3500/42M monitor module provides a complete channel restoration kit that can be deployed within a single maintenance shift.
