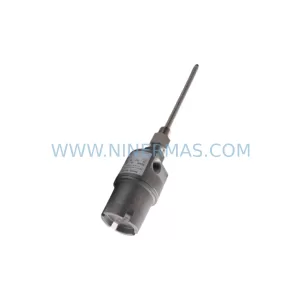

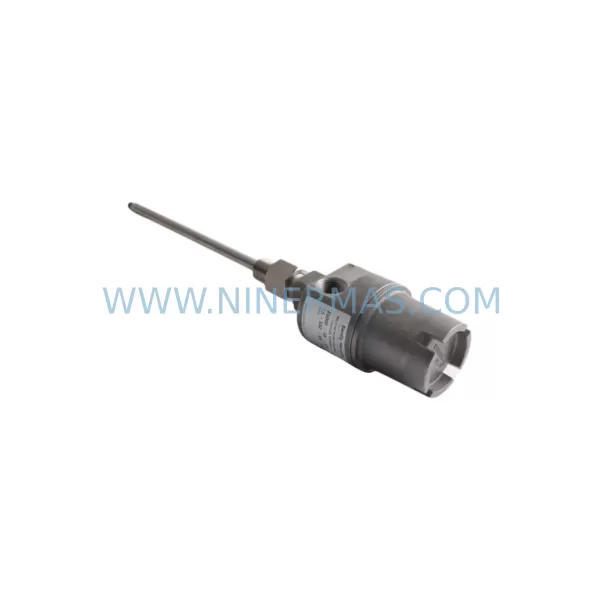

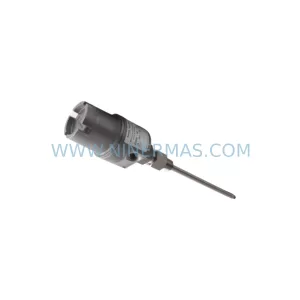

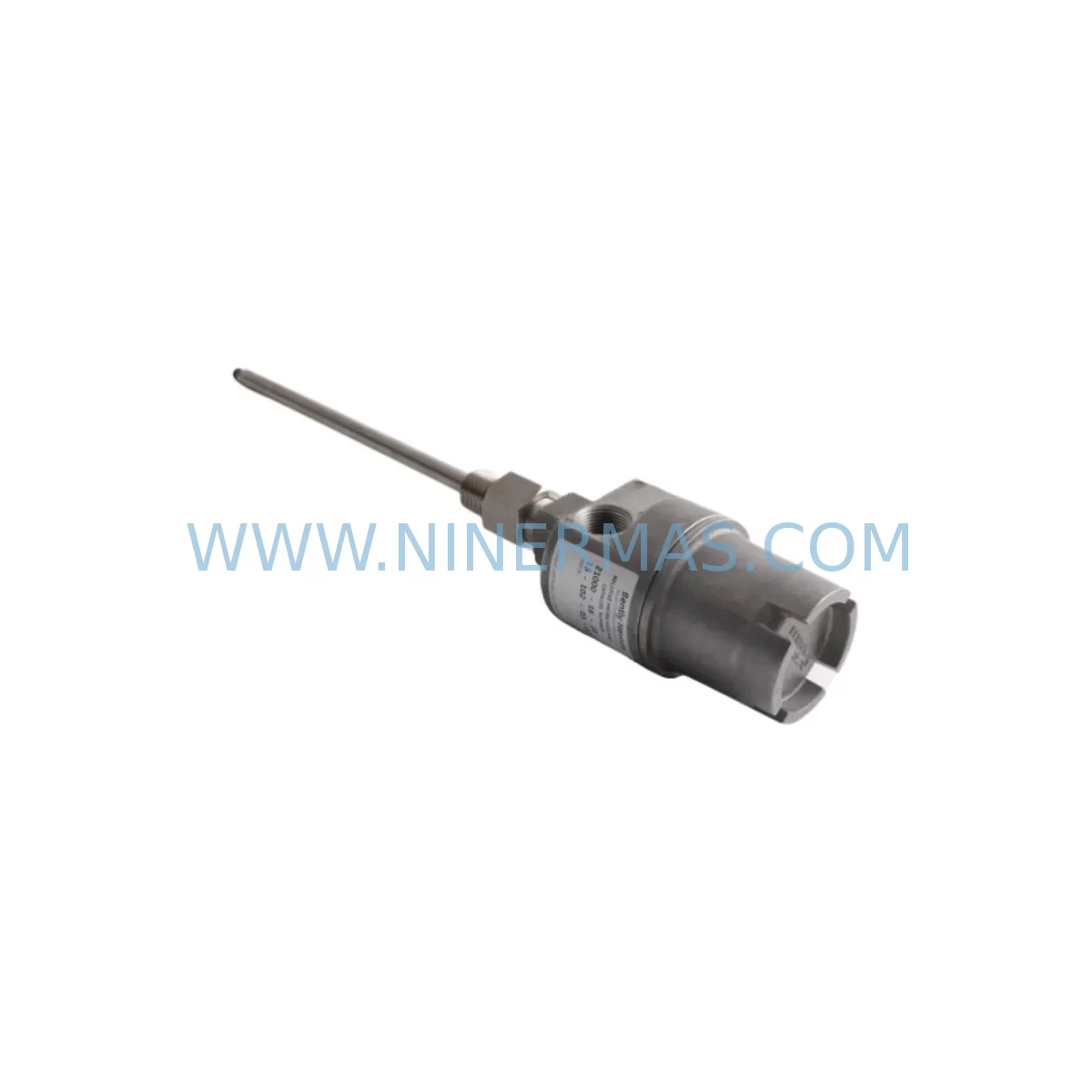

Bently Nevada 21000-16-05-15-098-03-02 Spare Part

Bently Nevada 21000-16-05-15-098-03-02 Spare Part: Vibration Monitor Replacement for Industrial Maintenance

The Bently Nevada 21000-16-05-15-098-03-02 is a ruggedized vibration monitor designed for continuous machinery protection in demanding industrial environments. As a critical spare part within the Bently Nevada 21000 Series platform, this unit plays a central role in rotating equipment health monitoring — covering compressors, turbines, pumps, and motors across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. Sourced as an original-specification replacement, this spare is tested prior to shipment and backed by a 12-month warranty, ensuring your maintenance team can restore system integrity with confidence and minimal downtime.

For maintenance engineers managing predictive maintenance programs, the 21000-16-05-15-098-03-02 is a front-line component in vibration signal acquisition. Its ruggedized design tolerates high-vibration, high-temperature, and electrically noisy environments — making it suitable for both continuous online monitoring and periodic route-based inspection workflows. When this module is flagged during a control cabinet inspection or fault isolation routine, prompt replacement is essential to prevent cascading machinery damage and unplanned production stops.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21000-16-05-15-098-03-02 vibration monitor, a thorough inspection of the surrounding system is strongly recommended to prevent repeat failures and ensure full restoration of machinery protection capability. Maintenance engineers should treat this replacement as an opportunity to audit the entire vibration monitoring loop and associated control infrastructure.

Begin by verifying the condition of the proximitor / signal conditioner (such as the Bently Nevada 3300 XL or 3500/42M proximitor) that interfaces with this monitor — a degraded proximitor can cause erratic readings even after a monitor replacement. Inspect the field wiring and shielded cables connecting the proximity probes to the monitor; damaged insulation or improper grounding introduces noise that mimics real vibration events. Check the 24 VDC or 28 VDC power supply module feeding the monitoring rack, as undervoltage conditions are a common root cause of monitor faults in aging control cabinets.

Review the Bently Nevada 3500 Series rack or equivalent monitoring chassis for backplane integrity — loose rack connectors and corroded backplane contacts are frequently overlooked during single-module replacements. If the system includes a 3500/20 rack interface module or 3500/22M transient data interface, confirm their firmware versions are compatible with the replacement unit. For facilities running System 1 Evolution or System 1 Condition Monitoring Software, verify that the new module is correctly recognized and that alarm setpoints are re-confirmed after installation.

Procurement engineers building annual spare parts lists should also consider stocking the 3500/40M proximitor I/O module, 3500/15 power supply, and 3500/32 4-channel relay module alongside the 21000-16-05-15-098-03-02 to cover the most common failure points in a complete machinery protection loop. For older installations, the 21000 Series keyphasor module and associated tachometer input cards should be evaluated for remaining service life during the same maintenance window.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the 21000-16-05-15-098-03-02 as the failed component using system diagnostics, alarm history review in System 1, and physical inspection of the module’s status LEDs and terminal connections.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the monitoring rack section containing the module. Document current alarm setpoints and channel configurations before removal.

Step 3 — Module Removal: Disconnect field wiring terminals carefully, labeling each conductor. Remove the module from the rack slot. Inspect the rack slot connector for bent pins or contamination.

Step 4 — Replacement Installation: Insert the new 21000-16-05-15-098-03-02 into the rack slot. Reconnect field wiring per the original termination diagram. Ensure cable shields are grounded at one end only to prevent ground loops.

Step 5 — Commissioning & Verification: Re-energize the rack. Confirm the module powers up correctly and is recognized by the monitoring system. Re-enter or verify alarm setpoints (Alert and Danger levels). Perform a functional check by observing live vibration readings against baseline values. Document the replacement in your CMMS (Computerized Maintenance Management System).

Step 6 — Return to Service: Notify operations that the machinery protection system is restored. Update your spare parts inventory and initiate a replenishment order to maintain buffer stock for future unplanned outages.

Spare Parts Support FAQ

Q1: Is the 21000-16-05-15-098-03-02 a direct drop-in replacement for the original Bently Nevada unit?
Yes. This spare is sourced to original Bently Nevada specifications for the 21000 Series platform. It is designed as a direct functional replacement with no modification required to existing wiring, rack slots, or system configuration, provided the host rack and firmware are compatible.

Q2: What pre-shipment testing is performed on this spare part?
Each unit undergoes functional verification testing prior to dispatch to confirm operational integrity. This reduces the risk of receiving a non-functional part during an emergency replacement scenario. A 12-month warranty covers the unit from the date of shipment.

Q3: Can you support long-term or repeat procurement for legacy 21000 Series systems?
Yes. NINERMAS maintains ongoing inventory of 21000 Series components to support facilities operating legacy Bently Nevada systems beyond the original product lifecycle. We can accommodate blanket purchase orders, scheduled deliveries, and emergency same-day dispatch requests.

Q4: How do I verify compatibility before ordering if my system has been partially upgraded?
Provide your rack model, existing module part numbers, and System 1 software version to our technical team. We will confirm compatibility and advise on any configuration considerations before the order is placed, eliminating procurement risk for your maintenance team.
