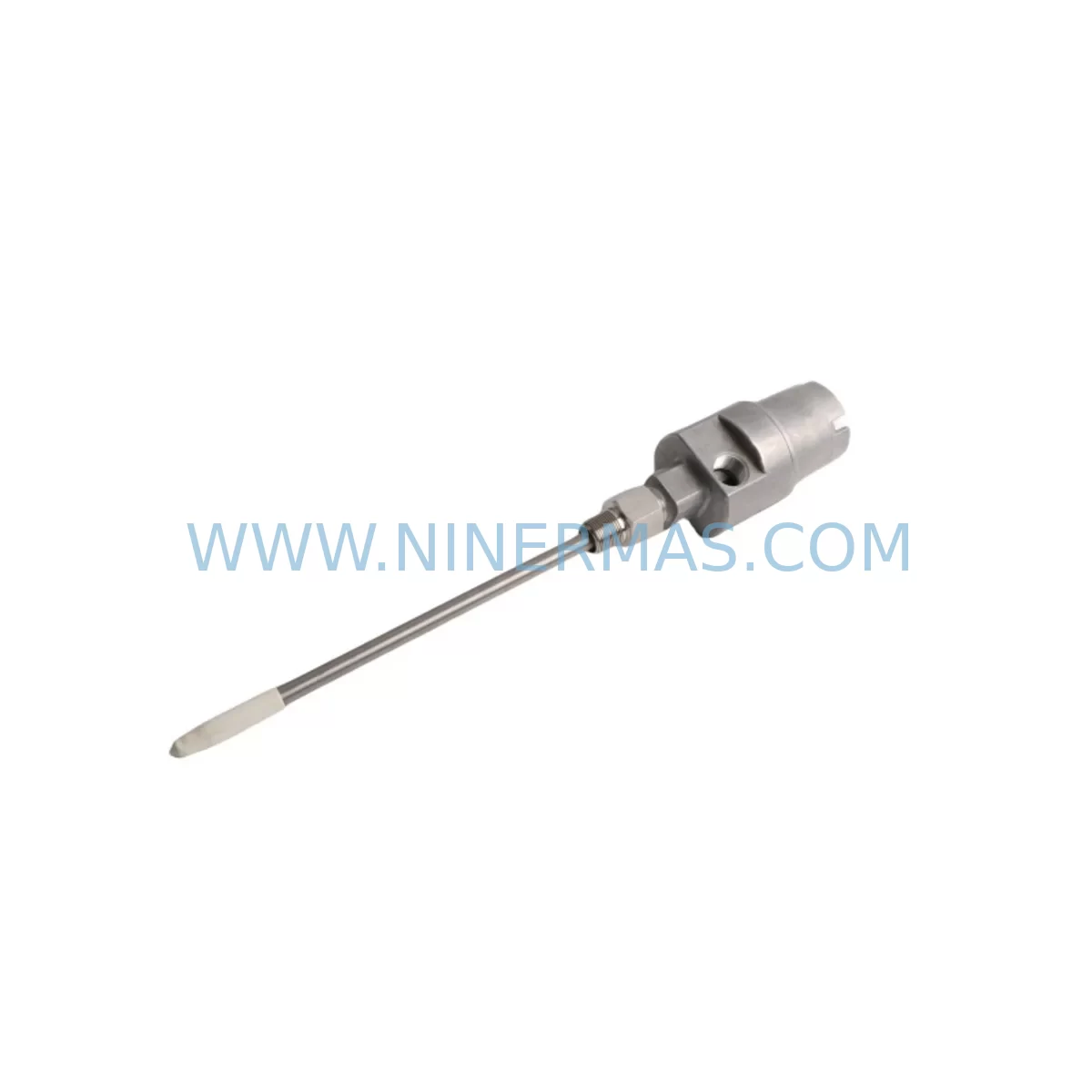

The Bently Nevada 21000-16-05-00-078-04-02 is a ruggedized probe housing module engineered for continuous vibration monitoring in demanding industrial environments. As a critical mechanical interface component within the Bently Nevada 21000 Series proximity probe system, this housing protects the transducer tip and maintains precise gap geometry between the probe and rotating shaft — a fundamental requirement for accurate Keyphasor, radial vibration, and axial position measurements. When this component fails or degrades, the entire vibration channel is compromised, creating blind spots in your machinery protection system and exposing rotating equipment to undetected fault conditions.

At NINERMAS, we supply the 21000-16-05-00-078-04-02 as a service-ready spare part, pre-inspected and tested prior to shipment, backed by a 12-month warranty. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a strategic spare parts inventory for a turbine train or compressor skid, this unit is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing turbomachinery protection systems, the probe housing is rarely a standalone failure. When replacing the 21000-16-05-00-078-04-02 housing, a thorough site inspection should extend to the complete vibration channel and adjacent monitoring infrastructure to prevent repeat failures and ensure measurement integrity after restart.

Begin with the 21000 Series proximity probe tip itself — inspect for tip damage, contamination, or wear caused by contact with the shaft or seal oil. The 21000 Series extension cable connecting the probe to the driver should be checked for jacket cracking, connector corrosion, and continuity. The proximitor / oscillator-demodulator driver (such as the Bently Nevada 3300 XL 8mm proximitor or equivalent 21000 Series driver) should be verified for correct output voltage and gap voltage within the linear range — typically −10 VDC at the calibrated gap.

At the rack level, inspect the Bently Nevada 3500/40M proximitor I/O module or the relevant 3500 Series monitor card for alarm setpoint integrity, OK relay status, and buffered output signal quality. If the machine train uses a Keyphasor module (such as the 3500/25 or 3500/17), verify that the once-per-revolution reference signal is clean and phase-locked — a degraded Keyphasor channel will corrupt all vector-based vibration analysis across the rack.

For power supply integrity, confirm that the 3500 Rack Power Supply module (primary and redundant, if fitted) is delivering stable DC rails. A marginal power supply can introduce noise floors that mimic real vibration events. Check the 3500 System 1 communication gateway or TDI (Transient Data Interface) module for firmware currency and network connectivity — these are often overlooked during mechanical maintenance windows but are essential for post-maintenance data validation and alarm acknowledgment.

Where the machine is part of a DCS-integrated protection loop, verify the 4–20 mA output signal from the monitor card to the DCS I/O marshalling cabinet. Inspect terminal blocks and signal isolators in the marshalling panel for loose terminations or isolation degradation. If the facility uses Bently Nevada System 1 Evolution software for online trending, confirm that the channel is re-enabled and alarm masks are cleared before returning the machine to service.

Procurement engineers building annual MRO budgets should consider stocking the probe housing alongside the extension cable and proximitor driver as a matched spare set. This approach eliminates the risk of a single-component stockout extending an unplanned outage beyond the critical recovery window.

Site Replacement Workflow

Replacing the 21000-16-05-00-078-04-02 ruggedized probe housing follows a structured procedure to minimize downtime and maintain system compatibility:

1. Isolation and Lockout: Isolate the vibration channel at the 3500 rack by placing the monitor in bypass or maintenance mode. This prevents spurious alarms or trips during probe removal. Document the existing gap voltage (typically recorded in the machine’s baseline data file) before disconnecting the extension cable.

2. Probe Removal: Unthread the existing probe assembly from the housing. Inspect the probe holder bore for contamination, thread damage, or seal oil ingress. Clean the bore before installing the replacement housing.

3. Housing Installation: Install the new 21000-16-05-00-078-04-02 housing into the probe bracket or nozzle, torquing to OEM specification. Reinstall the probe and set the air gap per the Bently Nevada calibration curve for the specific probe/driver combination — typically 1.0 mm (40 mil) for standard 8 mm probes, yielding −10 VDC output.

4. Signal Verification: Reconnect the extension cable and verify gap voltage at the proximitor driver. Confirm the OK relay is energized and the buffered output is within the linear range. Check for noise or signal dropout using the System 1 or rack front-panel display.

5. Return to Service: Remove the bypass, clear alarm masks, and confirm the channel is active in the DCS and machinery protection system. Log the replacement in the maintenance management system (CMMS) with the new part serial number and gap voltage reading for future reference.

This workflow supports a direct drop-in replacement of legacy 21000 Series housings without requiring rack reconfiguration or software changes, preserving system compatibility and reducing total maintenance labor time.

Spare Parts Support FAQ

Q1: Is the 21000-16-05-00-078-04-02 compatible with both the Bently Nevada 3300 and 3500 Series monitoring racks?
Yes. The 21000 Series probe housing is mechanically compatible with the full range of Bently Nevada proximity probe assemblies used with both the 3300 XL and 3500 Series monitoring systems. Compatibility is determined by the probe body diameter and thread specification — confirm the probe model number before ordering to ensure the housing bore matches your installed probe.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every unit supplied by NINERMAS is inspected for mechanical integrity, thread condition, and dimensional conformance before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or credited. Warranty claims require the original invoice and a brief failure description.

Q3: Can NINERMAS support long-term or repeat supply of 21000 Series spare parts for annual maintenance programs?
Yes. NINERMAS maintains ongoing sourcing relationships for Bently Nevada 21000 Series components, including probe housings, extension cables, proximitor drivers, and associated rack modules. We support blanket order arrangements and annual MRO supply agreements for facilities with multiple machine trains requiring scheduled spare parts replenishment.

Q4: What information should I provide to confirm compatibility before placing an order?
To confirm compatibility, provide the full part number (21000-16-05-00-078-04-02), the installed probe model number, the proximitor driver model, and the rack type (3300 or 3500 Series). If you have the machine’s vibration monitoring datasheet or the Bently Nevada system drawing, our technical team can cross-reference the housing specification and confirm suitability before shipment.
