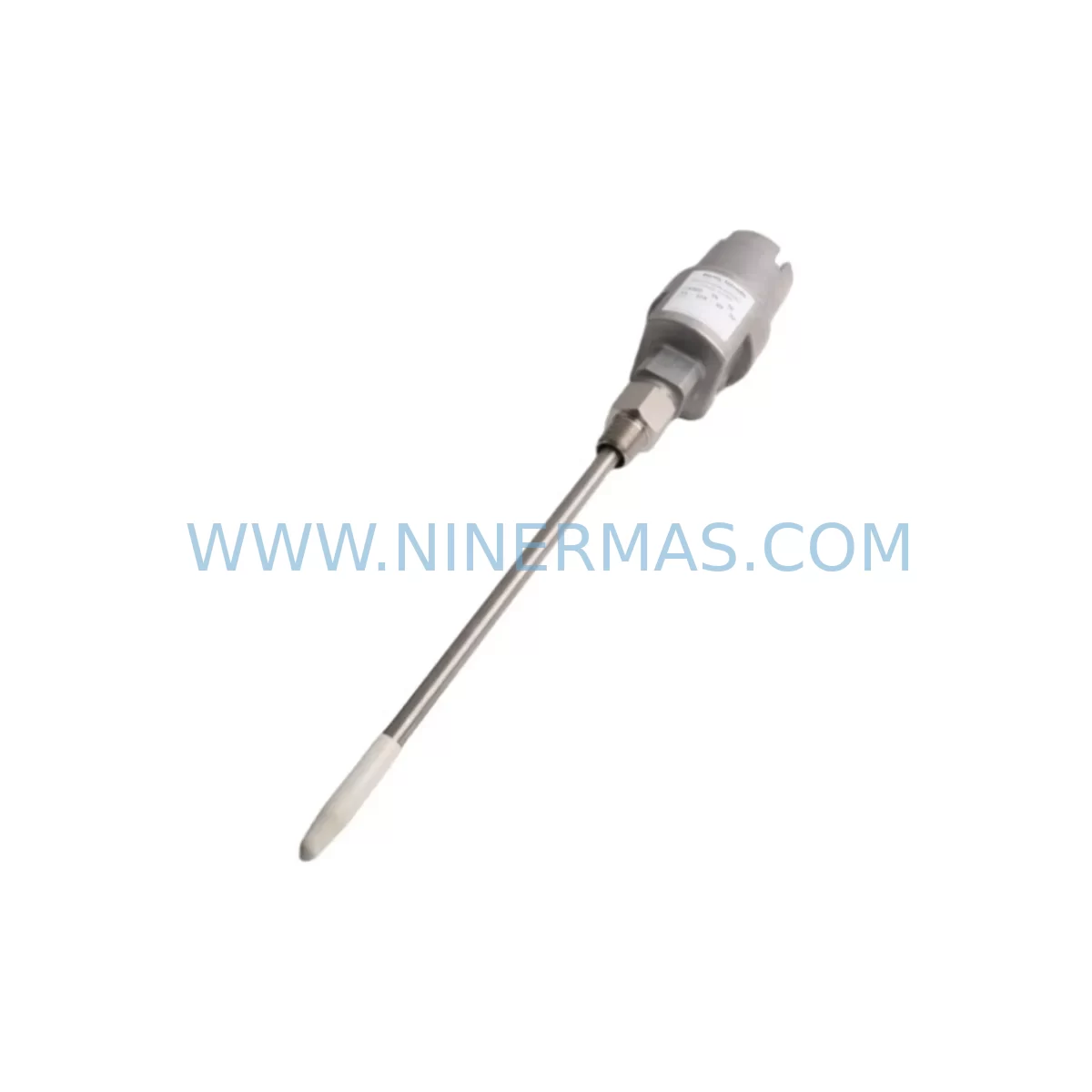

Bently Nevada 21000-00-00-15-085-03-02 Service-Ready Spare Part

Bently Nevada 21000-00-00-15-085-03-02 Service-Ready Spare Part: Spare Replacement and Downtime Risk Control

The Bently Nevada 21000-00-00-15-085-03-02 is a critical spare part within the 21000 Series condition monitoring platform, widely deployed in turbomachinery protection systems, rotating equipment surveillance, and industrial process control environments. For maintenance engineers managing compressors, turbines, pumps, and generators, maintaining a verified stock of this module is a fundamental element of any proactive maintenance strategy. Unplanned downtime caused by a failed vibration monitoring channel can cascade into production loss, safety shutdowns, and costly emergency procurement — all of which are avoidable with a properly managed spare parts inventory.

The 21000 Series by Bently Nevada is engineered for continuous, high-reliability operation in demanding industrial environments. The 21000-00-00-15-085-03-02 variant is specified for precise vibration signal conditioning and monitoring, making it indispensable in facilities where rotating machinery health is monitored around the clock. Whether you are performing a scheduled annual overhaul, responding to a fault alarm, or building a resilience-focused spare parts kit for your control cabinet, this module represents a non-negotiable line item in your maintenance BOM.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21000-00-00-15-085-03-02 in the field, a thorough maintenance engineer will not stop at the module itself. The 21000 Series rack architecture means that adjacent components share power rails, signal buses, and backplane connectors — any of which may have contributed to the original fault or may be at risk of imminent failure.

Begin by inspecting the 21000 Series rack backplane for signs of corrosion, bent connector pins, or thermal stress. A compromised backplane can cause intermittent faults that are misdiagnosed as module failures. Next, verify the Bently Nevada power supply module feeding the rack — an under-voltage or ripple condition will degrade monitoring accuracy and shorten module life. If the facility uses 3500 Series or 3300 Series Bently Nevada monitors in adjacent panels, cross-check their power conditioning as well, since shared UPS or DC distribution faults are a common root cause of multi-module failures.

Inspect all proximity probe extension cables and Bently Nevada proximitor sensors connected to this channel. Cable insulation breakdown, connector oxidation, or improper gap settings will produce false readings even after a new module is installed. For facilities running eddy-current proximity systems, confirm that the proximitor output voltage is within the specified linear range before declaring the replacement successful.

During annual overhauls, it is best practice to simultaneously audit the I/O terminal blocks and signal isolators in the same cabinet. Loose terminations and degraded isolation barriers are leading causes of noise-induced alarms in vibration monitoring circuits. If the system interfaces with a DCS or safety PLC via 4–20 mA or digital outputs, verify the integrity of those signal paths and the corresponding input cards on the DCS side.

For facilities with older installations, consider stocking the 21000-00-00-15-085-03-02 alongside compatible Bently Nevada keyphasor modules, communication gateway modules, and system display or HMI interface cards. A single-point spare strategy that covers the full signal chain — from sensor to control room — dramatically reduces mean time to repair (MTTR) when a fault occurs during a critical production window.

Site Replacement Workflow

Replacing the 21000-00-00-15-085-03-02 on-site is a straightforward process when the correct spare is on hand and the replacement procedure is pre-planned:

1. Isolate the channel: Inhibit the monitoring channel at the DCS or safety system to prevent spurious trips during module swap.
2. Document current configuration: Record all channel configuration parameters, alarm setpoints, and gap voltages before removal.
3. Remove the faulty module: Follow Bently Nevada rack extraction procedures; avoid applying lateral force to the backplane connector.
4. Inspect the slot: Check the backplane connector and rack slot for debris, corrosion, or damage before inserting the replacement.
5. Install the 21000-00-00-15-085-03-02: Seat the module firmly, verify the locking mechanism, and restore power to the rack.
6. Restore configuration: Re-enter or download the saved channel configuration; verify gap voltage and signal output against baseline values.
7. Return to service: Remove the channel inhibit, confirm alarm functionality, and document the replacement in the maintenance log.

This workflow minimizes downtime and ensures that the replacement module is correctly commissioned before the system is returned to full protective operation. Pre-tested, original spare parts like the 21000-00-00-15-085-03-02 from NINERMAS eliminate the risk of receiving counterfeit or non-functional modules during emergency procurement.

Spare Parts Support FAQ

Q1: Is the 21000-00-00-15-085-03-02 a direct drop-in replacement for the existing module in my 21000 Series rack?
A: Yes. The 21000-00-00-15-085-03-02 is an original Bently Nevada part designed for direct installation in compatible 21000 Series racks. No hardware modification is required. Always verify your rack revision and channel configuration against the module’s specification sheet before installation to confirm full compatibility.

Q2: What is the recommended spare parts inventory strategy for 21000 Series monitoring systems?
A: For critical rotating equipment applications, we recommend maintaining a minimum of one spare 21000-00-00-15-085-03-02 per monitored machine train, plus one additional unit as a floating spare for the facility. For plants with multiple 21000 Series racks, a pooled spare strategy with at least two units on-site significantly reduces procurement lead time risk during unplanned outages.

Q3: How is the module tested before shipment?
A: All units supplied by NINERMAS undergo pre-shipment functional verification to confirm that the module powers up correctly, outputs are within specification, and no physical damage is present. Each unit is shipped with appropriate anti-static and protective packaging to maintain its service-ready condition during transit.

Q4: What does the 12-month warranty cover, and what is the long-term supply commitment?
A: The 12-month warranty covers defects in materials and workmanship under normal operating conditions. NINERMAS maintains long-term sourcing relationships to support legacy Bently Nevada 21000 Series installations, including systems that are no longer in active production. Contact our team for volume pricing, scheduled delivery programs, and extended support agreements tailored to your maintenance planning cycle.
