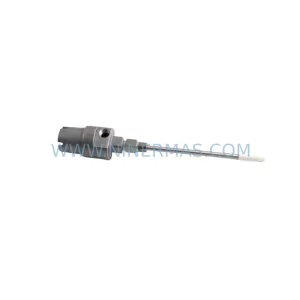

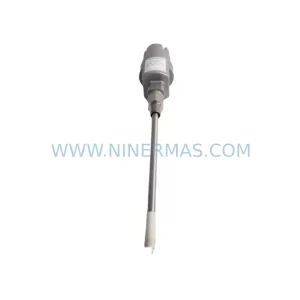

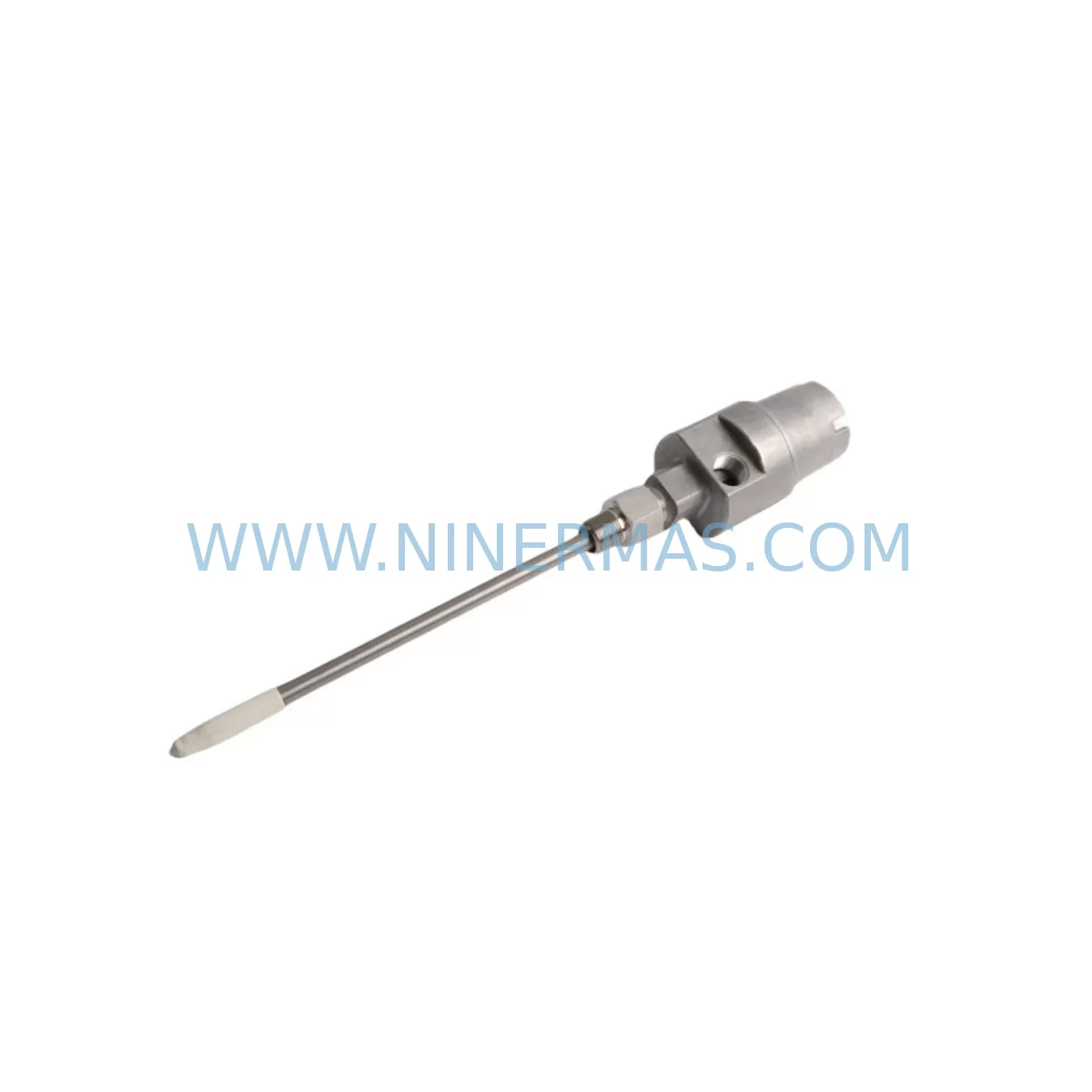

Bently Nevada 21000-00-00-00-065-04-02 Retrofit Module

Bently Nevada 21000-00-00-00-065-04-02 Retrofit Module: Legacy System Compatibility & Smooth Upgrade

The Bently Nevada 21000-00-00-00-065-04-02 is a vibration monitoring module from the renowned Bently Nevada 21000 Series, widely deployed across rotating machinery protection systems in power generation, oil & gas, petrochemical, and heavy industrial environments. As original equipment manufacturers phase out legacy platforms and spare parts become increasingly scarce, this module remains a critical component for facilities seeking to extend the operational life of their existing monitoring infrastructure without committing to a full system overhaul.

NINERMAS maintains verified inventory of the 21000-00-00-00-065-04-02, sourced through authorized channels and subjected to outgoing functional testing prior to shipment. Each unit is backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to plan long-term retrofit and replacement strategies around a reliable supply chain.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 21000-00-00-00-065-04-02, maintenance teams must approach the project systematically to avoid unplanned downtime and signal integrity issues. The 21000 Series rack architecture typically houses multiple monitoring modules within a shared backplane, meaning that replacing a single card requires careful attention to the overall system configuration.

Before pulling the existing module, engineers should document the current terminal wiring using the original as-built drawings. The Bently Nevada 3500/22M Transient Data Interface and 3500/42M Proximitor/Seismic Monitor are commonly found in adjacent slots within upgraded panels, and their presence may affect available rack space and backplane addressing. If the facility has already partially migrated to the Bently Nevada 3500 Series platform, the 21000-00-00-00-065-04-02 can serve as a bridging solution while the full migration is planned and budgeted.

Power supply capacity is a frequent oversight in legacy retrofits. The existing Bently Nevada 21000 Series power supply module must be verified to support the load of all installed cards, particularly if additional I/O modules or communication cards have been added since the original installation. In cases where the rack PSU is marginal, a supplementary Bently Nevada 21000 Series redundant power supply should be considered before the replacement module is energized.

For facilities running System 1 condition monitoring software, the replacement module must be recognized by the software configuration. This typically requires re-mapping the module address within the System 1 database and verifying that the associated Keyphasor module reference remains intact. If the plant uses a Bently Nevada TDI (Transient Data Interface) for startup and coast-down capture, the data acquisition settings should be re-validated after the swap to ensure no transient events are missed during the commissioning window.

Wiring adaptation is another key consideration. The 21000-00-00-00-065-04-02 uses a specific terminal block layout that must be matched against the existing field cable terminations. In older installations, the field cables may terminate on Bently Nevada junction boxes or marshalling panels, and the signal routing must be traced back to confirm correct channel assignment. Proximity probe cables, velocity transducer leads, and accelerometer signal cables each have distinct impedance and sensitivity characteristics that must be preserved through the replacement process.

If the retrofit is part of a broader control system upgrade that includes migration from a legacy DCS or PLC platform, the vibration monitoring outputs — typically 4–20 mA analog signals or relay contacts — must be re-terminated at the new control system I/O cards. In such cases, signal isolators or signal conditioners may be required to bridge the impedance mismatch between the 21000 Series outputs and modern PLC analog input modules.

Downtime Control During System Migration

Minimizing production downtime during a vibration monitor replacement is a primary concern for any rotating machinery protection system. The 21000-00-00-00-065-04-02 replacement process can typically be completed within a planned maintenance window if the following precautions are observed.

First, the replacement module should be bench-tested and verified functional before the maintenance window begins. NINERMAS performs outgoing functional testing on all units, but on-site pre-installation verification using a portable calibrator or signal simulator is strongly recommended for critical machinery applications. This eliminates the risk of discovering a configuration issue mid-shutdown.

Second, the original program logic and HMI alarm setpoints associated with the vibration channels must be documented and backed up before the module is removed. In facilities using Bently Nevada System 1 or a third-party SCADA platform, the alarm thresholds, danger setpoints, and OK relay logic should be exported and stored offline. This ensures that the replacement module can be configured to match the original protection philosophy without relying on institutional memory.

Third, the communication link between the monitoring rack and the plant DCS or safety system should be tested immediately after the replacement module is installed and addressed. Any interruption in the 4–20 mA output or relay contact status during the switchover must be coordinated with the control room to prevent spurious trips or missed alarms. Where possible, the machinery should remain offline until the full channel verification is complete and the protection system has been returned to its normal operating state.

Finally, the commissioning record — including module serial number, installation date, terminal verification, signal level readings, and alarm setpoint confirmation — should be filed in the plant maintenance management system. This documentation supports future spare parts planning and provides a clear audit trail for regulatory compliance and insurance purposes.

Retrofit Support FAQ

Q1: Is the 21000-00-00-00-065-04-02 a direct drop-in replacement for the original module?
A: In most cases, yes. The module is designed to fit the standard 21000 Series rack slot and uses the same backplane interface. However, customers should verify the firmware revision and any site-specific configuration settings before installation, as minor hardware revisions may require updated System 1 database entries.

Q2: What wiring checks are required before installing the replacement module?
A: Technicians should verify terminal block pinout against the original as-built wiring diagram, confirm field cable shield grounding, and check transducer signal levels at the terminal block before energizing the new module. Any discrepancies should be resolved before the module is inserted into the rack.

Q3: Does NINERMAS perform functional testing before shipment?
A: Yes. All units are tested prior to shipment. Each module is covered by a 12-month warranty from the date of shipment. Customers requiring specific test reports or certificates of conformance should contact our sales team at sale@ninermas.com prior to placing an order.

Q4: What is the typical lead time and stock availability?
A: NINERMAS maintains stock of the 21000-00-00-00-065-04-02 and can typically ship within 1–3 business days of order confirmation. For urgent requirements or large quantity orders, please contact our team directly to confirm current inventory levels and expedited shipping options.
