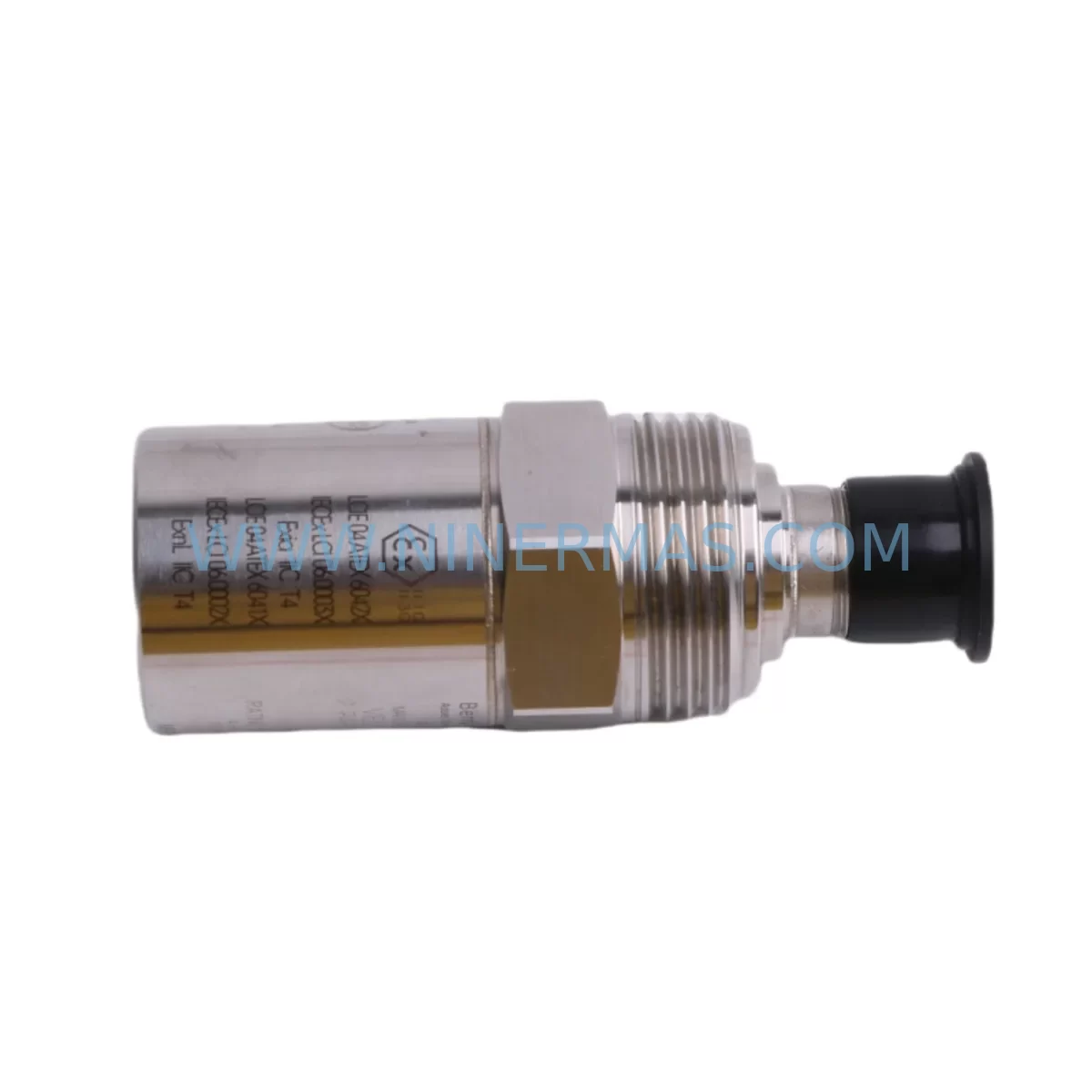

Bently Nevada 190501-14-99-04 Retrofit-Compatible Velocity Transducer

Bently Nevada 190501-14-99-04 Retrofit-Compatible Velocity Transducer for Legacy System Upgrades

The Bently Nevada 190501-14-99-04 is a high-reliability velocity transducer engineered for seamless integration into existing machinery protection and condition monitoring systems. As legacy Bently Nevada 3300 series installations approach end-of-life or face discontinued spare part availability, the 190501-14-99-04 serves as a proven retrofit-compatible replacement that preserves original signal integrity, mounting geometry, and output characteristics — minimizing engineering rework and reducing total downtime during system migration.

Whether you are upgrading a turbine protection panel, retrofitting a compressor train monitoring rack, or restoring a legacy vibration monitoring loop, the 190501-14-99-04 delivers the mechanical and electrical compatibility required for a smooth, low-risk transition. Its rugged construction meets the demands of continuous industrial operation in petrochemical, power generation, and heavy manufacturing environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Bently Nevada 190501-14-99-04 into a legacy machinery protection system requires a structured pre-installation review. Engineers should begin by auditing the existing 3300 Series Velocity Monitor input card to confirm channel sensitivity settings and full-scale range, as mismatched sensitivity will produce erroneous vibration readings and may trigger nuisance trips or mask genuine fault conditions.

Terminal wiring is a critical checkpoint. The field cable from the transducer typically terminates at a 3300/16 or 3300/20 monitor module terminal block. Verify polarity, shield grounding practice, and cable impedance before energizing the loop. Where the original cable is degraded or undersized, replacement with a shielded twisted-pair instrument cable rated for the ambient temperature is strongly recommended.

For installations where the 190501-14-99-04 is being introduced alongside a broader control system upgrade — for example, migrating from a legacy 3300 Series rack to a 3500 Series machinery protection system — engineers must re-map channel addresses and update the System 1 Evolution software configuration to reflect the new transducer sensitivity and alarm setpoints. The 3500/42M Proximitor/Seismic Monitor is a common target card in such migrations and accepts velocity transducer inputs with appropriate configuration.

Where the control architecture includes a Bently Nevada 3500/20 Rack Interface Module (RIM) communicating to a DCS or safety system via Modbus or Ethernet, the transducer channel data will propagate automatically once the monitor card is correctly configured — no additional protocol gateway is required in most cases. However, if the plant DCS uses a Rockwell ControlLogix or Siemens S7-300 platform with a third-party OPC-DA or OPC-UA bridge, verify that the tag mapping for the velocity channel is updated to reflect the new module address.

In applications where the 190501-14-99-04 is installed alongside 3300/65 Tachometer Modules or 3500/53 Overspeed Detection Modules, confirm that the speed reference signal is unaffected by the transducer swap. Turbine protection logic often interlocks vibration, speed, and temperature channels — a change in one sensor’s address or scaling can inadvertently affect trip logic across the entire protection group.

For control cabinets with limited space, verify the physical envelope of the 190501-14-99-04 against the existing probe body. In tight bearing housing installations, the cable exit direction and connector profile may require a right-angle adapter or a custom cable assembly. Document the as-installed configuration with photographs before and after replacement to support future maintenance records.

Downtime Control During System Migration

Minimizing production interruption during a velocity transducer replacement requires careful pre-outage preparation. Before the planned maintenance window, obtain a full backup of the existing 3500 Series rack configuration using Bently Nevada’s rack configuration software. This preserves all alarm setpoints, full-scale ranges, channel assignments, and communication parameters — ensuring that if the migration encounters an unexpected issue, the original configuration can be restored rapidly.

Where the process cannot tolerate a full shutdown, consider a phased approach: install the 190501-14-99-04 in bypass mode with the monitor channel placed in Alert Bypass during the physical swap, then restore monitoring once the transducer is confirmed operational. This approach maintains overall system availability while the individual channel is being serviced.

Preserve the original program logic in the associated PLC or DCS by exporting and archiving the current ladder logic or function block diagram before any wiring changes are made. If the HMI faceplate for the affected machine train displays velocity trend data, confirm that the historian tag and display scaling are updated to match the new transducer’s output range — mismatched scaling will produce misleading trend data even if the physical installation is correct.

After installation, perform a bench verification of the 190501-14-99-04 output using a calibrated shaker table or signal simulator before returning the machine to service. Confirm that the monitor card displays expected readings across the full velocity range, that alarm and danger setpoints activate correctly, and that the signal appears correctly on the System 1 or DCS trend display. Document the commissioning test results and retain them with the equipment maintenance record.

All units supplied by NINERMAS are pre-tested prior to shipment and include a factory test report. Stock is maintained for immediate dispatch, supporting urgent breakdown replacement scenarios where extended lead times are not acceptable. A 12-month warranty is provided from the date of shipment.

Retrofit Support FAQ

Q: Is the 190501-14-99-04 a direct drop-in replacement for the original Bently Nevada velocity transducer in my 3300 series system?
A: In most installations, yes. The 190501-14-99-04 maintains the same output sensitivity and mounting interface as the original design. However, you should verify the thread specification of your existing mounting boss and the connector type on your field cable before installation to confirm compatibility without modification.

Q: What wiring checks should I perform before replacing the transducer?
A: Confirm the field cable shield is grounded at one end only (typically at the monitor rack), verify conductor polarity at the terminal block, and check cable insulation resistance. If the existing cable shows signs of degradation — cracking, moisture ingress, or high insulation resistance — replace it concurrently with the transducer to avoid introducing a new fault source.

Q: Can the 190501-14-99-04 be used with a 3500 Series monitor card as part of a system upgrade?
A: Yes. The 190501-14-99-04 is compatible with 3500 Series input cards configured for velocity transducer inputs, including the 3500/42M. Ensure the channel sensitivity setting in the rack configuration software matches the transducer’s rated output (mV per mm/s) and that the full-scale range is set appropriately for your machine’s expected vibration levels.

Q: What does the 12-month warranty cover, and how quickly can units be shipped?
A: The 12-month warranty covers manufacturing defects and confirmed functional failures under normal operating conditions, commencing from the date of shipment. Each unit is pre-tested before dispatch and ships with a test report. In-stock units are available for same-day or next-business-day dispatch depending on order confirmation time. Contact our team for current stock status and lead time confirmation.
