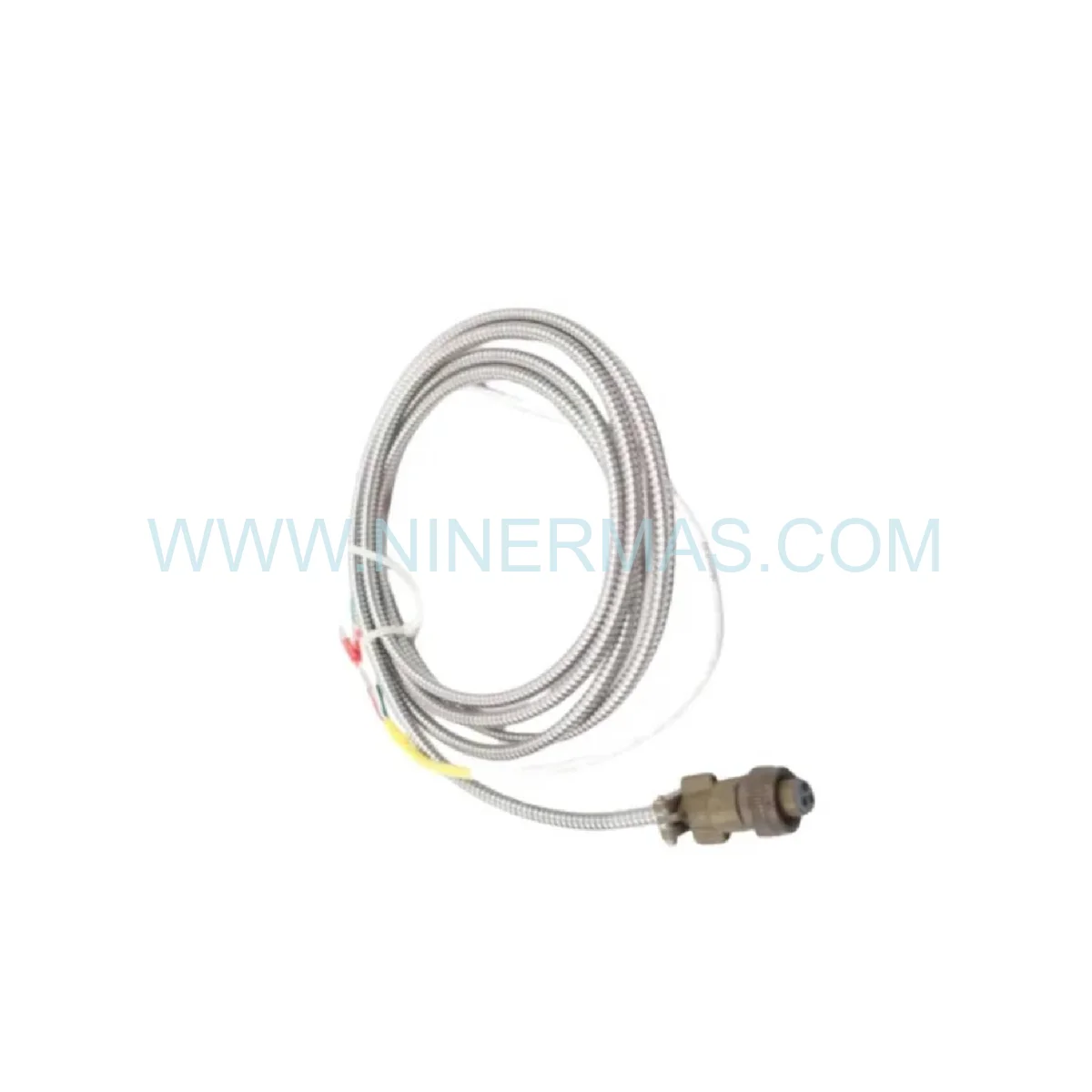

Bently Nevada 16710-08 Interconnect Cable (3300 Series) – New & Original in Stock

Bently Nevada 16710-08 Interconnect Cable | Reliable Automation Component for 3300 Series

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing rotating machinery protection systems, the Bently Nevada 16710-08 is far more than a passive conductor — it is a mission-critical link in the signal chain that determines whether your vibration monitoring system delivers actionable data or introduces measurement uncertainty. In turbomachinery protection architectures, the 16710-08 interconnect cable bridges proximity probes and 3300 Series signal conditioners with precision 50-ohm impedance matching, preserving waveform fidelity across the full diagnostic frequency spectrum. Its role in sustaining system availability cannot be overstated: a degraded cable is often the silent root cause behind erratic trip events and false alarms that erode operator confidence.

Engineered for deployment in harsh industrial environments, the Bently Nevada 16710-08 features a dual foil-braid shield rated at 95% coverage, a polyurethane (PUR) outer jacket resistant to hydrocarbons, mechanical abrasion, and UV exposure, and an operating temperature envelope of -40°C to +105°C. During installation, engineers must observe a minimum bend radius of 10 the cable diameter to prevent shield deformation and maintain capacitance uniformity. Connector torque should be applied to hand-tight plus one-quarter turn — over-tightening M8 threaded fittings is a common field error that compromises long-term contact integrity.

For maintenance planners operating under reliability-centered maintenance (RCM) frameworks, stocking the 16710-08 as a critical spare is a low-cost, high-impact strategy. Given that this model is classified as an end-of-life (EOL) component in some procurement catalogs, securing verified original inventory ahead of scheduled outages eliminates the risk of sourcing delays during unplanned shutdowns — where every hour of downtime translates directly into production loss.

Key Operational Features

Precision 50-Ohm Impedance: Ensures signal integrity and eliminates reflections in 3300 Series proximity measurement chains — foundational to Operational Excellence in vibration diagnostics.
Dual Foil-Braid EMI Shielding (95% Coverage): Rejects electromagnetic and radio-frequency interference generated by VFDs, switchgear, and high-current bus bars in electrically dense control rooms.
Industrial PUR Jacket: Resists oils, solvents, and mechanical stress — purpose-built for Process Optimization environments where cable routing passes through aggressive media zones.
Factory-Terminated M8 Connectors: Eliminates field termination variability; each connector is factory-tested for contact resistance and pull-out force, supporting Seamless Integration into existing 3300 rack assemblies.
Wide Thermal Range (-40°C to +105°C): Qualified for arctic compressor stations, tropical offshore platforms, and high-ambient turbine enclosures without derating.
Low Capacitance (96 pF/m): Minimizes phase shift and signal attenuation, preserving measurement accuracy for high-frequency shaft dynamic analysis.

Maintenance & Performance Benchmarks

The 16710-08 is designed to slot into both small-scale single-machine monitoring setups and large distributed turbomachinery protection networks without modification. In compact installations — such as a single compressor train with four measurement planes — the 8-foot (2.4 m) cable length provides sufficient routing margin within a standard 19-inch rack enclosure, keeping cable management clean and accessible for periodic inspection.

In larger industrial network architectures, such as a combined-cycle power plant with multiple gas turbines, steam turbines, and boiler feed pumps, the 16710-08 serves as the final-segment interconnect between junction boxes and rack-mounted I/O Modules. Its consistent electrical characteristics across production batches ensure that multi-channel systems maintain channel-to-channel measurement uniformity — a critical requirement for orbit plot analysis and differential expansion trending.

Benchmark data from field deployments indicates that properly installed 16710-08 cables maintain insulation resistance above 100 MΩ and shield continuity below 1 ohm throughout a 5-year service interval under normal operating conditions. Scheduled verification at each major outage — using a calibrated LCR meter to confirm capacitance within ±5% of nominal — is recommended as part of a proactive System Integration health check protocol.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Bently Nevada 16710-08 unit dispatched from our inventory is shipped in original factory packaging with full traceability documentation, including manufacturer part labels and batch identification. This ensures that receiving inspection teams can verify authenticity without additional testing overhead — a critical requirement for facilities operating under ISO 55001 asset management or API 670 compliance frameworks.

For urgent maintenance scenarios, same-day dispatch is available for in-stock units when orders are confirmed before the daily logistics cutoff. We maintain dedicated buffer stock of EOL and legacy Automation Components specifically to support customers whose installed base relies on discontinued part numbers. Global express freight options — including DHL Express, FedEx International Priority, and UPS Worldwide Expedited — are available to all major industrial regions, with typical transit times of 3-7 business days to most destinations.

Procurement teams managing multi-site operations can request consolidated shipments or blanket purchase order arrangements to optimize freight costs while maintaining guaranteed availability for planned outage windows.

Engineering Support & FAQ

Q1: What are the recommended installation steps for the 16710-08 in a 3300 Series rack?
A: Begin by verifying rack power is isolated. Route the cable from the proximity probe junction point to the target monitor slot, maintaining separation from power conductors. Hand-tighten M8 connectors, then apply one-quarter turn with a calibrated torque tool. Verify shield continuity (<1 ohm) and insulation resistance (>100 MΩ) before energizing the system.

Q2: Which firmware versions of the 3300 Series monitors are compatible with the 16710-08?
A: The 16710-08 is a passive cable assembly with no firmware dependency. It is electrically compatible with all 3300 Series monitor revisions, including early-generation and current-production units. Firmware compatibility concerns apply to the monitor modules themselves, not the interconnect cable.

Q3: How do I initiate a warranty claim if the cable fails within the warranty period?
A: Contact our technical support team at sale@ninermas.com with your order number, a description of the observed failure mode, and photographic documentation of the cable condition. We will issue a Return Merchandise Authorization (RMA) and arrange replacement dispatch within 2 business days of claim approval.

Q4: Can the 16710-08 be used in intrinsically safe (IS) or explosion-proof (Ex) installations?
A: The 16710-08 cable itself does not carry standalone IS certification. For hazardous area installations, the complete measurement loop — including probes, barriers, cables, and monitors — must be evaluated as a system against applicable IECEx or ATEX standards. Consult your safety system engineer before deploying in classified zones.

Q5: What is the maximum allowable total cable length for a 3300 Series proximity measurement chain?
A: Per Bently Nevada system design guidelines, total cable length (probe cable + extension cable + interconnect) should not exceed 30 meters for standard 3300 configurations. Exceeding this limit may introduce capacitive loading that degrades signal amplitude and phase accuracy. Consult factory documentation for your specific monitor model’s cable length budget.

Q6: Is the 16710-08 still in production, or is it an EOL component?
A: The 16710-08 has been classified as an end-of-life (EOL) part in some regional catalogs. We maintain verified original inventory specifically to support legacy 3300 Series installations. Contact us for current stock availability and lead time confirmation before scheduling your maintenance window.
