Bently Nevada 138493-01 Service-Ready Spare Part: Minimizing Downtime in Vibration Monitoring Systems

The Bently Nevada 138493-01 is an original proximity transducer engineered for the Bently Nevada 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are maintaining turbines, compressors, pumps, or gearboxes in oil & gas, power generation, petrochemical, or heavy manufacturing environments, keeping a verified spare of the 138493-01 on hand is a fundamental element of any responsible predictive maintenance strategy.

When a proximity transducer fails in a 3300 XL monitoring loop, the consequences extend far beyond a single sensor. The entire channel — including the associated Bently Nevada 3300 XL proximitor/seismic transducer (extension cable and proximitor module) — must be verified before returning the loop to service. Maintenance engineers who have managed unplanned shutdowns understand that sourcing a replacement transducer under emergency conditions is both costly and time-consuming. Stocking the 138493-01 as a certified service-ready spare eliminates that risk entirely.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 138493-01 proximity transducer is rarely an isolated task. A disciplined maintenance engineer will treat a transducer replacement as an opportunity to audit the entire vibration monitoring loop and adjacent control infrastructure. During the same maintenance window, it is strongly recommended to inspect and verify the following components:

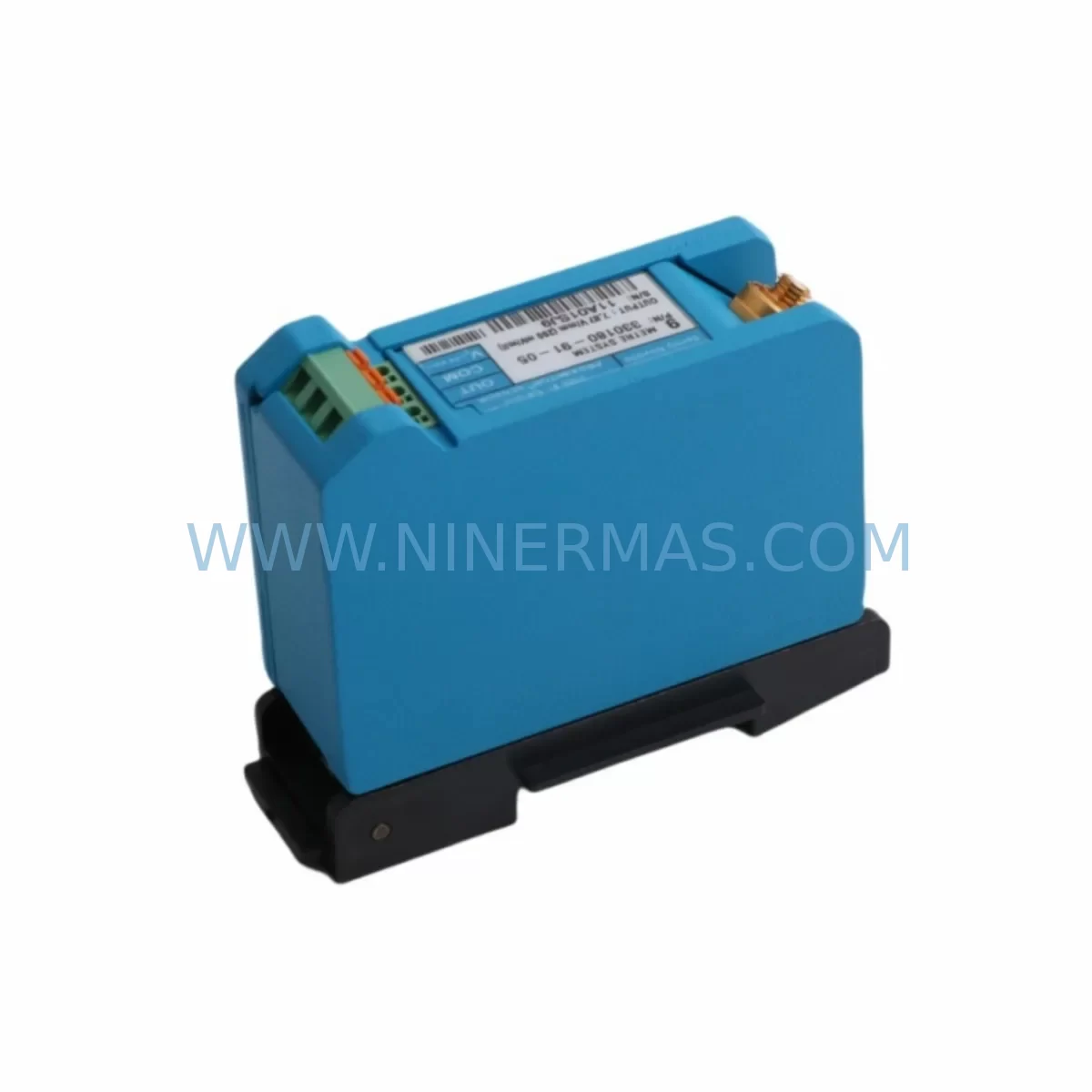

The Bently Nevada 3300 XL extension cable (typically 5-metre or 9-metre armored cable) connects the transducer to the proximitor module and is subject to mechanical fatigue, connector corrosion, and insulation degradation in high-vibration or high-temperature environments. A worn extension cable will produce erratic gap readings even with a new transducer installed. Similarly, the Bently Nevada 3300 XL proximitor module — the signal conditioning unit that converts the transducer’s impedance change into a usable DC voltage — should be bench-tested or swapped with a known-good spare if the channel has exhibited intermittent faults.

Within the Bently Nevada 3500 Series monitoring rack, the associated I/O module and the rack’s internal power supply should be checked for output voltage stability. The 3500 rack’s power supply module (3500/15) provides regulated DC power to all monitoring cards; a marginal power supply can cause false alerts across multiple channels simultaneously. If the plant operates a 3500/22M transient data interface or a 3500/42M proximitor I/O module, verify that the channel configuration and alarm setpoints remain intact after the transducer swap.

For facilities running integrated machinery protection with a DCS or safety instrumented system (SIS), confirm that the 4–20 mA output or relay contact from the 3500 rack is correctly received at the DCS I/O card or safety relay module after replacement. Communication modules such as the 3500/92 communication gateway should also be verified to ensure that vibration data is correctly transmitted to the plant historian or condition monitoring software.

Procurement engineers should also consider maintaining buffer stock of proximity transducer mounting hardware, including lock nuts, jam nuts, and armored conduit fittings, as these consumable items are frequently overlooked in spare parts planning but can delay a transducer installation by hours if not available on-site.

Site Replacement Workflow

Replacing the Bently Nevada 138493-01 in the field follows a structured procedure to ensure system compatibility and minimize loop downtime:

1. Pre-Replacement Verification: Confirm the replacement unit’s part number matches the installed transducer. Verify the 3300 XL system configuration — including gap voltage, scale factor (typically 200 mV/mil), and alarm setpoints — before removing the existing transducer. Document the current gap reading from the proximitor output.

2. Safe Isolation: Coordinate with operations to place the monitored machine in a safe state. Bypass the associated monitoring channel in the 3500 rack to prevent spurious trips during the replacement procedure. Follow site-specific lockout/tagout (LOTO) procedures.

3. Transducer Removal and Installation: Remove the existing 138493-01 transducer, noting the thread engagement depth and gap distance. Install the replacement transducer, setting the gap to the OEM-specified nominal value (typically 50 mil / 1.27 mm) using a calibrated gap-setting tool. Torque the lock nut to specification to prevent gap drift under vibration.

4. Loop Verification: With the machine at rest, verify the proximitor output voltage corresponds to the set gap distance. Check the extension cable for continuity and shield integrity. Confirm the 3500 rack channel displays a valid, stable reading within the expected range before removing the bypass.

5. Return to Service: Remove the channel bypass, confirm alarm setpoints are active, and document the completed replacement in the plant maintenance management system (CMMS). Update the spare parts inventory to trigger replenishment of the consumed 138493-01 unit.

This structured approach ensures that the replacement of a single proximity transducer does not introduce new failure modes and that the monitoring system is fully functional before the machine returns to load.

Spare Parts Support FAQ

Q1: Is the 138493-01 compatible with both the Bently Nevada 3300 XL and 3500 Series monitoring systems?
Yes. The 138493-01 proximity transducer is designed for the 3300 XL transducer system and is fully compatible with 3500 Series monitoring racks when used with the appropriate 3300 XL proximitor module and extension cable. Always verify the complete system configuration — transducer, extension cable, and proximitor — to ensure matched scale factors and gap ranges before installation.

Q2: How do you verify the 138493-01 is genuine and functional before shipment?
Every 138493-01 unit supplied by NINERMAS undergoes pre-shipment functional testing, including impedance verification and output linearity checks. Units are inspected for physical integrity — tip condition, connector pins, cable jacket, and thread condition — before packaging. A 12-month warranty is provided on all supplied units, covering defects in materials and workmanship under normal operating conditions.

Q3: What is the recommended inventory strategy for the 138493-01 in a critical rotating machinery application?
For critical machinery (turbines, compressors, large pumps) monitored by Bently Nevada 3300 XL or 3500 Series systems, industry best practice recommends maintaining a minimum of one spare transducer per monitored shaft, plus one additional unit per monitoring rack as a general buffer. For plants with multiple identical machines, a shared pool of 2–3 units is typically sufficient. Spare transducers should be stored in their original packaging in a clean, dry environment away from strong magnetic fields, and inventoried annually to confirm condition.

Q4: Can NINERMAS support long-term or repeat supply of the 138493-01 for annual maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation and machinery protection systems, including Bently Nevada 3300 XL and 3500 Series components. We support annual maintenance contracts, blanket purchase orders, and scheduled delivery programs to ensure your spare parts inventory remains current without emergency procurement risk. Contact our team to discuss volume pricing and supply agreements tailored to your maintenance schedule.
